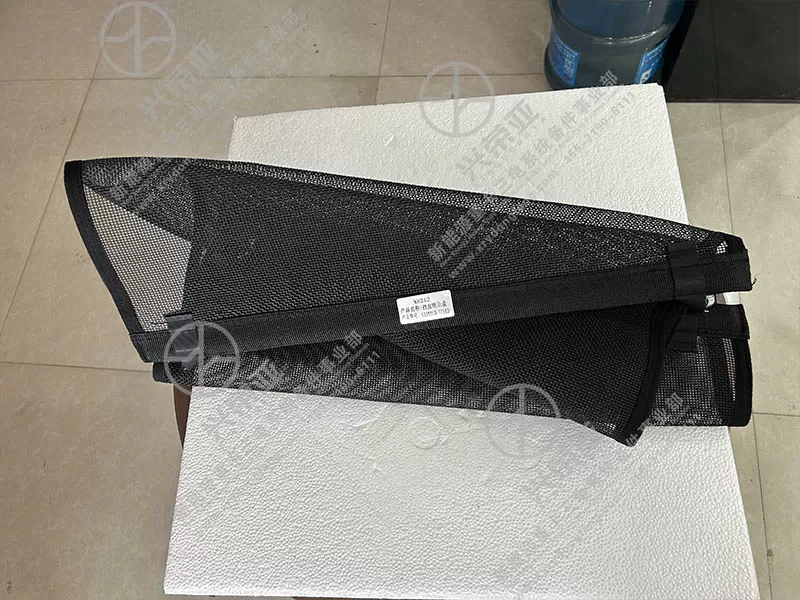

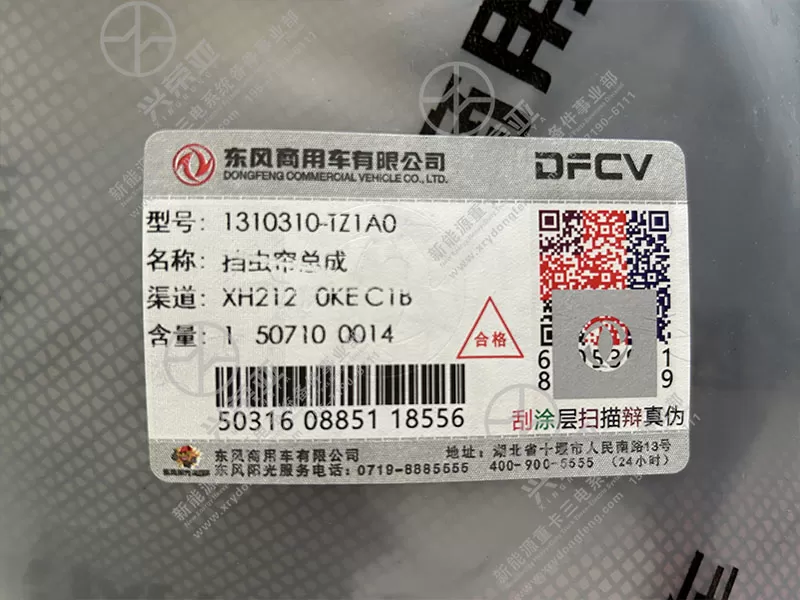

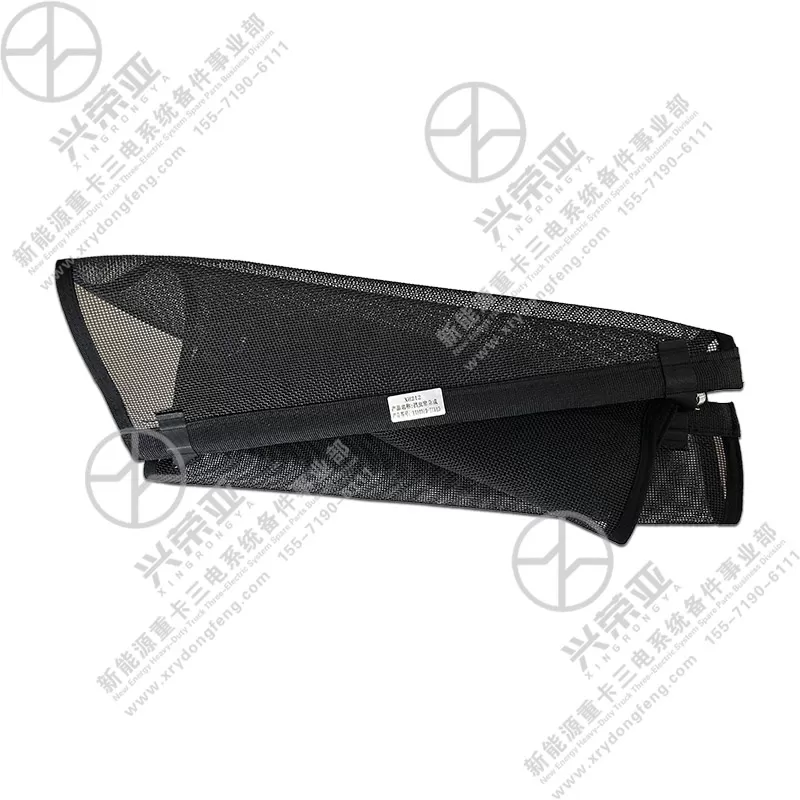

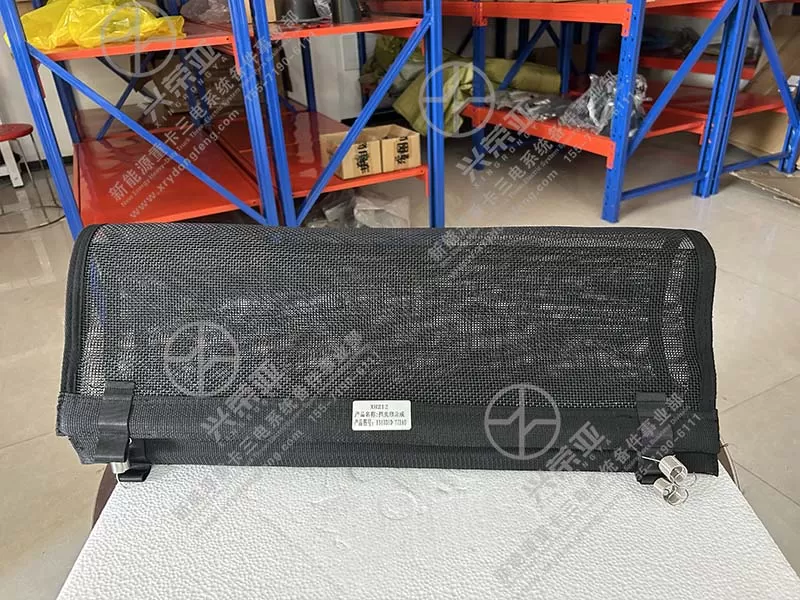

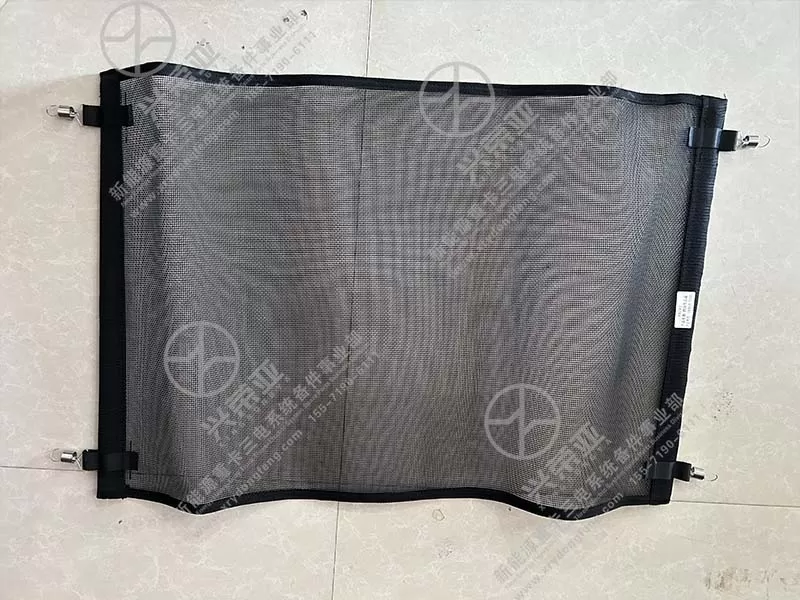

New Energy Power parts Insect curtain assembly 1310310-TZ1A0

Equipped with a 200-mesh polyester fiber screen (thread diameter: 0.1mm), the curtain effectively blocks 99% of insects—including mosquitoes, flies, and small debris (e.g., dust, leaves)—without hindering air circulation (air permeability: ≥80 L/m²·s). The mesh is treated with an anti-static coating that prevents dust accumulation, reducing the need for frequent cleaning. It also has UV-resistant properties, maintaining structural integrity and color stability (no fading) even after 3,000+ hours of sunlight exposure—critical for NEV exterior use where long-term sun exposure is common

The curtain’s frame is made of lightweight aluminum alloy (6063-T5) with a thickness of 1.2mm, offering high rigidity (bending strength: ≥110 MPa) to resist deformation from wind or accidental impact. The frame surface is anodized (thickness: 10μm) for anti-corrosion performance, withstanding rain, road salt, and humidity without rusting. The mesh is reinforced with PVC edging (width: 10mm) that enhances edge durability, preventing fraying even after repeated opening/closing. The entire assembly operates reliably in temperatures ranging from -30°C to 70°C, adapting to diverse climate conditions

The assembly adopts a magnetic + adhesive dual-fixation system for easy installation: high-strength neodymium magnets (embedded in the frame edge) attach to metal NEV body parts for instant positioning, while industrial-grade acrylic adhesive (on the frame back) provides long-term fixation (adhesion strength: ≥5 N/cm²). No drilling or welding is required—installation can be completed in 5-8 minutes by simply aligning the curtain with the target opening and pressing to secure. The adhesive is removable without leaving residue, allowing for easy replacement or adjustment

The curtain features a roll-up or slide-open design (depending on opening type) with a smooth nylon zipper or Velcro fastener, enabling one-handed operation for quick access (e.g., passing items through the window). When fully open, it folds compactly (thickness: ≤20mm) to avoid blocking visibility or interfering with NEV door/window operation. The mesh’s high air permeability ensures efficient heat dissipation—helping maintain a comfortable cab temperature during NEV charging or parking, while reducing reliance on the vehicle’s air conditioning system (saving battery power). Additionally, the mesh is transparent (light transmittance: ≥75%), preserving natural light inside the cab
