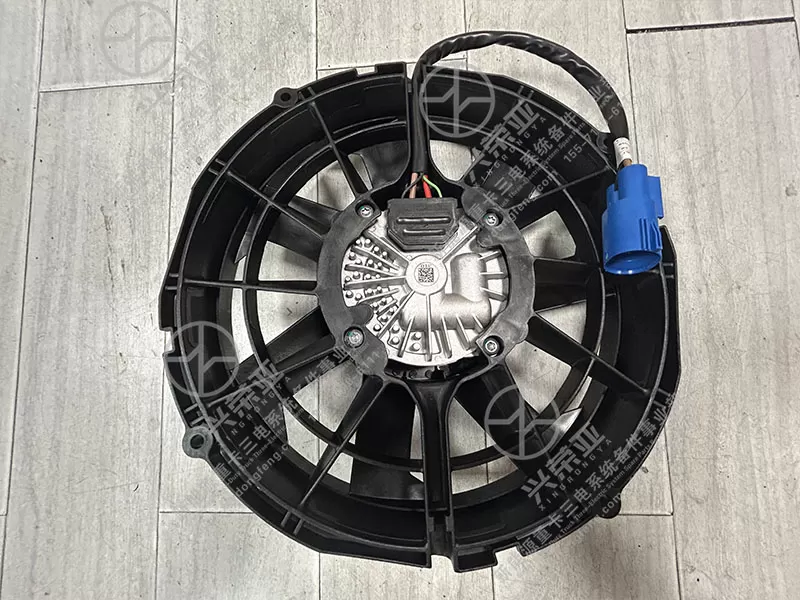

New Energy Power parts Electronic fan assembly 1314010-KT1D0

Equipped with a aerodynamically optimized fan blade (made of glass fiber-reinforced PA66), the assembly delivers a maximum airflow of 800-1200 CFM (cubic feet per minute) and a static pressure of 30-50 Pa—effectively reducing the temperature of NEV components by 15-25°C under full load. The blade’s curved design minimizes air turbulence while maximizing airflow efficiency, ensuring uniform cooling across battery cells or controller modules. It supports stepless speed adjustment via PWM (Pulse Width Modulation) signals, adapting to real-time heat generation (e.g., increasing speed during fast charging) and avoiding unnecessary energy consumption

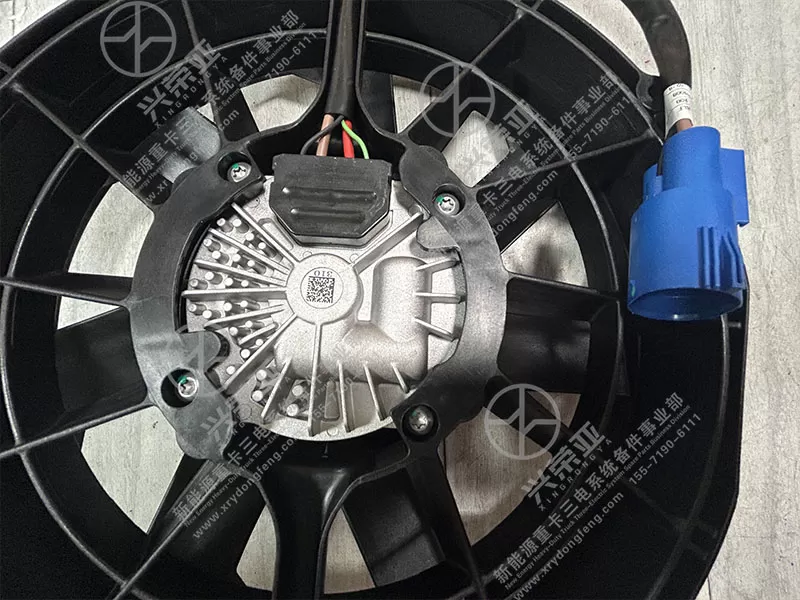

The fan uses a permanent magnet brushless DC (BLDC) motor with an energy efficiency rating of ≥88%—35% more efficient than traditional brushed motors. The motor has low no-load current (≤0.3A at 12V) and operates at a noise level of ≤52dB (measured at 1m distance), preserving the quiet cabin environment of NEVs. It features a built-in motor controller with over-temperature protection (triggers at ≥130°C) and over-current protection (limits current to ≤4A), preventing burnout due to voltage fluctuations or blockages. The motor’s service life reaches 12,000+ operating hours, meeting NEV long-term reliability requirements

The assembly meets IP67 waterproof and dustproof standards, making it suitable for NEV under-chassis or engine compartment installation. The fan housing (high-impact PBT+GF30 plastic) is fully sealed, with silicone gaskets at the motor shaft and wire entry points—blocking rainwater, road salt, and dust from entering internal components. It can withstand 1m deep water immersion for 30 minutes without malfunction and resists dust accumulation in off-road or construction site environments. The housing’s surface is treated with anti-UV coating, maintaining structural integrity and color stability (no fading) under 3,000+ hours of sunlight exposure

The fan adopts a slim, lightweight structure (weight: ≤500g) to save space in NEV chassis layouts. It comes with a universal mounting bracket (compatible with M4/M5 bolts) and pre-drilled holes (4 positions, spacing adjustable via sliding clips), adapting to different NEV cooling module mounting surfaces. The 1.0m-long high-temperature-resistant silicone wire (rated for 150°C) allows flexible routing to the vehicle’s thermal control unit, and the plug-and-play connector enables quick installation—completed in 8-12 minutes with a screwdriver. Additionally, the fan’s reverse polarity protection prevents damage from incorrect wiring, simplifying on-site assembly
