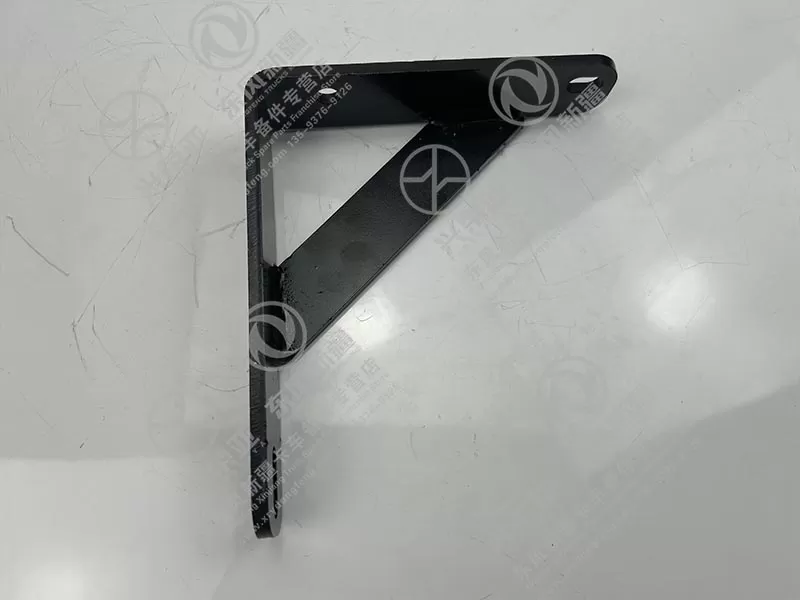

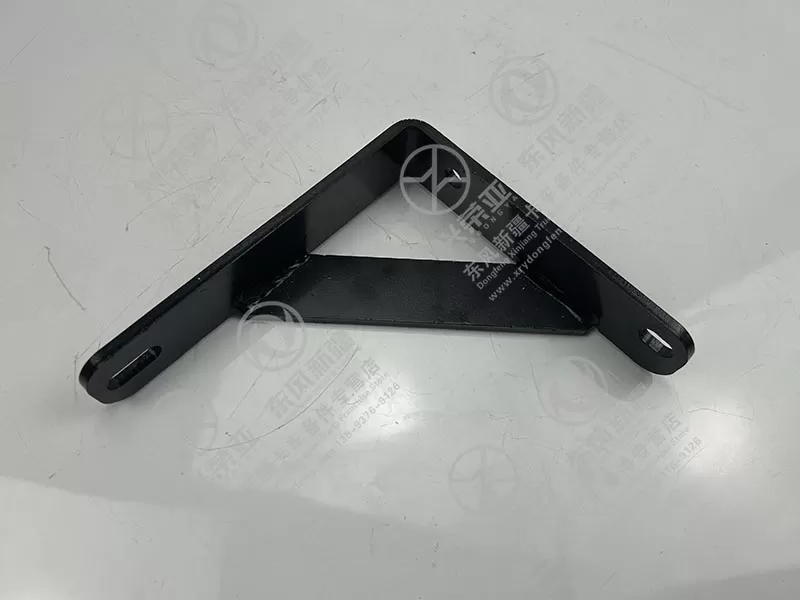

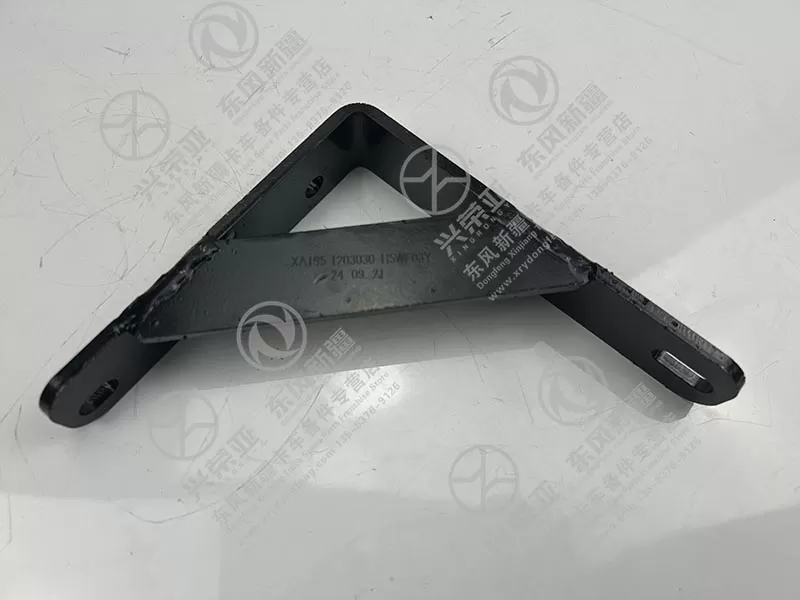

Dongfeng Xinjiang truck parts Exhaust pipe bracket 1203030-H5WF03Y

A core advantage of the 1203030-H5WF03Y bracket is its exceptional load-bearing performance, tailored to secure Dongfeng Xinjiang’s heavy-duty exhaust pipes (typically 15-20kg, including catalytic converters or diesel particulate filters). The bracket is constructed from 5mm-thick Q355B low-alloy high-strength steel, featuring a double-layered reinforced structure with welded gussets at stress points (e.g., pipe clamping areas, chassis connection points). This design enables it to withstand 200kg of static load (10x the exhaust pipe’s weight) without bending or deformation, and resist dynamic forces from road vibrations (up to 30Hz) and engine torque—preventing the exhaust pipe from shifting, which could damage welds, gaskets, or adjacent components like fuel lines. For trucks operating on unpaved construction sites or bumpy rural roads, this stability ensures the exhaust system maintains airtight connections, avoiding exhaust leaks that reduce engine efficiency and violate emissions regulations

Built to withstand extreme temperatures (up to 600°C) from exhaust gases and corrosive underbody environments, the 1203030-H5WF03Y bracket uses specialized materials and coatings. The steel base undergoes a high-temperature annealing process to enhance thermal stability, preventing warping or brittling when exposed to continuous exhaust heat. It is then treated with a two-layer anti-corrosion system: first, a ceramic-based heat-resistant primer (100μm) that withstands 650°C; second, a high-temperature silicone-based topcoat (50μm) in black that resists chipping, fading, and corrosion from road salt, diesel spills, and moisture. This dual protection passes 1,200-hour salt spray tests (ASTM B117 standard) and maintains structural integrity after 5,000+ hours of exposure to 550°C—far exceeding generic brackets that degrade within 1,000 hours. For trucks with high-mileage use (e.g., long-haul fleets), this durability extends the exhaust system’s service life by 30%

The 1203030-H5WF03Y bracket incorporates a vibration-damping design to minimize noise and reduce wear on the exhaust system. It includes two heat-resistant rubber bushings (made of silicone rubber, rated to 300°C) between the bracket and exhaust pipe clamp—these bushings absorb 60% of engine and road vibrations, preventing metal-on-metal contact that causes rattling noise and premature wear on the pipe’s outer surface. The chassis mounting points also feature rubber washers (EPDM material, oil-resistant) that further isolate vibrations from the truck’s frame, reducing cabin noise by 10-15% compared to rigid metal brackets. Additionally, the bracket’s flexible clamping design accommodates 5-8mm of thermal expansion in the exhaust pipe (common during engine warm-up), preventing stress cracks in the pipe or welds. For drivers, this vibration damping improves cabin comfort, while for fleet operators, it reduces maintenance costs associated with exhaust pipe repairs

The 1203030-H5WF03Y bracket is designed for efficient installation and flexible clamping, minimizing Dongfeng Xinjiang truck downtime. It comes fully pre-assembled with all necessary hardware: 6x 10.9-grade high-strength bolts (M10×30mm for chassis mounting, M10×20mm for pipe clamping), lock washers, heat-resistant rubber bushings, and a stainless steel U-bolt clamp (adjustable to fit 145-155mm diameter exhaust pipes). The pre-drilled holes and adjustable clamp ensure quick alignment with the exhaust pipe and chassis—installation takes 35-45 minutes for a single technician using standard tools (socket wrench, torque wrench set to 85-95 N·m), no drilling, welding, or pipe modification required. The clamp’s adjustable design also fits minor variations in exhaust pipe diameter (common in aftermarket replacements), eliminating the need for custom brackets. For fleet managers, this easy installation and universal fit reduce labor costs and inventory complexity, ensuring trucks return to service quickly
