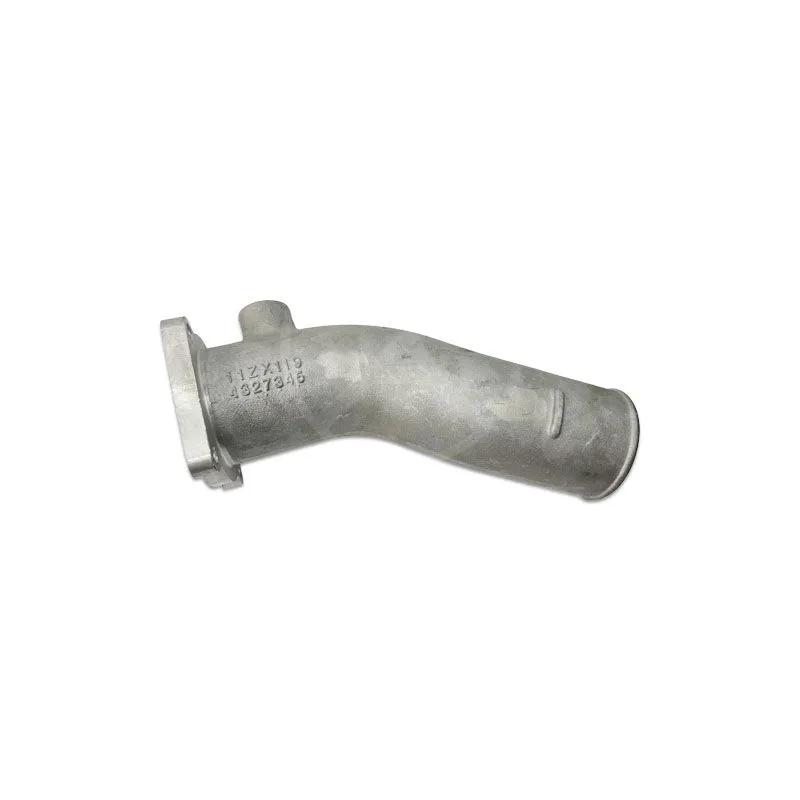

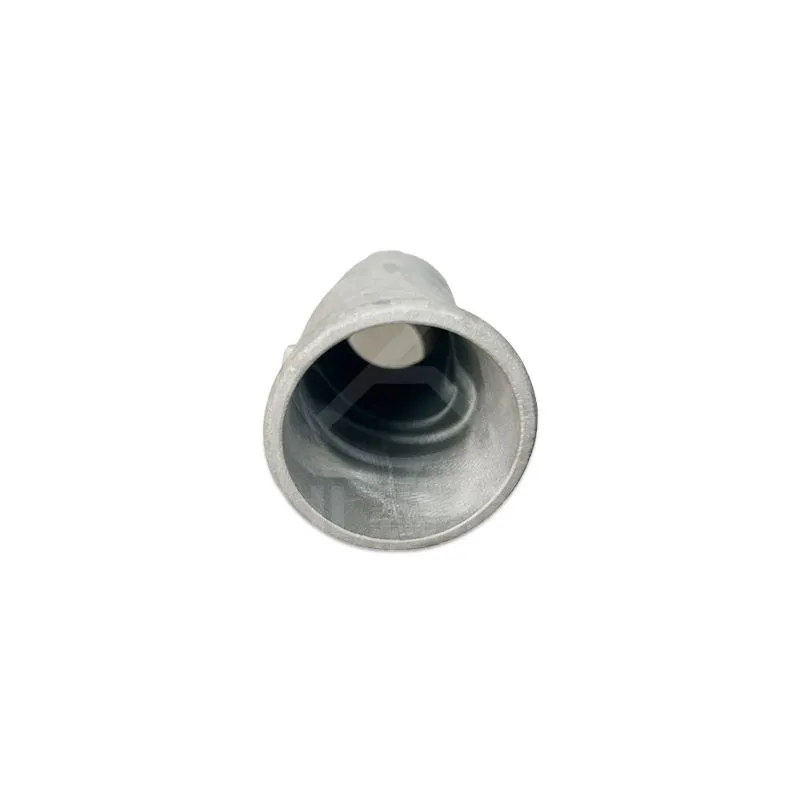

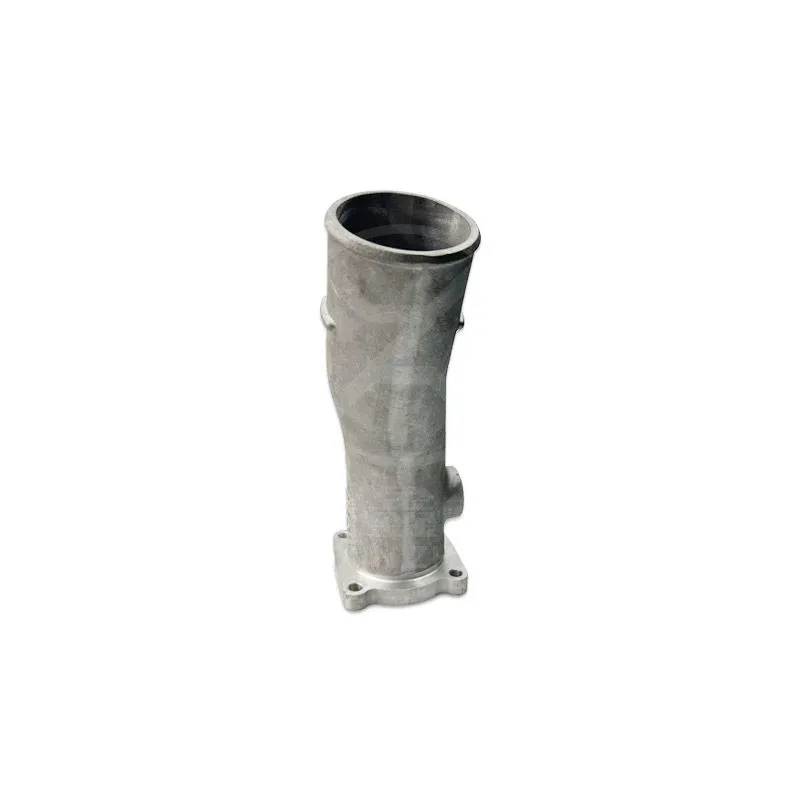

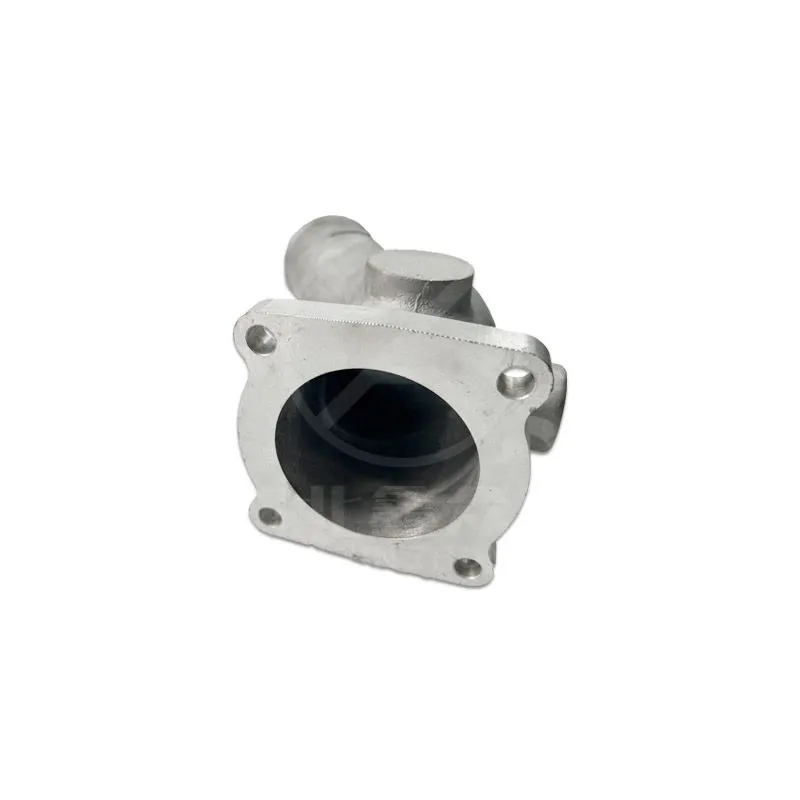

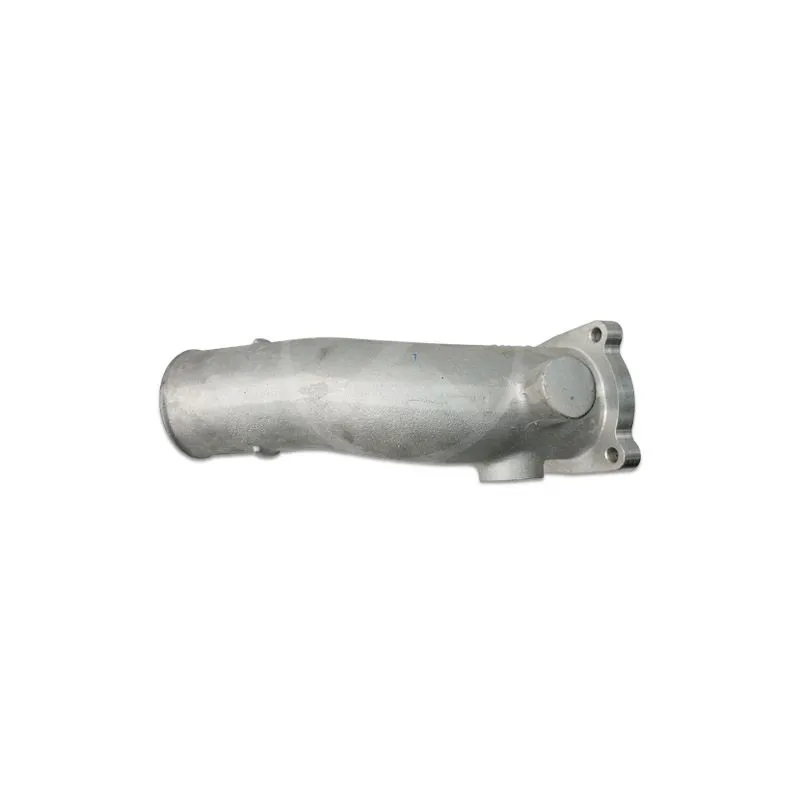

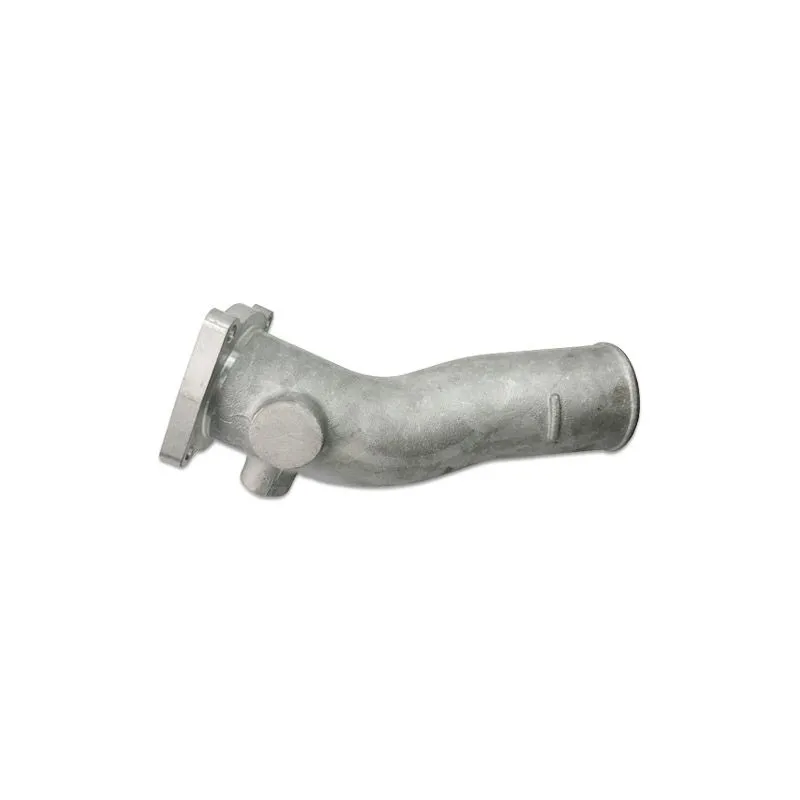

Cummins engine spare parts Inlet connecting pipe assembly C4327345

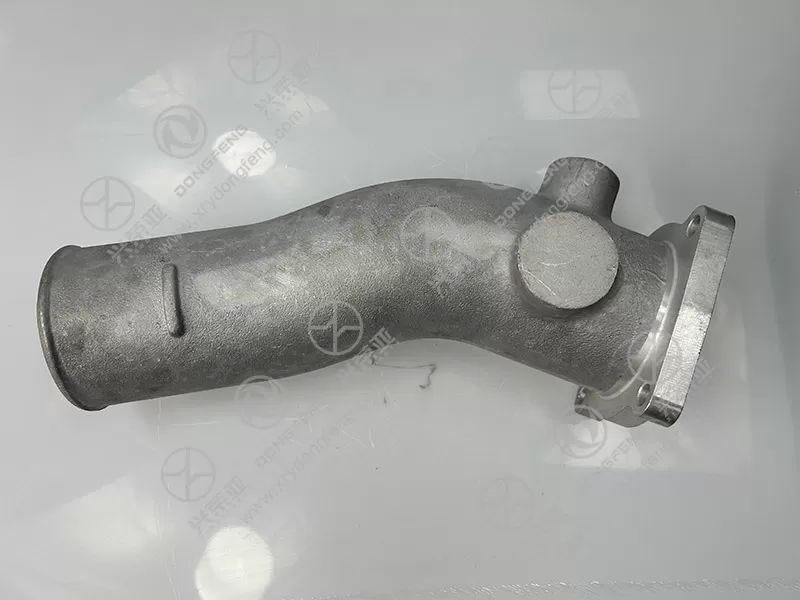

Equipped with a precision-machined, seamless inner bore (Ra ≤0.8μm surface finish) and a 45° gradual bend (instead of sharp angles), the inlet pipe minimizes airflow resistance—reducing pressure drop to ≤2 kPa at maximum air flow (600 m³/h). This optimized design ensures a steady, turbulence-free air supply to the turbocharger, enabling the engine to maintain peak boost pressure (up to 2.5 bar for ISD6.7 engines) and maximize combustion efficiency. The pipe’s constant-diameter structure (no sudden expansions or contractions) prevents air velocity fluctuations, which can disrupt turbocharger spooling and cause power lag. Compared to aftermarket pipes with rough inner surfaces, this design improves airflow efficiency by 12%, translating to a 3–5% increase in low-end torque—critical for heavy-load applications like hill climbing or hauling

Crafted from 6061-T6 aluminum alloy—a lightweight yet robust material for intake system components—the inlet pipe delivers exceptional mechanical performance. This alloy offers a tensile strength of 310 MPa and yield strength of 276 MPa, enabling it to withstand the cyclic pressure changes of the intake system (from -0.5 bar to 1.2 bar) and resist deformation under engine vibration (tested to 20g acceleration at 10–2000Hz). The pipe undergoes a T6 heat treatment process (solution annealing + artificial aging) to enhance hardness (95 HB) and corrosion resistance, ensuring it remains intact even in harsh underhood environments (exposed to road salt, oil mist, and temperature fluctuations from -40°C to 150°C). At only 1.2kg, it is 40% lighter than steel inlet pipes, reducing overall engine weight and improving fuel efficiency

The inlet pipe assembly features a multi-layer sealing design to prevent unfiltered air from entering the intake system (a major cause of turbocharger damage and engine wear):

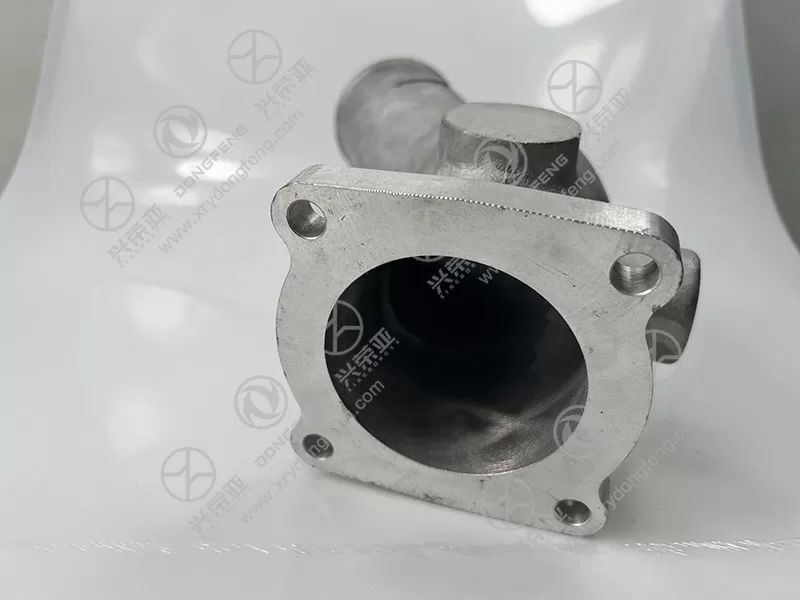

Flange Seals: Integral nitrile rubber O-rings (7mm cross-section) molded into the inlet and outlet flanges, creating a compression seal against the air filter and turbocharger mating surfaces—tested to 5 bar pressure with no leakage.

Bracket Gaskets: Neoprene gaskets between the mounting brackets and engine block, absorbing vibration and preventing metal-to-metal contact that could damage the pipe or block.

Weld Quality: All bracket welds are full-penetration TIG welds (inspected via X-ray for porosity), ensuring no air leaks at the joint and maintaining structural integrity for up to 250,000 km of operation.

By eliminating air leaks, the assembly ensures 100% of incoming air passes through the air filter, reducing turbocharger impeller wear by 60% and extending engine service life

Designed for efficient replacement by fleet technicians, the inlet pipe assembly simplifies installation and reduces downtime with user-friendly details:

Pre-Assembled Components: The pipe comes with pre-installed O-rings, mounting bolts (M8×20mm, zinc-plated for rust resistance), and lock washers—eliminating the need for separate part sourcing.

Alignment Marks: Laser-etched alignment lines on the flanges match corresponding marks on the air filter and turbocharger, ensuring correct positioning in less than 5 minutes.

Standard Fasteners: Uses common 13mm socket-sized bolts, requiring no specialized tools like torque wrenches with unique adapters (torque specification: 20 N·m per Cummins guidelines).

Installation takes 25–30 minutes: disconnect the old pipe from the air filter and turbocharger, remove the mounting bolts, position the new pipe (aligning marks), torque the bolts, and verify the seal. Each unit undergoes dimensional inspection via CMM (Coordinate Measuring Machine), pressure testing (10 bar for 10 minutes), and airflow resistance testing, backed by a 24-month OEM warranty against defects (e.g., weld failure, O-ring degradation, pipe deformation)
