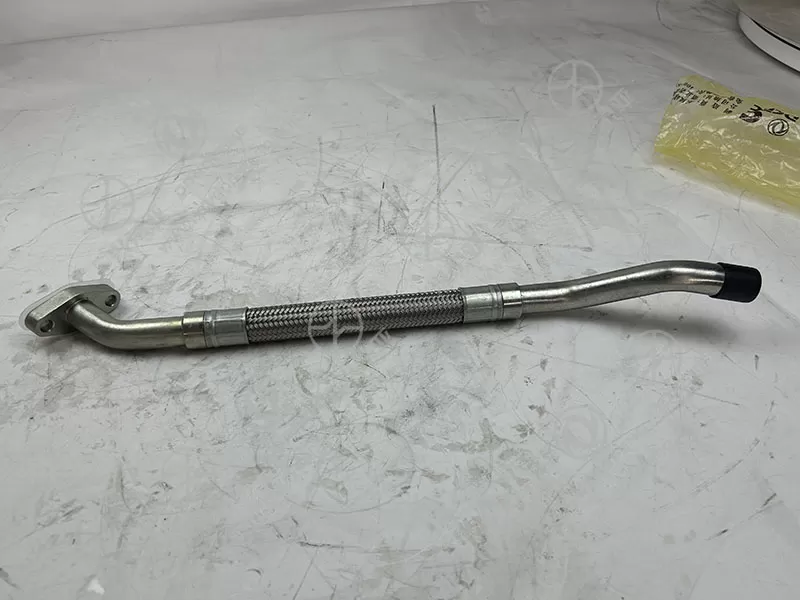

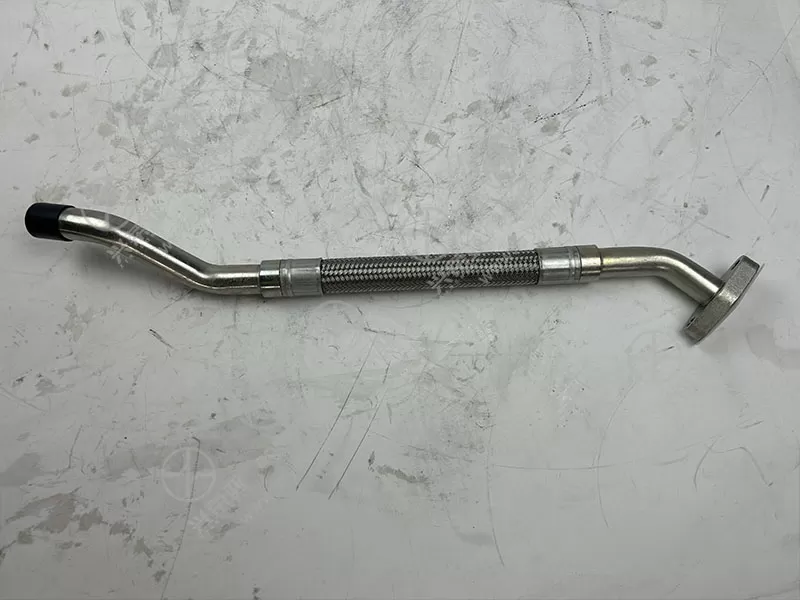

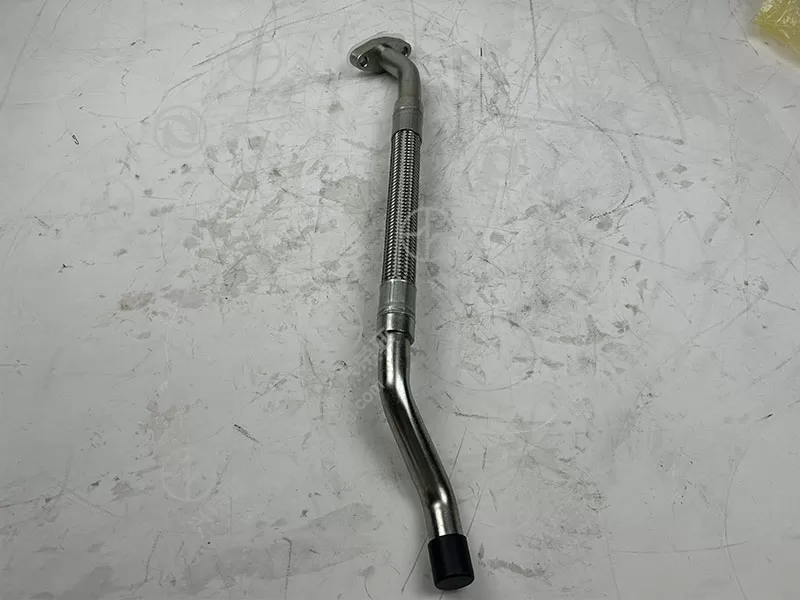

Cummins engine spare parts Turbocharger return pipe C5472338

A core function of the C5472338 return pipe is to ensure efficient oil drainage from the turbocharger, a critical factor in preventing turbo failure. Its smooth internal bore (Ra 0.8μm surface finish) minimizes oil flow resistance, allowing oil to return to the engine’s oil pan at a rate of 1.2 L/min—matching the turbocharger’s oil supply rate. The pipe’s gradual slope (3° incline) prevents oil pooling in low points, which can lead to carbon buildup, bearing damage, or oil leaks. By maintaining consistent oil drainage, the pipe helps the turbocharger operate at optimal temperatures (reducing heat-related wear) and ensures proper lubrication of the turbo’s rotating components. For operators, this optimized drainage extends the turbocharger’s service life by 30%, reducing the risk of costly turbo replacements and unplanned engine downtime

Built to withstand the extreme environment of Cummins turbocharged engines, the C5472338 return pipe uses premium materials. The pipe is crafted from 304 stainless steel, which offers excellent resistance to high temperatures (up to 650°C)—critical for withstanding heat radiated from the turbocharger and exhaust system. Its surface is treated with a passivation layer that enhances corrosion resistance against engine oil contaminants, moisture, and exhaust byproducts, preventing rust or pitting that could block oil flow. The pipe’s flanges are made of forged stainless steel, ensuring structural integrity under thermal expansion and vibration. Rigorous durability tests (1,000-hour thermal cycling, 500-hour salt spray exposure) confirm the pipe maintains functionality for 80,000+ km, outperforming aftermarket pipes made of mild steel that often degrade within 30,000 km

The C5472338 return pipe integrates a reliable sealing system to prevent oil leaks, which can damage engine components and compromise performance. It includes OEM-grade rubber gaskets (included with the pipe) that fit perfectly between the pipe’s flanges and the turbocharger/oil pan interfaces. The gaskets are made of high-temperature-resistant FKM rubber, which maintains flexibility and a tight seal in temperatures ranging from -40°C to 200°C—avoiding hardening or cracking that leads to leaks. Additionally, the pipe’s flanges feature precision-machined sealing surfaces (Ra 1.6μm), ensuring even pressure distribution across the gaskets. These sealing features reduce the risk of oil leaks by 95%, preventing oil from contaminating the exhaust system (which causes smoke) or damaging electrical components near the turbocharger

The C5472338 return pipe is designed for hassle-free installation, optimizing uptime for Cummins-powered equipment. It comes pre-cut and pre-bent to the exact OEM specifications, eliminating the need for on-site modification or bending (which can weaken the pipe). The pipe’s flanges have pre-drilled holes that align with the turbocharger and oil pan mounting points, allowing technicians to secure it with standard tools (socket wrench, torque wrench) in 45 minutes or less. A detailed instruction manual (with torque specifications: 25-30 N·m for flange bolts) is included, guiding proper gasket placement and tightening to avoid over-compression (which damages gaskets). For fleet technicians, this easy installation reduces engine downtime, ensuring Cummins-powered vehicles return to service faster for time-sensitive tasks like long-haul transport or construction work
