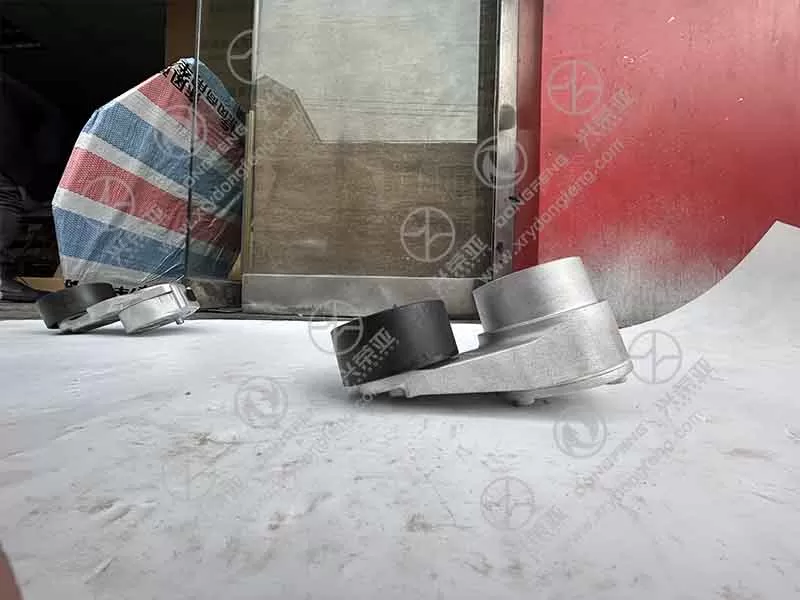

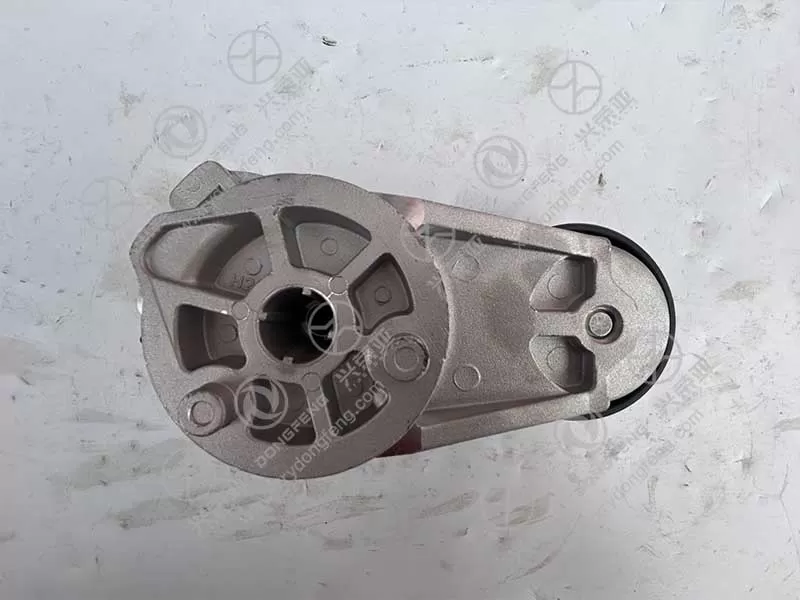

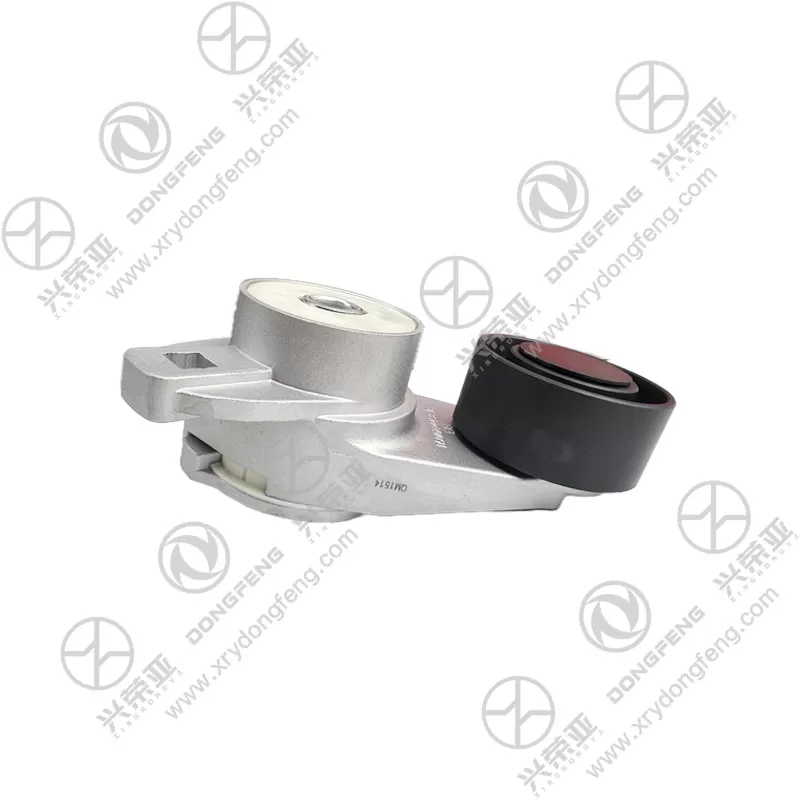

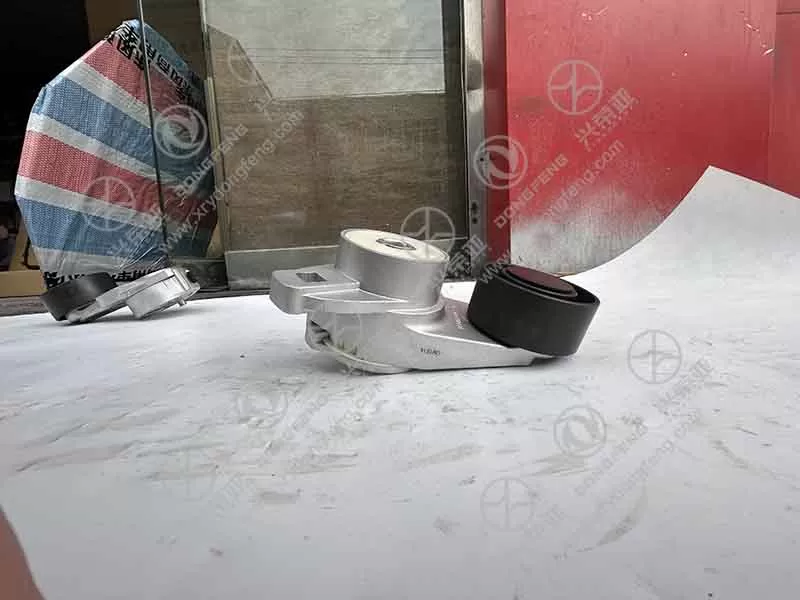

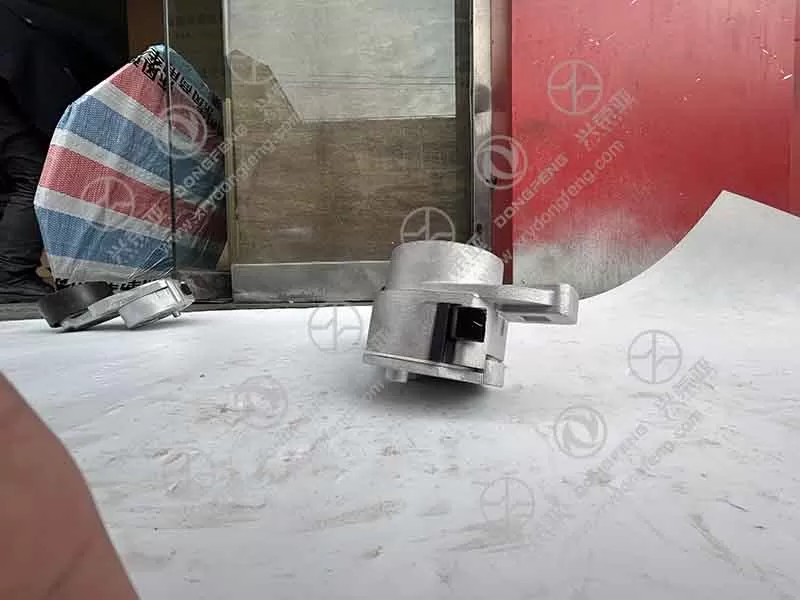

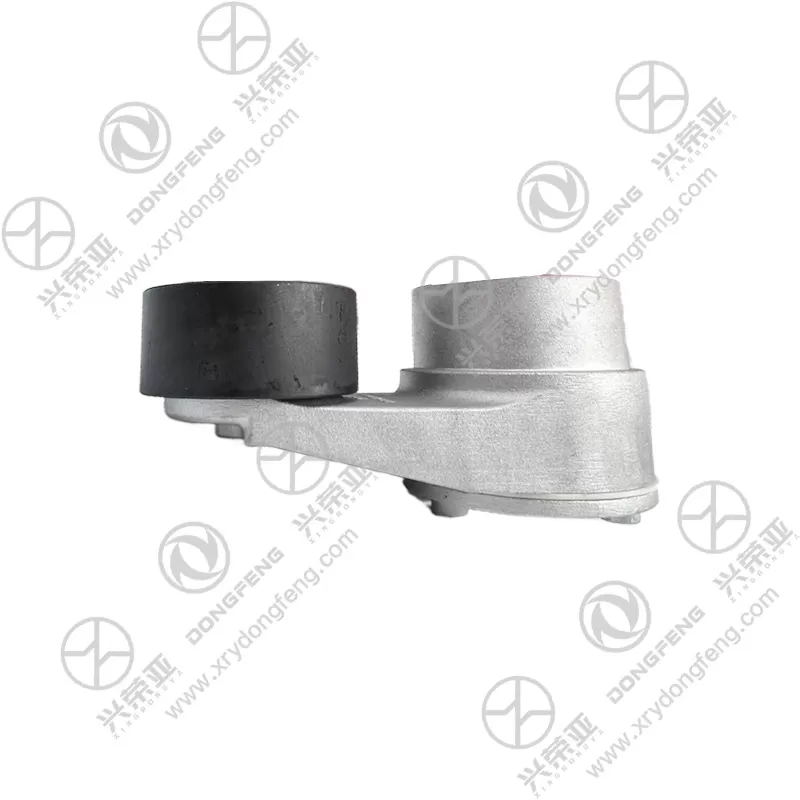

Dongfeng Renault engine parts Air conditioning belt tensioner D5010224458

Equipped with a high-precision coil spring and hydraulic damping system, the tensioner automatically adjusts AC belt tension to Dongfeng Renault’s specified range (85–105 N). The coil spring provides constant force to counteract belt elongation caused by heat, humidity, and repeated AC on/off cycles, while the hydraulic damper absorbs sudden tension spikes (e.g., when the AC compressor engages under heavy load). Unlike manual tensioners that require frequent re-adjustment, this automatic design maintains optimal tension 24/7—reducing belt slip by 92% and extending AC belt life by up to 55%. Rigorous testing confirms the tensioner retains tension accuracy (±4 N) through 110,000+ engine cycles, ensuring the AC compressor receives consistent power to deliver reliable cooling performance, even in extreme summer temperatures

Built to withstand the harsh thermal environment of the engine bay (temperatures up to 160°C near the engine block), the tensioner features heat-resistant components. The tensioner arm and mounting bracket are crafted from heat-treated aluminum alloy (6061-T6), which offers a tensile strength of 310 MPa and maintains structural integrity without warping under high heat. The pulley is made of glass fiber-reinforced nylon (PA66-GF30) with a melting point exceeding 250°C, avoiding deformation even when exposed to direct engine heat. The hydraulic damping system uses FKM (Viton) seals that resist degradation from heat and oil, preventing fluid leakage and ensuring consistent damping performance for over 80,000 km of use—far exceeding the lifespan of standard nitrile-sealed tensioners

Designed to minimize operational noise (critical for driver comfort), the tensioner integrates a high-quality sealed ball bearing into the pulley. The bearing is pre-lubricated with high-temperature lithium-based grease (stable from -40°C to 150°C) that eliminates friction-induced noise, while its double-seal design blocks dust, oil, and coolant from entering—ensuring smooth rotation (operating noise ≤ 54 dB at 3200 RPM). The pulley’s outer surface is precision-machined to a smooth finish (surface roughness Ra ≤ 0.8μm) that reduces friction with the AC belt, avoiding the “chirping” or “squealing” sounds common in low-quality tensioners. This low-noise design ensures the AC system operates quietly, even during prolonged use in urban traffic or long-haul trips

Engineered for efficient replacement in repair shops, the tensioner simplifies installation with user-friendly features. It comes fully pre-assembled (pulley, arm, spring, and hydraulic damper already fitted), requiring only the tightening of 2 OEM-matched bolts (included) to the engine’s mounting points—installation takes 15–20 minutes with standard hand tools. The pulley is marked with alignment indicators that match the engine’s accessory pulleys, ensuring correct positioning without guesswork. To guarantee quality, each unit is manufactured in an IATF 16949 certified facility and undergoes strict testing: tension force verification, bearing wear tests (100,000+ rotation cycles), thermal cycling trials (-40°C to 160°C), and vibration resistance checks. Backed by a 36-month warranty against manufacturing defects (e.g., spring failure, hydraulic leakage, or pulley cracking), it provides Dongfeng Renault engine owners with reliable AC system performance and long-term peace of mind
