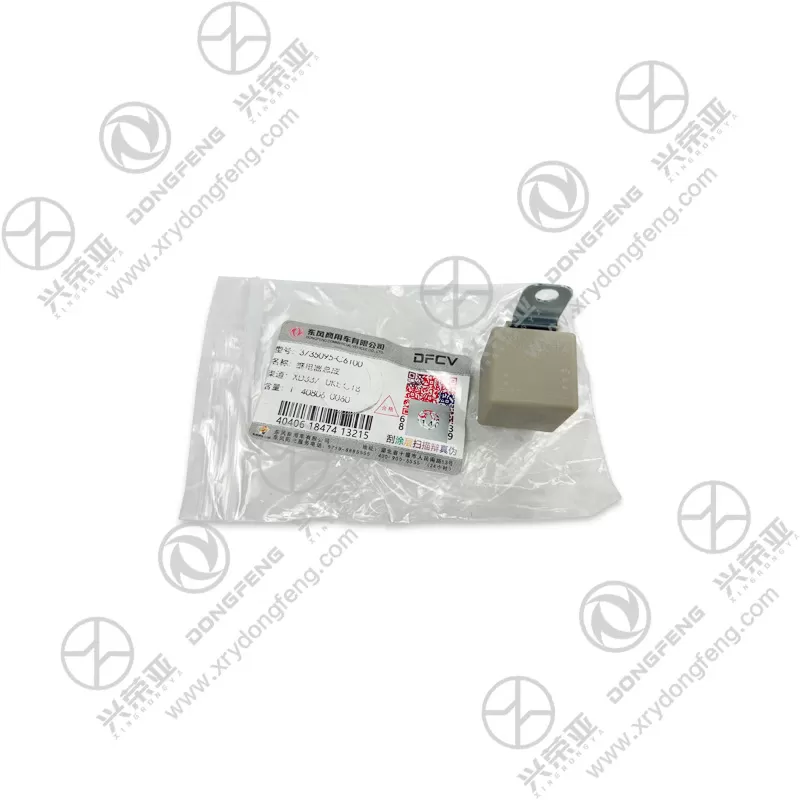

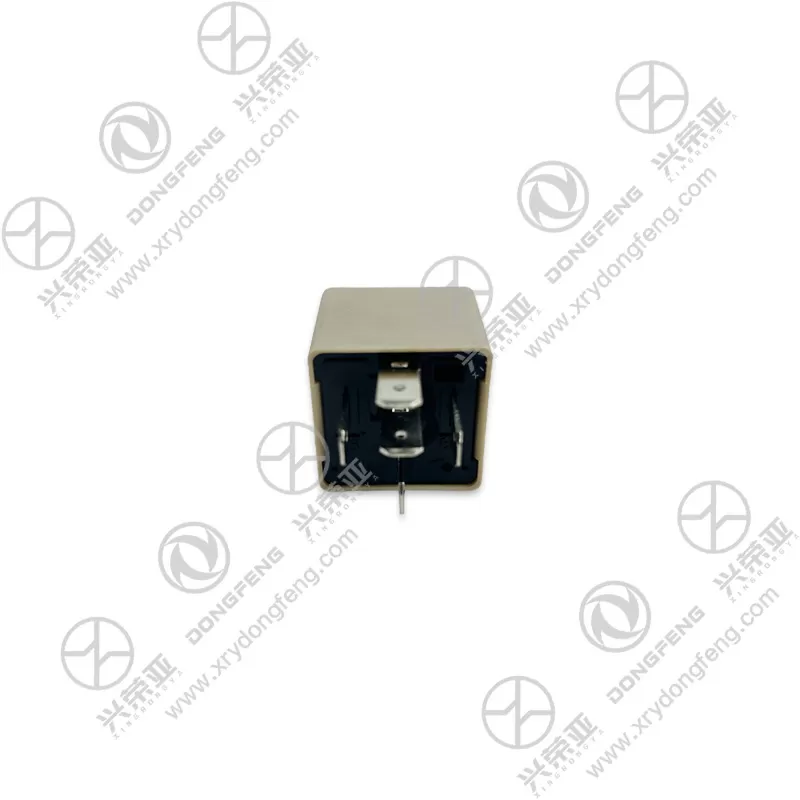

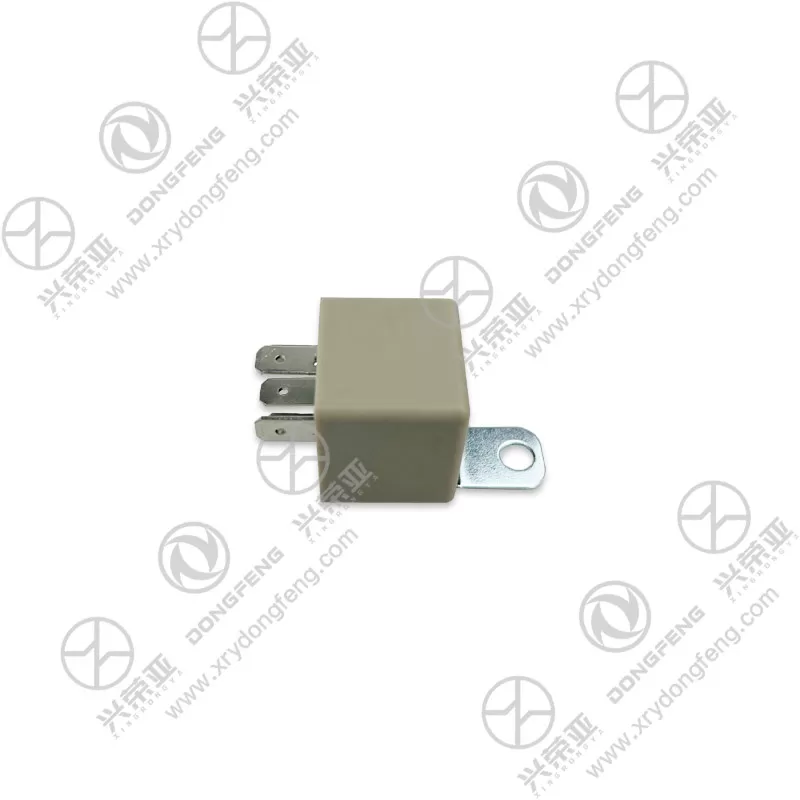

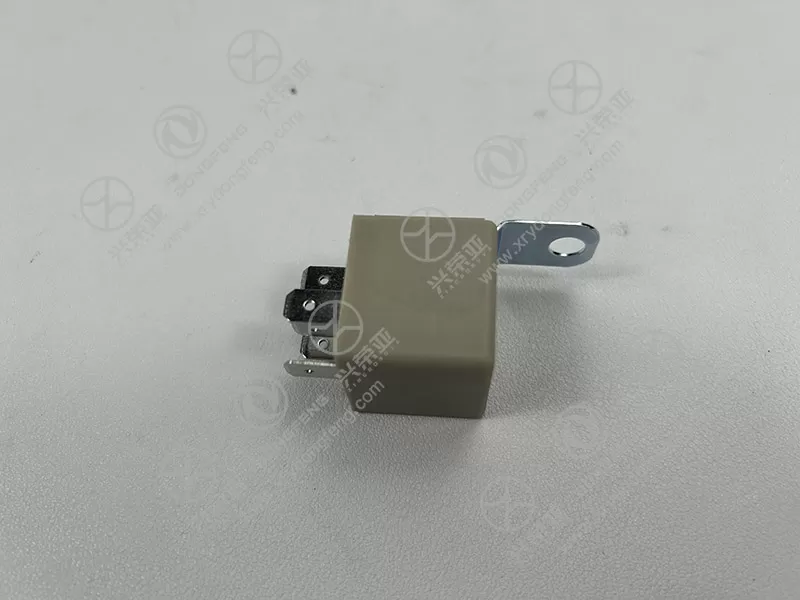

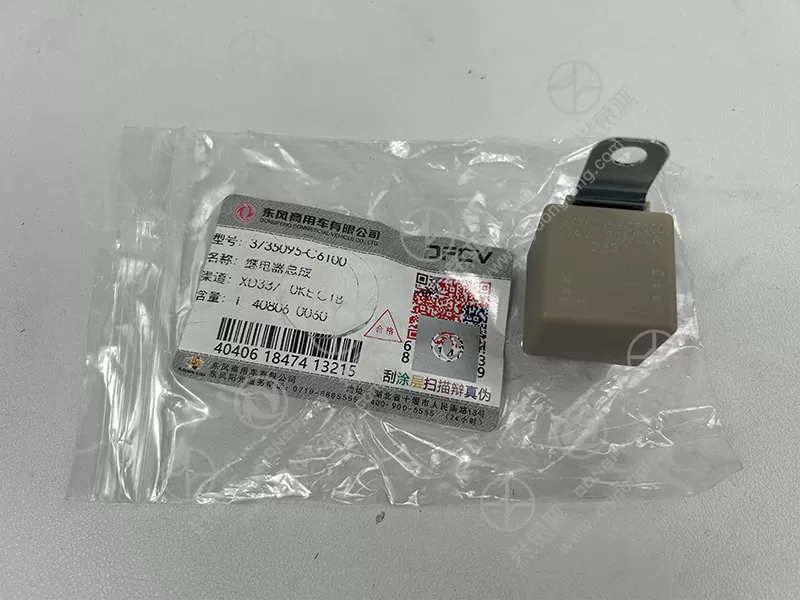

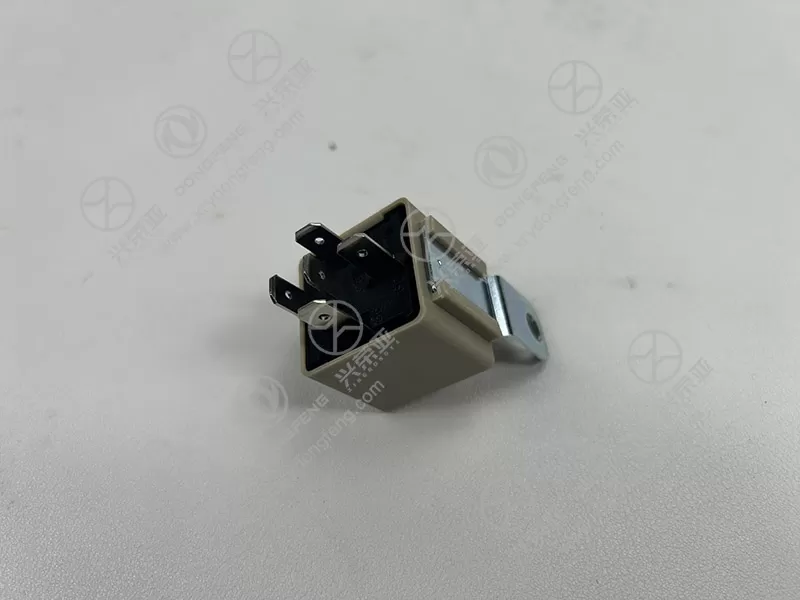

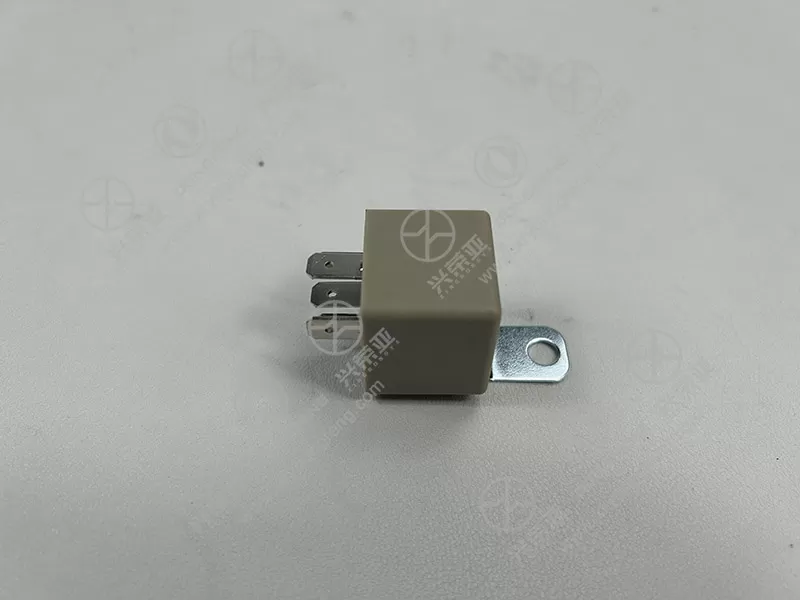

Original Dongfeng GX Relay assembly 3735095-C6100

Equipped with a high-quality copper alloy contact and a low-power consumption coil (rated voltage: 12V DC, coil current: ≤0.5A), the relay delivers stable switching performance. It supports a rated load current of 10-20A (depending on the application, e.g., for lights, fans, or sensors) and a contact voltage rating of up to 30V DC, with a contact resistance of ≤50mΩ—ensuring minimal voltage drop and efficient power transmission. The relay’s operating time is ≤10ms and release time ≤5ms, enabling quick response to the vehicle’s electrical control signals, avoiding delays in component activation

The relay housing is made of high-temperature-resistant PA66 plastic (heat resistance up to 120°C) with a reinforced rib structure, which resists deformation or cracking caused by long-term exposure to engine compartment heat or vibration. The internal contact points are plated with silver-nickel alloy (plating thickness: ≥3μm), enhancing wear resistance and anti-oxidation performance—extending the contact service life to over 100,000 switching cycles (twice that of ordinary aftermarket relays). Additionally, the coil is encapsulated with epoxy resin, reducing electromagnetic interference (EMI) and preventing wire loosening due to vehicle vibration (frequency: 10-500Hz)

The relay assembly meets IP65 dustproof and moisture-resistant standards. All gaps between the housing, pin connectors, and base are sealed with high-quality nitrile rubber gaskets, effectively blocking dust, water splashes, and moisture from entering the internal circuit. This protection ensures stable operation even in harsh environments such as rainy weather, high-humidity areas, or dusty construction sites—avoiding short circuits, contact corrosion, or coil damage caused by environmental factors. The relay also passes a 48-hour salt spray test, confirming its anti-corrosion ability for long-term use in coastal or road-salt-exposed regions

As an original Dongfeng component, the relay undergoes a series of rigorous factory tests: high-temperature aging test (85°C for 1000 hours), low-temperature resistance test (-40°C for 500 hours), voltage fluctuation test (9-16V DC), and continuous switching durability test (100,000 cycles). It complies with international IEC 60947-5-1 relay standards and domestic GB/T 14048.5 automotive electrical standards, ensuring reliable performance that matches the Dongfeng GX’s original quality requirements. The product also comes with a 2-year original warranty, providing users with guaranteed after-sales support
