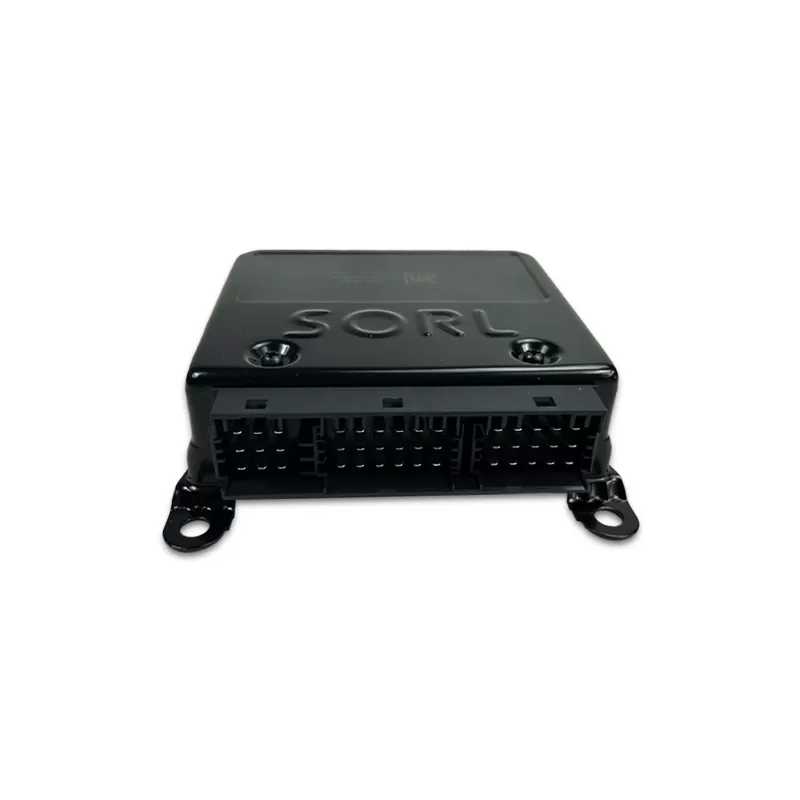

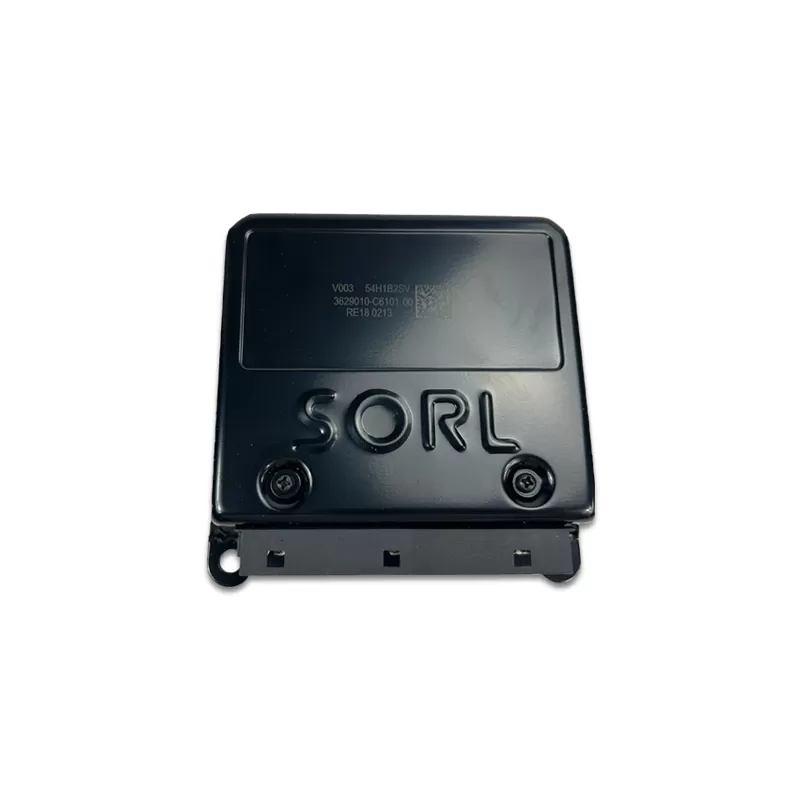

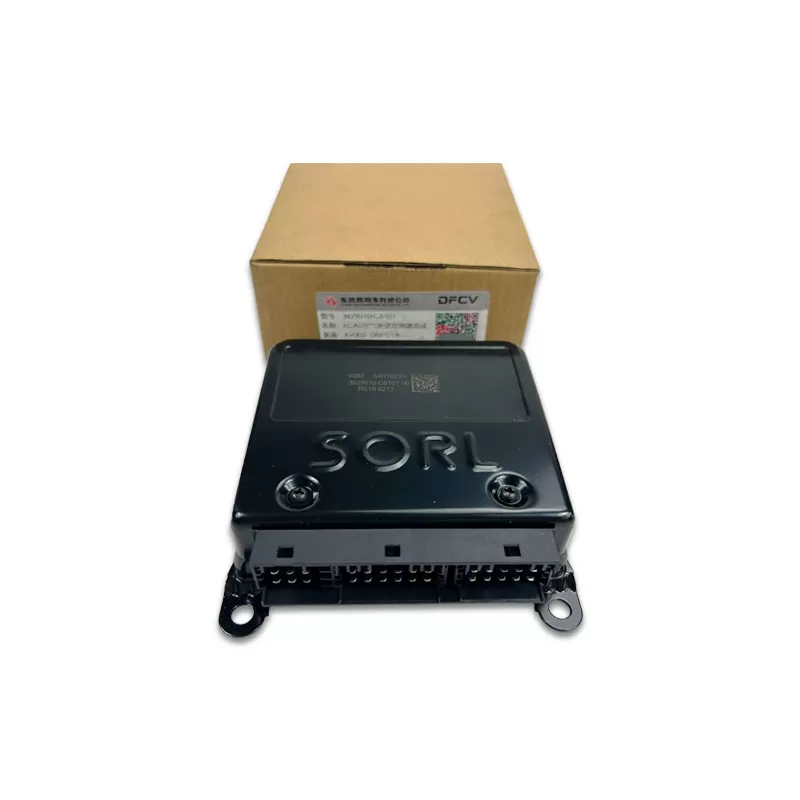

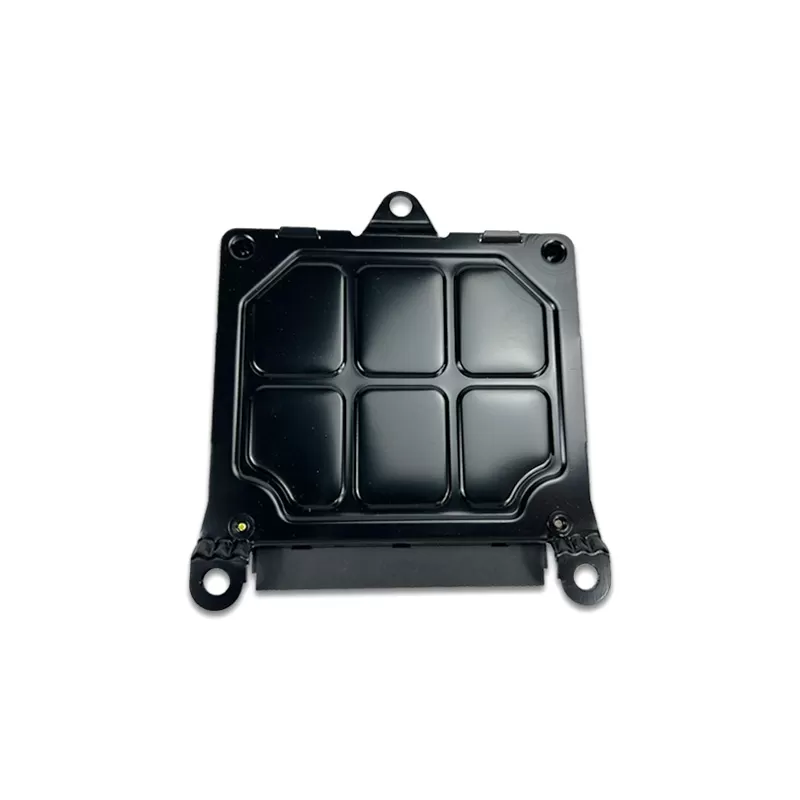

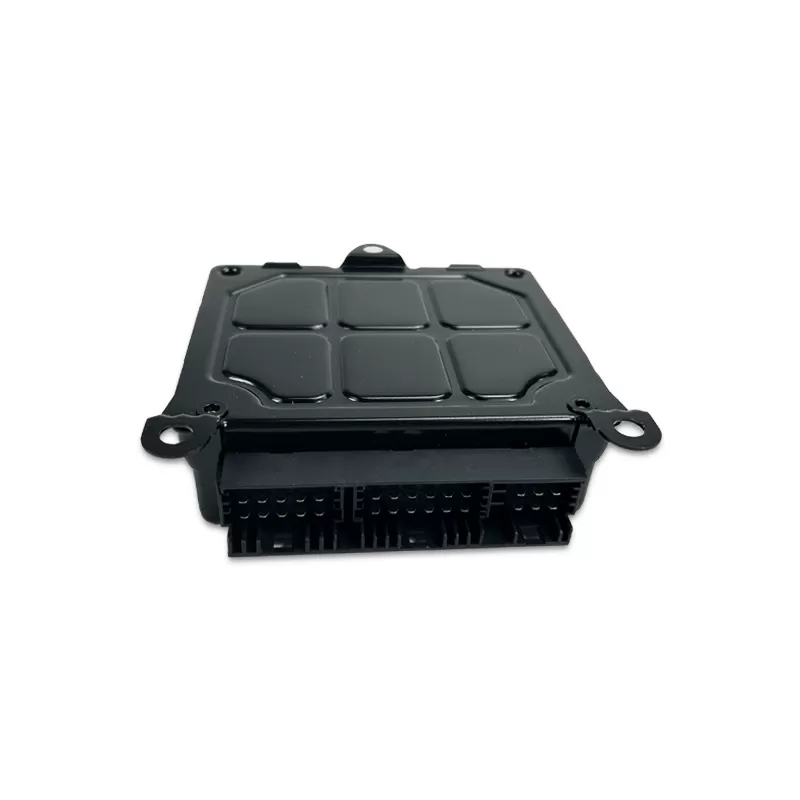

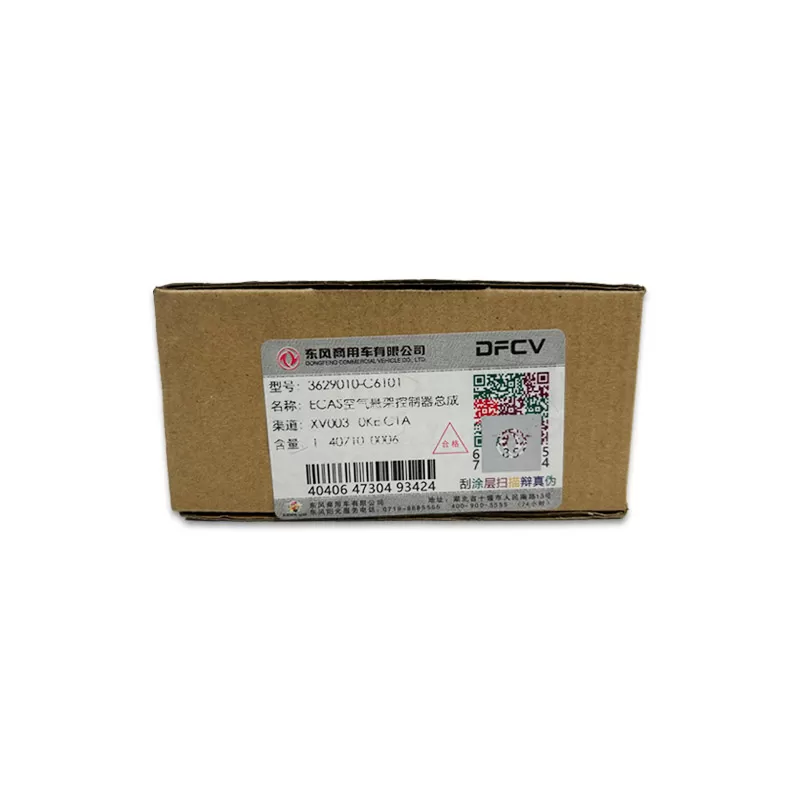

Dongfeng KX ECAS air suspension controller assembly 3629010-C6101

Core Function and Working Principle

At its core, the 3629010 - C6101 controller is designed to dynamically monitor and adjust the air pressure in the air springs of the suspension system. It achieves this through seamless integration with a network of sensors strategically placed throughout the vehicle, which continuously collect data on parameters such as vehicle load, ride height, road conditions, and driving speed. By analyzing this real - time data, the controller can make precise and rapid adjustments to the air pressure in each air spring.

When the vehicle is loaded with varying weights, the sensors detect changes in the ride height. The ECAS controller then activates solenoid valves to inflate or deflate the air springs, ensuring that the vehicle maintains a preset optimal ride height regardless of the load. This not only protects the vehicle's structure and cargo but also ensures consistent handling characteristics. On uneven road surfaces, the controller responds to vibrations and impacts by adjusting the air pressure to absorb shocks, significantly reducing the transmission of vibrations to the cab and cargo area

Advanced Features and Technical Advantages

The Dongfeng KX ECAS Air Suspension Controller Assembly 3629010 - C6101 comes equipped with a range of advanced features that enhance its performance and usability. One notable feature is its multi - mode operation, which allows drivers to select different suspension modes based on specific driving scenarios. For example, a "Comfort Mode" prioritizes a smooth ride for the driver and delicate cargo, while a "Load Mode" optimizes the suspension for heavy loads to ensure stability and prevent excessive sagging.

Another key advantage is its intelligent fault diagnosis capability. The controller continuously monitors the performance of the ECAS system, including air springs, sensors, valves, and air supply components. In the event of a malfunction, such as a leak in an air spring or a sensor failure, the controller triggers a warning indicator on the vehicle's dashboard and stores diagnostic codes. This enables timely maintenance and reduces downtime, ensuring the vehicle remains operational.

Additionally, the controller is designed to work in harmony with other vehicle systems, such as the anti - lock braking system (ABS) and electronic stability control (ESC). By sharing data on vehicle height and load distribution, it helps these systems optimize their performance, particularly during braking and cornering, further enhancing overall vehicle safety.

Operational Convenience and User - Friendly Design

Operating the ECAS system via the 3629010 - C6101 controller is intuitive and user - friendly. Drivers can adjust the vehicle's ride height using dedicated buttons or a control panel in the cab, allowing for easy loading and unloading of cargo. For instance, lowering the vehicle to a "loading height" reduces the distance between the cargo bed and the ground, making it easier to load heavy items. Once loading is complete, the driver can return the vehicle to the "driving height" with a simple press of a button.

The controller also features automatic height adjustment, which maintains the preset ride height without manual intervention. This is particularly useful during long - distance transportation, where load distribution may change slightly, or when driving on roads with varying gradients.

Impact on Vehicle Performance and Efficiency

The integration of the Dongfeng KX ECAS Air Suspension Controller Assembly 3629010 - C6101 has a profound impact on the overall performance and efficiency of the Dongfeng KX vehicle. By ensuring optimal ride height and suspension stiffness, it reduces tire wear and improves fuel efficiency, as the vehicle encounters less rolling resistance. The enhanced shock absorption also protects the cargo from damage, reducing the risk of financial losses due to damaged goods.

Moreover, the improved ride comfort for the driver reduces fatigue during long shifts, contributing to better driver alertness and safety. For commercial fleet operators, this translates to increased productivity and reduced maintenance costs, as the vehicle and its components experience less wear and tear.

In conclusion, the Dongfeng KX ECAS Air Suspension Controller Assembly 3629010 - C6101 is a state - of - the - art component that elevates the performance, safety, and comfort of Dongfeng KX commercial vehicles. Its advanced control capabilities, intelligent features, and user - friendly design make it an indispensable part of the modern commercial vehicle suspension system, meeting the evolving demands of the transportation industry.
