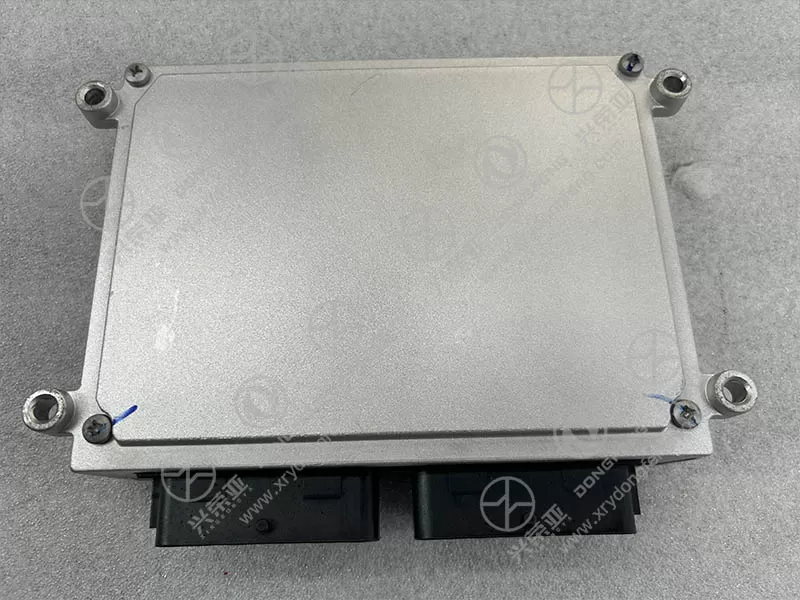

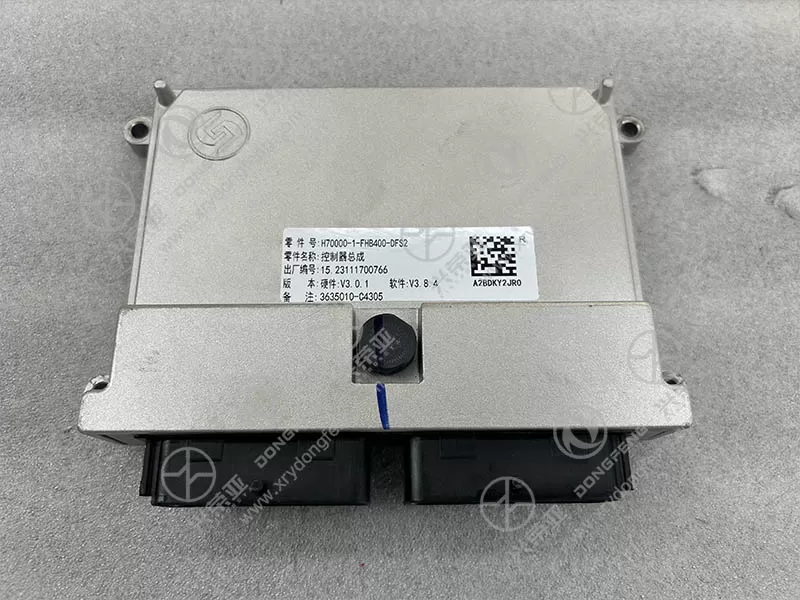

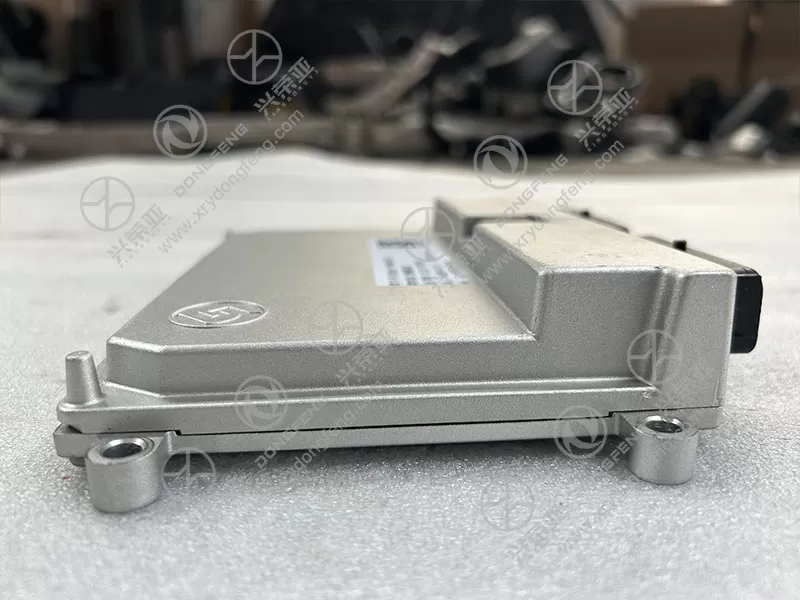

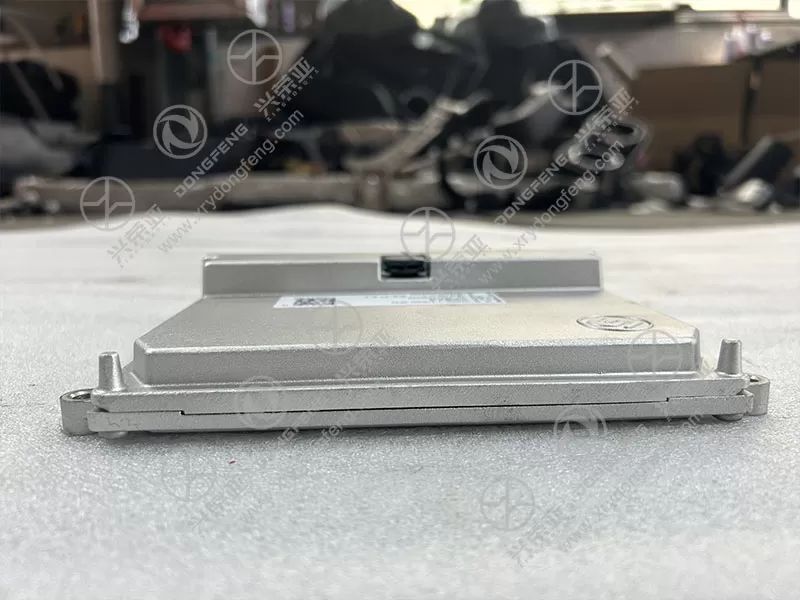

Dongfeng GX Slow controller assembly 3635010-C4305

As the "control center" of the Dongfeng GX’s retarder system, the 3635010-C4305 assembly delivers real-time, adjustable auxiliary braking to reduce reliance on the main friction brakes (especially during long downhill drives or heavy-load transportation). It receives input signals from multiple sources: the driver’s retarder switch (for manual activation), the vehicle’s speed sensor (to adjust braking force based on speed), the brake pedal sensor (to coordinate with main brakes), and the transmission gear sensor (to optimize retarder performance in different gears). The controller then modulates the retarder’s output torque (e.g., 0-500 N·m for hydraulic retarders) in 5-10 adjustable levels, allowing the driver to fine-tune braking intensity. By providing continuous auxiliary braking, it prevents main brake overheating (a major cause of brake fade in commercial vehicles) and shortens overall stopping distances—directly enhancing driving safety for Dongfeng GX users

The 3635010-C4305 slow controller features a durability-focused hardware design to withstand the harsh operating conditions of Dongfeng GX’s under-vehicle or engine bay locations. The outer housing is constructed from reinforced engineering plastic (e.g., PBT+GF30) with a flame-retardant rating (UL94 V-0), providing resistance to impact from road debris and protection against high temperatures (operating range: -40°C to 105°C). The internal circuit board is coated with a conformal layer (acrylic or epoxy) to shield components from moisture, dust, and chemical corrosion (e.g., road salt or engine oil). Critical hardware components—such as power MOSFETs (for retarder current control) and signal processing chips—are automotive-grade, ensuring stable performance under extreme vibration (up to 15G peak acceleration, compliant with ISO 16750-3). Additionally, the controller’s electrical connector has a waterproof rating of IP67, preventing water intrusion during heavy rain or vehicle washing

The 3635010-C4305 is calibrated with Dongfeng GX-specific technical parameters to maximize retarder efficiency and safety. Its operating voltage range (9V-32V) matches the vehicle’s 12V or 24V on-board electrical system, with built-in overvoltage and short-circuit protection to prevent damage from electrical surges. The controller’s signal sampling rate (up to 500 Hz) ensures fast response to changes in vehicle speed or driver input—critical for adjusting retarder force during dynamic driving (e.g., sudden downhill speed increases). For hydraulic retarder variants, it controls oil pressure with an accuracy of ±0.1 MPa, ensuring smooth torque adjustment; for electric retarders, it modulates current output (0-100A) with pulse-width modulation (PWM) technology, minimizing energy loss. The controller also features a low-power standby mode (≤2W) to avoid draining the vehicle’s battery when the retarder is not in use

The 3635010-C4305 slow controller assembly meets strict automotive quality and safety standards and undergoes comprehensive testing to ensure reliability. It is manufactured in accordance with ISO/TS 16949 (automotive quality management system) and complies with Chinese national standards for auxiliary braking systems (GB/T 13594). Each unit undergoes 100% factory testing, including: 1) Functional testing (verifying retarder torque adjustment and signal responsiveness); 2) Environmental testing (temperature cycling, vibration, and humidity resistance); 3) Electrical performance testing (voltage stability, short-circuit protection); 4) Durability testing (simulating 100,000+ retarder activation cycles to mimic 3-5 years of use). To support customers, the controller comes with a manufacturer’s warranty (typically 12 months or 100,000 kilometers) and access to technical support—including installation guidance and troubleshooting for retarder system faults—making it a trusted choice for Dongfeng GX owners, fleet operators, and repair facilities
