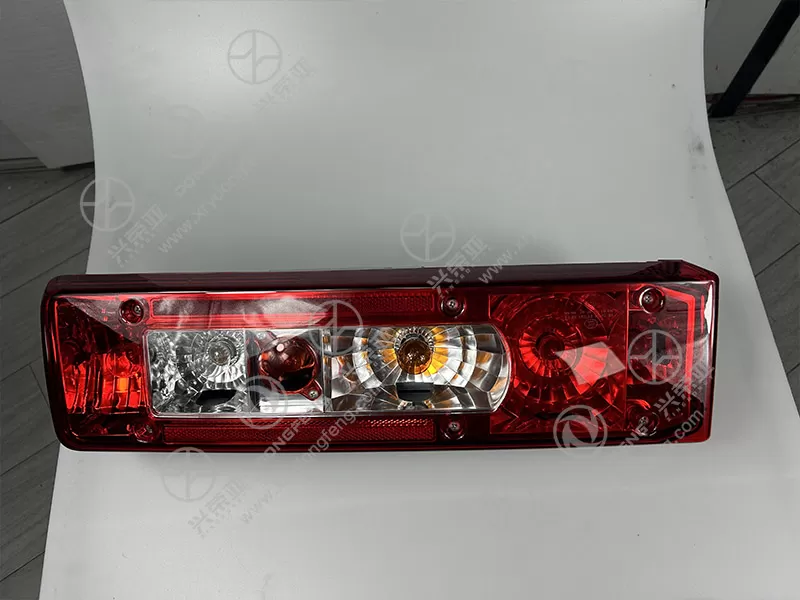

Dongfeng GX Right rear combination lamp assembly 3773010-C6201

Equipped with a high-transmittance PC (polycarbonate) lens with anti-glare treatment, the assembly ensures over 90% light transmittance, delivering bright, uniform illumination even in low-light or adverse weather (rain, fog). The brake light uses a high-luminance LED bulb (1500 lumens) that achieves a response time of ≤0.05s—3x faster than traditional halogen bulbs—providing earlier warning to following vehicles. The reverse light adopts a wide-beam design, covering a 120° horizontal range and 5-8m distance behind the vehicle, enhancing visibility for reverse maneuvers

The lamp housing is crafted from high-strength ABS plastic with a UV-stabilized coating, preventing color fading, cracking, or deformation under extreme temperatures (-30℃ to 85℃) and long-term sunlight exposure. The lens and housing are sealed with a dual-layer silicone gasket, achieving an IP67 waterproof rating—effectively blocking water, dust, and debris from entering the interior, thus avoiding bulb burnout or circuit short circuits. Additionally, the housing’s edge is reinforced with a shock-absorbing rubber buffer, reducing damage risks from minor collisions or stone impacts

Engineered to strict original equipment (OE) specifications, the assembly features precision-machined mounting brackets and a plug-and-play wiring connector that perfectly matches the Dongfeng GX’s rear body panel and factory electrical system. No modifications to the vehicle’s body or wiring harness are required during installation; it can be directly swapped with the original lamp, ensuring consistent alignment, exterior appearance, and aerodynamic performance. The assembly’s dimensions (260mm×180mm×110mm) and weight (1.1kg) are identical to the OE part, maintaining the vehicle’s original design integrity

The 3773010-C6201 combination lamp assembly meets international ECE R7 (rear lamp safety), ECE R13 (brake light safety), and Chinese GB 4785 (automotive lighting and light-signaling devices standard) requirements. All bulbs and electrical components undergo 1000-hour aging tests and 500-cycle temperature shock tests to ensure stable performance in extreme environments. The LED bulbs also feature overcurrent protection, preventing circuit damage from voltage fluctuations. Furthermore, the assembly’s light intensity and beam pattern are factory-calibrated, eliminating the need for post-installation adjustment and ensuring compliance with road safety regulations
