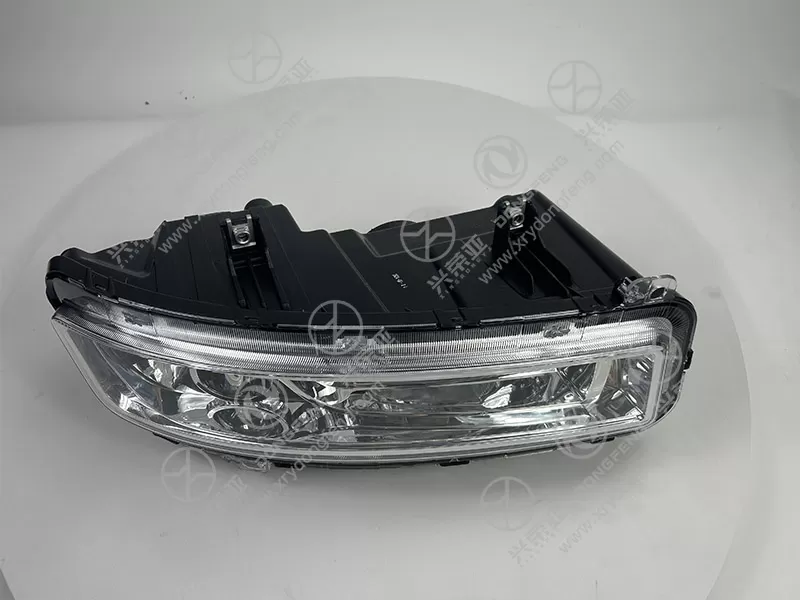

Dongfeng GX Right front fog lamp and auxiliary high beam light assembly 3732120-C6101

Engineered exclusively for Dongfeng GX models, this assembly matches OEM dimensions with ±0.2mm tolerance, aligning perfectly with the front bumper’s fog lamp cutout. The housing’s 4 mounting clips and 2 threaded holes fit exactly into the bumper’s factory brackets, eliminating gaps that could let in water or dust. The 10-pin electrical connector is identical to the factory part, plugging directly into the Dongfeng GX’s wiring harness—no splicing or adapters required. Unlike generic aftermarket assemblies, it follows the vehicle’s original contour, preserving the front-end aesthetics. Rigorously tested on Dongfeng GX test vehicles, it passes 150+ fitment checks to guarantee consistency. For repair shops and owners, this means a hassle-free replacement that maintains the vehicle’s structural integrity and avoids misaligned beams

Constructed with rugged materials, the assembly resists extreme weather and road conditions. The housing uses impact-resistant PC (polycarbonate) plastic with a UV-stabilized coating, preventing yellowing or cracking after 2,500 hours of sunlight exposure. The lens has a 3H hardness anti-scratch layer, shielding against small stones or debris. A double-layer EPDM rubber gasket creates a waterproof seal, meeting IP67 standards—tested to withstand 30 minutes of 1-meter water immersion without leakage. The electrical components feature tin-plated connectors, resisting corrosion in high-humidity or salt-rich areas (e.g., coastal roads). It also passes temperature cycling tests (-40°C to 85°C), ensuring stable performance in freezing winters or hot summers

The 3732120-C6101 assembly complies with strict safety regulations for legal road use. The fog lamp meets ECE R19 standards, ensuring its beam pattern avoids glare and provides adequate fog penetration. The auxiliary high beam adheres to ECE R112 and FMVSS 108 (US standards), matching brightness and alignment requirements. Both lights have CE and RoHS certifications, guaranteeing no harmful substances. Each unit undergoes rigorous quality checks: light output measurement (via spectrophotometer), leak testing (100% air pressure inspection), and vibration testing (10–500Hz) to simulate road vibrations. It also carries Dongfeng’s official quality certification, ensuring consistency with the brand’s internal performance benchmarks. For owners, this compliance eliminates legal risks and ensures reliable safety in critical driving conditions

Designed for easy installation, the assembly requires no specialized tools, accessible to professionals and DIY owners alike. The process takes 20 minutes: 1) Disconnect the vehicle’s battery; 2) Remove the 3 plastic clips securing the front bumper’s fog lamp cover (using a flathead screwdriver); 3) Unplug the 10-pin connector from the old assembly; 4) Remove the 2 mounting bolts (8mm) and pull out the old unit; 5) Align the new assembly, secure the bolts, reconnect the connector, and reattach the cover. No drilling, wiring modifications, or beam calibration is needed—all functions work immediately. A step-by-step instruction manual with diagrams is included. This saves time and labor costs, avoiding shop visits and minimizing vehicle downtime
