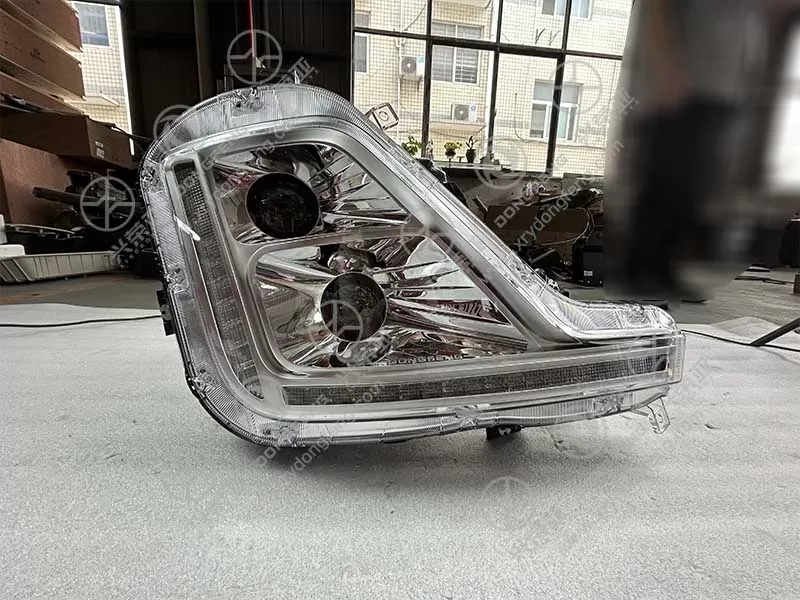

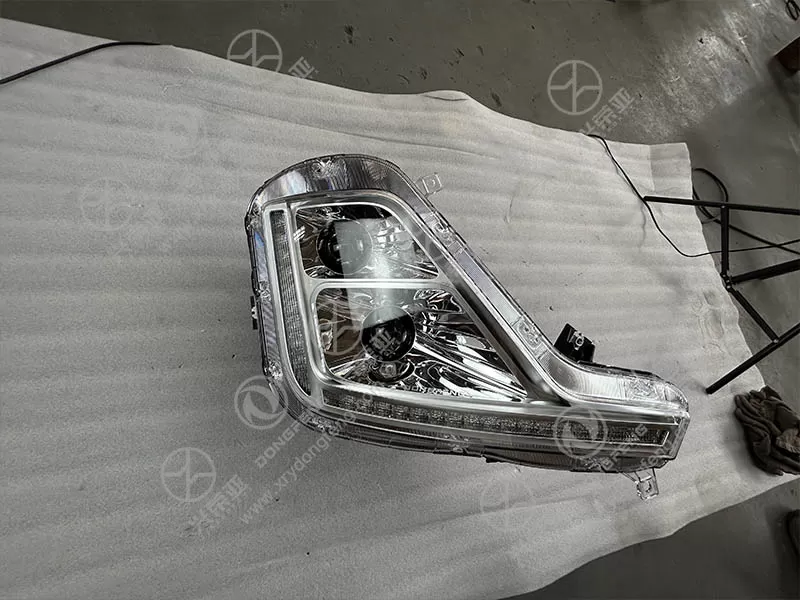

Dongfeng GX Right Front Combination Light Assembly 3772020-C6203

Equipped with a high-transmittance PC (polycarbonate) lens with anti-scratch and anti-glare coatings, the assembly achieves 93% light transmittance, minimizing light loss and delivering uniform road illumination. The low beam uses a dual-reflector design that limits upward light dispersion (complying with ECE anti-glare standards) while covering a 35-55m road range; the high beam adopts a deep parabolic reflector to extend illumination to 90-110m for long-distance night driving. The DRL and turn signal utilize energy-saving LED bulbs, consuming 55% less power than halogen bulbs and boasting a 45,000-hour service life

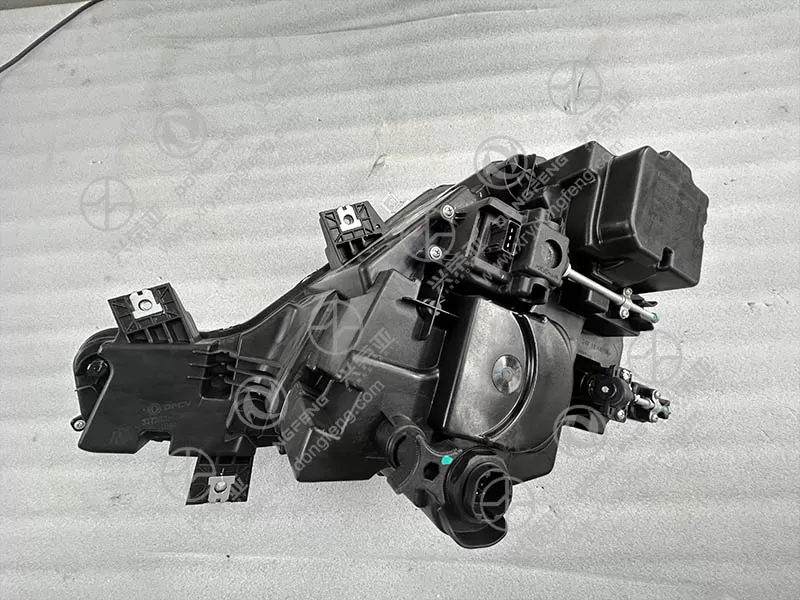

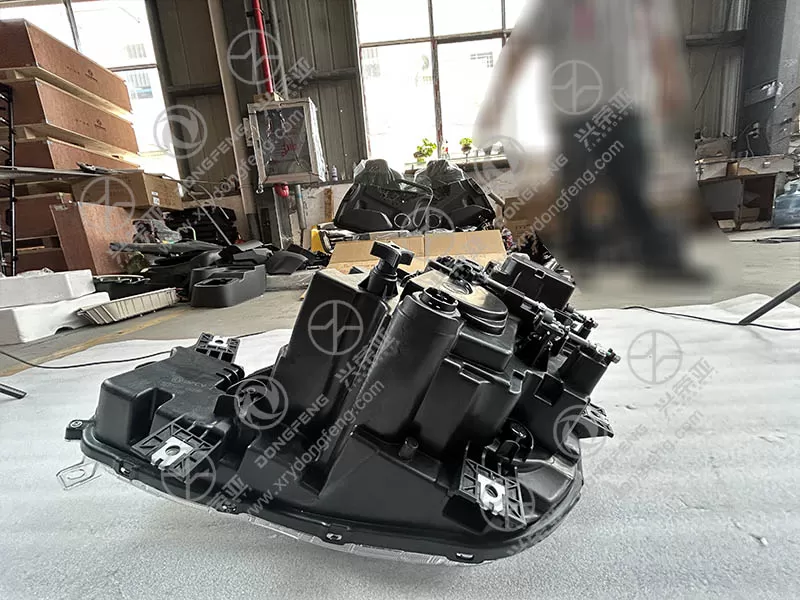

The lamp housing is crafted from high-strength ABS plastic with a UV-stabilized coating, preventing color fading, cracking, or deformation under extreme temperatures (-35℃ to 88℃) and long-term sunlight exposure. The lens and housing are sealed with a dual-layer silicone gasket, achieving an IP68 waterproof rating—resistant to high-pressure water jets and dust intrusion, ensuring normal operation in heavy rain, snow, or dusty environments. Additionally, the lens is coated with an anti-fog film, maintaining clear imaging even in humid conditions, while the housing edge features a shock-absorbing rubber buffer to reduce damage from stone impacts

Engineered to strict original equipment (OE) specifications, the assembly features precision-machined mounting brackets and a plug-and-play wiring connector that perfectly matches the Dongfeng GX’s front bumper and factory electrical system. No modifications to the vehicle’s body or wiring harness are required during installation; it can be directly swapped with the original light, ensuring consistent alignment, exterior appearance, and aerodynamic performance. The assembly’s dimensions (282mm×154mm×123mm) and weight (1.2kg) are identical to the OE part, preserving the vehicle’s original design integrity

The 3772020-C6203 combination light assembly meets international ECE R112 (headlamp safety), ECE R69 (turn signal safety), and Chinese GB 4785 (automotive lighting standard) requirements. All electrical components undergo 1,500-hour aging tests and 600-cycle temperature shock tests to ensure stable performance in extreme environments. The LED bulbs are also certified for electromagnetic compatibility (EMC), preventing interference with the vehicle’s on-board electronics (e.g., navigation, radio). Furthermore, the assembly’s light intensity and beam pattern are factory-calibrated, eliminating post-installation adjustment and ensuring compliance with global road safety regulations
