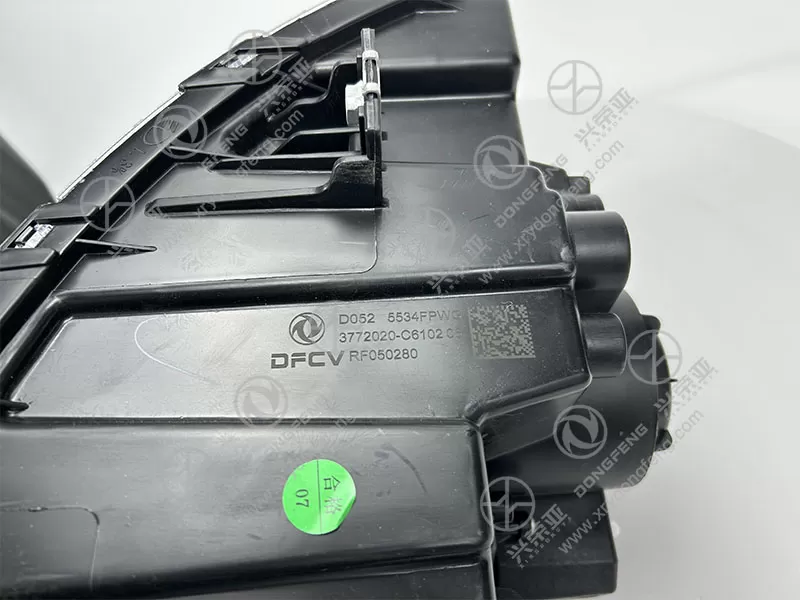

Dongfeng GX Right front combination lamp assembly 3772020-C6102

Equipped with a high-clarity PC (polycarbonate) lens with anti-scratch and anti-fog coatings, the assembly achieves 91% light transmittance, minimizing light loss. The low beam uses a multi-reflector design that focuses light on the road (32-53m range) while avoiding glare for oncoming drivers, complying with international anti-glare standards. The high beam adopts a parabolic reflector to extend illumination to 85-108m, improving long-distance visibility at night. Additionally, the turn signal’s amber LED bulbs have a fast response time (≤0.08s), ensuring timely warning for surrounding vehicles

The lamp housing is made of high-strength ABS plastic with a UV-resistant coating, preventing color fading, cracking, or deformation under extreme temperatures (-32℃ to 86℃) and long-term sunlight exposure. The lens and housing are sealed with a high-temperature-resistant silicone gasket, achieving an IP67 waterproof rating—effectively blocking water, dust, and debris from entering the interior, thus avoiding bulb burnout or circuit short circuits. The housing’s edge is also reinforced with a shock-absorbing rubber strip, reducing damage from small stones or minor front-end collisions

Engineered to match Dongfeng GX’s original equipment (OE) specifications, the assembly features precision-machined mounting brackets and a plug-and-play wiring connector that aligns perfectly with the vehicle’s front bumper and factory electrical system. No modifications to the vehicle’s body or wiring harness are needed during installation; it can be directly swapped with the original lamp, ensuring consistent exterior appearance, alignment, and aerodynamic performance. The assembly’s dimensions (278mm×152mm×121mm) and weight (1.15kg) are identical to the OE part, maintaining the vehicle’s original design integrity

The 3772020-C6102 combination lamp assembly meets international ECE R112 (headlamp safety) and Chinese GB 4785 (automotive lighting and light-signaling devices standard) requirements. All electrical components and bulbs undergo 1200-hour aging tests and 600-cycle temperature shock tests to ensure stable performance in extreme environments (e.g., high humidity, rapid temperature changes). The LED bulbs also have built-in overcurrent protection, preventing circuit damage from voltage fluctuations. Furthermore, the assembly’s light intensity and beam pattern are factory-calibrated, eliminating the need for post-installation adjustment and ensuring compliance with road safety regulations
