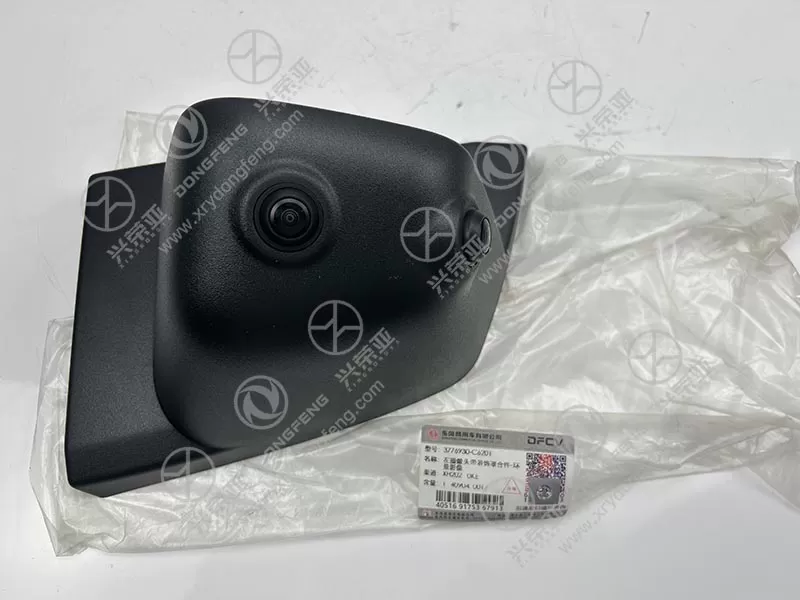

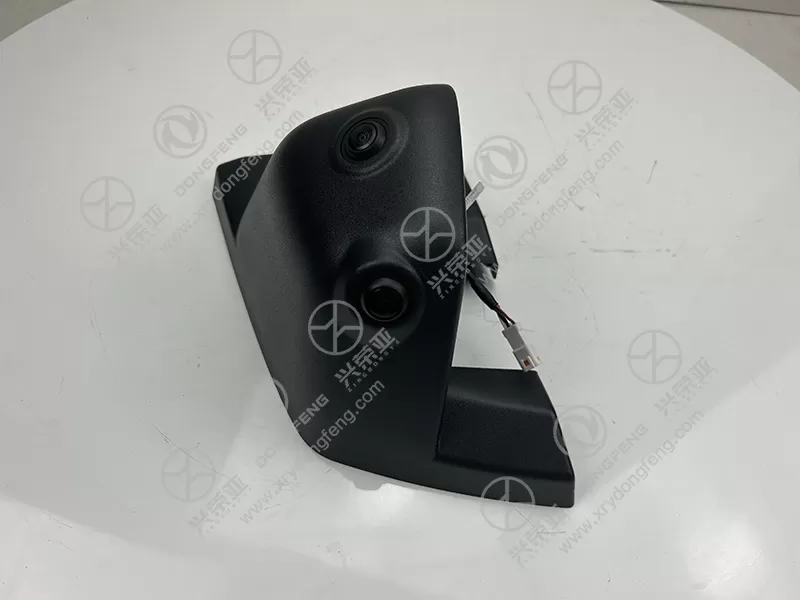

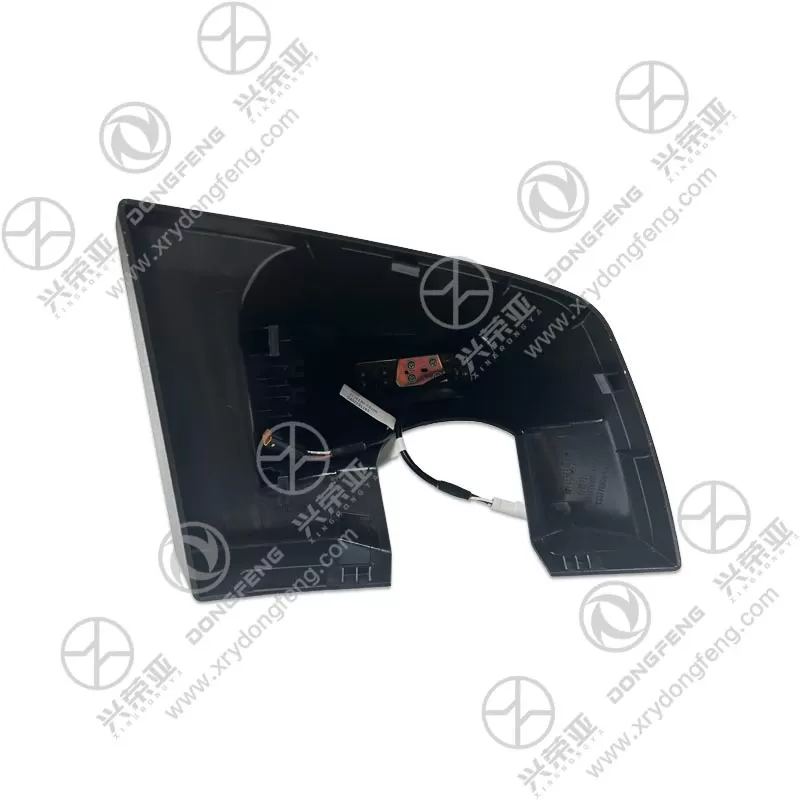

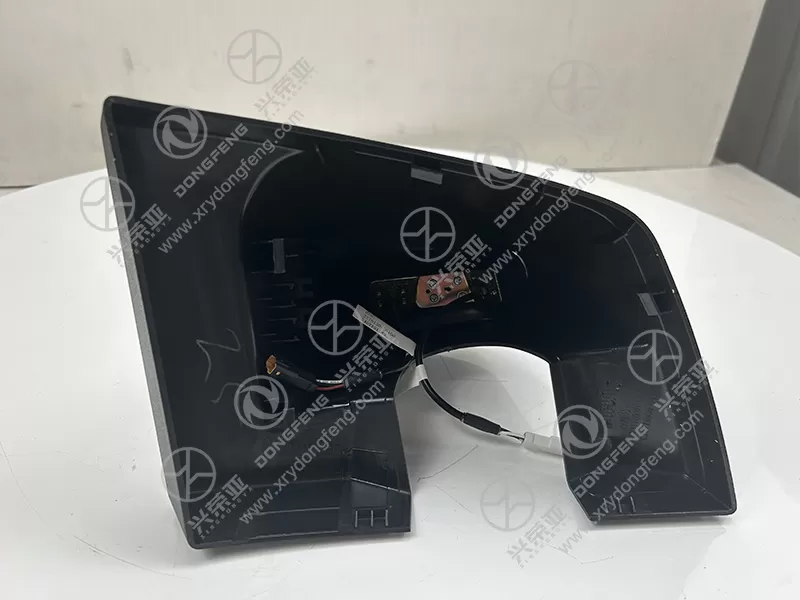

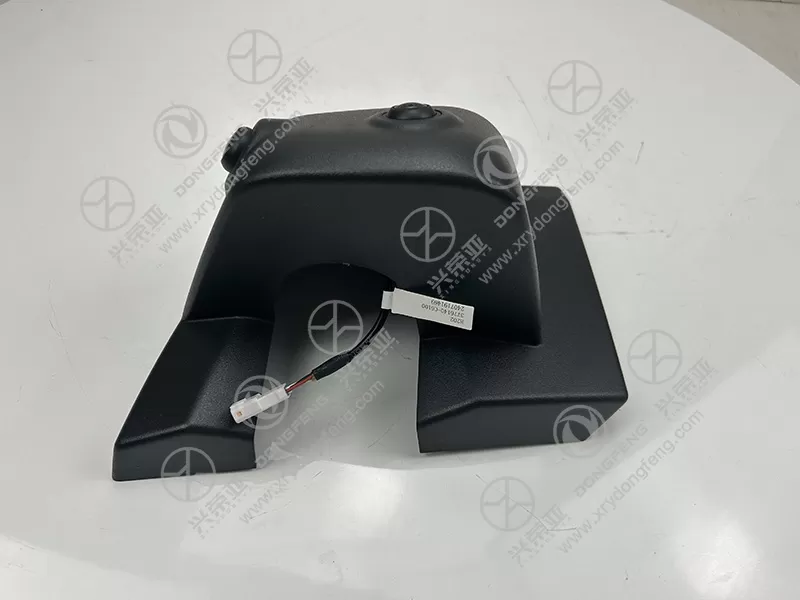

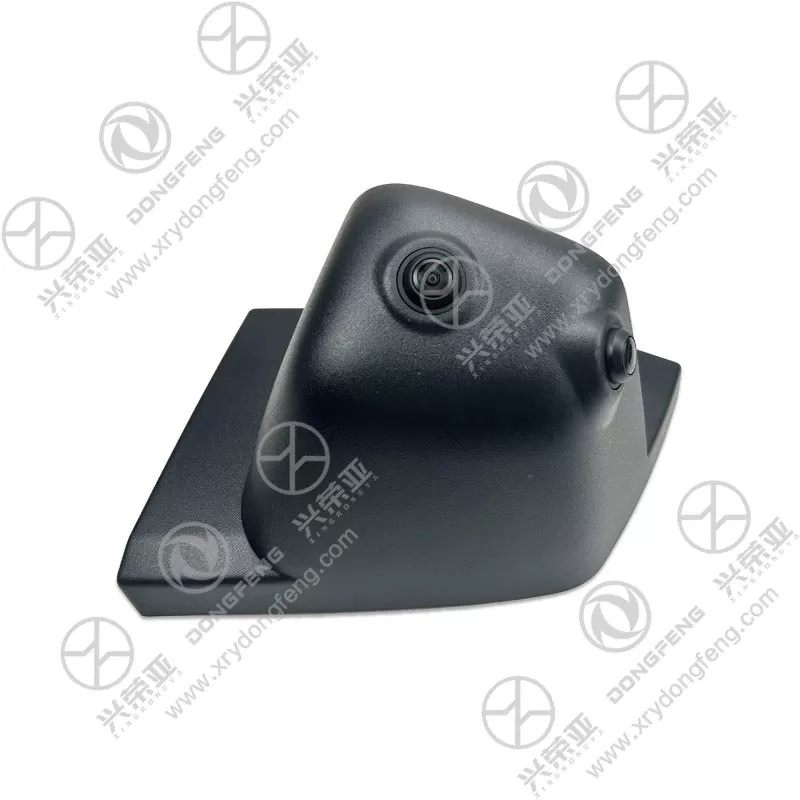

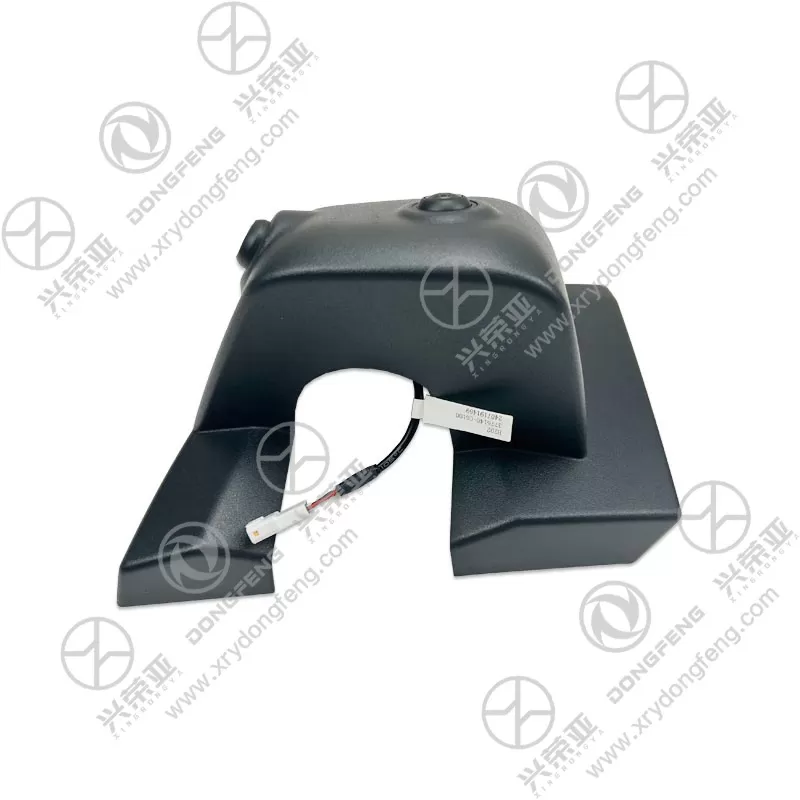

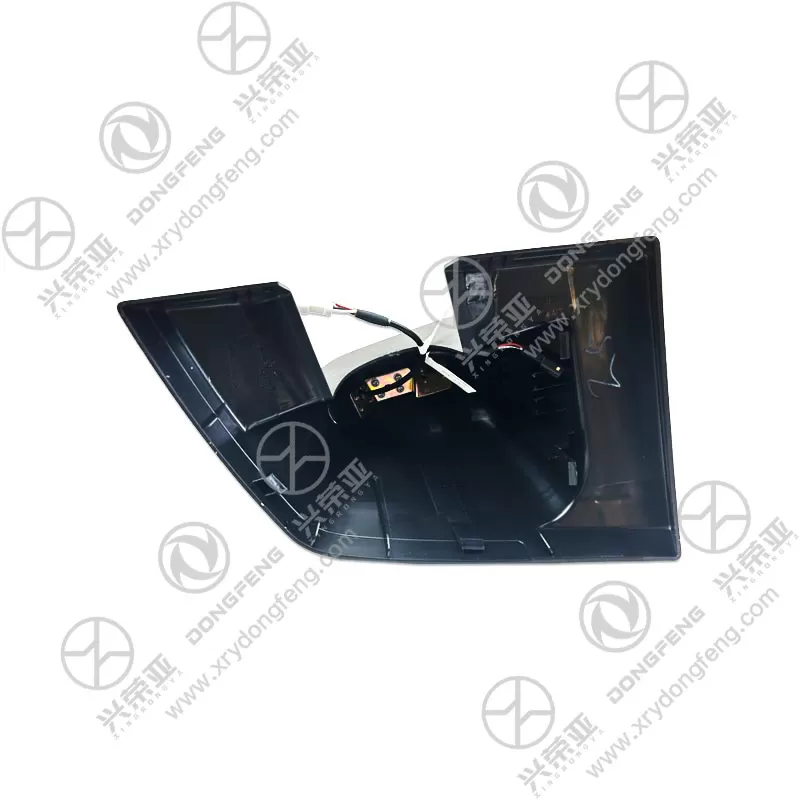

The left camera with decorative cover assembly (Part No.: 3776930-C6201) is specifically designed for Dongfeng GX’s ambient image system, capturing real-time high-definition (HD) footage of the vehicle’s left side (including blind spots, curbs, and nearby obstacles). This function integrates seamlessly with the vehicle’s central infotainment screen, displaying a 120° wide-angle view to assist drivers during parking, lane changing, or low-speed maneuvering. The assembly’s camera module and decorative cover form a single unit, ensuring the ambient image function operates stably without external interference
Product Attributes
Warranty: 1 YEARS ,Part name: camera with decorative cover assembly - ambient image 3776930-C6201
PRODUCT DESCRIPTION
High-Definition Imaging Performance: Clear & True-to-Color
Equipped with a 1/3-inch CMOS image sensor, the camera delivers 1080P (1920×1080) HD resolution, ensuring sharp details even in low-light conditions (minimum illumination: 0.1 lux). It features an automatic white balance (AWB) function and dynamic range adjustment (HDR), which eliminate color distortion caused by strong sunlight or shadows and maintain clear imaging in complex light environments (e.g., dawn, dusk, tunnels). The 120° wide-angle lens (with distortion correction) covers a broad side area, avoiding blind spots while preventing image fish-eye effects
All-Weather Protection Design: Durable in Harsh Conditions
The camera module is sealed with a waterproof rubber ring and adopts an IP6K9K protection rating—resistant to high-pressure water jets (80℃, 80-100 bar) and dust intrusion, ensuring normal operation in heavy rain, snow, or dusty environments. The decorative cover is made of impact-resistant ABS plastic with a UV-resistant coating, preventing fading, cracking, or deformation under long-term exposure to sunlight (temperature range: -40℃ to 85℃). Additionally, the camera lens is coated with an anti-fog and anti-scratch film, maintaining clear imaging even in humid or dusty conditions
OE-Spec Fitment: Seamless Integration with Dongfeng GX
Engineered to match Dongfeng GX’s original equipment (OE) specifications, the assembly features precise mounting holes and a dedicated wiring connector that aligns perfectly with the vehicle’s left-side body panel and on-board electrical system. The decorative cover’s shape, color, and texture are identical to the vehicle’s original exterior parts, ensuring no visual discrepancy or aerodynamic disruption after installation. The assembly’s compact size (65mm×45mm×30mm) and lightweight (55g) fit seamlessly into the vehicle’s left-side trim, requiring no modifications to the body structure
Plug-and-Play Installation & Stable Signal Transmission
The assembly adopts a plug-and-play design: its wiring harness connects directly to the Dongfeng GX’s ambient image control unit, eliminating the need for cutting or rewiring. The camera uses a shielded coaxial cable to transmit video signals, reducing electromagnetic interference (EMI) from the vehicle’s engine or other electrical components—ensuring stable, lag-free (≤0.1s delay) image transmission. The decorative cover is fixed with original-style clips, allowing quick installation (within 15 minutes) and easy removal for maintenance, without damaging the vehicle’s exterior
TECHNICAL SUPPORT
1. Accessories selection consultation
- Provide ** intelligent selection tools ** (such as parts matching query system), input the vehicle model VIN code or engine model to match the corresponding parts number, reducing the selection error rate.
The technical team is available online 7×12 hours to answer technical questions about accessories (such as material compatibility and installation processes).
2. Customized development support
We offer specialized R&D services for special market demands (such as heat dissipation accessories for high-temperature regions in the Middle East and dedicated suspension components for road conditions in Africa), and complete sample delivery within six weeks.
3. Training and Technical materials
Provide remote/on-site training for the customer's after-sales team (such as diagnosis of electrical control accessories and DPF regeneration operation), along with multilingual versions of the "Accessories Installation Manual" and "Troubleshooting Guide".
4. Quality Traceability and Improvement
Through the QR code traceability system (one product, one code), track the production batch of accessories and the source of raw materials, respond quickly to quality complaints and initiate improvement processes.
AFTER-SALES AND LOGISTICS SUPPORT
After-sales service
Quality Assurance Policy
-The warranty period for original factory parts is 12 months (counting from the date of signature for receipt), covering material defects, process issues, and man-made damage.
- Provide "Localized Express repair Service" : Cooperate with third-party repair networks in markets such as Southeast Asia and the Middle East, and deliver emergency parts to designated repair points within 4 hours.
Return and Exchange Process
-The customer is required to submit the test report (such as a third-party appraisal) within the warranty period. After confirmation by Dongfeng, a reissue or refund will be arranged within 5 working days.
Logistics support
Warehouse Layout
-Five major regional accessory centers have been established globally (Southeast Asia, the Middle East, Africa, South America, and Europe) to achieve "next-day delivery" for mainstream accessories (covering customers within the regions).
Emergency Logistics Plan
-Emergency parts can be directly delivered within 48 hours via the "Dongfeng Exclusive Aviation Special Line" (such as engine ECU, brake valves and other key components).
Packaging Optimization
-Use shockproof and moisture-proof packaging (such as honeycomb cartons + pearl cotton), and reinforce fragile parts (such as glass, sensors), keeping the damage rate within 0.5%.
