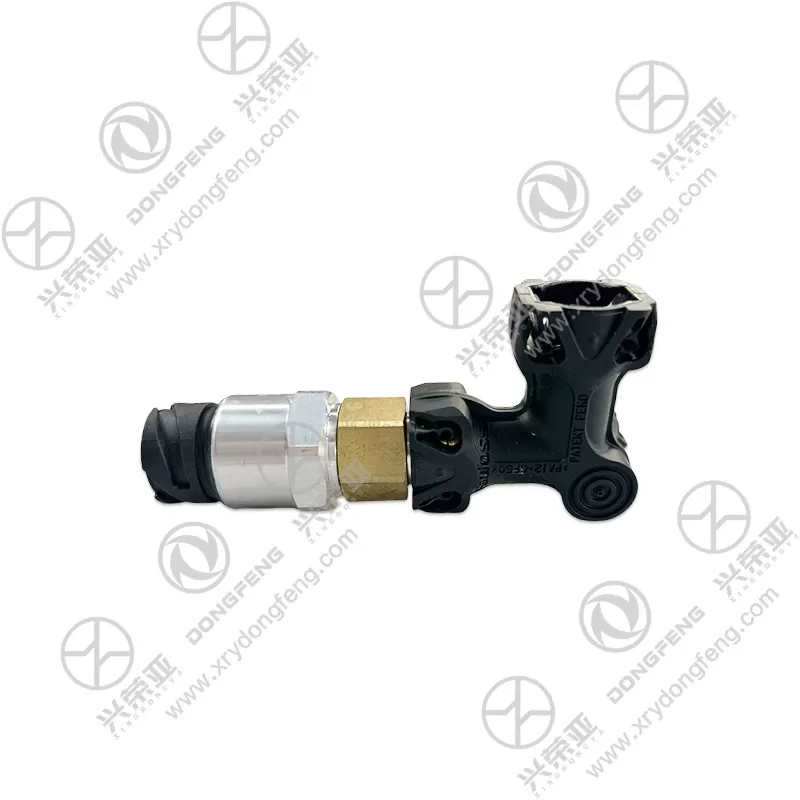

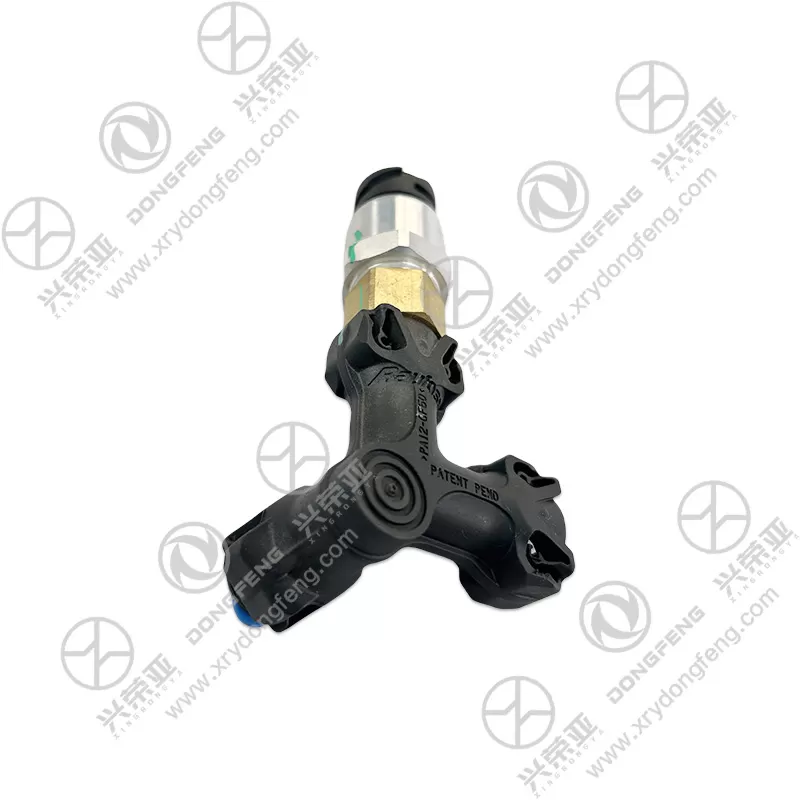

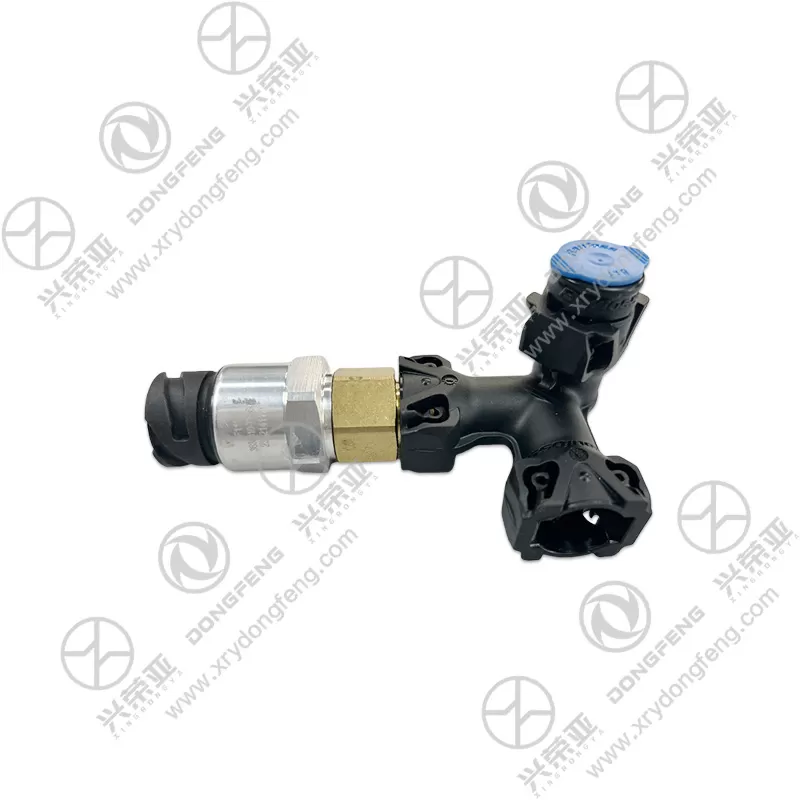

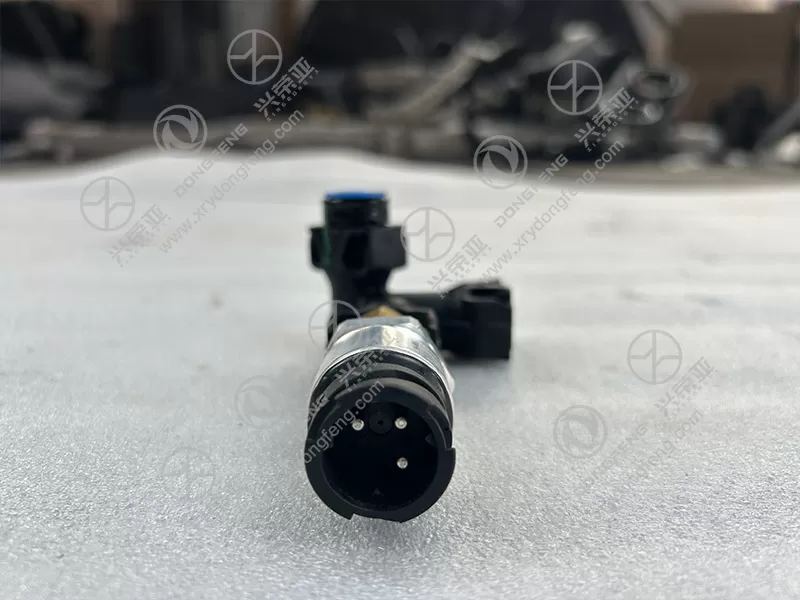

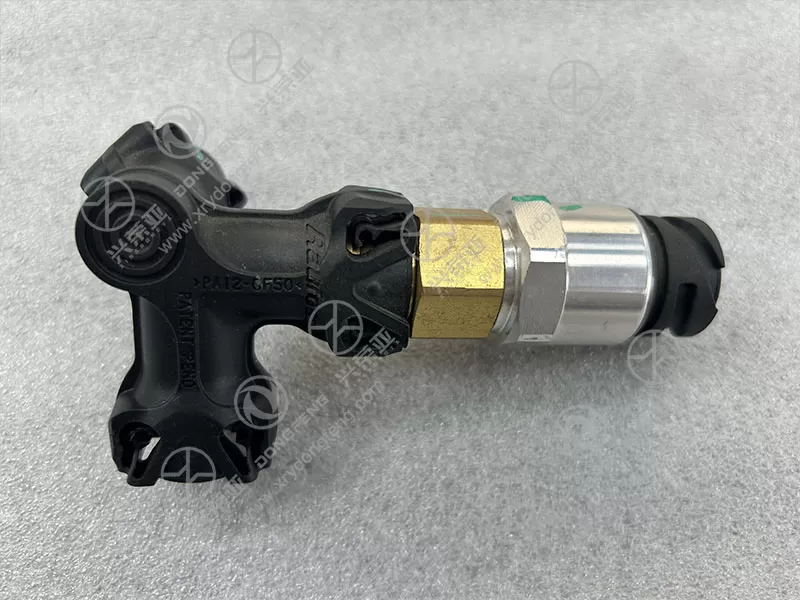

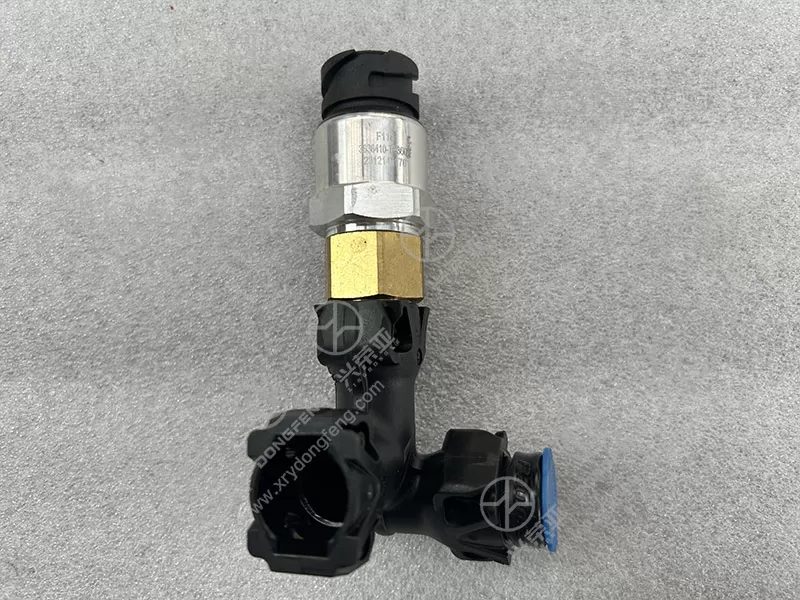

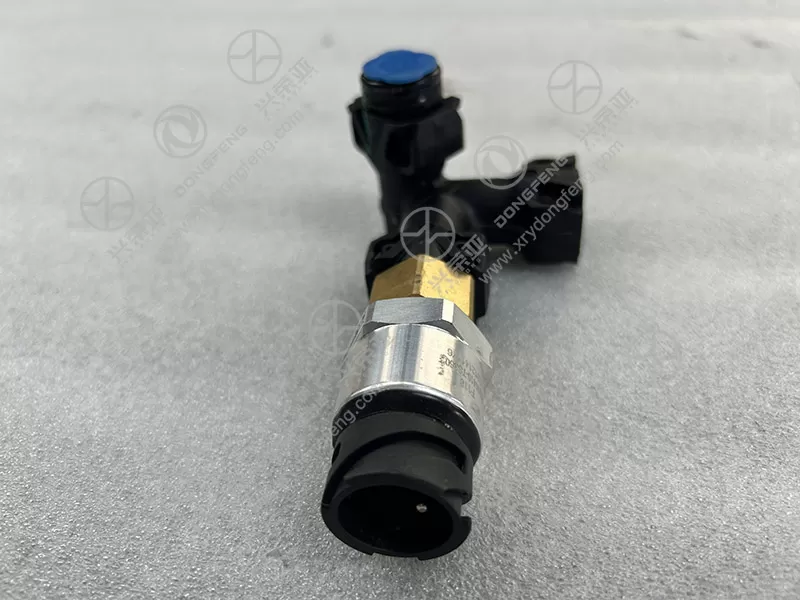

Dongfeng GX ESC system ECU dedicated air pressure sensor assembly 3636410-TS360

As a critical input device for the Dongfeng GX’s ESC system, the 3636410-TS360 assembly is responsible for real-time, high-precision air pressure monitoring in the vehicle’s brake system (typically the air brake circuits, if applicable) or suspension air chambers. It collects continuous air pressure data and transmits it to the ESC ECU at a rapid response rate (usually ≤100ms). The ECU then uses this data to adjust brake force distribution, prevent wheel lock-up during emergency braking, and correct oversteer/understeer during cornering—directly enhancing the vehicle’s handling stability and active safety. Without accurate pressure signals from this sensor, the ESC system cannot operate at full capacity, increasing the risk of accidents in adverse driving conditions

The 3636410-TS360 sensor assembly boasts rigorous technical parameters to meet automotive-grade reliability standards. It features a measurement range of 0 to 1.2 MPa (or specific range tailored to Dongfeng GX’s system requirements), with an accuracy of ±2% Full Scale (FS) to ensure precise data output. The operating voltage range is 9V to 32V, compatible with the Dongfeng GX’s on-board electrical system, and it can withstand extreme temperature conditions from -40°C to 85°C, ensuring stable performance in harsh environments such as cold winters or hot summers. Additionally, the sensor’s signal output type (e.g., analog voltage or digital CAN bus) is optimized to match the ESC ECU’s data reception requirements, ensuring efficient and error-free communication

To ensure long-term durability and resistance to automotive operating environments, the 3636410-TS360 assembly adopts a high-strength and corrosion-resistant structural design. The sensor housing is made of engineering plastic (e.g., PBT+GF30) with excellent impact resistance and heat resistance, preventing damage from vibration, shock, or high temperatures during vehicle operation. The pressure interface uses a standard thread (e.g., M10×1 or custom OE specification) with a high-quality sealing ring (e.g., nitrile rubber or fluororubber) to prevent air leakage and ensure reliable pressure measurement. The electrical connector is designed with a waterproof and dustproof rating (e.g., IP6K9K), protecting the internal circuit from moisture, dust, or road debris—critical for maintaining sensor functionality in wet or dusty driving conditions

The 3636410-TS360 air pressure sensor assembly undergoes strict quality control processes and complies with international automotive standards to ensure reliability and safety. It is manufactured in accordance with ISO/TS 16949 automotive quality management system requirements, with each unit subject to 100% testing (including pressure accuracy testing, electrical performance testing, and environmental resistance testing) before leaving the factory. Additionally, the product meets relevant EMC (Electromagnetic Compatibility) standards (e.g., CISPR 25) to prevent electromagnetic interference with other on-board electronic components and avoid being affected by external electromagnetic signals. It also comes with a manufacturer’s warranty (e.g., 12 months or 20,000 kilometers), providing peace of mind for Dongfeng GX vehicle owners and repair shops regarding product quality and after-sales support
