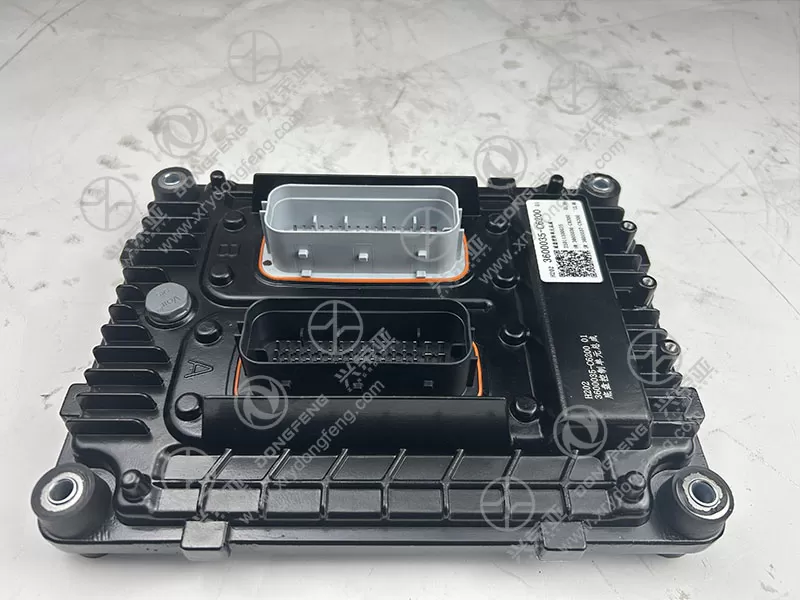

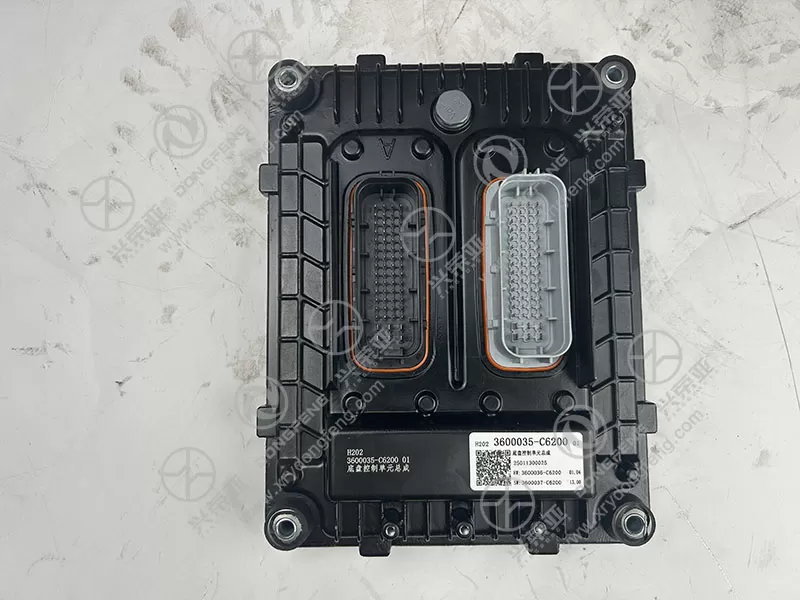

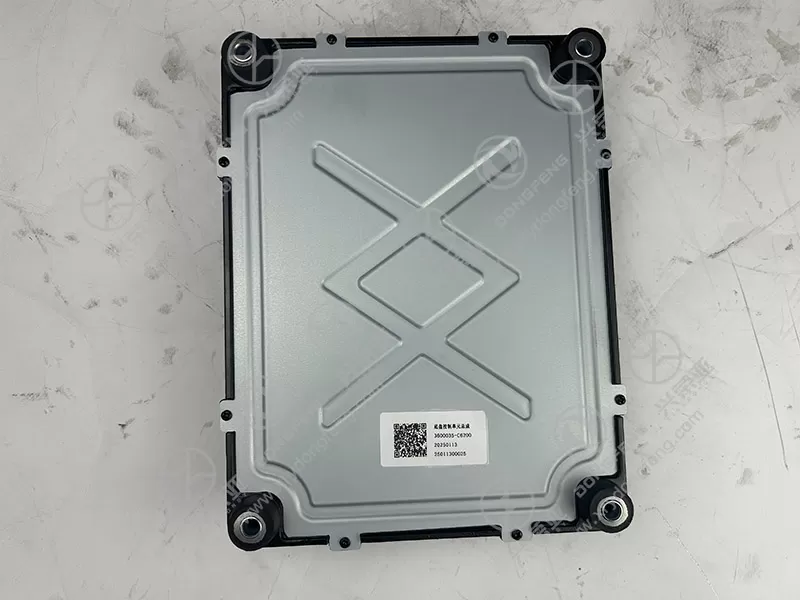

Dongfeng GX Chassis control unit assembly including software and hardware assembly 3600035-C6200

As the "brain" of the Dongfeng GX’s chassis, the 3600035-C6200 assembly delivers centralized, real-time control of chassis dynamics through tight hardware-software integration. The hardware (a high-performance automotive-grade MCU, e.g., NXP S32K3 or TI TMS570) collects data from 10+ chassis sensors (wheel speed, steering angle, lateral acceleration, suspension travel) at a sampling rate of up to 1kHz. The embedded software then processes this data using Dongfeng’s proprietary control algorithms to adjust key chassis systems: it modulates ABS/ESC to prevent wheel lock-up or skidding, optimizes suspension damping to improve ride comfort and handling on rough roads, and coordinates steering assist to enhance maneuverability at low speeds. For example, during emergency cornering, the software calculates optimal brake force for each wheel (via the hardware’s output drivers) to correct oversteer/understeer—all within 50ms. This synergy ensures the Dongfeng GX’s chassis responds consistently and safely to varying driving conditions

The 3600035-C6200’s hardware is built with automotive-grade ruggedness to withstand the harsh operating environment of vehicle chassis—including extreme vibration, temperature fluctuations, and exposure to dust or moisture. The CCU housing is constructed from die-cast aluminum alloy (e.g., ADC12) with a powder-coated finish, providing excellent mechanical strength to resist impact from road debris and vibration (up to 20G peak acceleration, compliant with ISO 16750-3). The internal circuit board uses conformal coating (e.g., acrylic or urethane) to protect components from moisture, dust, and chemical corrosion (e.g., road salt). Critical hardware components—such as power management ICs and signal amplifiers—are rated for an operating temperature range of -40°C to 105°C, ensuring stable performance in freezing winters or hot summers. Additionally, the CCU features IP6K7 waterproofing, allowing it to withstand temporary immersion in water (e.g., deep puddles) without damage—critical for chassis-mounted components

The embedded software of the 3600035-C6200 assembly offers three key advantages tailored to Dongfeng GX’s needs: customization, diagnostics, and upgradability. First, it includes vehicle-specific parameter customization—allowing Dongfeng’s manufacturing team to adjust settings (e.g., ESC intervention thresholds, suspension stiffness) for different Dongfeng GX variants (e.g., cargo vs. passenger models) without modifying hardware. Second, it features comprehensive on-board diagnostics (OBD-II compliant) that monitor hardware health and chassis system performance: if a sensor fails or a wiring fault occurs, the software logs a diagnostic trouble code (DTC) and sends an alert to the vehicle’s instrument cluster, simplifying maintenance. Third, the software supports over-the-air (OTA) or dealer-based firmware updates (via CAN bus), enabling Dongfeng to roll out performance improvements (e.g., better fuel efficiency via optimized brake control) or bug fixes post-delivery—extending the CCU’s functional lifespan

Both the hardware and software of the 3600035-C6200 assembly meet strict global automotive standards to ensure safety, reliability, and compliance. The hardware is manufactured in accordance with ISO/TS 16949, with each unit undergoing 100% testing: including electrical performance testing (voltage stability, signal accuracy), environmental testing (temperature cycling, vibration, humidity), and durability testing (10-year/200,000km lifespan simulation). The software is certified to ISO 26262 (functional safety standard for automotive electronics), achieving ASIL B compliance—critical for a component that controls safety-related systems like ESC. It also complies with ECE R10 (electromagnetic compatibility), ensuring it does not emit interference that disrupts other on-board electronics (e.g., infotainment systems) and is immune to external EMI (e.g., from mobile phones). To support customers, the CCU comes with a 24-month/40,000km warranty (covering both hardware and software defects) and dedicated technical support—including software troubleshooting and update assistance for repair facilities
