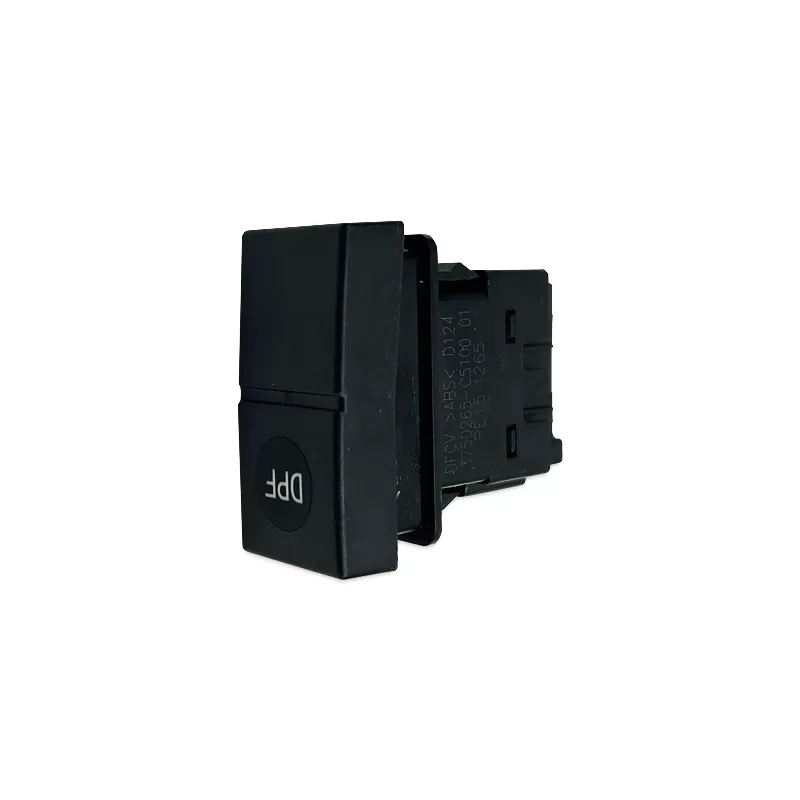

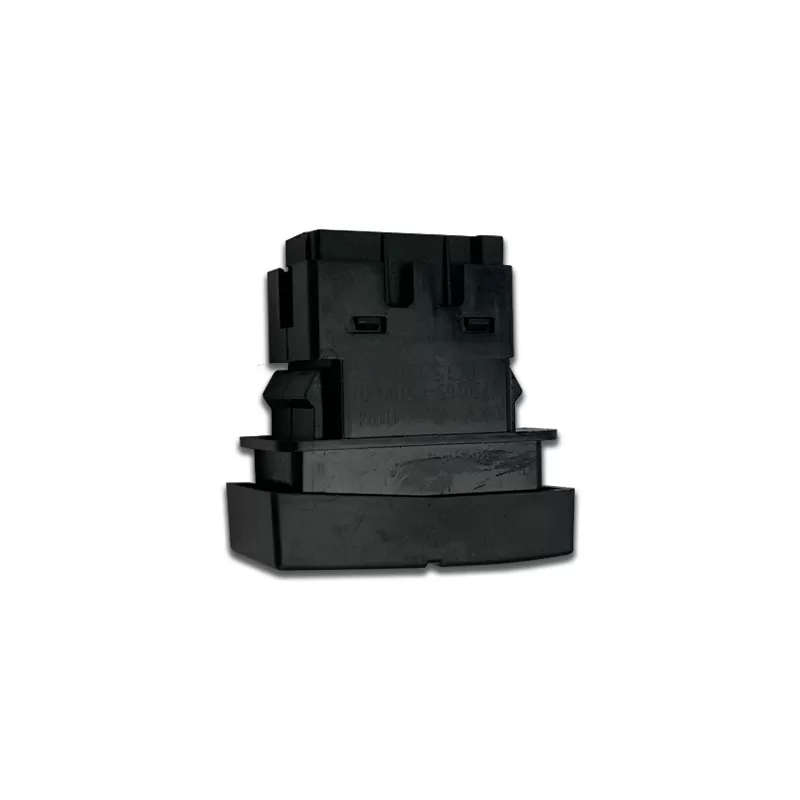

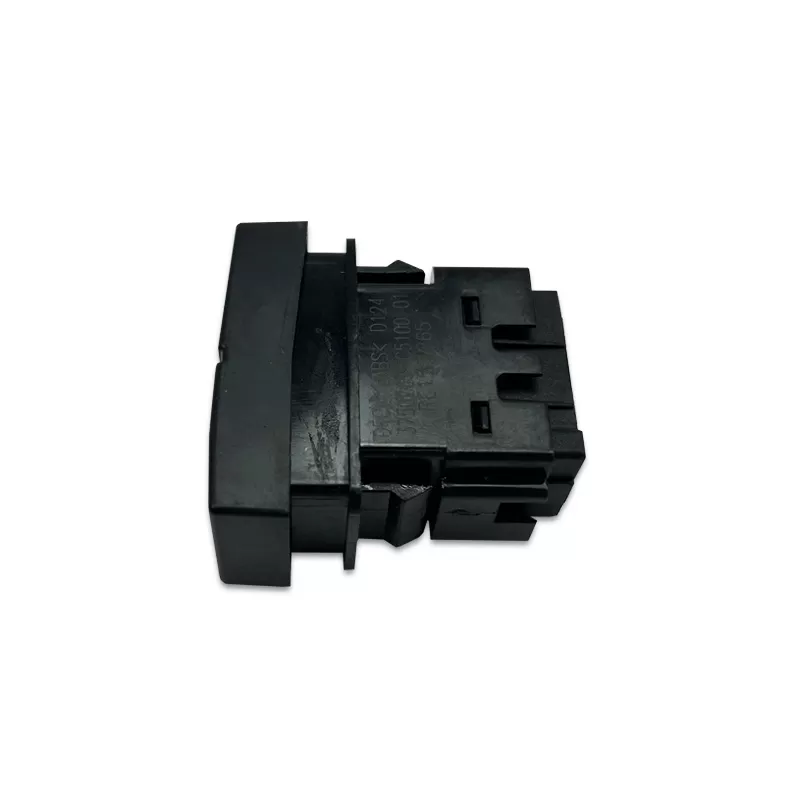

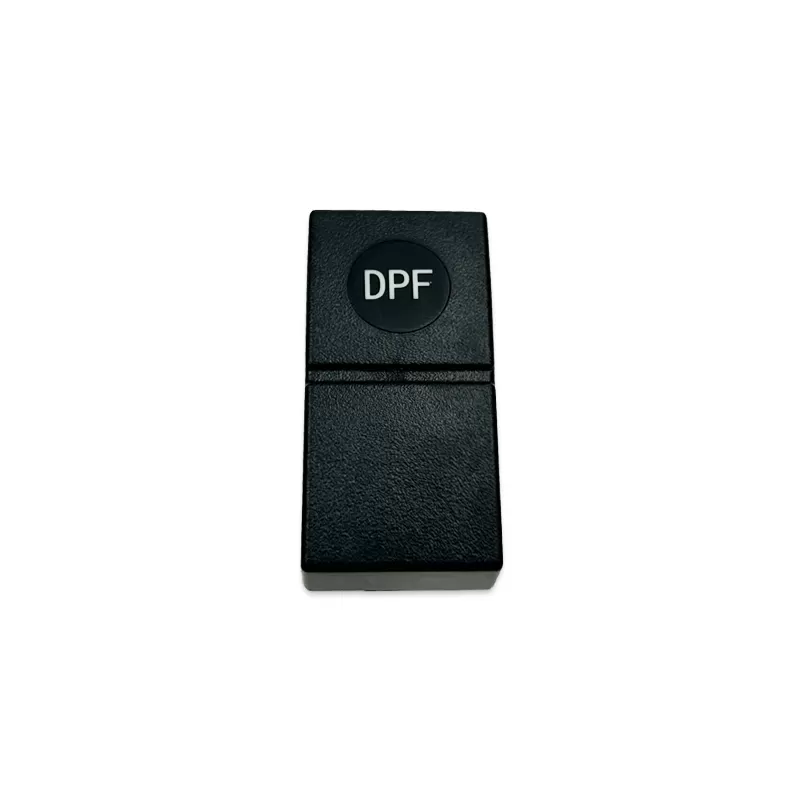

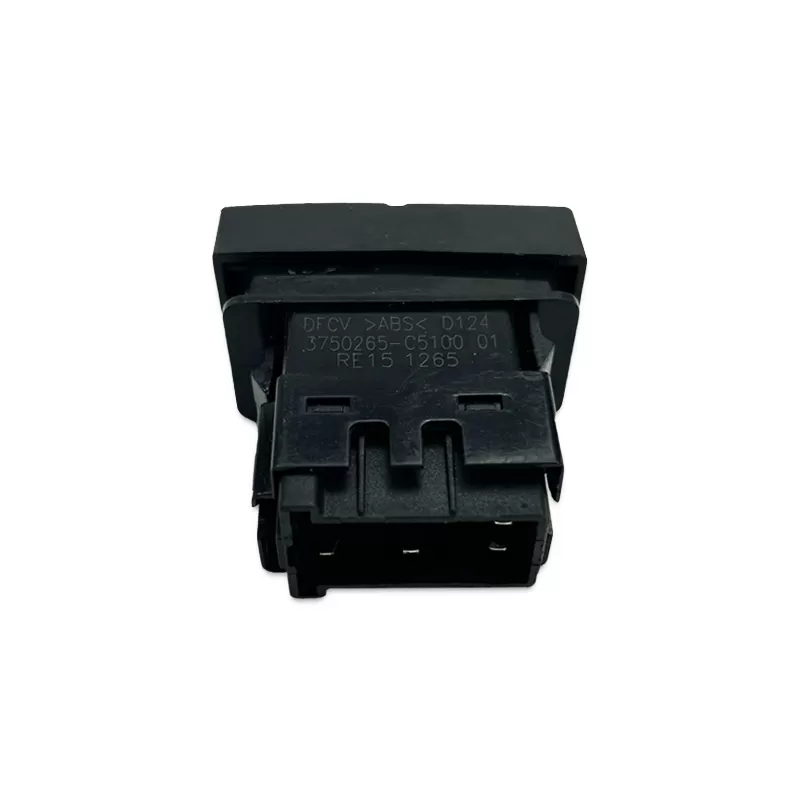

Dongfeng KR DPF regeneration switch assembly 3750265-C5100

Function

The DPF is designed to trap particulate matter, such as soot, from the exhaust gases of diesel engines. Over time, as the DPF accumulates these particles, its efficiency in filtering exhaust gases decreases. To address this, the DPF needs to be regenerated, which involves burning off the trapped particulate matter to restore the filter's functionality. The 3750265 - C5100 regeneration switch enables the driver to initiate and control this regeneration process when necessary.

Principle

There are two main types of DPF regeneration: passive and active. Passive regeneration occurs automatically during normal vehicle operation when the exhaust gas temperature and composition are within the appropriate range. In this process, the oxidizing components in the exhaust react with the particulate matter in the DPF, burning it off without any driver intervention. However, in some situations, such as during low - speed driving, idling, or in cold weather, the conditions for passive regeneration may not be met. This is when active regeneration, which can be manually initiated using the 3750265 - C5100 switch, becomes crucial.

Operation Guide

In normal driving conditions, the DPF regeneration switch should be left in its default position. When the vehicle's dashboard indicates that the DPF requires regeneration, usually through a warning light, the driver can take the following steps. First, ensure that the vehicle is parked in a well - ventilated area, away from any flammable materials, as the regeneration process can cause the DPF to become extremely hot. The vehicle should be in a stationary state, with the engine idling, the gear in neutral, and the parking brake engaged.

Once these conditions are met, the driver can press and hold the 3750265 - C5100 regeneration switch for at least 1 - 2 seconds to initiate the active regeneration process. After activation, the engine speed will typically increase as the engine works to raise the exhaust gas temperature to the level required for efficient regeneration. The regeneration process can take anywhere from 20 to 40 minutes, depending on the degree of DPF clogging. During this time, it is important not to interrupt the process, as premature termination can lead to incomplete regeneration and potential damage to the DPF.

When the regeneration is complete, the DPF warning light on the dashboard will turn off, and the engine speed will return to its normal idle state. The vehicle is then ready to resume normal operation.

Significance in Vehicle Performance and Emission Control

Proper use of the Dongfeng KR DPF Regeneration Switch Assembly 3750265 - C5100 is essential for maintaining the optimal performance of the vehicle. A clogged DPF can cause increased backpressure in the exhaust system, which in turn can lead to reduced engine power, decreased fuel efficiency, and higher emissions. By regularly regenerating the DPF using the switch when needed, the vehicle can operate more smoothly, with improved fuel economy and lower particulate emissions, thus contributing to a cleaner environment.

In summary, the 3750265 - C5100 DPF regeneration switch assembly is a key component in the Dongfeng KR vehicle's exhaust after - treatment system. It provides drivers with a means to ensure the proper functioning of the DPF, safeguarding vehicle performance and helping to meet strict environmental emission standards.
