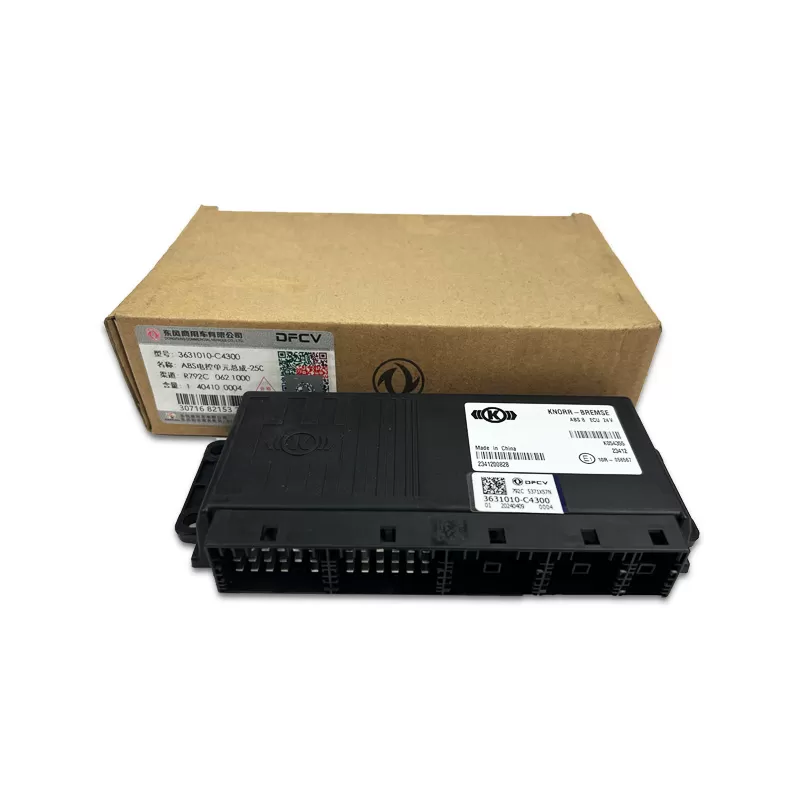

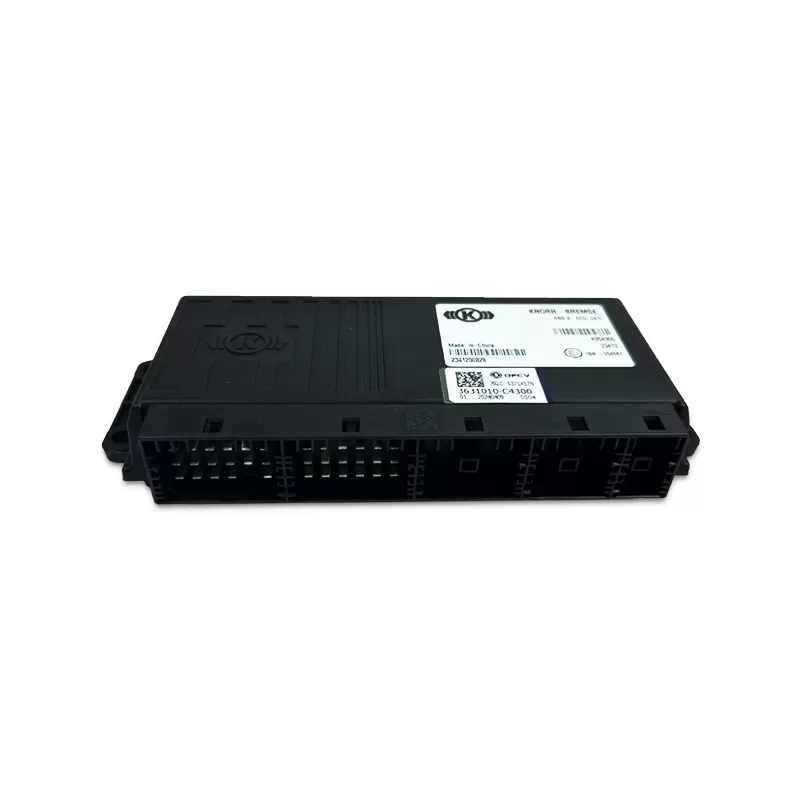

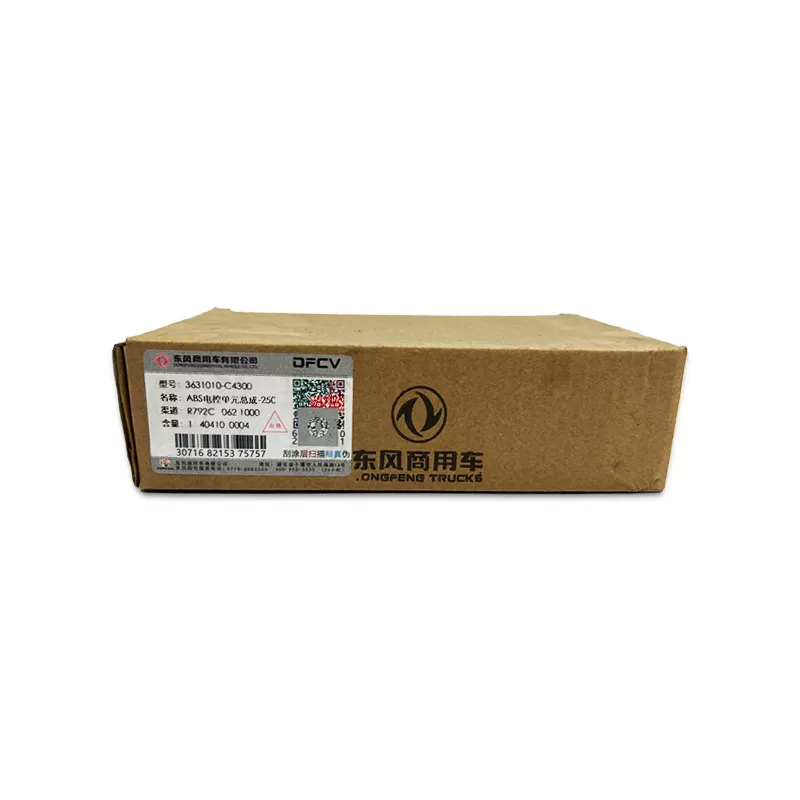

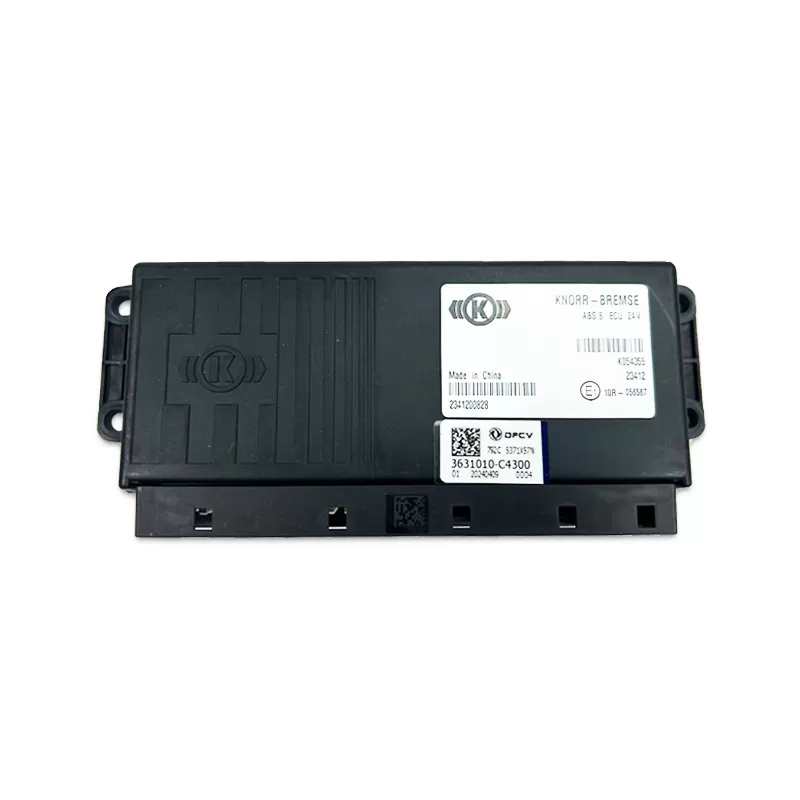

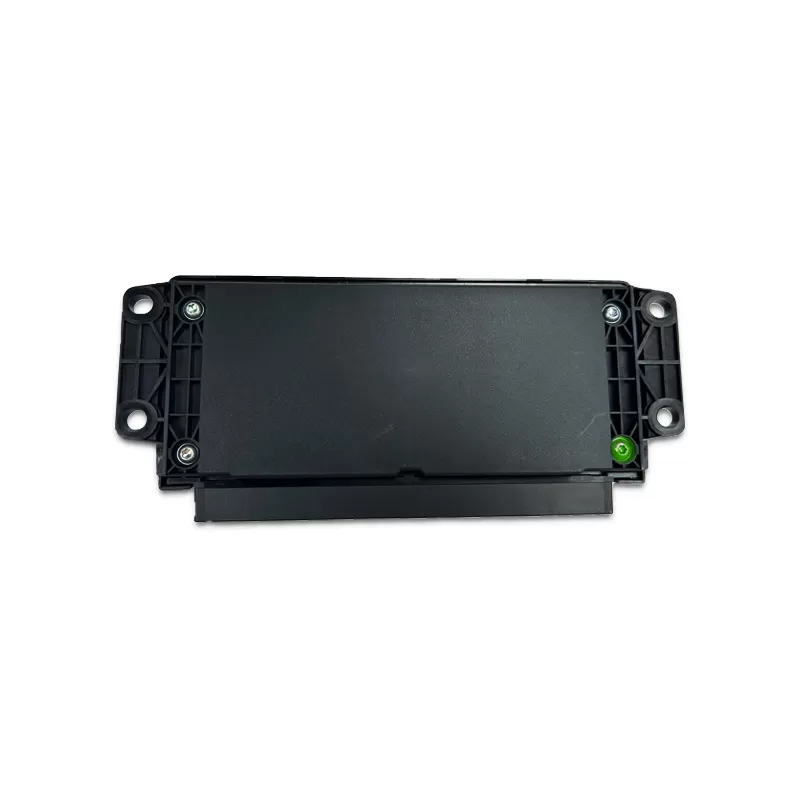

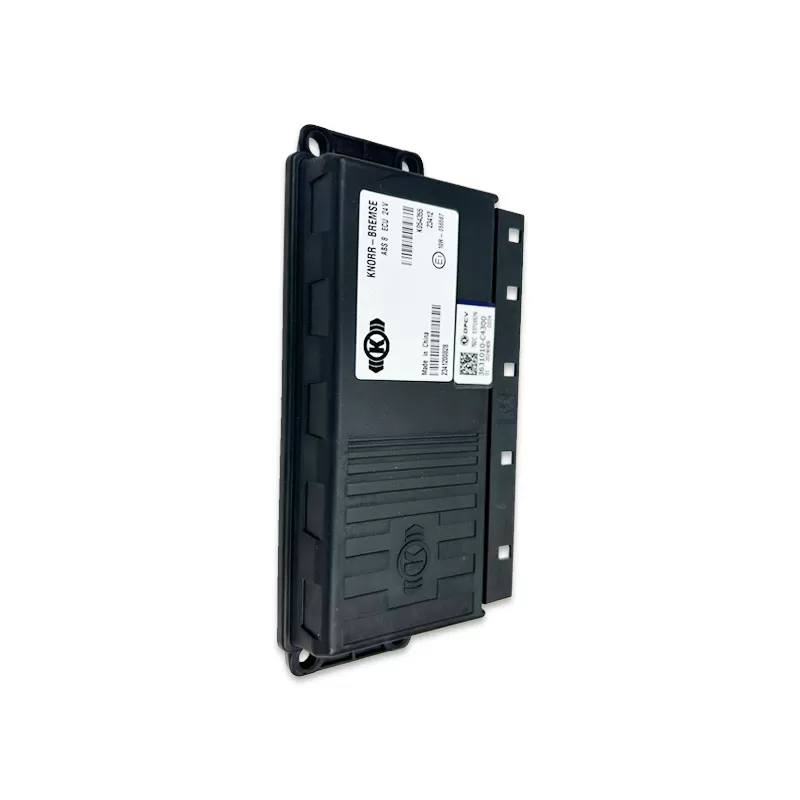

Dongfeng VL ABS electronic control unit assembly-25C 3631010-C4300

The Dongfeng VL ABS Electronic Control Unit Assembly - 25C 3631010 - C4300 is a crucial component in the vehicle's anti - lock braking system (ABS). As an embedded electronic device, it functions like a digital computer, playing a vital role in ensuring driving safety.

This ECU constantly reads signals from multiple sensors installed at various parts of the vehicle, such as wheel speed sensors. When the brakes are applied, especially in emergency or slippery road conditions, it quickly processes the sensor data. By using closed - loop control, it monitors the outputs related to wheel rotation and braking force, and then precisely controls the inputs to the braking system. For example, it adjusts the brake fluid pressures acting on the disc brake cylinders of the right front wheel, left front wheel, and rear wheels. This adjustment prevents the wheels from locking up, which in turn significantly improves the vehicle's directional stability and steerability during panic stops

In sudden braking situations, the Dongfeng VL ABS ECU, with signals input from each sensor, controls the hydraulic pressure in the ABS actuator. The pump inside the actuator also operates, returning the brake fluid from the reservoir to the master cylinder to avoid wheel locking. If the ECU judges that the hydraulic pressure acting on the wheel cylinder is insufficient, it can control the current acting on the solenoid to increase the hydraulic pressure. It also manages the holding of hydraulic pressure, ensuring that the braking force is optimized.

The Dongfeng VL ABS Electronic Control Unit Assembly - 25C 3631010 - C4300 is designed to meet high - performance and reliability requirements. It contributes to enhancing the overall safety performance of the vehicle, providing drivers with better control and stability during braking, and reducing the risk of accidents caused by wheel locking and loss of control.
