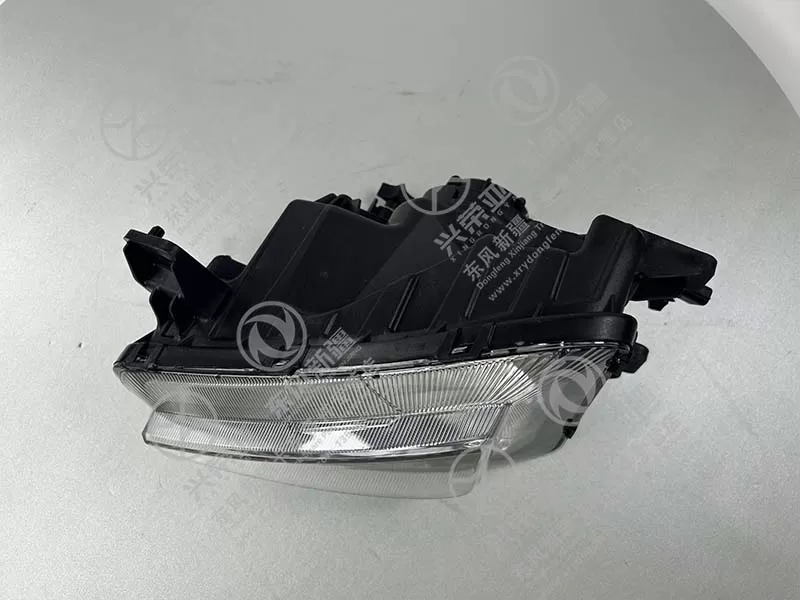

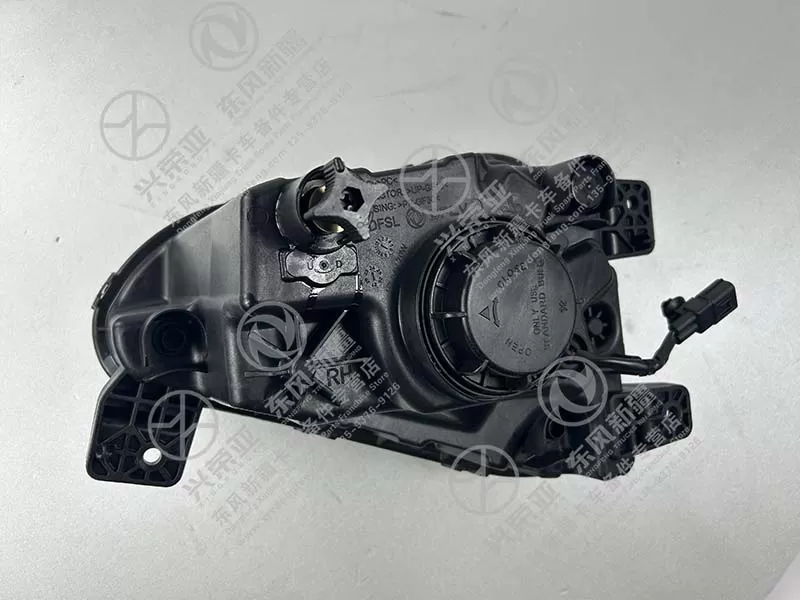

Dongfeng Xinjiang X7 truck parts Right fog light 3732120-C33X701SY

Equipped with a 30W high-power LED light source (12pcs 2.5W SMD LEDs), the fog light delivers a luminous flux of 3,200 lumens—3 times brighter than traditional halogen fog lights (1,000 lumens)—and a color temperature of 6,000K (cool white light) that cuts through fog, rain, and snow more effectively. The light beam features a wide-angle, low-beam design (120° horizontal coverage, 45° vertical coverage) that illuminates the road surface 15–20 meters ahead without dazzling oncoming vehicles, meeting ECE R19 fog light safety standards. In Xinjiang’s frequent heavy fog (visibility ≤200m) or sandstorm conditions, the light’s (penetration) is enhanced by a special optical lens that reduces light scattering by 40%, ensuring the driver clearly sees road edges and obstacles. The LED lifespan exceeds 50,000 hours—10 times longer than halogens—eliminating frequent replacement in remote transportation scenarios

Engineered to withstand Xinjiang’s harsh conditions (sandstorms, heavy snow, -35°C to 45°C temperature swings), the fog light achieves an IP68 protection rating—the highest level for automotive lighting. The housing is made of die-cast aluminum alloy (ADC12 grade) with a tensile strength of 220 MPa, resisting impact from flying stones (tested to 50J impact force without cracking). The lens uses 4mm-thick tempered glass with an anti-scratch coating (Mohs hardness ≥6H), preventing damage from sand abrasion. The wire entry is sealed with a silicone gasket and heat-shrinkable tube, blocking dust and water intrusion even during 30 minutes of 1m-deep water immersion. Additionally, the housing’s surface is treated with a ceramic coating that resists UV degradation (passing 3,000 hours of xenon lamp aging with no discoloration), ensuring stable performance in Xinjiang’s intense sunlight

To prevent damage from the X7’s electrical system fluctuations or prolonged use, the fog light integrates a multi-layer protection circuit. A built-in temperature sensor triggers a current-limiting function when the housing temperature exceeds 85°C, reducing power consumption by 20% to avoid LED burnout—critical for long-haul trips in high-temperature deserts. An overvoltage protector cuts off power when voltage exceeds 16V (e.g., due to alternator faults), preventing damage to the LED driver. The circuit also includes reverse polarity protection, avoiding short circuits if the wiring is connected incorrectly during installation. These safety features meet ISO 16750 automotive electrical standards, ensuring the fog light operates reliably even in the X7’s complex electrical environment (e.g., simultaneous use of air conditioning, radar, and other accessories)

Designed for easy replacement by fleet technicians or remote repair teams, the fog light simplifies installation with user-friendly features. The wiring harness comes with a plug-and-play connector that matches the X7’s factory fog light socket—no cutting or soldering required, reducing wiring time by 80%. The mounting kit includes 4 stainless steel M6×16mm screws (resistant to rust in snowy/coastal areas) and lock washers, which can be tightened with a standard Phillips screwdriver in 15–20 minutes. The fog light’s housing has a built-in alignment mark that aligns with the bumper’s reference line, ensuring accurate beam angle (no need for post-installation adjustment). Each unit undergoes 100% light output testing, waterproof verification, and electrical performance checks, backed by a 24-month warranty against defects (e.g., LED failure, housing cracking, water leakage)
