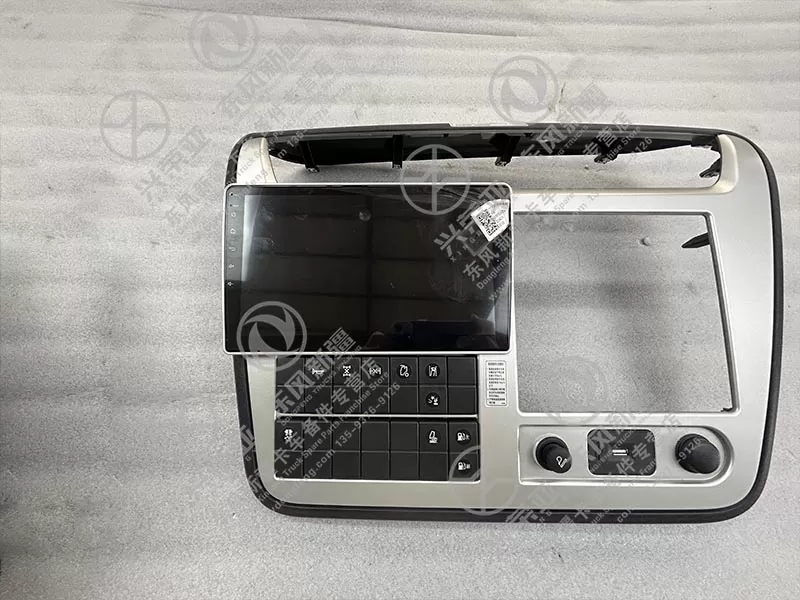

Dongfeng Xinjiang truck parts Multimedia terminal assembly 5305970-XJX301SY

Built to enhance driver convenience, this multimedia terminal integrates multiple core functions in one compact unit. It features a 7-inch capacitive touchscreen (1024×600 resolution) supporting Bluetooth 5.0 for hands-free calling and music streaming—compatible with iOS and Android devices. The built-in GPS navigation system (preloaded with truck-specific maps) includes route optimization for heavy-duty vehicles (avoiding low bridges, narrow roads) and real-time traffic updates via 4G LTE connectivity. Additionally, it displays critical vehicle data (fuel level, engine temperature, tire pressure) by syncing with the truck’s CAN bus, eliminating the need for separate gauges. The terminal also supports USB 3.0 (for media playback/charging) and FM/AM radio with 30 preset stations. This all-in-one design reduces cab clutter and centralizes controls, improving driver focus during long-haul trips

Designed for ease of use in truck environments, the terminal features an intuitive user interface (UI) optimized for gloved hands—with large, high-contrast icons (20mm minimum size) and simplified menus that require minimal screen taps. The capacitive touchscreen supports multi-touch gestures (zoom, swipe) and works reliably even with dusty or slightly wet fingers (IP54-rated for touch panel). The physical buttons (power, volume, navigation shortcut) are backlit with adjustable brightness, ensuring visibility in both daylight and night driving. To reduce eye strain, the screen offers automatic brightness adjustment (via ambient light sensor) and a “night mode” that shifts to warm tones. The UI also includes customizable shortcuts for frequently used functions (e.g., favorite radio stations, navigation home points), allowing drivers to operate the terminal without taking eyes off the road for long

Engineered to withstand the tough conditions of truck operation, the multimedia terminal meets strict durability standards for commercial vehicles. Its housing is made of flame-retardant ABS plastic (UL94 V-0 rating) with a reinforced frame, resisting impact from road vibration (tested to 5-2000Hz, compliant with ISO 16750-3) and minor shocks. The internal components are rated for a wide temperature range (-30℃ to 70℃), ensuring stable performance in freezing winters and hot summers. The terminal’s front panel is IP54-rated for dust and water resistance, preventing damage from cab dust or accidental spills. Additionally, the touchscreen uses a scratch-resistant Gorilla Glass layer, avoiding wear from frequent use with gloves or cleaning. These features ensure the terminal maintains functionality for over 5 years, even in off-road or construction-site driving conditions

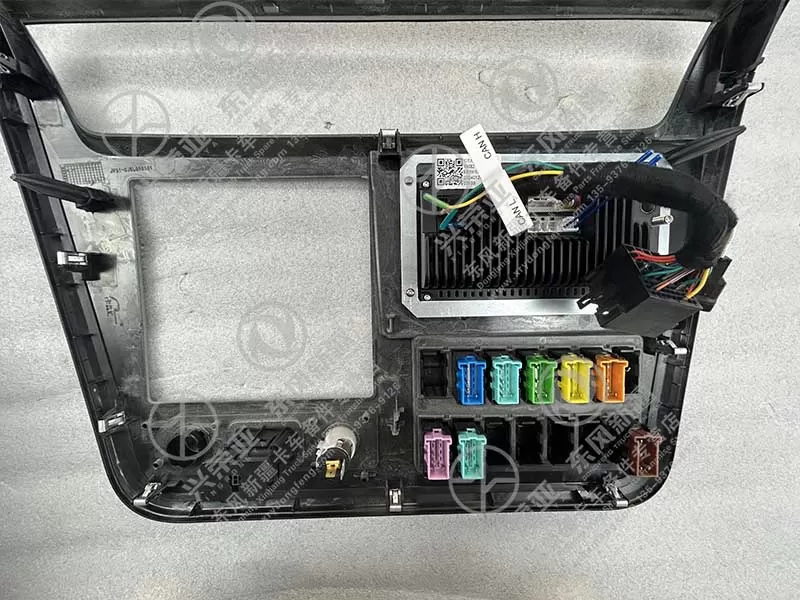

Designed for efficient installation, the terminal comes with a pre-assembled wiring harness and mounting hardware (4 M5×15 bolts, foam gaskets for vibration damping). The harness includes color-coded wires and clear labels (e.g., “CAN Bus,” “GPS Antenna,” “Power”), simplifying connection to the truck’s electrical system. Installation steps are straightforward: remove the old terminal (if replacing), align the new unit with the dashboard mounting points, secure with bolts, and plug in the wiring harness—no specialized tools or electrical expertise are needed, and a technician can complete the process in 40 minutes or less. The terminal also supports over-the-air (OTA) software updates, allowing users to upgrade navigation maps, fix bugs, or add new features without visiting a service center. For post-sale support, it includes a 2-year warranty covering manufacturing defects, providing peace of mind for Dongfeng Xinjiang truck owners
