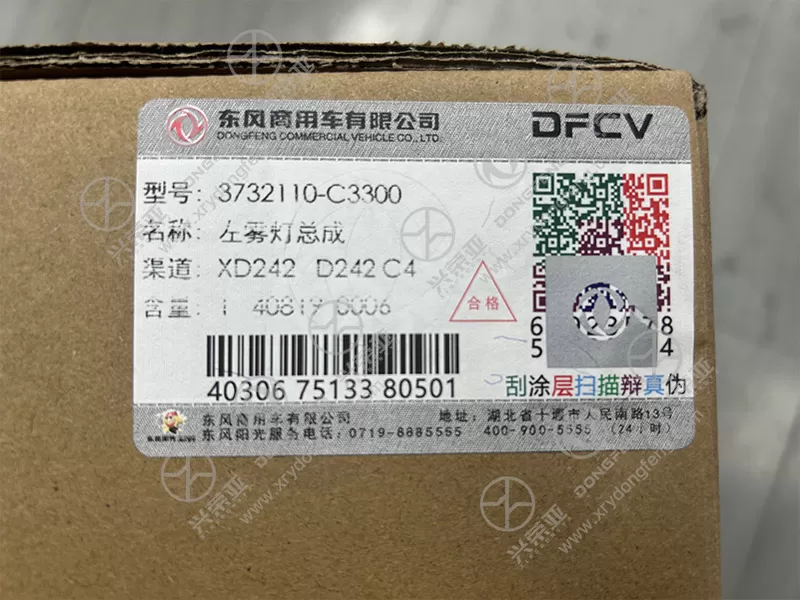

Dongfeng KL Left Fog Light Assembly 3732110-C3300 in stocked

Exclusively designed for the Dongfeng KL heavy-duty truck lineup, this fog light assembly follows the original vehicle’s design specifications with pinpoint accuracy. Its mounting bracket matches the factory - preset holes on the Dongfeng KL’s front bumper, ensuring a flush fit without gaps or misalignment. The electrical connector is identical to the OEM part, featuring a 3 - pin plug that seamlessly connects to the truck’s existing wiring harness—no cutting, splicing, or adapter use is required. Additionally, the assembly’s overall size (185mm × 120mm × 95mm) and contour perfectly align with the Dongfeng KL’s front-end design, maintaining the vehicle’s original aesthetic while ensuring optimal fog light positioning for maximum functionality

Engineered specifically for fog, rain, snow, or dust - filled environments, this fog light emits a 3000K warm - yellow beam with strong penetration capabilities—far superior to white light that scatters in fog. The beam has a wide horizontal coverage (up to 80 degrees) and a low vertical projection (15 degrees above the ground), illuminating the road surface 5 - 10 meters ahead without reflecting off fog particles to cause glare for the driver. Equipped with a 20W high - power LED chip, the fog light delivers a luminous flux of 1800lm, ensuring clear visibility even in dense fog where standard headlights fail. The beam pattern is also compliant with ECE R19 regulations, meeting international safety standards for fog light performance

Built to withstand the harsh operating conditions of heavy-duty trucks, the fog light housing is crafted from high - density ABS plastic with a reinforced structure, resisting impact from road debris (such as stones or gravel) and minor collisions. The lens is made of tempered glass coated with an anti - scratch layer, preventing damage from frequent cleaning or contact with rough materials. The assembly achieves an IP68 waterproof rating—higher than the industry average IP67—with a double - sealed design (rubber O - ring + silicone gasket) that blocks water, dust, and moisture from entering the internal components. It also has a wide operating temperature range (-40℃ to +85℃), ensuring normal operation in extreme cold (such as winter in northern China) or high - temperature (summer in southern China) environments

Featuring advanced LED technology, this fog light consumes only 20W of power—50% less than traditional halogen fog lights—reducing the load on the Dongfeng KL’s electrical system and saving fuel indirectly. The LED chip has an ultra - long lifespan of 60,000 hours, equivalent to 6 - 7 years of regular use (based on 3 hours of daily operation), eliminating the need for frequent replacements. Installation is straightforward: the package includes all necessary accessories (2 M5 bolts, 2 washers, and 1 installation manual), and the wiring harness is color - coded (red for positive, black for negative, green for control signal) to match the Dongfeng KL’s electrical system. Even with basic mechanical skills, the installation can be completed in 20 minutes using a Phillips screwdriver, no professional tools or expertise required
