Front View Rear Brake Backing Plate Assembly OE 3502ZHS01-025 for Dana Axle

Axle Housing Mounting Surface Detail Brake Backing Plate OE 3502ZHS01-025 for Dana Axle

Rear View Rear Brake Backing Plate Assembly OE 3502ZHS01-025 for Dana Axle

Rear Brake Backing Plate Assembly OE 3502ZHS01-025 for Dana Axle Genuine Parts

This is a genuine rear brake backing plate assembly (OE:3502ZHS01-025) specifically engineered for trucks equipped with Dana axles, serving as the heavy-duty support structure for the rear drum brake assembly. It features 100% direct fit with the axle housing, requiring no modification during installation. Constructed from high-strength cast steel with precision-machined mounting points and integrated bronze bushings, this plate meets OEM quality standards. Third-party durability testing confirms it withstands extreme loads, impacts, and long-term use, making it the ideal replacement to restore your truck’s brake system integrity and safety.

Inquiry Now +

Next Prodcut +

Product Attributes

Attribute Name	Attribute Content
OE Number	3502ZHS01-025
Compatible Models	Trucks with Dana Rear Axles
Product Name	Rear Brake Backing Plate Assembly
Material	High-strength cast steel, bronze bushings, machined steel surfaces
Color	Black (painted) / Metallic gray (machined surfaces)
Function	Supports rear brake shoes, wheel cylinder, and related brake hardware; provides mounting points and pivot surfaces
Key Features	Precision cast construction, integrated bronze pivot bushings, pre-machined mounting holes, corrosion-resistant finish
Installation Method	Direct bolt-on to the Dana axle housing
Certification	Genuine OEM Dana Axle Component

PRODUCT DESCRIPTION

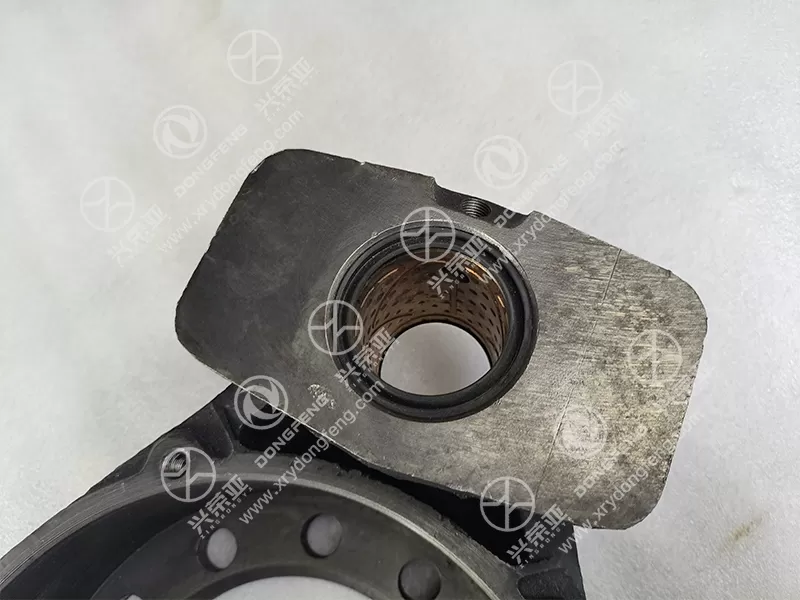

Integrated Bronze Pivot Bushing Detail Brake Backing Plate OE 3502ZHS01-025 for Dana Axle

Heavy-Duty Cast Steel Construction & Precision Machined Fit

This brake backing plate OE 3502ZHS01-025 is manufactured to exact Dana axle specifications, using high-strength cast steel for exceptional durability and impact resistance. The plate features precision-machined mounting holes and surfaces for the brake shoes, wheel cylinder, and related hardware, ensuring perfect alignment. Integrated bronze pivot bushings reduce wear on the brake shoe pivots, while the painted finish provides corrosion protection. The 1:1 OEM design guarantees a seamless fit with the Dana axle housing, restoring factory brake system integrity.

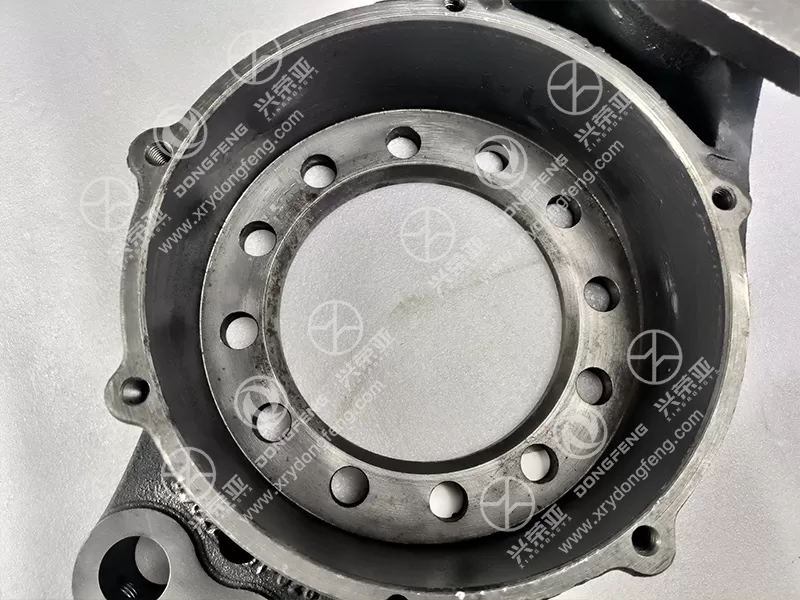

Precision Machined Mounting Hole Detail Brake Backing Plate OE 3502ZHS01-025 for Dana Axle

Corroded or Damaged Backing Plates

Truck operators often face issues with failing brake backing plates, including corrosion and rust causing structural weakening, worn pivot surfaces leading to brake shoe binding or misalignment, and damaged mounting holes preventing proper brake assembly installation. A damaged plate can lead to uneven brake wear, reduced stopping power, and even brake system failure. By choosing the genuine OE 3502ZHS01-025 backing plate, you eliminate these problems, restoring a solid foundation for your rear brake assembly.

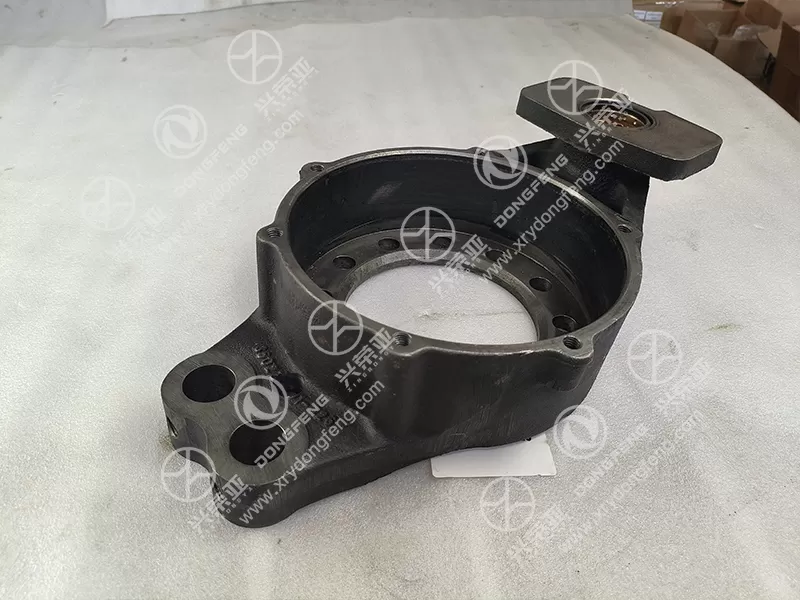

Side View Rear Brake Backing Plate Assembly OE 3502ZHS01-025 for Dana Axle

OEM Quality & Rigorous Load Testing

As a critical safety component, this brake backing plate complies with strict OEM quality standards and has passed comprehensive load and fatigue testing. Test data shows the cast steel construction maintains structural integrity under extreme operating loads, the precision-machined surfaces ensure consistent fit, and the bronze bushings resist wear over long-term use. Each unit undergoes dimensional inspection before leaving the factory, guaranteeing exact alignment with your Dana axle. Backed by OEM traceability codes, this product ensures 100% authenticity and reliable operation.

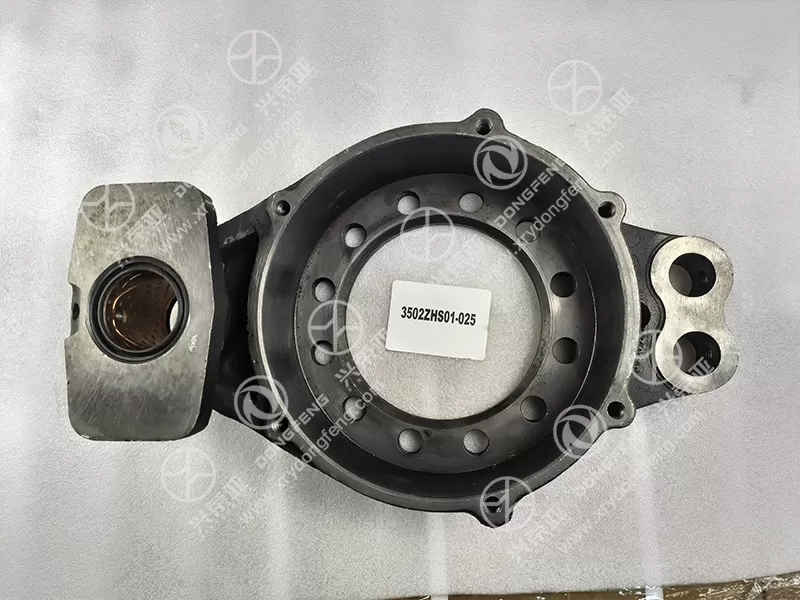

OEM Part Number Label Detail Rear Brake Backing Plate OE 3502ZHS01-025 for Dana Axle

Genuine Supply & Direct Installation

We are an authorized supplier of genuine OEM Dana axle components, providing brake system parts to fleet operators, repair shops, and distributors worldwide. This brake backing plate OE 3502ZHS01-025 is supplied in protective packaging to prevent damage, ensuring it arrives ready for installation. Its direct-fit design allows for straightforward installation without custom modifications, reducing vehicle downtime. The durable cast steel construction ensures long service life, minimizing future maintenance costs. We offer a 24-month quality warranty and dedicated technical support for installation guidance.
