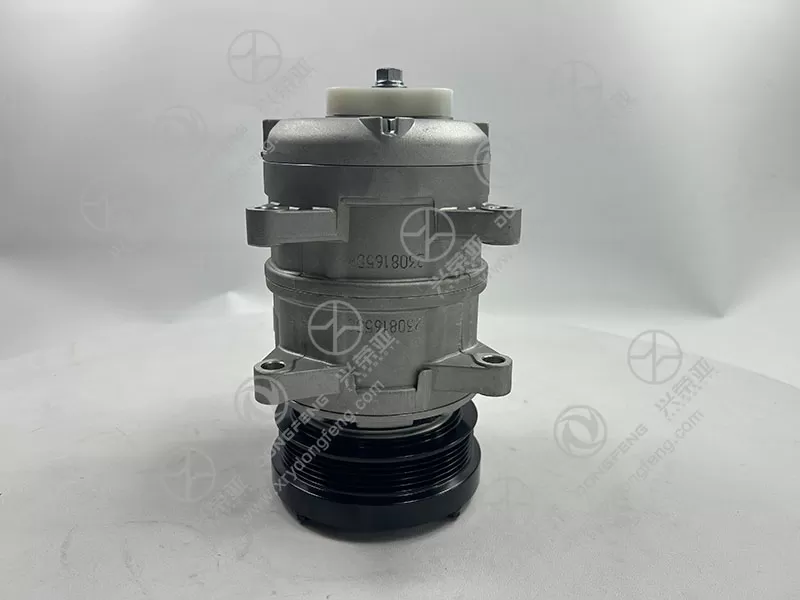

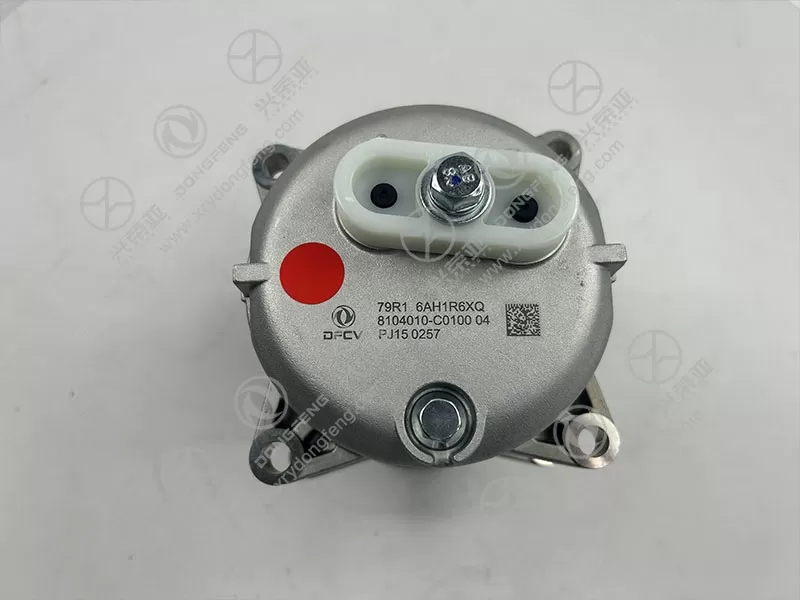

Dongfeng kinland Compressor assembly - with clutch 8104010-C0100

Exclusively engineered for Dongfeng Kinland heavy-duty trucks, this compressor assembly adheres to strict OEM dimensional and performance specifications, ensuring seamless integration with the vehicle’s existing AC system and engine powertrain. It matches the factory mounting points, belt drive configuration, and refrigerant line connections (compatible with R134a, the standard refrigerant for modern heavy-duty trucks) of Dongfeng Kinland models, enabling direct replacement without modifications to the engine bay or AC piping. The assembly’s electrical connector also aligns perfectly with the truck’s factory wiring harness, supporting plug-and-play installation—critical for minimizing downtime during maintenance or repairs

Built with a precision-machined scroll or piston compression mechanism (depending on Dongfeng Kinland’s specific AC system design), the 8104010-C0100 assembly delivers high compression efficiency, capable of maintaining a refrigerant pressure range of 200-250 PSI (high side) and 30-40 PSI (low side)—optimal for cooling heavy-duty truck cabins (typically 20-30 cubic meters) even in high ambient temperatures (up to 45°C). The compressor’s internal components (e.g., cylinders, pistons, valves) are crafted from high-strength aluminum alloy and treated with anti-wear coatings, ensuring smooth operation and consistent refrigerant flow. This efficiency not only guarantees fast cabin cooling but also reduces the load on the truck’s engine, supporting better fuel economy during AC use

The compressor assembly is designed to withstand the harsh operating environments of commercial trucks, including constant vibration, temperature fluctuations, and exposure to road debris. The outer housing is made of cast aluminum alloy, which offers excellent heat dissipation (critical for preventing compressor overheating) and corrosion resistance (treated with a powder-coat finish to resist rust from moisture or road salt). The electromagnetic clutch features a heat-resistant coil (rated for 12V/24V, matching Dongfeng Kinland’s electrical system) and a wear-resistant friction plate, ensuring reliable engagement/disengagement for over 100,000 cycles. Additionally, the assembly includes a built-in oil separator and filter, which trap contaminants and maintain proper lubrication of internal components—extending the compressor’s service life to over 200,000 kilometers under standard use

The Dongfeng Kinland Compressor Assembly 8104010-C0100 meets rigorous international standards for safety, performance, and environmental friendliness, including ISO 1217 (reciprocating refrigerant compressors), SAE J2788 (automotive air conditioning compressors), and EPA 608 (refrigerant handling and leakage prevention). It undergoes comprehensive testing, such as: pressure decay tests (to ensure no refrigerant leakage, with a maximum allowable leak rate of 1 gram per year), vibration endurance tests (10-500 Hz for 50,000 cycles), and thermal shock tests (-40°C to 120°C for 100 cycles). The assembly is also designed to be refrigerant-leak tight, supporting compliance with global environmental regulations that limit greenhouse gas emissions from AC systems. By meeting these standards, it ensures safe, reliable operation and reduces the risk of AC system failures that could disrupt truck operations
