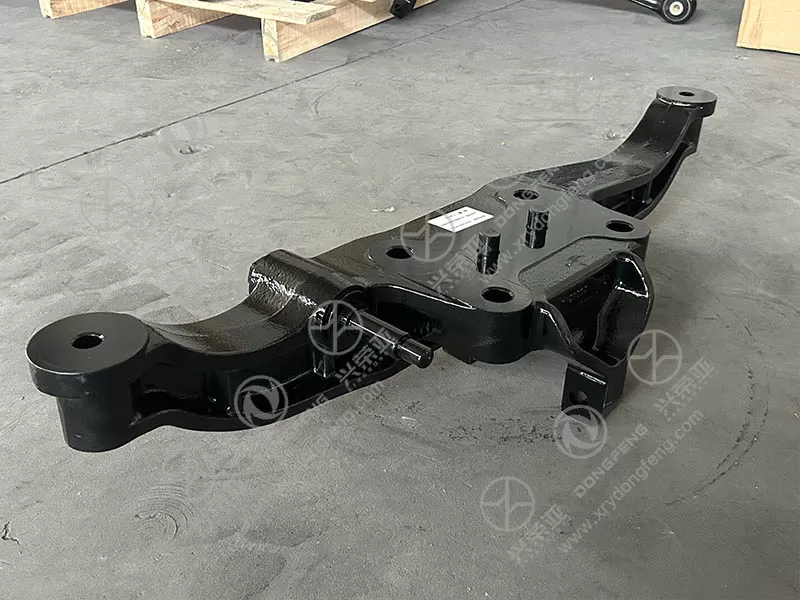

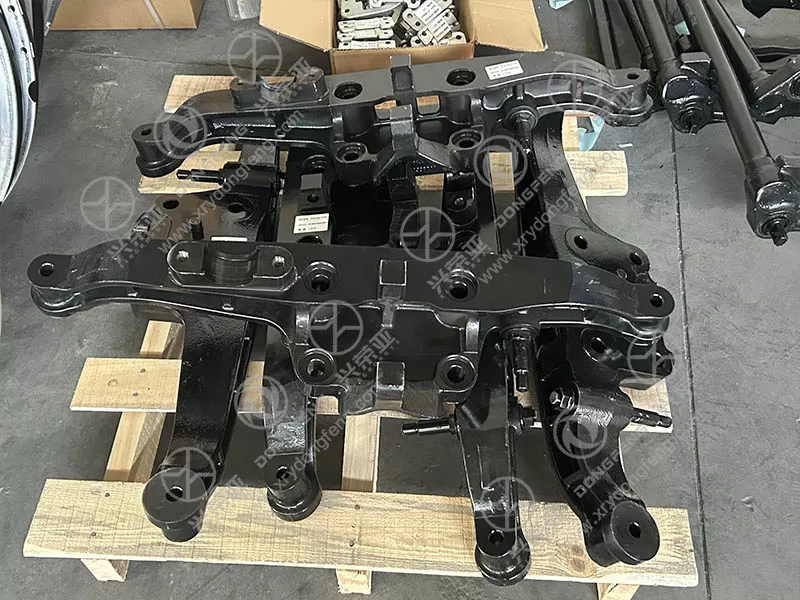

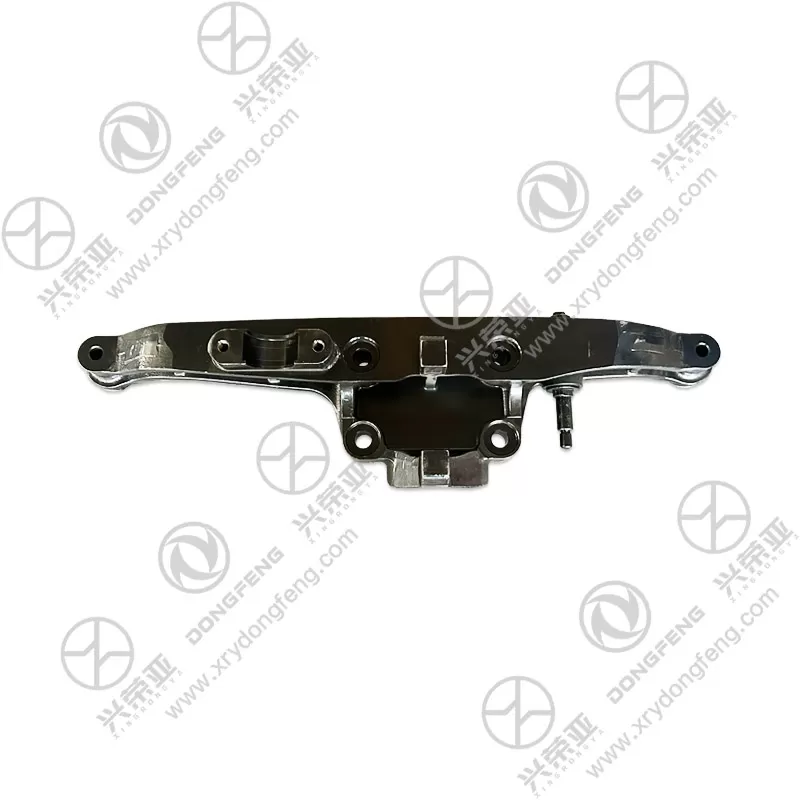

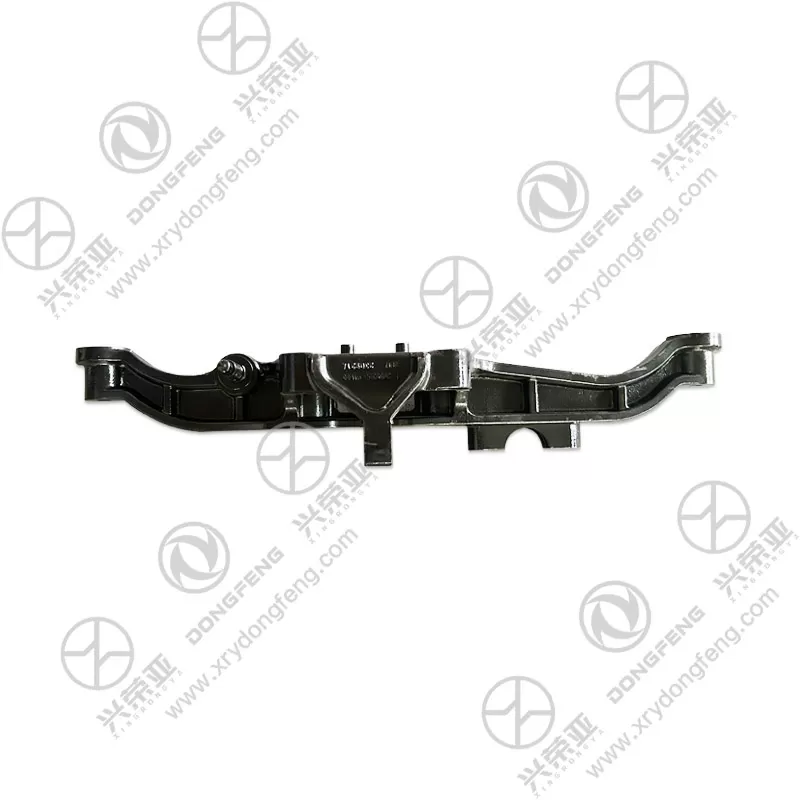

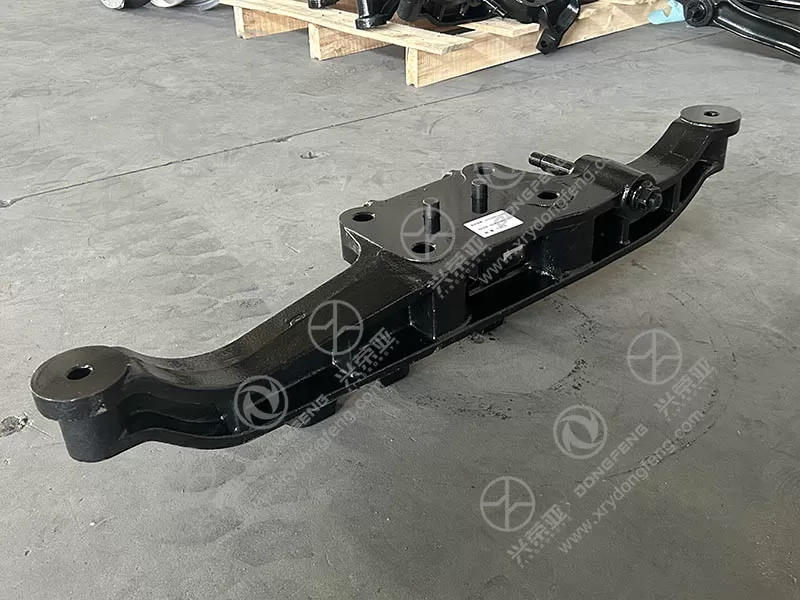

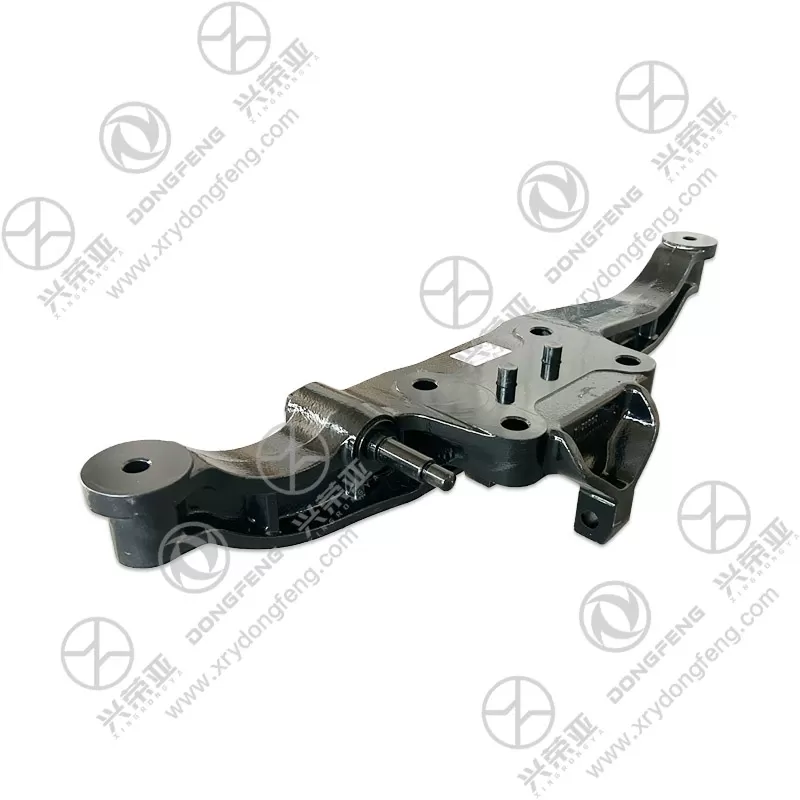

Dongfeng GX Right support beam arm and rubber lining assembly 2935306-H19C0

The product features an integrated one-piece design that combines the right support beam arm and rubber lining into a single, cohesive unit—eliminating the risk of component separation or misalignment during use. The support beam arm is constructed with a reinforced ribbed structure, which significantly enhances its load-bearing capacity and resistance to bending or torsion under heavy stress (such as during rough road driving or heavy cargo transport). The rubber lining is pre-installed and bonded to the beam arm using high-strength adhesive, ensuring long-term adherence and preventing slippage that could compromise the assembly’s performance

Support Beam Arm: Made from high-grade carbon steel (Q235 or equivalent) that undergoes quenching and tempering heat treatment. This process improves the material’s hardness (up to HB 180-220) and tensile strength (≥ 375 MPa), making it resistant to corrosion, wear, and impact damage even in harsh operating environments (e.g., high humidity, dusty roads, or extreme temperatures ranging from -40°C to 80°C).

Rubber Lining: Crafted from EPDM (Ethylene Propylene Diene Monomer) rubber, a premium elastomer with excellent aging resistance, ozone resistance, and flexibility retention. It effectively absorbs vibrations and shocks transmitted from the road to the vehicle’s chassis, reducing noise and improving ride comfort while protecting other chassis components from premature wear

As a key component of the Dongfeng GX’s chassis system, this assembly plays three critical functional roles:

Load Support: It bears and distributes the vertical load from the vehicle’s body, suspension, and cargo to the lower chassis components, ensuring balanced weight distribution and preventing localized stress concentrations.

Alignment Maintenance: It helps maintain the correct geometric alignment of the suspension and steering components, ensuring stable handling, precise steering response, and uniform tire wear during driving.

Vibration Isolation: The rubber lining acts as a flexible buffer between the rigid support beam arm and the chassis, isolating high-frequency vibrations (e.g., from uneven road surfaces) and low-frequency shocks (e.g., from potholes or curbs), thereby protecting sensitive electronic components and improving the overall durability of the chassis system

This assembly strictly complies with national and international automotive component standards, including GB/T (China National Standard) for automotive structural steel and rubber parts, as well as ISO 9001 quality management system requirements. Each unit undergoes rigorous quality inspection before leaving the factory, including:

Dimensional accuracy testing (using coordinate measuring machines to verify tolerances within ±0.1mm);

Material performance testing (tensile strength, hardness, and rubber elasticity tests);

Assembly integrity testing (checking adhesive bonding strength and component fit);

Environmental resistance testing (simulating salt spray, high/low temperature cycles to ensure corrosion and aging resistance).

Additionally, it comes with a manufacturer’s warranty, providing customers with assurance of its reliability and long service life
