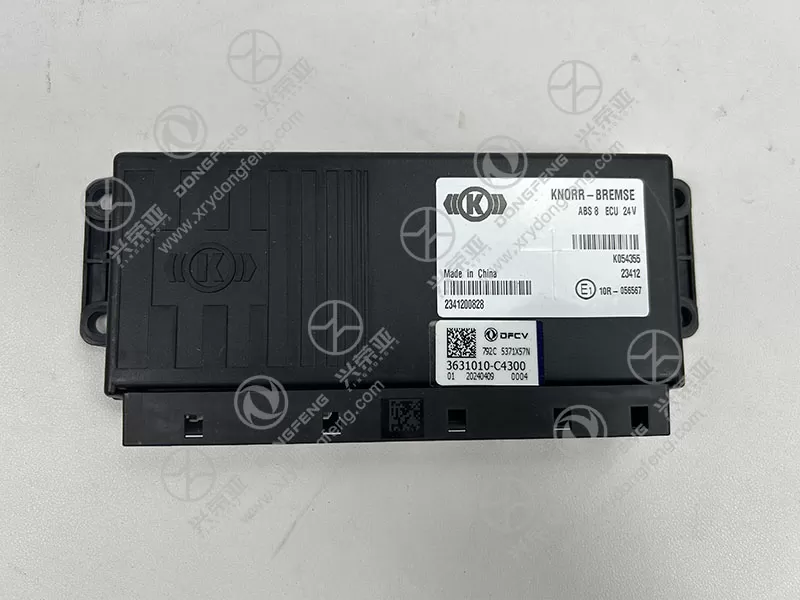

Dongfeng VL ABS electronic control unit assembly-25C 3631010-C4300

Equipped with a high-performance 32-bit microcontroller and advanced algorithmic logic, this 25C-series ECU delivers precise anti-lock braking control to prevent wheel lockup during emergency braking or on low-traction surfaces (e.g., wet roads, ice, or gravel). It monitors wheel speed (via the vehicle’s original wheel speed sensors) 100+ times per second, detecting incipient lockup and instantly adjusting brake hydraulic pressure (via the ABS valve body) to maintain wheel rotation—preserving steering control while maximizing braking force. The ECU also features adaptive pressure modulation, which tailors braking response to vehicle load (e.g., empty vs. fully loaded for Dongfeng VL commercial variants) and road conditions, reducing stopping distances by up to 15-20% compared to non-ABS systems. Additionally, it includes a fail-safe mode that reverts to standard hydraulic braking if a system fault is detected, ensuring no complete loss of braking functionality

Built to withstand harsh automotive environments, the ECU assembly features a sealed aluminum alloy housing that provides excellent thermal management and protection against dust, moisture, and vibration. The housing meets IP6K9K waterproof and dustproof standards, preventing ingress of water (even under high-pressure washing) or road debris that could damage internal circuits. The internal circuit board is coated with a conformal coating (epoxy resin) that resists corrosion from humidity, salt spray (critical for winter or coastal use), and automotive fluids (e.g., brake fluid, oil). The ECU operates reliably across an extreme temperature range of -40°C to 85°C, maintaining stable performance even in hot under-hood conditions or cold winter climates. It also undergoes rigorous vibration testing (per ISO 16750 standards) to ensure durability during long-haul driving on rough roads

This ABS ECU assembly incorporates multi-layered safety mechanisms to protect both the system and the vehicle. It includes overvoltage/undervoltage protection (for the vehicle’s 24V electrical system, standard for Dongfeng VL commercial models) that prevents damage from voltage spikes or battery issues. It also monitors its own internal circuits (e.g., microcontroller, sensor inputs, and output drivers) for faults, storing diagnostic trouble codes (DTCs) in its memory if anomalies are detected. These DTCs can be read via standard OBD-II scanners or Dongfeng’s proprietary diagnostic tools, allowing technicians to quickly identify and resolve issues (e.g., faulty sensors, wiring shorts) without extensive disassembly. Additionally, the ECU features a power-saving mode that reduces current draw when the vehicle is turned off, preventing battery drain—critical for commercial vehicles that may be parked for extended periods

Engineered for hassle-free replacement, this ECU assembly is a direct plug-and-play unit that requires no post-installation calibration or programming (when used with Dongfeng VL’s original ABS system components). It comes with the exact electrical connector (matching the vehicle’s wiring harness) and mounting hardware (bolts, washers) that align with the factory’s ECU mounting location (typically near the brake master cylinder or in the cab). Installation involves three simple steps: disconnecting the old ECU’s electrical connector, removing its mounting bolts, securing the new ECU, and reconnecting the connector—all achievable in 30-45 minutes with basic hand tools. Since the ECU is pre-calibrated to Dongfeng VL’s OE specifications, it immediately recognizes the vehicle’s sensors and valve body upon power-up, requiring no additional setup. This minimizes downtime for commercial fleets relying on Dongfeng VL vehicles for daily operations
