Body system

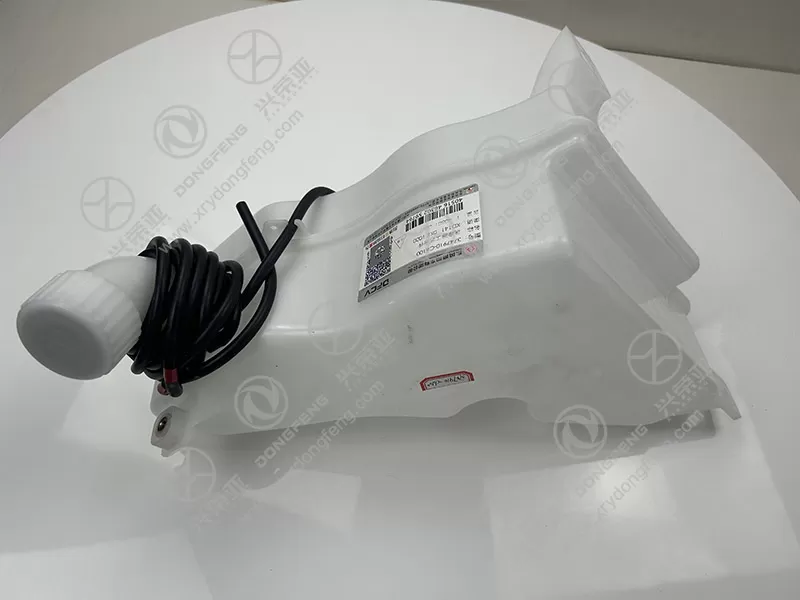

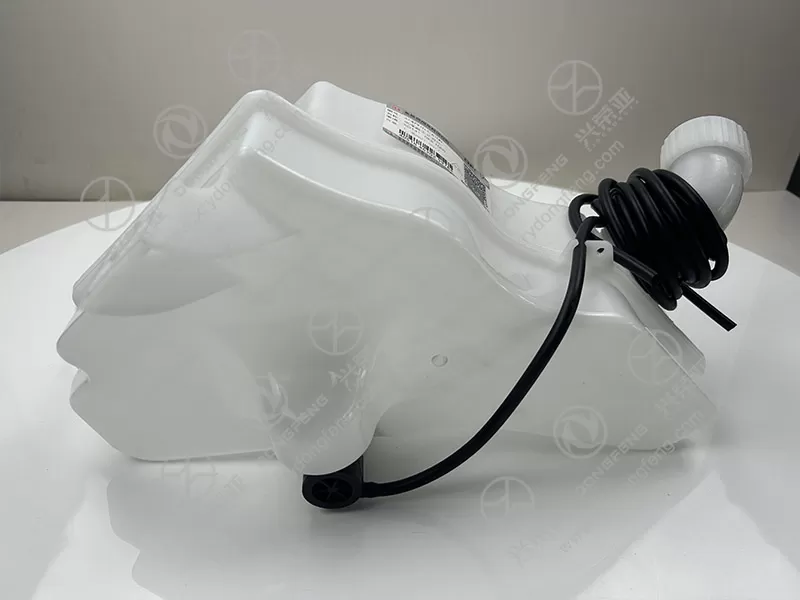

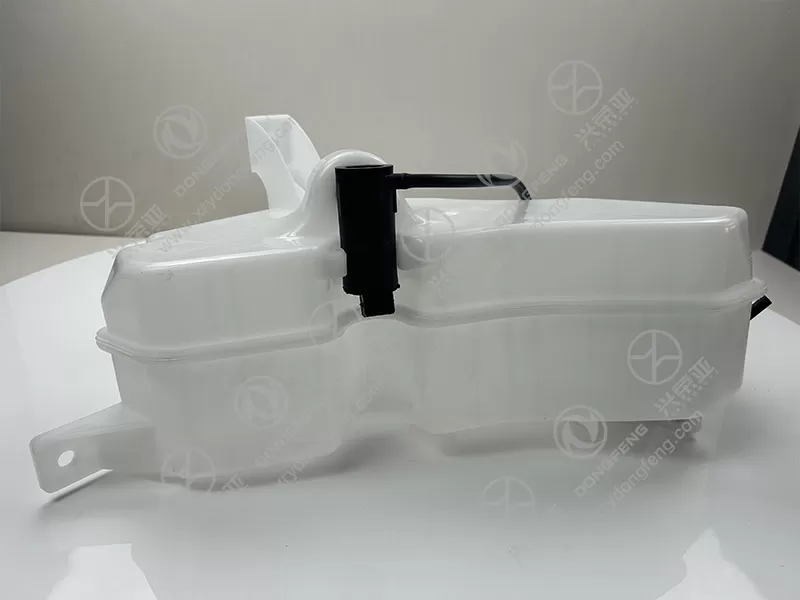

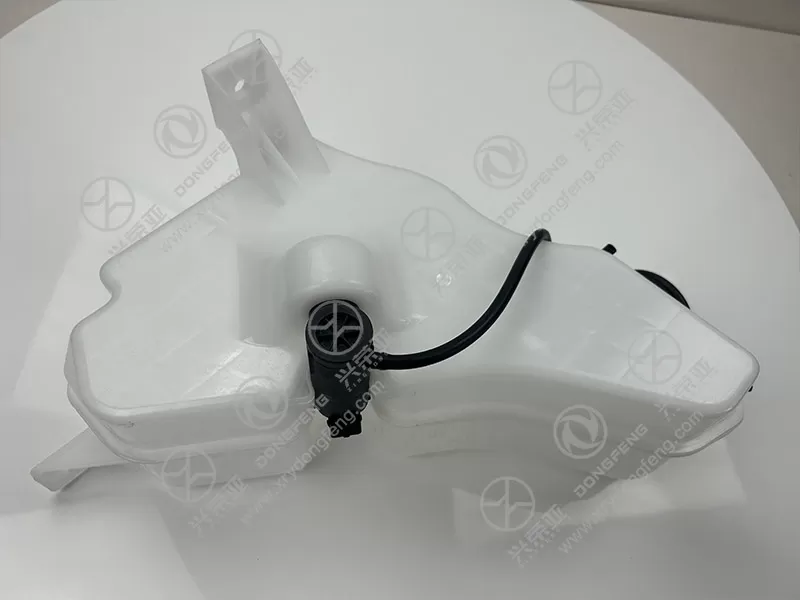

This washing process assembly (Part No.: 3747910-C6100) is tailor-made for Dongfeng GX vehicles, strictly following the original factory’s structural and interface specifications. It perfectly matches the vehicle’s washer fluid tank, spray nozzles, and dashboard control circuit—including matching hose diameters (8mm inner diameter) and electrical connector pins (2-pin waterproof design). Direct replacement is achievable without modifying hoses, wiring, or mounting positions, ensuring seamless integration with the Dongfeng GX’s original washer system and maintaining factory-level operational consistency
Product Attributes
Warranty: 1 YEARS ,Part name: Washing process assembly 3747910-C6100
PRODUCT DESCRIPTION
Integrated Multi-Function Design
The assembly features an all-in-one structure that integrates three core components: a high-pressure washer pump (12V DC), a fluid filter (40-micron filtration precision), and a pressure relief valve. The pump delivers a stable flow rate of 1.2-1.5 L/min and a spray pressure of 0.8-1.2 MPa, ensuring washer fluid is atomized into fine droplets (particle size ≤0.5mm) for uniform coverage on the windshield. The built-in filter blocks impurities (e.g., dust, sediment) in the fluid to prevent nozzle clogging, while the pressure relief valve automatically releases excess pressure (over 1.5 MPa) to protect the pump and hoses from damage
Efficient & Low-Power Performance
The washer pump adopts a brushless motor design with an energy efficiency rating of over 85%—operating current is only 3-4A (at 12V), which reduces power consumption by 30% compared to traditional brushed pumps. It achieves quick startup (≤0.3 seconds) and maintains stable performance across a wide voltage range (9-16V), adapting to voltage fluctuations in the vehicle’s electrical system. The pump’s noise level is controlled below 55dB (measured at 1m distance), avoiding interference with the driver’s auditory environment during operation
All-Weather Durability & Protection
The assembly’s external housing is made of cold-resistant and heat-resistant PP plastic (operating temperature range: -40°C to 80°C), which remains flexible in low temperatures (no cracking) and resistant to deformation in high heat. The pump’s internal seals use nitrile rubber (oil and chemical resistant) to prevent washer fluid leakage, even when using antifreeze washer fluid in winter. The electrical connector meets IP67 waterproof standards, with a silicone sealing ring that blocks water and dust from entering the circuit—ensuring reliable operation in rainy, snowy, or dusty environments
Tool-Minimal & Quick Installation
The assembly adopts a snap-on mounting bracket and quick-connect hose fittings: it snaps directly into the vehicle’s pre-installed washer tank bracket for instant positioning, and the inlet/outlet hoses use push-to-lock connectors (compatible with Dongfeng GX’s original hoses) that require no clamps. The electrical connector features a plug-and-play design, and the entire installation can be completed in 8-12 minutes with only a screwdriver (no drilling or pipe cutting needed). The bracket’s mounting holes are precisely calibrated (error ≤0.5mm), ensuring a tight fit with the vehicle’s original structure to avoid vibration-induced noise
TECHNICAL SUPPORT
1. Accessories selection consultation
- Provide ** intelligent selection tools ** (such as parts matching query system), input the vehicle model VIN code or engine model to match the corresponding parts number, reducing the selection error rate.
The technical team is available online 7×12 hours to answer technical questions about accessories (such as material compatibility and installation processes).
2. Customized development support
We offer specialized R&D services for special market demands (such as heat dissipation accessories for high-temperature regions in the Middle East and dedicated suspension components for road conditions in Africa), and complete sample delivery within six weeks.
3. Training and Technical materials
Provide remote/on-site training for the customer's after-sales team (such as diagnosis of electrical control accessories and DPF regeneration operation), along with multilingual versions of the "Accessories Installation Manual" and "Troubleshooting Guide".
4. Quality Traceability and Improvement
Through the QR code traceability system (one product, one code), track the production batch of accessories and the source of raw materials, respond quickly to quality complaints and initiate improvement processes.
AFTER-SALES AND LOGISTICS SUPPORT
After-sales service
Quality Assurance Policy
-The warranty period for original factory parts is 12 months (counting from the date of signature for receipt), covering material defects, process issues, and man-made damage.
- Provide "Localized Express repair Service" : Cooperate with third-party repair networks in markets such as Southeast Asia and the Middle East, and deliver emergency parts to designated repair points within 4 hours.
Return and Exchange Process
-The customer is required to submit the test report (such as a third-party appraisal) within the warranty period. After confirmation by Dongfeng, a reissue or refund will be arranged within 5 working days.
Logistics support
Warehouse Layout
-Five major regional accessory centers have been established globally (Southeast Asia, the Middle East, Africa, South America, and Europe) to achieve "next-day delivery" for mainstream accessories (covering customers within the regions).
Emergency Logistics Plan
-Emergency parts can be directly delivered within 48 hours via the "Dongfeng Exclusive Aviation Special Line" (such as engine ECU, brake valves and other key components).
Packaging Optimization
-Use shockproof and moisture-proof packaging (such as honeycomb cartons + pearl cotton), and reinforce fragile parts (such as glass, sensors), keeping the damage rate within 0.5%.
