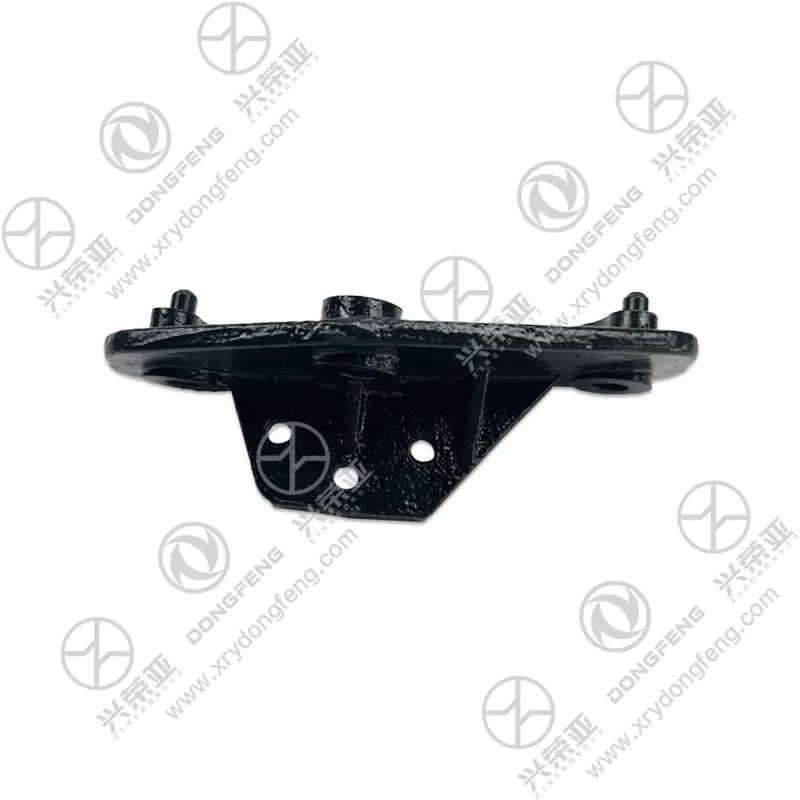

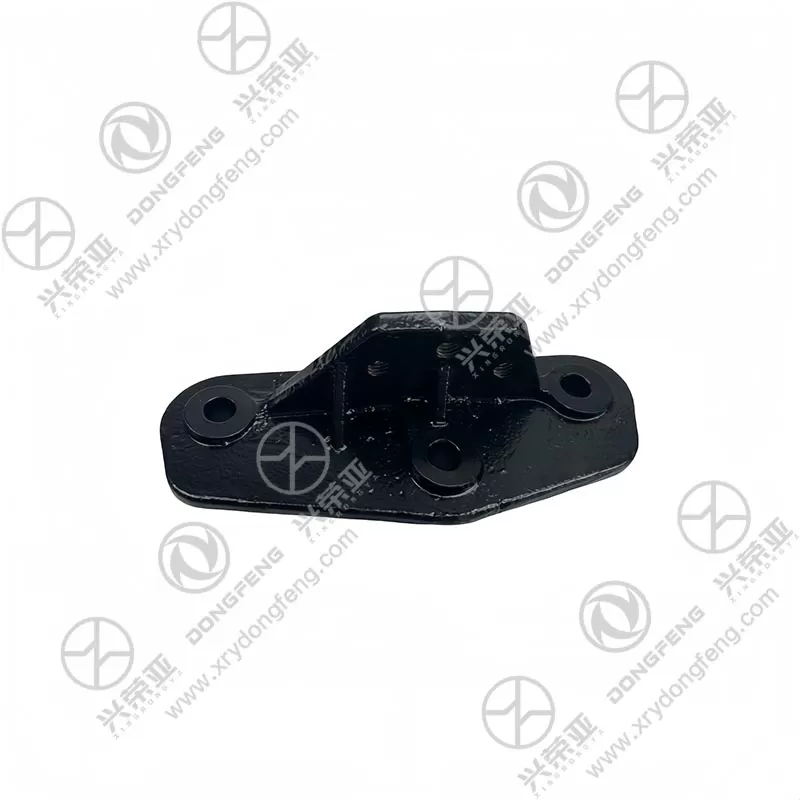

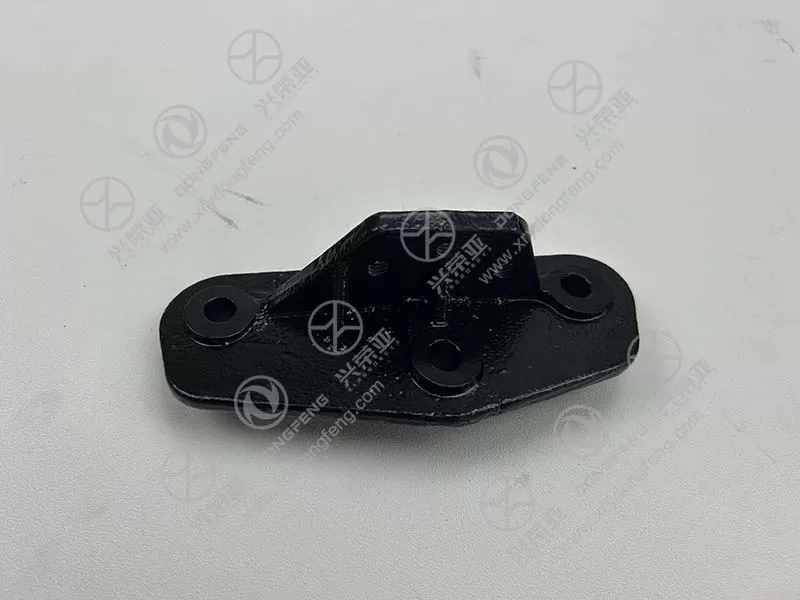

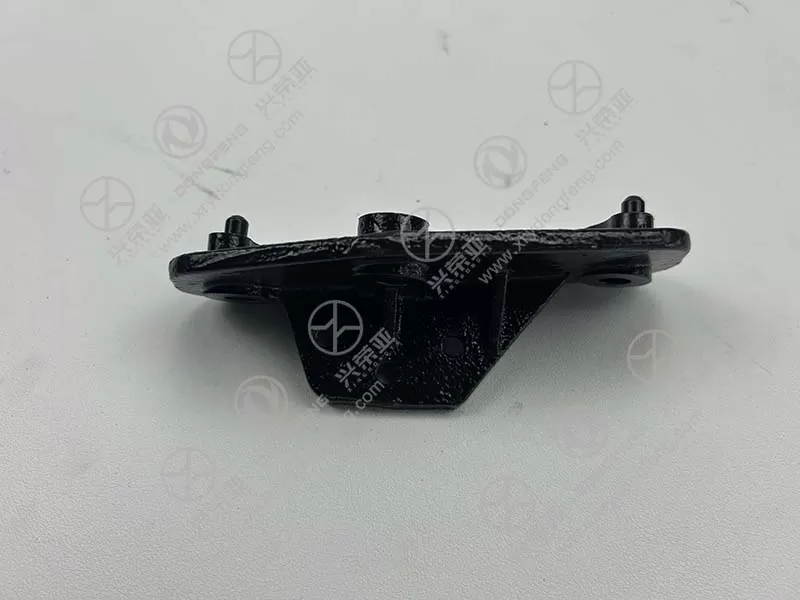

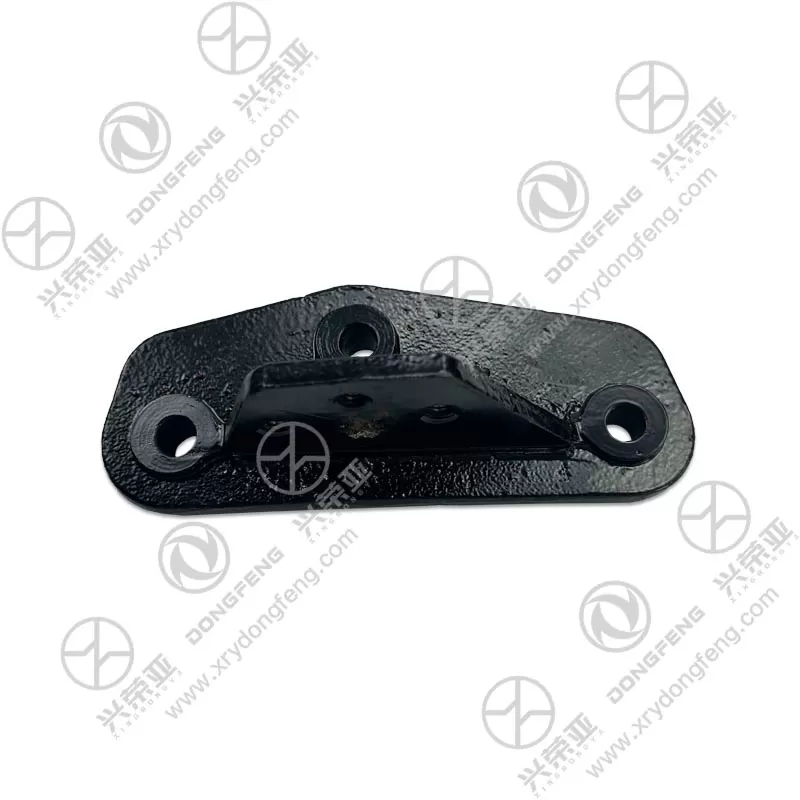

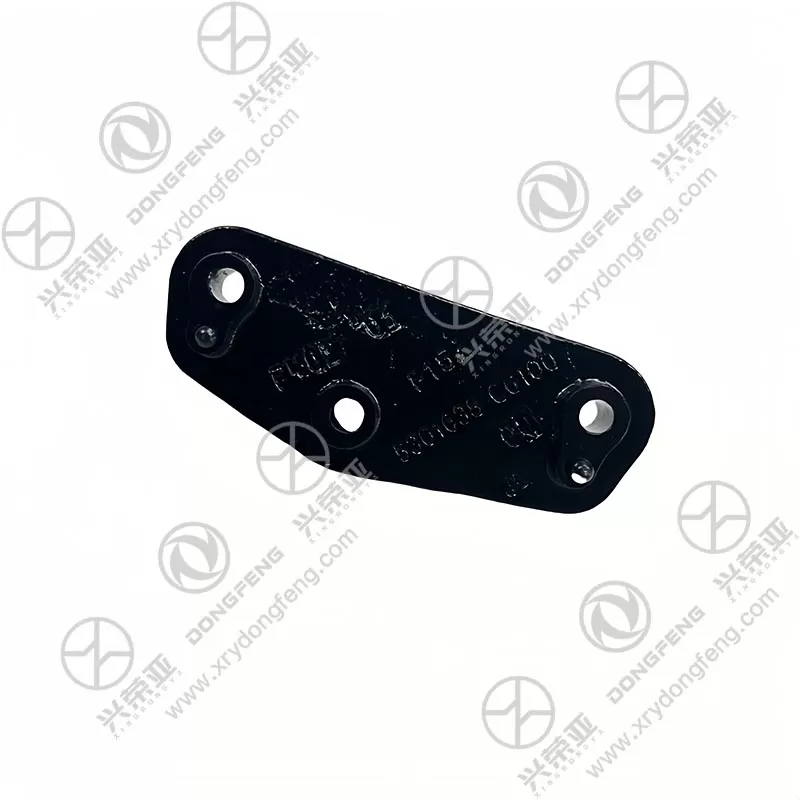

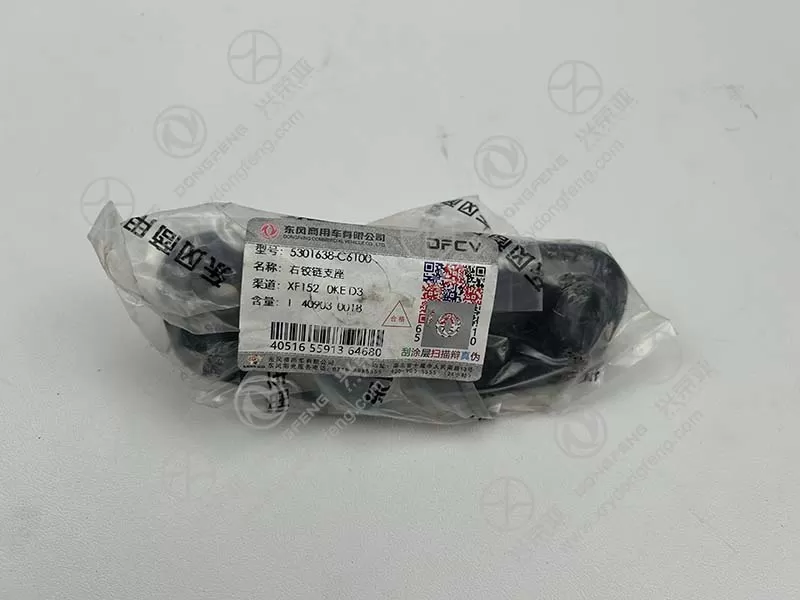

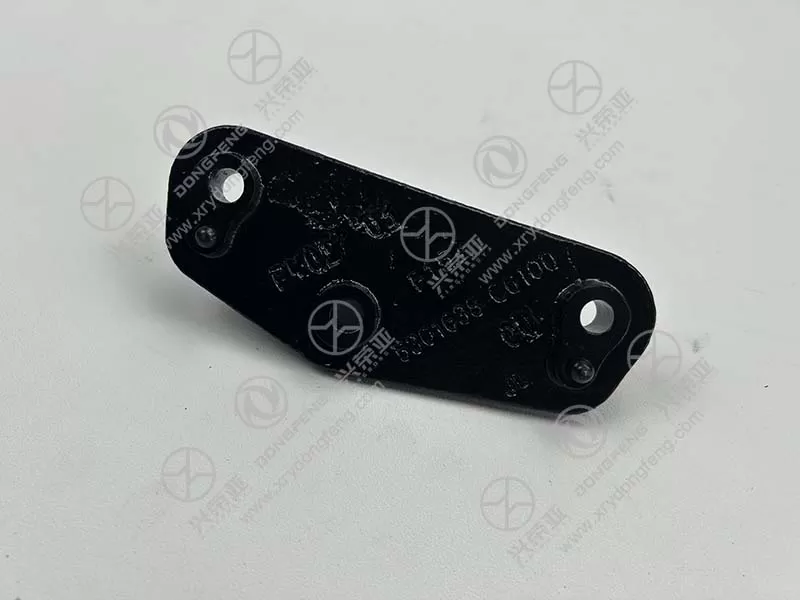

Dongfeng GX truck parts Right hinge support C5301638-C6100

Built to withstand the combined weight of the Dongfeng GX truck’s front cover and hinge (often totaling 50–70kg), this support features a reinforced steel structure. The main body is crafted from 10mm-thick high-strength carbon steel (Q345 grade), which offers a tensile strength of 510MPa—ensuring it can bear 120% of the rated load without deformation. Critical stress points (e.g., hinge mounting lugs and chassis connection areas) are reinforced with 12mm-thick steel ribs and robotic-welded joints (with 99% penetration), eliminating weak points that could fail under repeated front cover opening/closing or road vibration. Unlike lightweight or thin-gauge steel supports, this design resists bending or twisting even when the front cover is left open for extended maintenance periods. Rigorous load testing shows the support can endure 100,000 cycles of stress without permanent damage, meeting the demands of commercial truck use

Exposed to road salt, rain, mud, and engine bay heat, the support requires robust corrosion resistance. It undergoes a three-step surface treatment process: first, a zinc phosphate coating to create a porous base that enhances coating adhesion; second, an electrophoretic primer (E-coat) that seals all crevices (including weld joints) for uniform protection; third, a black powder coating (200μm thickness) that resists chipping, scratching, and chemical damage from de-icing agents or engine fluids. This system enables the support to pass 800 hours of neutral salt spray testing without rust or coating peeling—far exceeding the industry standard of 500 hours for truck chassis parts. The coating also maintains its finish under extreme temperatures (-40°C to 150°C), ensuring the support remains structurally sound and visually consistent with the truck’s under-hood components for over 8 years

Beyond load bearing, this support plays a key role in maintaining hinge alignment and reducing vibration. It features a precision-machined hinge mounting surface (flatness tolerance ≤ 0.1mm), ensuring the hinge sits perfectly level and rotates smoothly—preventing binding or premature wear on hinge pins. The support also includes a rubber gasket between the steel body and chassis frame, which absorbs road vibration and reduces metal-on-metal contact noise. This gasket minimizes the transfer of vibration from the chassis to the hinge and front cover, avoiding rattling sounds during driving and extending the lifespan of both the hinge and support. Additionally, the support’s design creates optimal clearance for adjacent components (e.g., radiator hoses, wiring harnesses), preventing interference that could cause damage or restricted front cover movement

Engineered for efficient maintenance in truck repair shops, this support simplifies installation with user-friendly features. It comes with pre-assembled mounting hardware (high-tensile M10 bolts, lock washers, and nuts) that match Dongfeng GX’s OEM specifications—no need for separate parts procurement. The support has laser-etched alignment marks that align with reference points on the chassis, guiding technicians to position it accurately in 20–25 minutes using standard hand tools (no specialized equipment required). To guarantee quality, the product is manufactured in an IATF 16949 certified facility, with each unit undergoing strict inspections: dimensional checks (via 3D coordinate measuring machines) to verify fitment, load tests to confirm strength, and coating adhesion tests to ensure durability. It also includes a 36-month warranty against manufacturing defects (e.g., weld failure, material cracking, or coating peeling), providing Dongfeng GX truck owners and fleet operators with long-term peace of mind and minimal downtime
