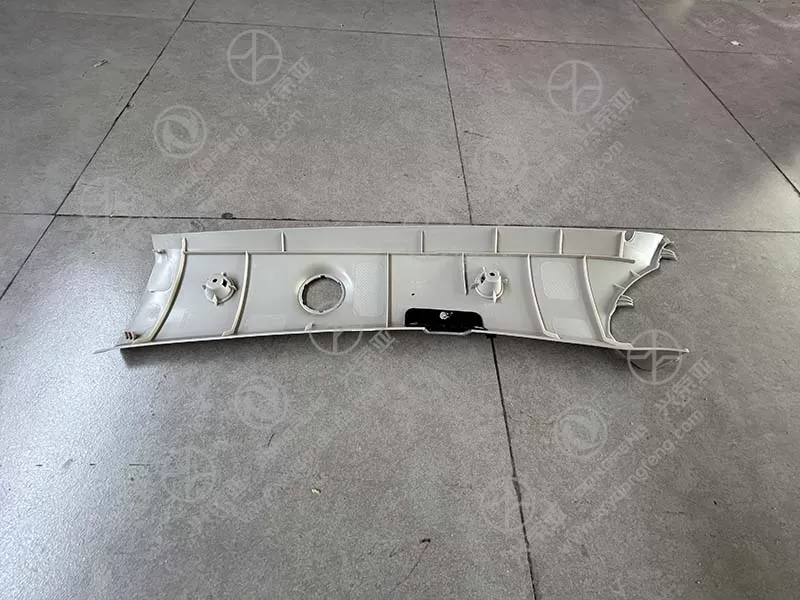

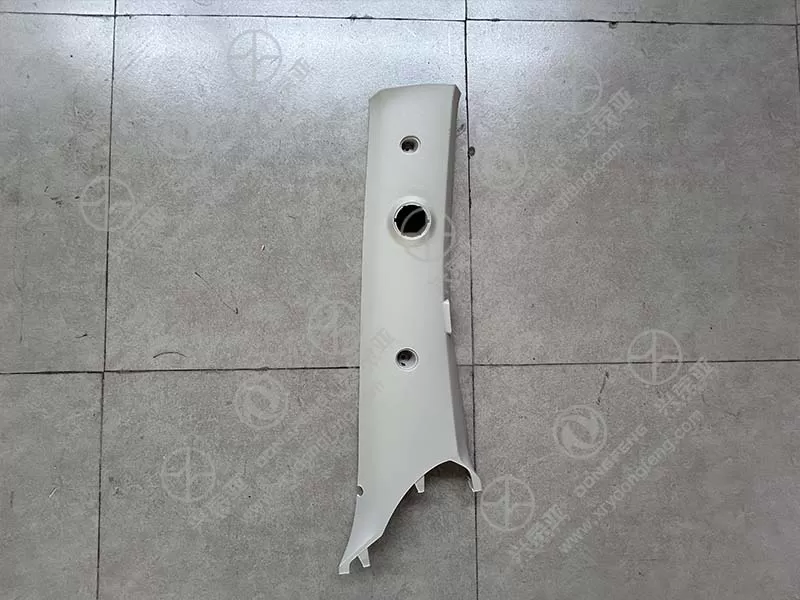

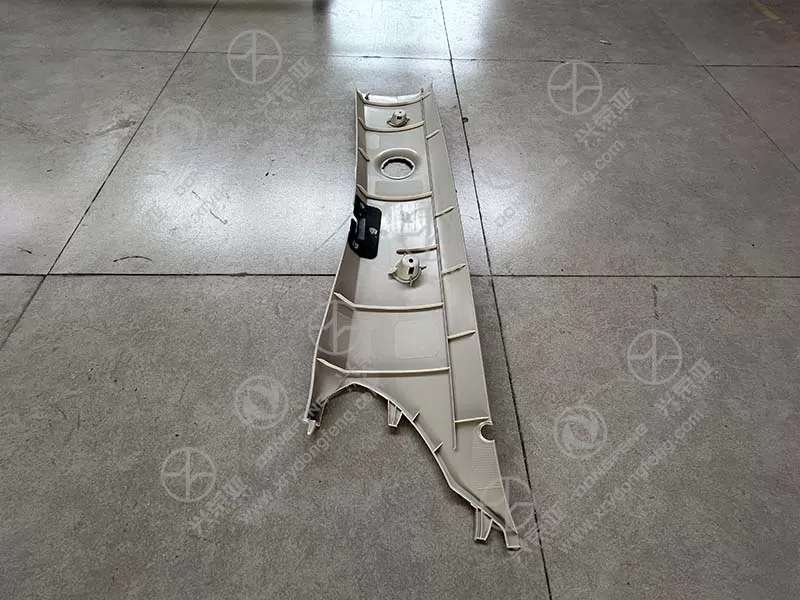

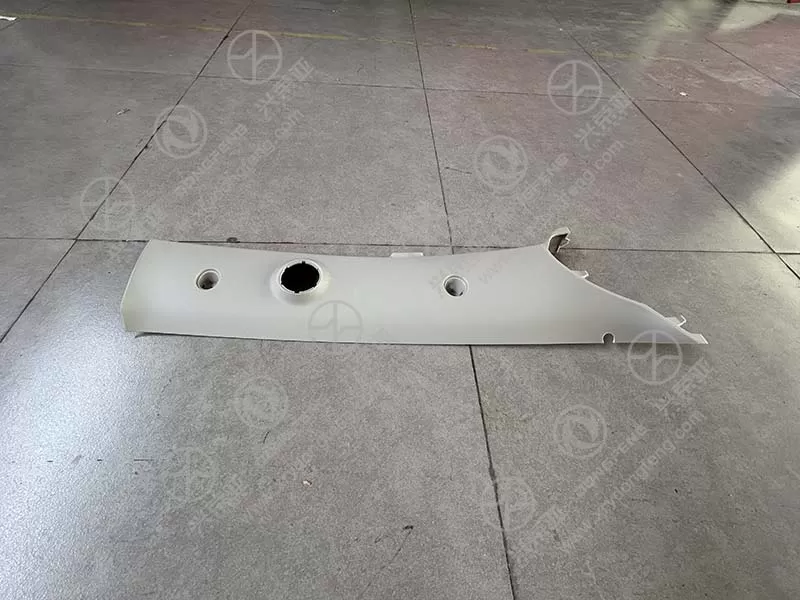

Dongfeng GX Right front pillar guard 5402012-C6202 in stocked

Constructed from a high-performance polypropylene (PP) and glass fiber composite (PP+20%GF), the 5402012-C6202 pillar guard balances strength, flexibility, and weather resistance—critical for commercial vehicles exposed to extreme climates. The composite material exhibits a flexural modulus of 2800 MPa, ensuring it retains shape under pressure, while its impact strength (7 kJ/m² at -30°C) prevents brittleness in cold weather. The guard’s surface is coated with a UV-resistant layer (thickness: 6μm) that blocks 95% of harmful UV rays, preventing color fading and material degradation—passing 1500-hour xenon lamp aging tests with no significant change in appearance or rigidity. Additionally, it is water-resistant and chemical-resistant to road salts, diesel, and cleaning agents, ensuring durability in coastal, snowy, or industrial areas for over 6 years

Exclusively tailored for Dongfeng GX commercial vehicles (including heavy-duty trucks and light cargo models), this right front pillar guard strictly adheres to the original equipment (OE) specifications of part number 5402012-C6202. It is manufactured using 3D laser scanning and injection molding technology, achieving dimensional accuracy within ±0.2mm—perfectly matching the contour of the Dongfeng GX’s right front pillar, including cutouts for door hinges, door seals, and side mirrors. The guard’s overall dimensions (length: 1250mm × width: 180mm × thickness: 3mm) align exactly with the pillar’s size, eliminating gaps that could trap dust or water. It is fully compatible with all Dongfeng GX models produced since 2022, making it a direct replacement part for factory assembly or after-sales repairs—no trimming or modification to the pillar is required

The 5402012-C6202 pillar guard is designed for hassle-free, tool-free installation, reducing labor time for technicians. It comes with pre-applied high-strength acrylic adhesive tape (bonding strength: 15 N/cm²) and 6 plastic snap clips that align with the pillar’s pre-drilled mounting holes (no additional drilling needed). The adhesive tape is activated by pressure (applied for 30 seconds) and cures fully within 24 hours, ensuring a permanent bond that resists vibration and temperature changes (-40°C to 80°C). The snap clips provide secondary reinforcement, preventing the guard from shifting during vehicle operation. Installation can be completed in 15-20 minutes by a single technician—50% faster than traditional bolt-on guards that require tools and drilling

Beyond protection, the 5402012-C6202 pillar guard is designed to complement the Dongfeng GX’s exterior aesthetics while supporting adjacent components. It is available in two factory-matched finishes: matte black (matching the GX’s lower body trim) and textured gray (blending with the pillar’s original texture), ensuring a cohesive look that avoids the "aftermarket" appearance of generic guards. The guard’s edge is rounded (radius: 2mm) to prevent injury to drivers or loaders during close contact, while its smooth inner surface avoids damage to the pillar’s paint or sealant. Additionally, it features a small drainage slot (diameter: 5mm) at the bottom to channel rainwater away from the pillar-door interface, preventing water buildup that could cause rust or seal degradation—further enhancing the vehicle’s long-term reliability
