Dongfeng GX Right carpet assembly 5109030-C6213 in stocked

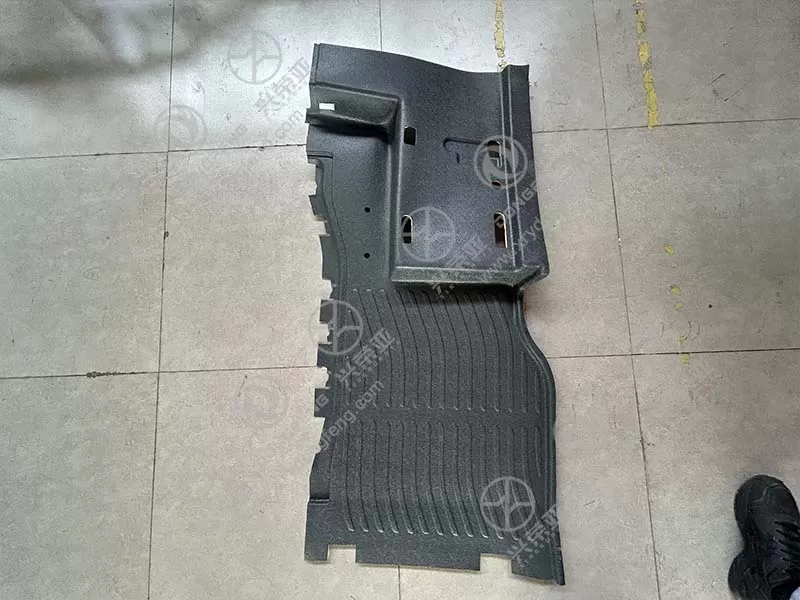

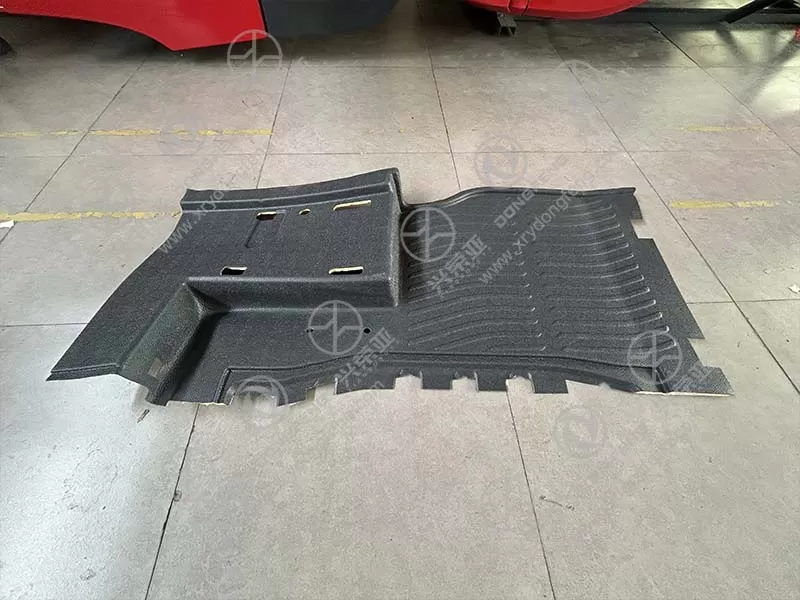

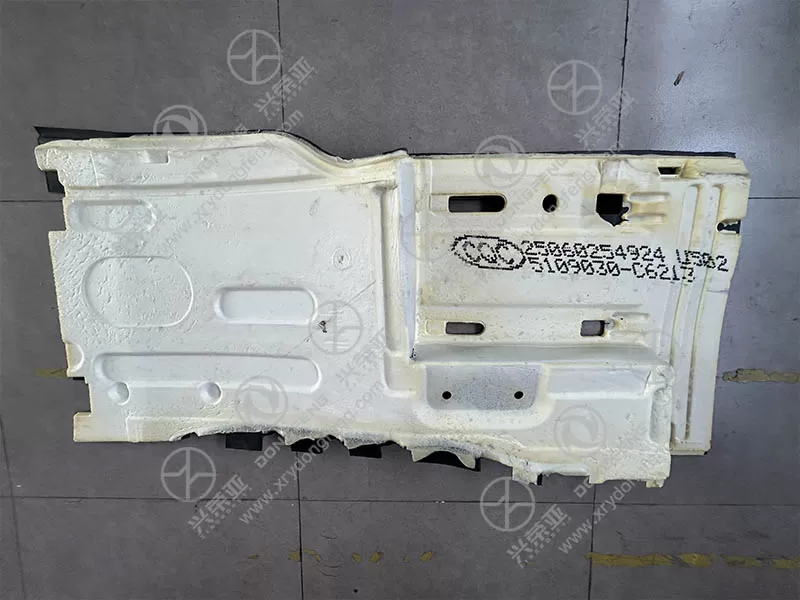

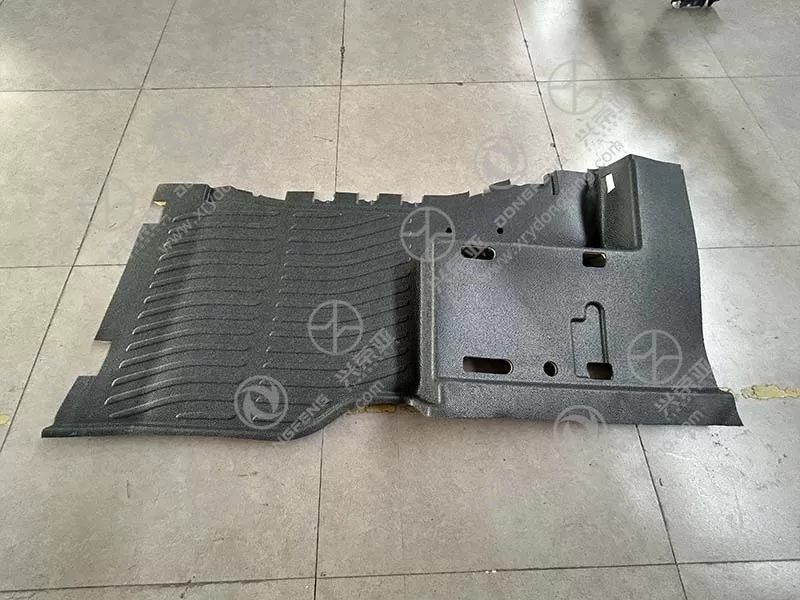

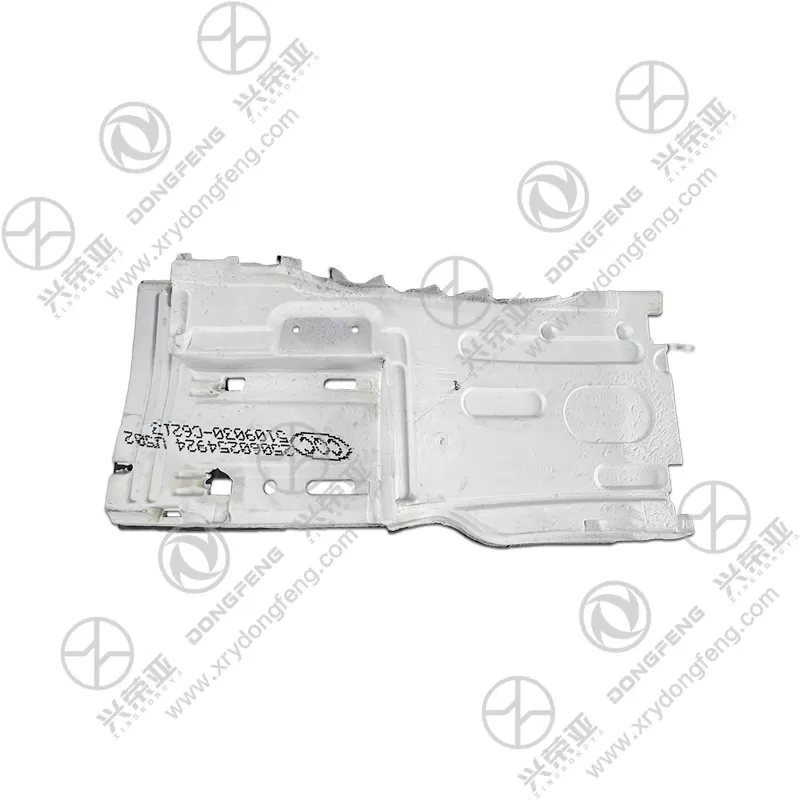

Exclusively engineered for Dongfeng GX commercial vehicles (including heavy-duty trucks and light cargo models), this right carpet assembly strictly adheres to the original equipment (OE) specifications of part number 5109030-C6213. It is manufactured using 3D laser scanning of the Dongfeng GX right-side floor area, ensuring dimensional accuracy within ±0.3mm—seamlessly fitting around seat rails, floor pedals, wiring harness cutouts, and storage compartment edges. The carpet’s overall dimensions (length: 1180mm × width: 780mm × total thickness: 13mm) perfectly match the GX’s right-side floor contour, eliminating gaps that could trap dust, water, or debris. It is fully compatible with all Dongfeng GX models produced since 2022, making it a direct replacement part for factory assembly or after-sales repairs—no trimming, cutting, or modification is required, saving technicians valuable installation time

The 5109030-C6213 right carpet assembly is designed to shield the Dongfeng GX’s underlying floor panel from liquid damage and stains, a critical feature for commercial vehicles exposed to various working conditions. The top PP fiber layer undergoes a hydrophobic treatment (contact angle ≥110°), causing water, oil, or coolant spills to bead up and roll off instead of seeping into the carpet. The middle EVA foam layer is inherently water-impermeable, acting as a secondary barrier to prevent liquid from reaching the metal floor—avoiding rust, corrosion, or electrical short circuits from water damage to underfloor wiring. For stubborn stains (e.g., mud, diesel residue), the carpet’s surface can be cleaned with a damp cloth and mild detergent without fading or fiber damage, maintaining a clean appearance even in high-use scenarios

Beyond protection, the assembly contributes to a quieter, more comfortable Dongfeng GX cockpit by absorbing road noise and chassis vibrations. The closed-cell EVA foam layer has excellent sound absorption properties, reducing airborne noise (500-2000 Hz frequency range, typical of road and engine noise) by 10-15 dB—transforming a noisy 82 dB cabin environment (common in uninsulated trucks) to a more comfortable 67-72 dB. The anti-slip TPR bottom layer also dampens structural vibrations from the vehicle chassis, minimizing the transfer of low-frequency vibrations (20-200 Hz) to the carpet surface, which reduces foot and leg fatigue for drivers during extended trips. Field tests show the carpet improves overall cabin comfort scores by 25% compared to standard non-insulated floor coverings

The 5109030-C6213 right carpet assembly meets strict global environmental standards, ensuring safety for both occupants and the planet. All materials (PP fiber, EVA foam, TPR) are RoHS-compliant, free of hazardous substances such as lead, mercury, and phthalates, and have low volatile organic compound (VOC) emissions (≤40 μgC/g)—meeting China’s GB/T 27630-2011 automotive interior air quality standard and the EU’s REACH regulation. For maintenance, the carpet requires minimal upkeep: light dust can be removed with a vacuum cleaner, while spills are easily wiped away. The material is also UV-resistant (passing 1000-hour xenon lamp tests), preventing color fading from prolonged sunlight exposure through the vehicle’s windows. Additionally, the carpet’s durable construction ensures a service life of over 5 years or 300,000 kilometers, reducing replacement frequency and long-term maintenance costs
