Body system

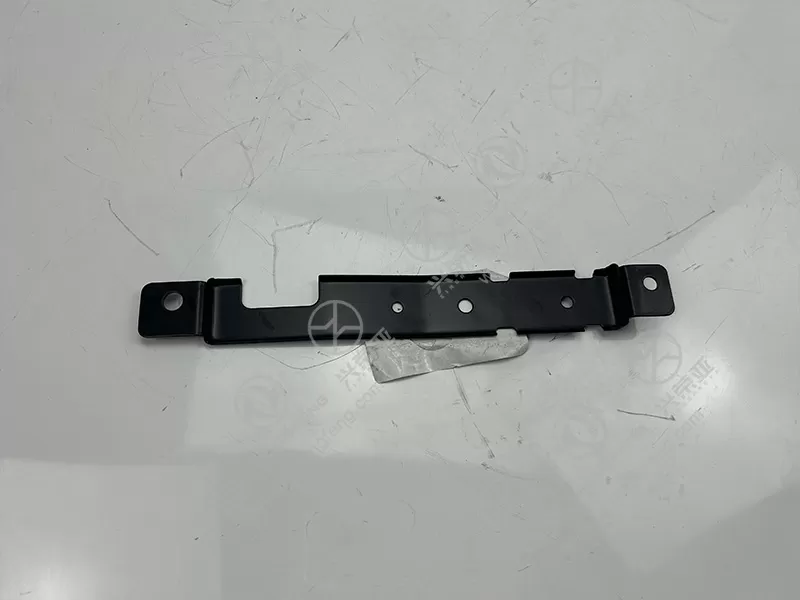

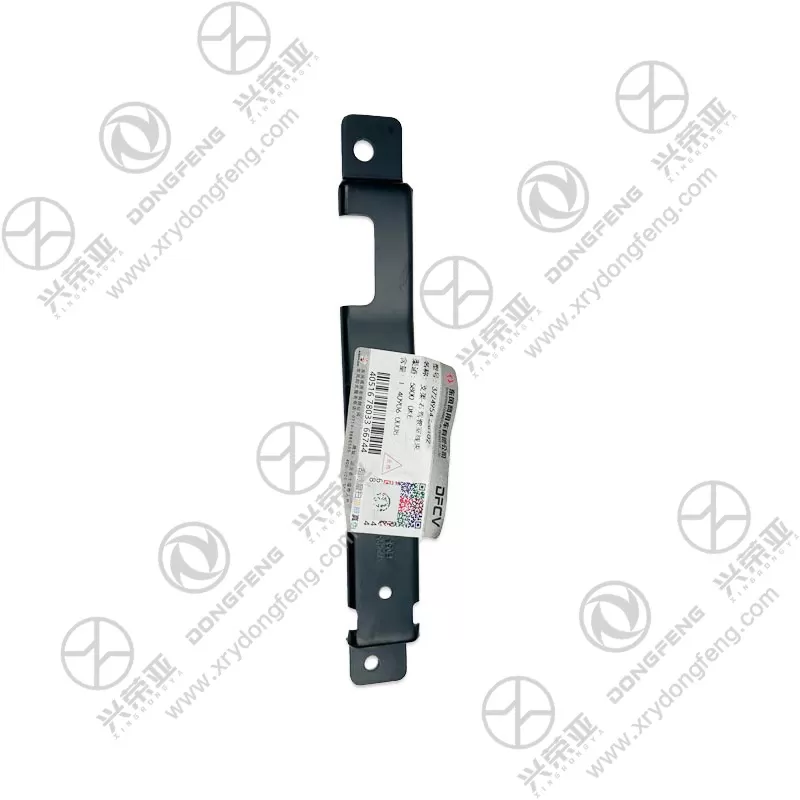

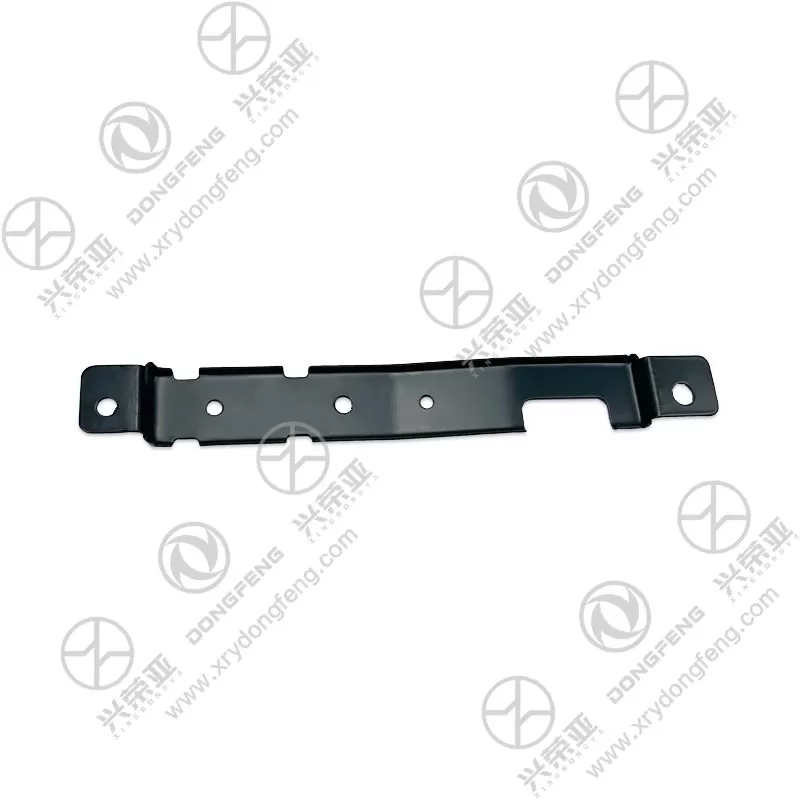

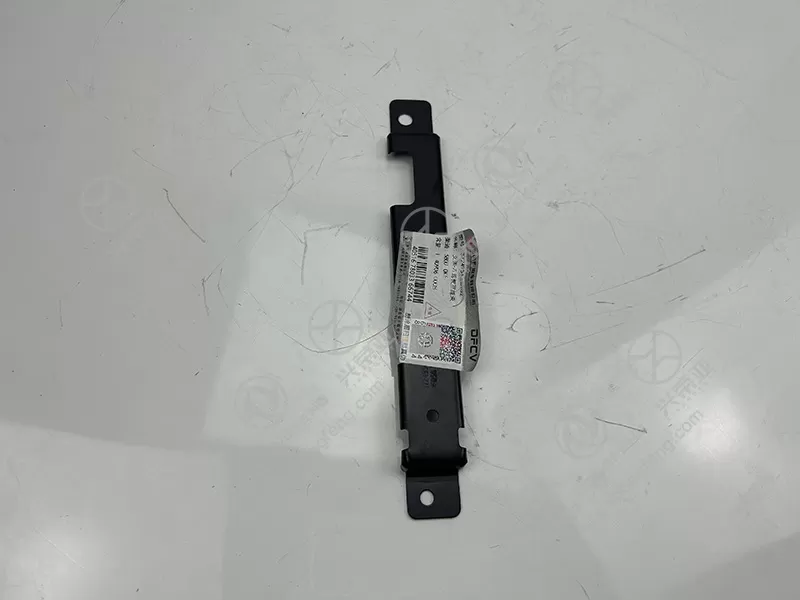

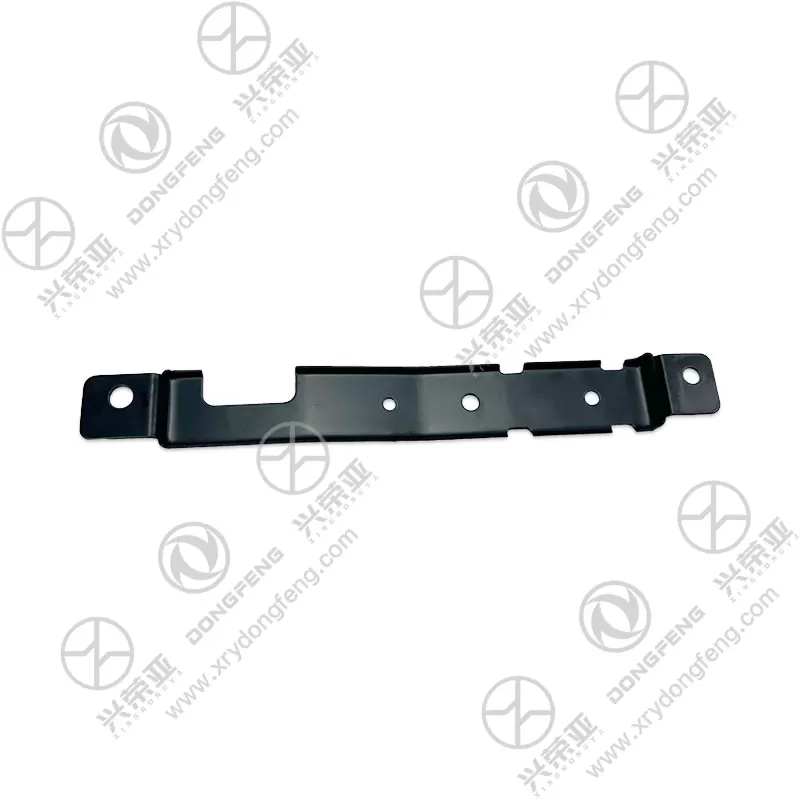

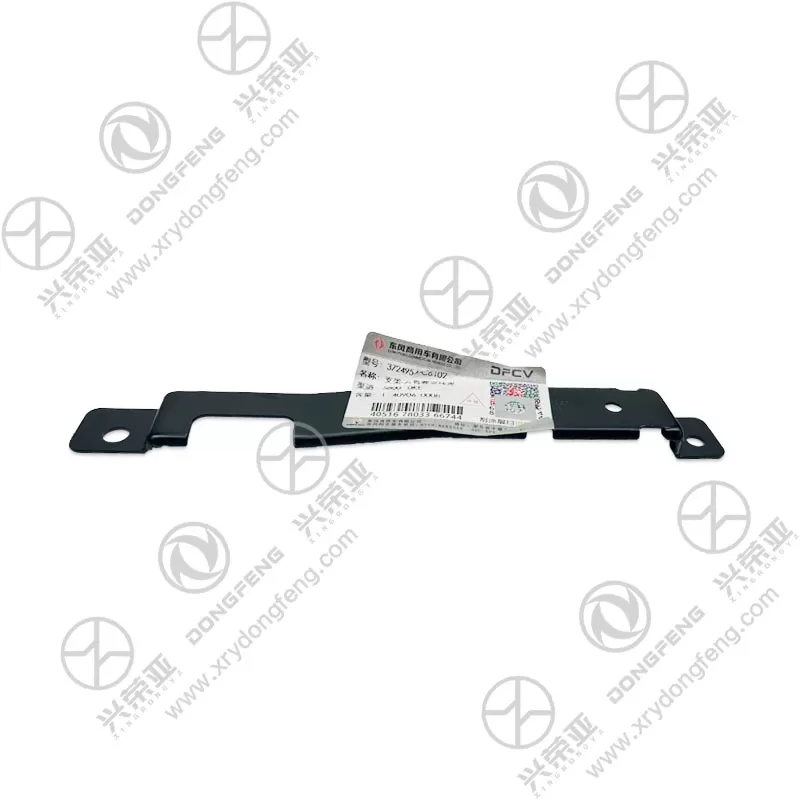

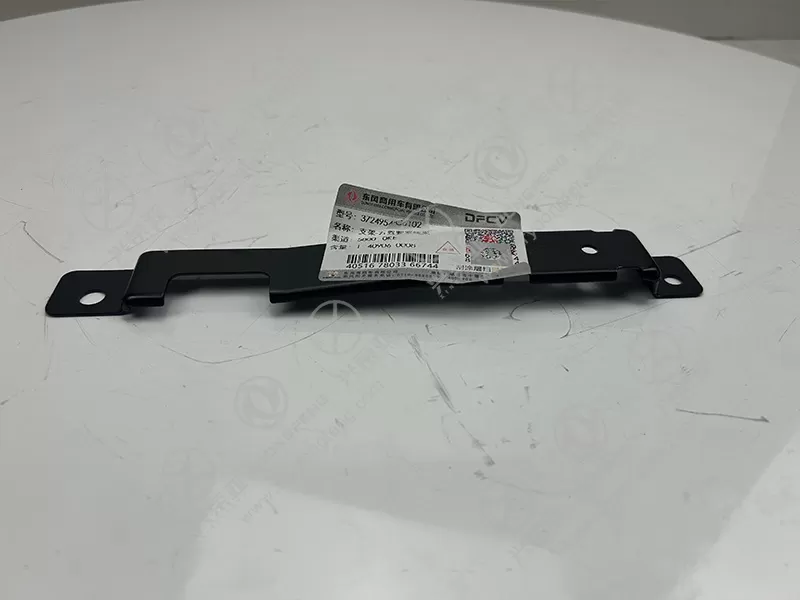

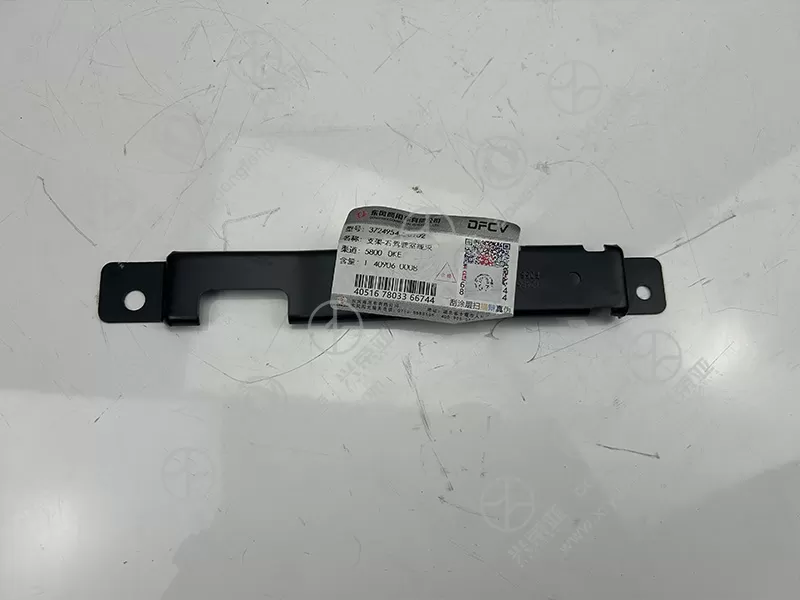

This right cab wiring harness bracket (Part No.: 3724954-C6102) is custom-developed for Dongfeng GX vehicles, strictly replicating the original factory’s dimensional specifications and mounting positions. It perfectly aligns with the right-side cab inner wall’s fixing points and the wiring harness routing path, ensuring the wiring harness can be installed in the factory-standard position without adjustments. This avoids mismatches that could cause harness extrusion or abnormal contact, maintaining the vehicle’s electrical system stability
Product Attributes
Warranty: 1 YEARS ,Part name: wiring harness Bracket 3724954-C6102
PRODUCT DESCRIPTION
High-Strength & Corrosion-Resistant Material
The bracket is made of glass fiber-reinforced PA66 plastic (GF content: 20-30%), which offers excellent mechanical strength—with a tensile strength of ≥60 MPa and a bending strength of ≥90 MPa, enough to bear the weight of the wiring harness (up to 3-5 kg) without deformation. The surface is treated with anti-corrosion coating, which resists rust and degradation caused by long-term exposure to cab internal humidity, temperature changes (-40°C to 80°C), and chemical substances (such as cleaning agents), extending the bracket’s service life to over 8 years
Harness-Friendly Structural Design
The bracket features a multi-groove and clip-in structure: it is designed with 4-6 semicircular wiring grooves (diameter: 8-12 mm) to separate different types of wires (power lines, signal lines), preventing mutual interference. Additionally, integrated plastic clips (with a clamping force of 5-8 N) secure the harness in place, avoiding displacement caused by vehicle vibration during driving. The edges of the grooves are rounded (radius: ≥1 mm) to prevent abrasion to the harness insulation layer, reducing the risk of short circuits
Tool-Free & Time-Saving Installation
The bracket adopts a snap-on and bolt-fixed dual-installation design: it first snaps into the cab’s pre-installed positioning pins for quick positioning, then is secured with 2-3 M6 bolts (matching the original factory thread specifications). No additional drilling or cutting is required, and the entire installation process can be completed in 5-8 minutes with only a wrench—saving 50% of installation time compared to universal brackets. The mounting holes are precisely positioned (error ≤0.5 mm), ensuring accurate alignment with the cab’s fixing points
Vibration-Damping & Noise-Reduction Performance
The bracket is equipped with 0.5-1 mm thick EPDM rubber gaskets at the contact points with the cab and the harness. These gaskets absorb vibration generated by the vehicle engine and road conditions (frequency: 10-500 Hz), preventing the bracket from resonating with the cab and reducing operating noise (controlled below 40 dB). Meanwhile, the rubber gaskets also buffer the pressure between the bracket and the harness, further protecting the harness from damage due to vibration and ensuring stable signal transmission
TECHNICAL SUPPORT
1. Accessories selection consultation
- Provide ** intelligent selection tools ** (such as parts matching query system), input the vehicle model VIN code or engine model to match the corresponding parts number, reducing the selection error rate.
The technical team is available online 7×12 hours to answer technical questions about accessories (such as material compatibility and installation processes).
2. Customized development support
We offer specialized R&D services for special market demands (such as heat dissipation accessories for high-temperature regions in the Middle East and dedicated suspension components for road conditions in Africa), and complete sample delivery within six weeks.
3. Training and Technical materials
Provide remote/on-site training for the customer's after-sales team (such as diagnosis of electrical control accessories and DPF regeneration operation), along with multilingual versions of the "Accessories Installation Manual" and "Troubleshooting Guide".
4. Quality Traceability and Improvement
Through the QR code traceability system (one product, one code), track the production batch of accessories and the source of raw materials, respond quickly to quality complaints and initiate improvement processes.
AFTER-SALES AND LOGISTICS SUPPORT
After-sales service
Quality Assurance Policy
-The warranty period for original factory parts is 12 months (counting from the date of signature for receipt), covering material defects, process issues, and man-made damage.
- Provide "Localized Express repair Service" : Cooperate with third-party repair networks in markets such as Southeast Asia and the Middle East, and deliver emergency parts to designated repair points within 4 hours.
Return and Exchange Process
-The customer is required to submit the test report (such as a third-party appraisal) within the warranty period. After confirmation by Dongfeng, a reissue or refund will be arranged within 5 working days.
Logistics support
Warehouse Layout
-Five major regional accessory centers have been established globally (Southeast Asia, the Middle East, Africa, South America, and Europe) to achieve "next-day delivery" for mainstream accessories (covering customers within the regions).
Emergency Logistics Plan
-Emergency parts can be directly delivered within 48 hours via the "Dongfeng Exclusive Aviation Special Line" (such as engine ECU, brake valves and other key components).
Packaging Optimization
-Use shockproof and moisture-proof packaging (such as honeycomb cartons + pearl cotton), and reinforce fragile parts (such as glass, sensors), keeping the damage rate within 0.5%.
