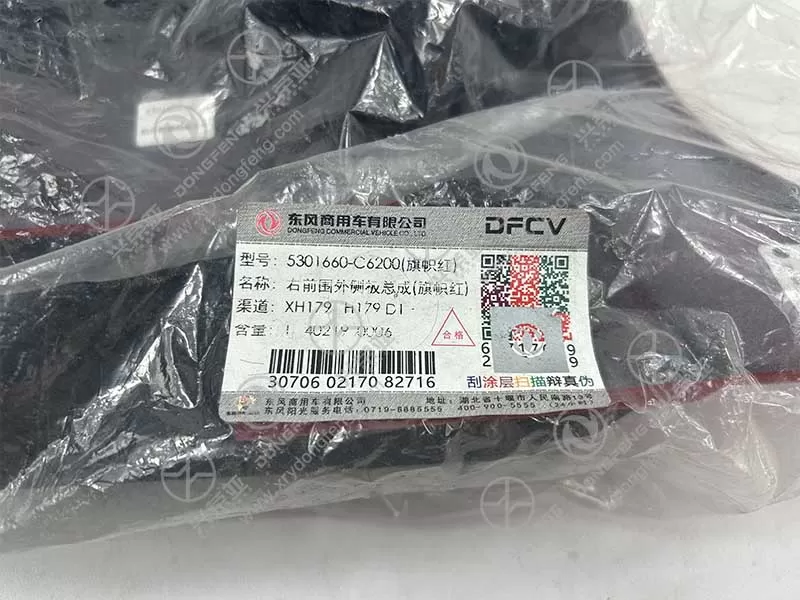

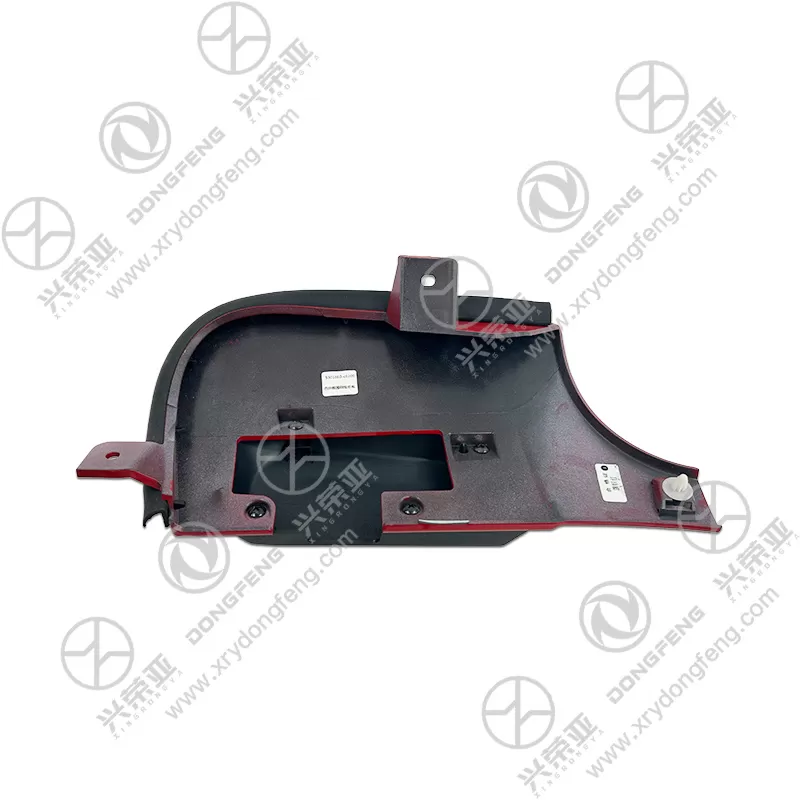

Dongfeng GX red Right front outer panel assembly 5301660-C6200

Constructed from cold-rolled high-strength steel (CR4 grade) with a thickness of 0.8mm, the 5301660-C6200 outer panel balances lightweight design and structural robustness—critical for commercial vehicles like Dongfeng GX that face frequent road debris impacts and minor collisions. The steel exhibits a tensile strength of ≥340 MPa and yield strength of ≥210 MPa, enabling the panel to withstand peak impact loads of up to 1800N without permanent deformation. The panel’s integrated stamping structure includes 12 reinforced ribs (3mm thick) along the edges and center, distributing stress evenly to prevent cracking. Additionally, the steel undergoes a phosphate pretreatment (8-12μm thick) before coating, enhancing corrosion resistance and ensuring the red finish adheres firmly to the surface

Exclusively engineered for Dongfeng GX commercial vehicles (including heavy-duty trucks and cargo models), this right front outer panel strictly adheres to the original equipment (OE) specifications of part number 5301660-C6200. It is manufactured using 3D laser scanning and CNC stamping technology, achieving dimensional accuracy within ±0.5mm—perfectly aligning with the vehicle’s headlight opening, front bumper interface, door edge, and fender contours. The panel features 18 pre-drilled mounting holes (M6 threaded, 12mm depth) and 2 locating pins that match the Dongfeng GX’s front body frame, ensuring no gaps or misalignment after installation. It is fully compatible with all Dongfeng GX models produced since 2022, making it a direct replacement part for factory assembly or after-sales repairs—eliminating the need for on-site trimming or adjustment

Beyond aesthetics, the 5301660-C6200 red outer panel provides comprehensive protection for the Dongfeng GX’s front-end components. The combination of phosphate pretreatment, electrophoretic primer, and clearcoat creates a barrier against road salt, rain, and industrial dust—passing 1000-hour neutral salt spray tests without red rust or coating peeling. The panel’s edge design includes a waterproof seal groove (compatible with Dongfeng GX’s original rubber seal) that blocks rainwater from seeping into the engine compartment or electrical systems (e.g., headlight wiring). Additionally, the reinforced lower edge (5mm thick) acts as a buffer against road debris (e.g., stones, gravel), preventing scratches or dents that could compromise the red finish and expose the steel to corrosion

The 5301660-C6200 red right front outer panel is designed for hassle-free installation and long-term maintenance. It comes with a complete hardware kit, including 18 stainless steel bolts, lock washers, and the required rubber seals—eliminating the need for separate part sourcing. The panel’s lightweight design (2.8kg) reduces handling effort, and clear alignment marks (engraved on the backside) allow technicians to position it correctly in 30-40 minutes—40% faster than non-OE panels. For after-sales care, the red finish is repairable: minor scratches can be touched up with Dongfeng GX’s factory-matched red touch-up paint (available as an accessory) without disrupting the overall appearance. The assembly also includes a 24-month warranty against material defects (e.g., coating peeling, steel corrosion) and manufacturing errors, providing confidence for Dongfeng GX owners and repair facilities
