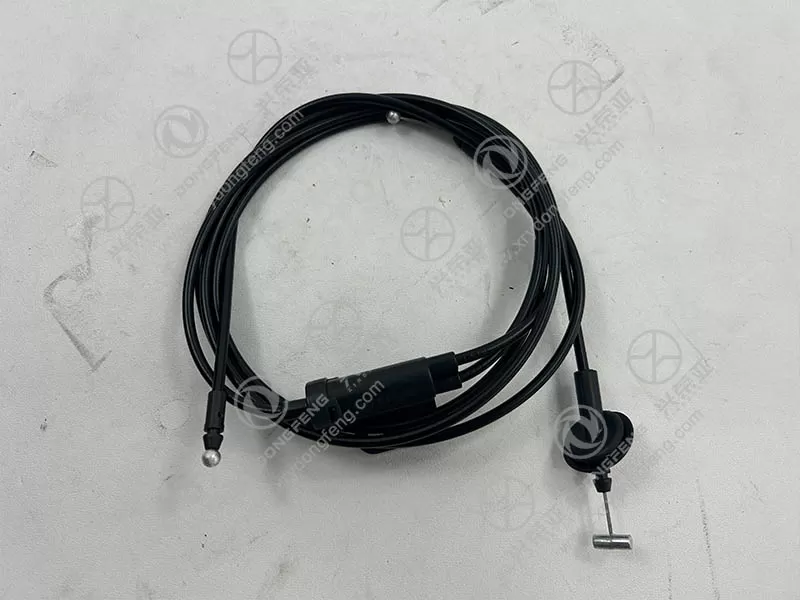

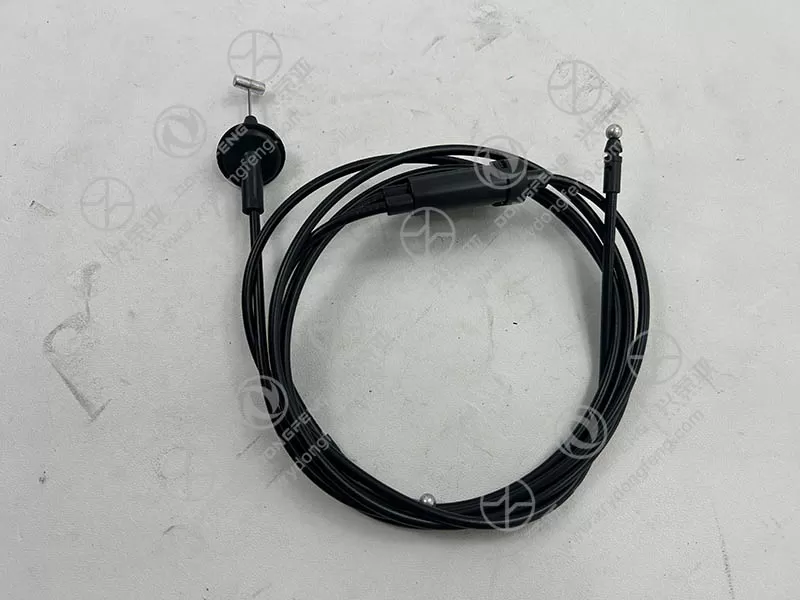

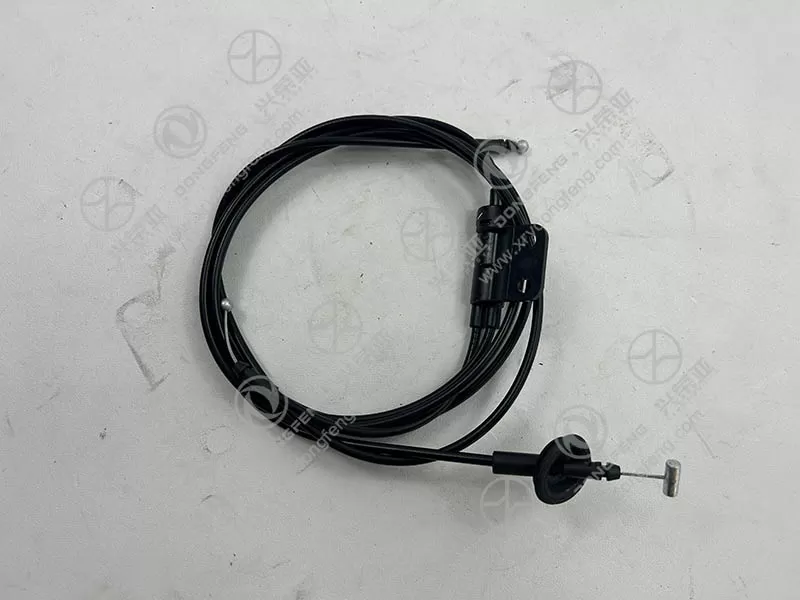

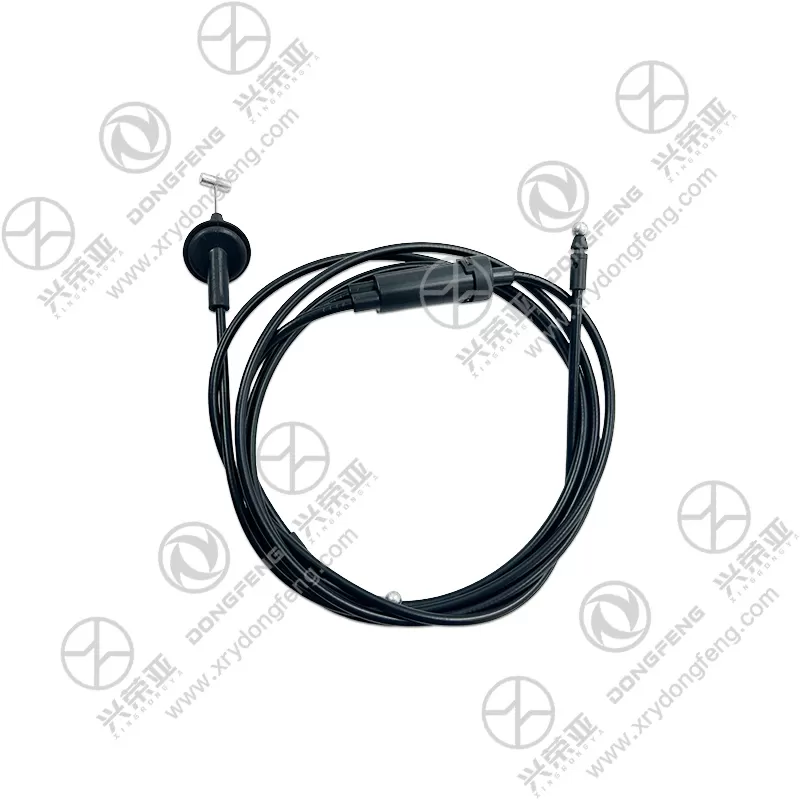

Dongfeng GX Locking steel cable assembly 5301615-C6100

To endure the harsh operating conditions of commercial vehicles (rain, road salt, humidity, and industrial dust), the 5301615-C6100 assembly incorporates multi-layer protective structures. The steel cable is coated with a 0.8mm-thick galvanized layer (zinc coating weight ≥ 120g/m²) to prevent rust, followed by a PVC sheath (1.2mm thick, shore hardness 80±5A) that resists abrasion, oil, and chemical corrosion. The cable ends are fitted with zinc-plated steel ferrules (thickness 2mm) crimped at 50kN pressure, ensuring a tight connection to the lock connector and preventing fraying. This protection system allows the assembly to pass 1000-hour neutral salt spray tests without red rust or sheath cracking, maintaining performance for over 7 years or 350,000 kilometers—far exceeding the lifespan of standard locking cables

Exclusively engineered for Dongfeng GX commercial vehicles (including heavy-duty trucks and light cargo models), this locking steel cable assembly strictly adheres to the original equipment (OE) specifications of part number 5301615-C6100. It is manufactured with CNC precision cutting (cable length tolerance ±2mm) and custom-molded PVC fittings, ensuring seamless alignment with the Dongfeng GX’s lock mechanism, mounting brackets, and body interfaces. The assembly has a total length of 650mm (adjustable via a 50mm sliding connector) and features pre-installed mounting clips that match the vehicle’s underbody or interior attachment points. It is fully compatible with all Dongfeng GX models produced since 2021, making it a direct replacement part for factory assembly or after-sales repairs—no modification or trimming is required, avoiding compatibility issues with generic alternatives

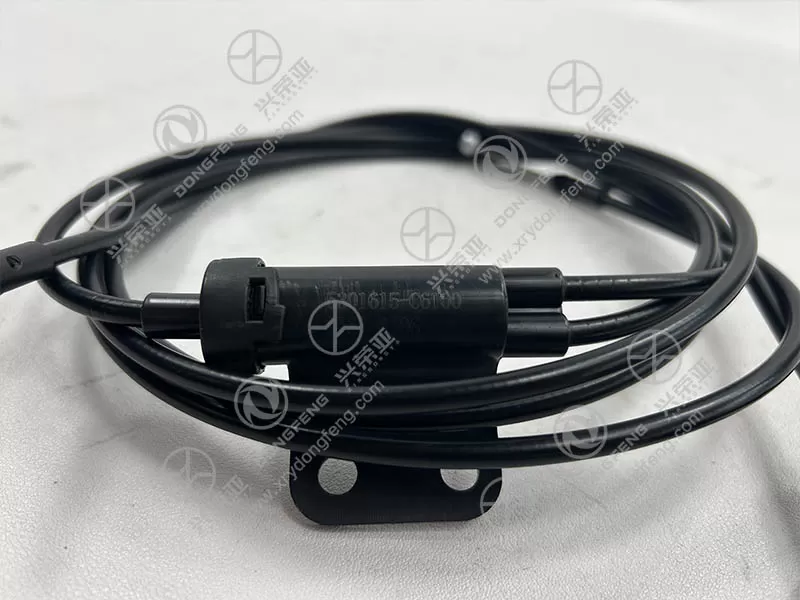

Beyond the steel cable itself, the 5301615-C6100 assembly integrates a secure locking mechanism to prevent unauthorized access or accidental release. The lock connector uses a push-to-lock design with a 3-pin tumbler system that requires a dedicated key (included) for release, resisting picking or forced entry. The connector also features a dust cover (made of flexible TPE material) that seals the keyhole when not in use, preventing dust, water, or debris from jamming the mechanism. Additionally, the cable’s PVC sheath includes a anti-slip texture at the handle end, ensuring a firm grip during operation, while the mounting clips have a snap-lock design that prevents the cable from shifting during vehicle movement—further ensuring the lock remains engaged

The 5301615-C6100 locking steel cable assembly is designed for hassle-free installation and operation. It comes with a complete hardware kit, including 4 plastic mounting clips, 2 self-tapping screws (M4×12mm), and a dedicated key—eliminating the need for separate part sourcing. The assembly’s lightweight design (total weight 280g) and flexible cable allow technicians to route it along vehicle contours easily, with installation completed in 15-20 minutes (40% faster than non-OE cables). For daily use, the push-to-lock mechanism requires minimal force (≤50N) to engage, and the key operation is smooth with clear tactile feedback. The assembly also includes a 24-month warranty against material defects (e.g., cable fraying, lock jamming) and manufacturing errors, providing peace of mind for Dongfeng GX owners and repair facilities
