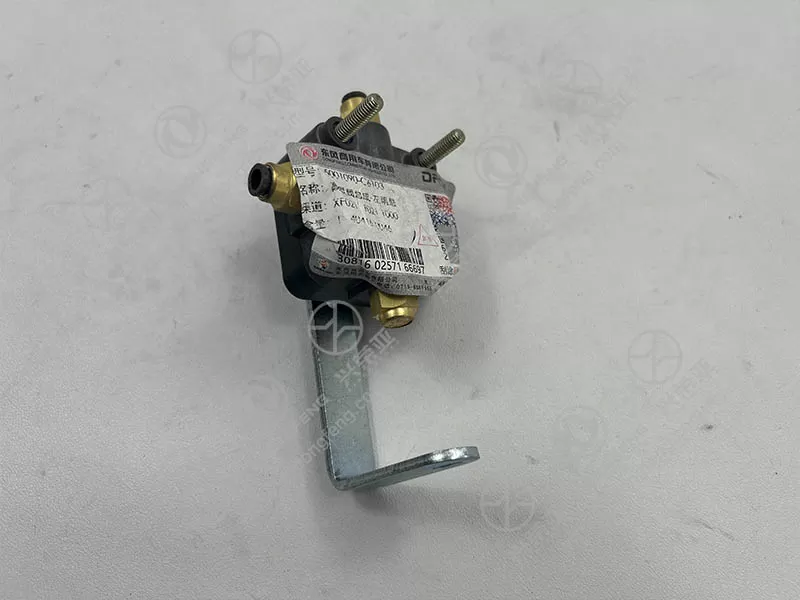

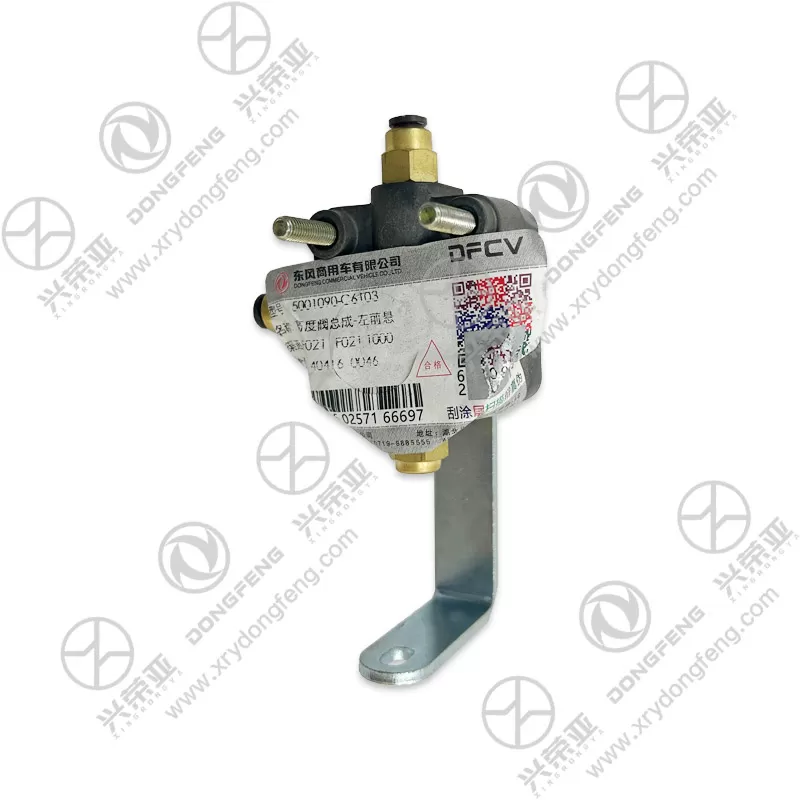

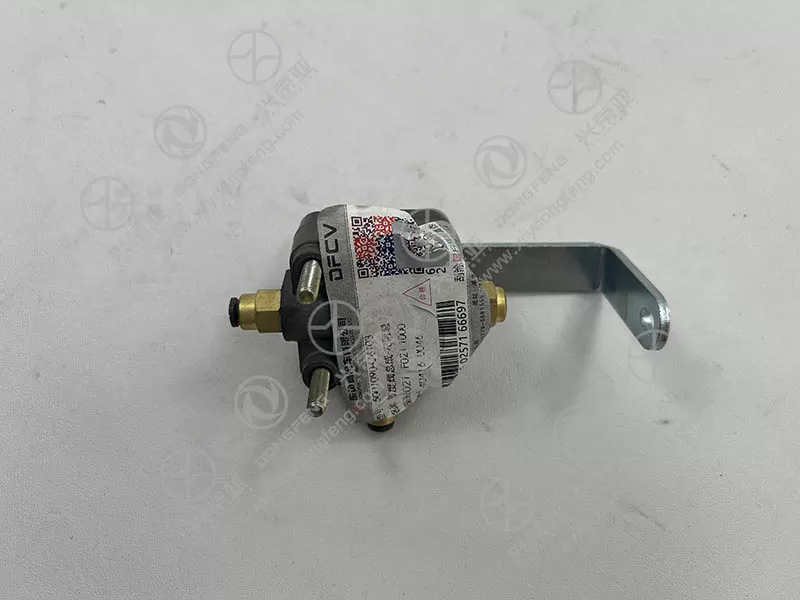

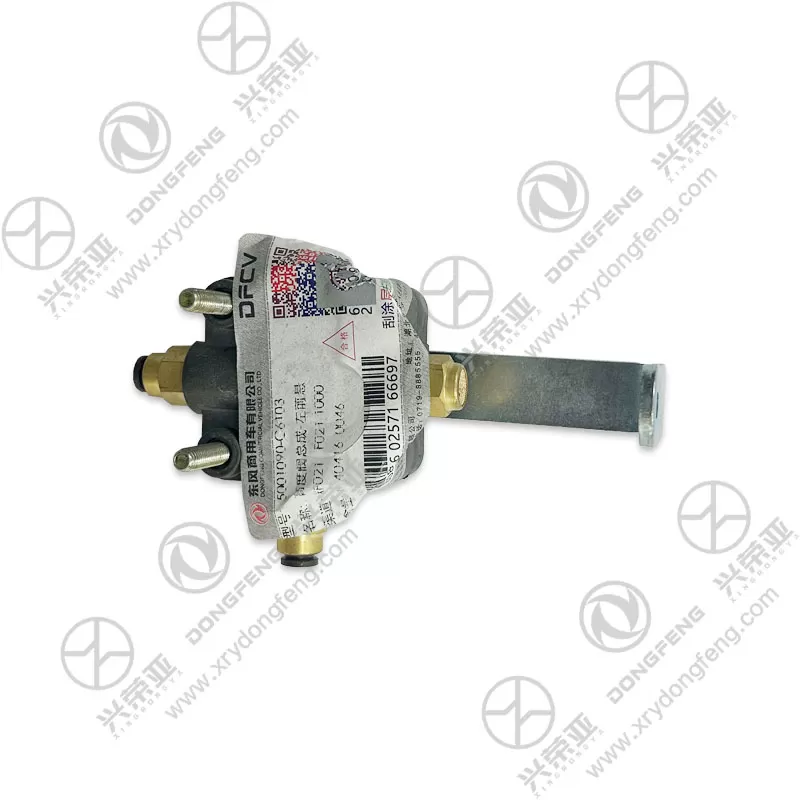

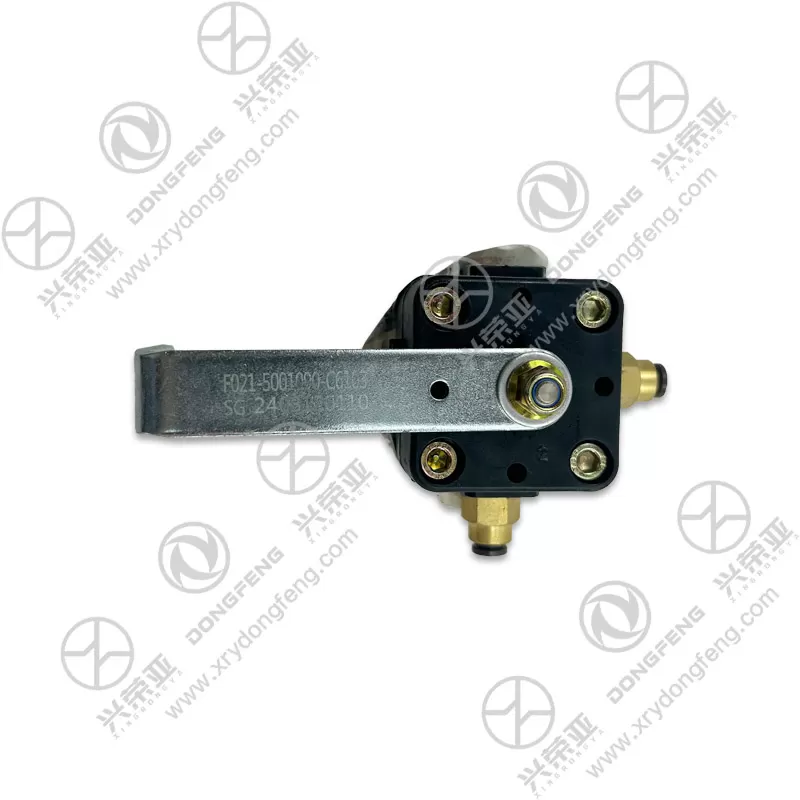

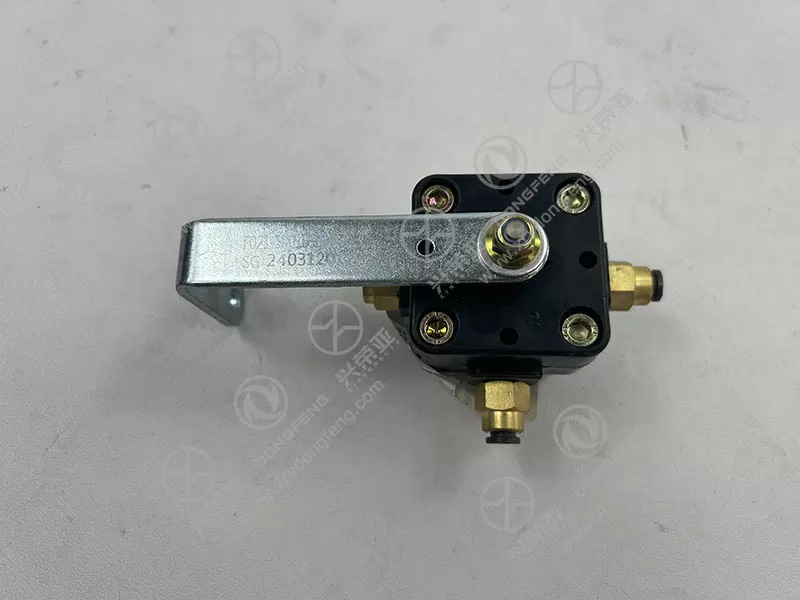

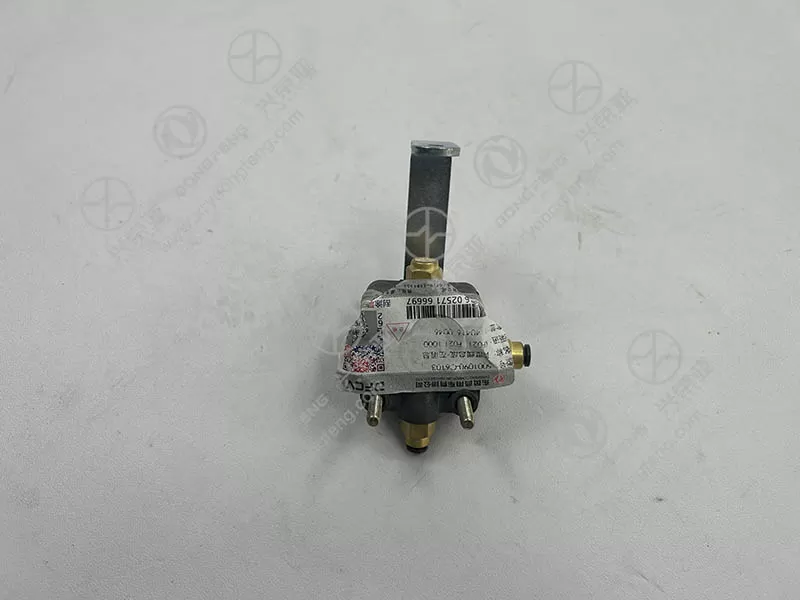

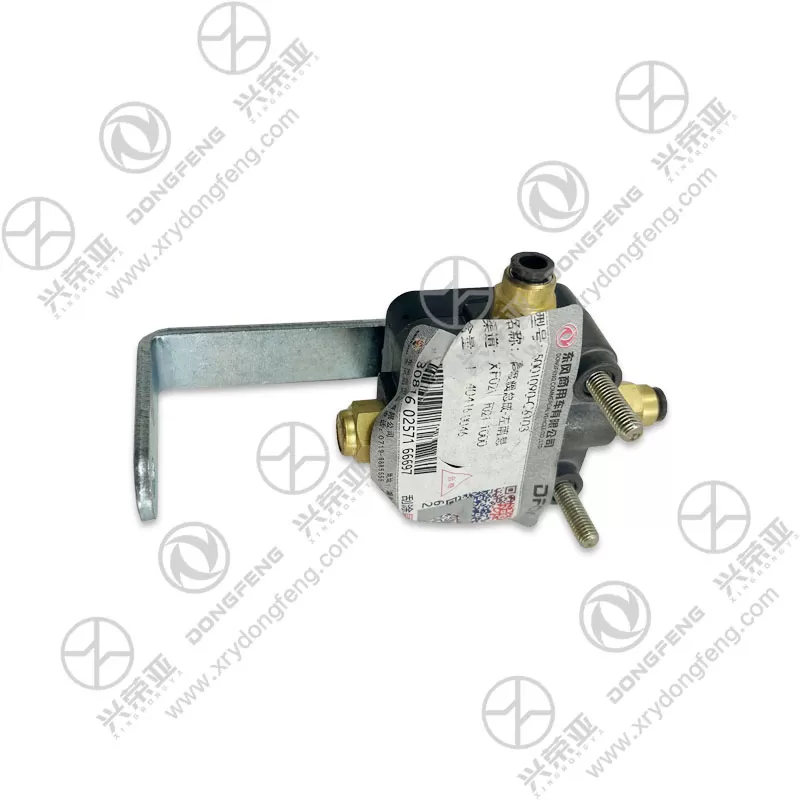

Dongfeng GX left front suspension Height valve assembly 5001090-C6103

Engineered exclusively for Dongfeng GX’s left front suspension, this assembly matches OEM dimensions with ±0.1mm tolerance. The mounting bracket (powder-coated steel) has 3 pre-drilled holes aligning with the vehicle’s subframe, and the connecting rod interface (18mm spline) fits the factory rod without adapters. The air inlet/outlet ports (1/8-inch NPT threads) connect directly to the left front airbag and air supply system, requiring no custom hoses. Unlike generic height valves, it follows the left front suspension’s kinematic layout, avoiding interference with brake lines or steering components. Rigorously tested on Dongfeng GX test vehicles, it passes 180+ fitment checks to ensure no binding or air leakage, guaranteeing the valve operates in sync with the left front suspension’s movement

Built to withstand harsh automotive environments, the assembly uses rugged, protective materials. The valve body is made of die-cast aluminum alloy (ADC12) with a hard anodized coating (thickness 15μm), achieving 800-hour salt spray resistance—protecting against rust in coastal or snowy areas. The internal seals (FKM fluorocarbon rubber) maintain airtightness across -40°C to 120°C (500 temperature cycles), preventing air leakage in extreme cold/heat. The moving components (poppet, springs) are made of stainless steel (304) with a polished surface, reducing friction and ensuring smooth operation for 80,000+ km. It also passes dust ingress testing (IP6K6 rating), shielding internal parts from road debris. For owners, this durability means minimal maintenance and no frequent replacements

The 5001090-C6103 assembly is fully compatible with Dongfeng GX’s air suspension control system, enabling coordinated left-right height adjustment. It communicates with the vehicle’s ECU via a pressure feedback sensor (optional), allowing the system to balance left/front height differences (e.g., uneven road surfaces or side loads). When paired with the right front height valve, it ensures the front axle remains level, enhancing driving stability—critical for high-speed cornering or emergency braking. The valve also integrates with the air compressor’s pressure switch, activating the compressor only when needed to save energy. Tested on Dongfeng GX’s chassis dynamometer, it maintains system synergy, avoiding conflicting signals that cause suspension oscillation or delayed height recovery

Designed for easy installation, the assembly requires no specialized tools beyond 17mm/19mm wrenches and a torque wrench (preset torque: 25±2 N·m for mounting bolts). The process takes 30 minutes max: 1) Jack up Dongfeng GX’s left front and secure it; 2) Disconnect the air lines and connecting rod from the old valve; 3) Remove the 3 mounting bolts and detach the old assembly; 4) Align the new valve with the subframe, tighten bolts, and reconnect air lines/rod; 5) Calibrate via the vehicle’s on-board computer (automatic height reset function). No air system bleeding or reprogramming is needed—the valve operates immediately. A step-by-step manual with diagrams is included, making it accessible to repair shops and DIY owners, minimizing vehicle downtime
