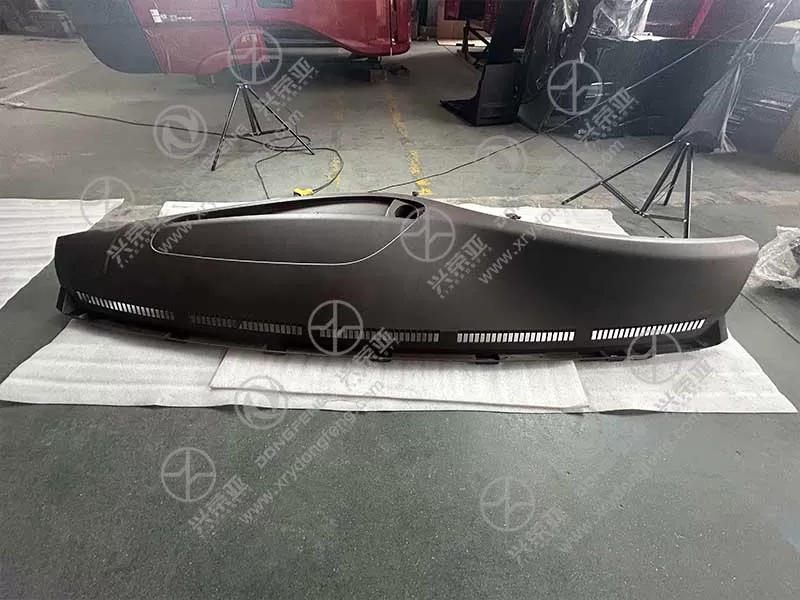

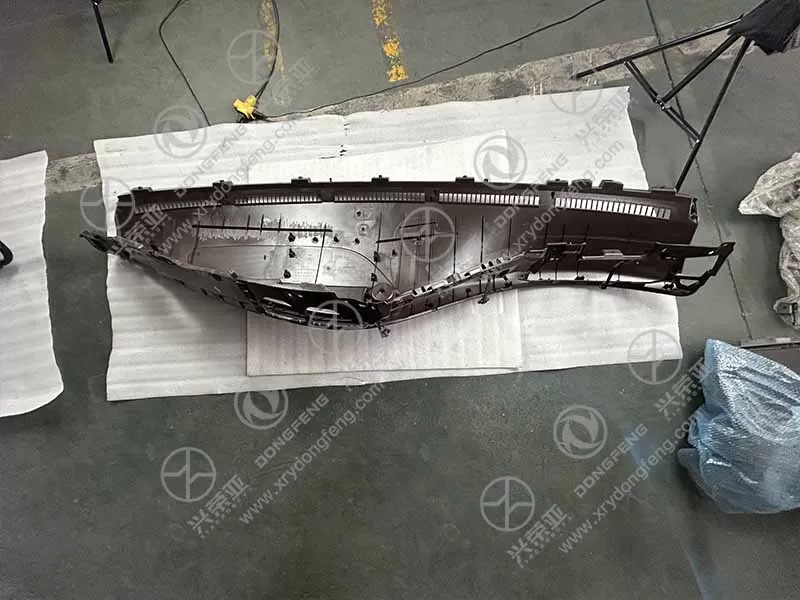

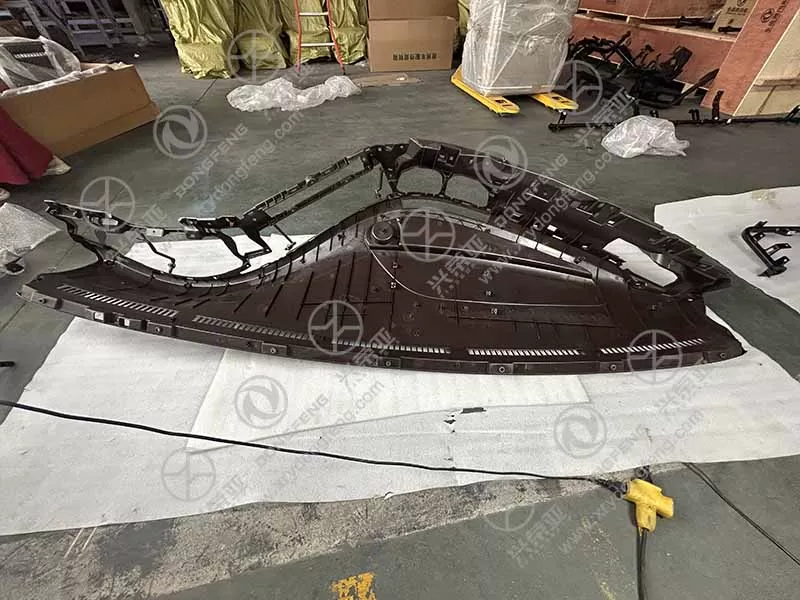

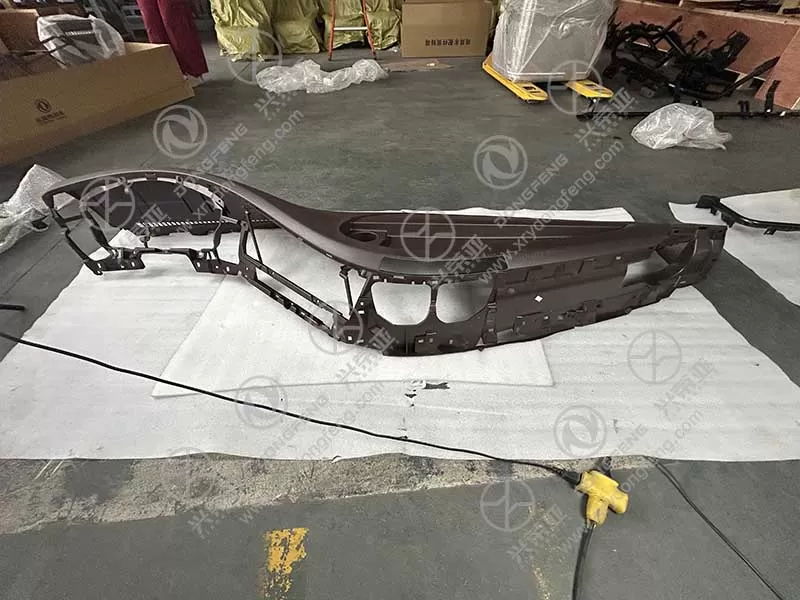

Dongfeng GX Instrument panel body 5305020-C6100 in stocked

Engineered for maximum functionality, the 5305020-C6100 instrument panel body features a modular, integrated design that accommodates all critical Dongfeng GX cockpit components. It includes pre-molded mounting slots and bosses for the instrument cluster (12.3-inch display compatible), infotainment system (10-inch touchscreen fit), air conditioning vents (4-way adjustable), and steering column interface—ensuring precise component alignment without on-site modification. The panel also has built-in wiring harness channels (with a diameter of 20mm) and USB/charging port cutouts, simplifying electrical integration and reducing installation complexity. A reinforced lower beam (made of glass fiber-reinforced PP) runs along the panel’s bottom edge, providing additional structural support for heavy components like the airbag module (compatible with Dongfeng GX’s driver-side front airbag) and preventing panel deformation under load

Exclusively tailored for Dongfeng GX commercial vehicles (including heavy-duty trucks and long-haul cargo models), this instrument panel body strictly adheres to the original equipment (OE) specifications of part number 5305020-C6100. It is manufactured using 3D injection molding with CNC precision tooling, achieving dimensional accuracy within ±0.2mm—seamlessly fitting the Dongfeng GX’s cockpit contour, dashboard brackets, and front windshield lower edge. The panel’s overall dimensions (length: 1850mm × height: 580mm × depth: 120mm) perfectly match the GX’s driver cabin space, eliminating gaps that could trap dust or cause abnormal noise. It is fully compatible with all Dongfeng GX models produced since 2021, making it a direct replacement part for factory assembly or after-sales repairs, and avoiding fitment issues common with generic instrument panels

To ensure longevity in the demanding cockpit environment (temperature fluctuations, UV radiation, and frequent touch), the 5305020-C6100 instrument panel body undergoes advanced anti-aging treatments. The surface is coated with a UV-resistant acrylic layer (thickness: 8-10μm) that prevents color fading and material brittleness—passing 1500-hour xenon lamp aging tests with no significant change in gloss (retaining ≥80% of original gloss) or mechanical properties. The PP composite material also exhibits excellent temperature resistance, maintaining structural integrity from -40°C (cold start conditions) to 80°C (prolonged sunlight exposure), without warping or cracking. Additionally, the panel’s surface is scratch-resistant (passing 3H pencil hardness tests) and easy to clean—stains from oil or dust can be wiped off with a damp cloth without leaving marks, ensuring a like-new appearance for over 6 years

The 5305020-C6100 instrument panel body is optimized for driver comfort, featuring an ergonomic layout that reduces fatigue during long-haul trips. The instrument cluster area is angled at 15° toward the driver, ensuring optimal visibility of speed, fuel, and warning indicators without requiring the driver to tilt their head. The infotainment and AC control zones are positioned within 30cm of the driver’s reach (based on average hand length), minimizing distraction while adjusting settings. The panel’s edges and contact surfaces are rounded (radius of 3mm) to prevent discomfort from accidental contact, and the surface texture is a soft, matte finish that reduces glare from sunlight—improving readability of displays in bright conditions. Additionally, the panel includes a built-in storage compartment (capacity: 1.5L) on the passenger side, providing convenient space for small items like documents or mobile phones, further enhancing cabin practicality
