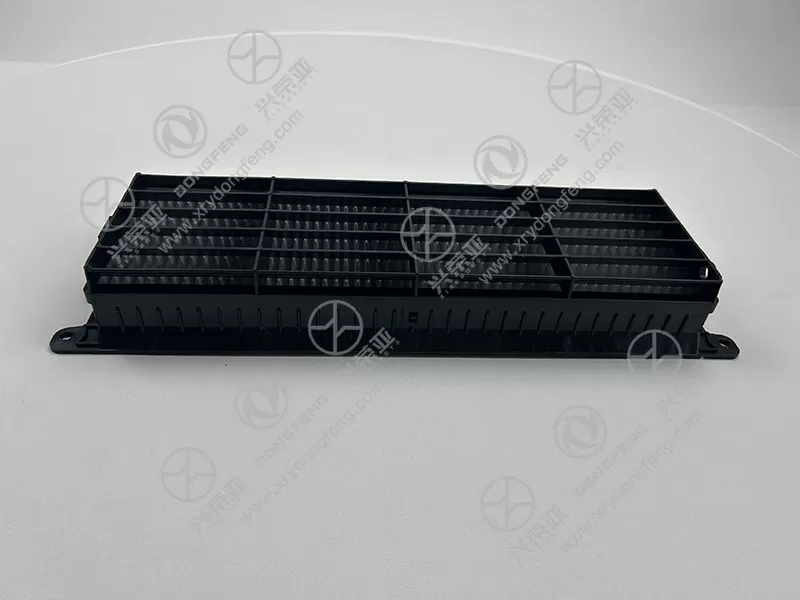

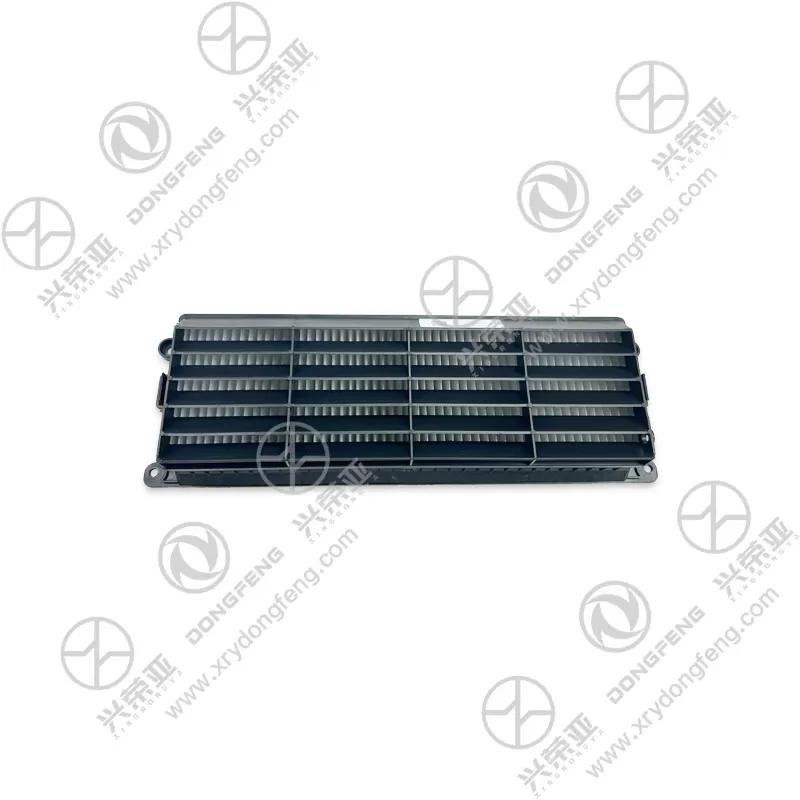

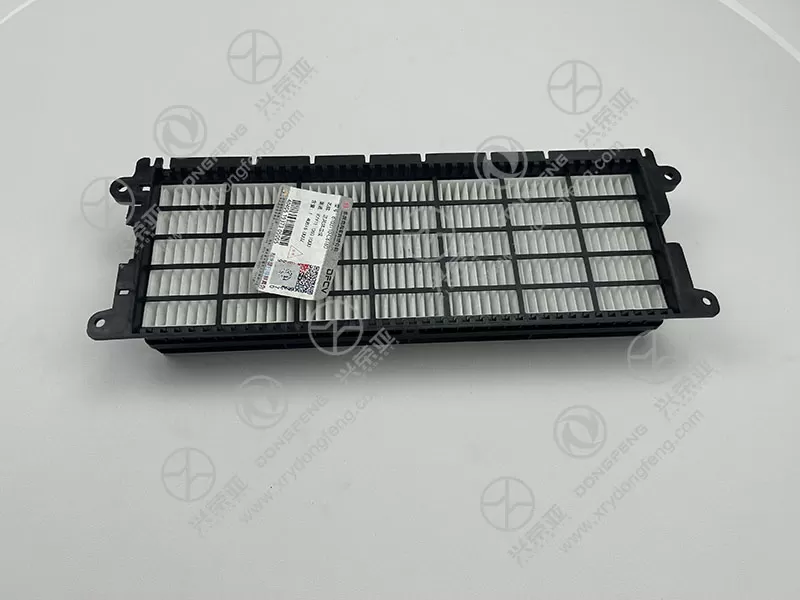

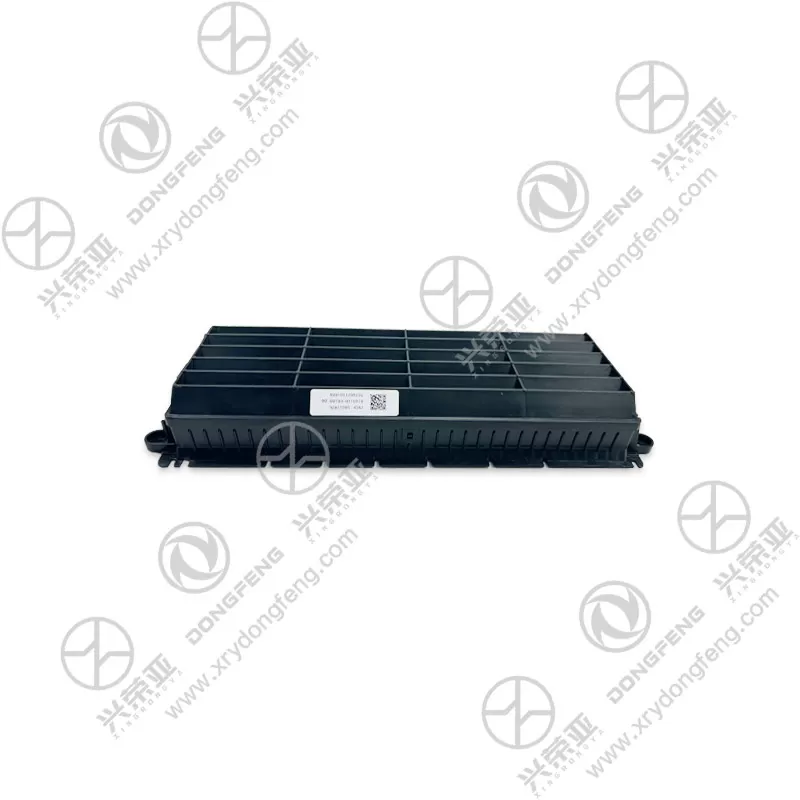

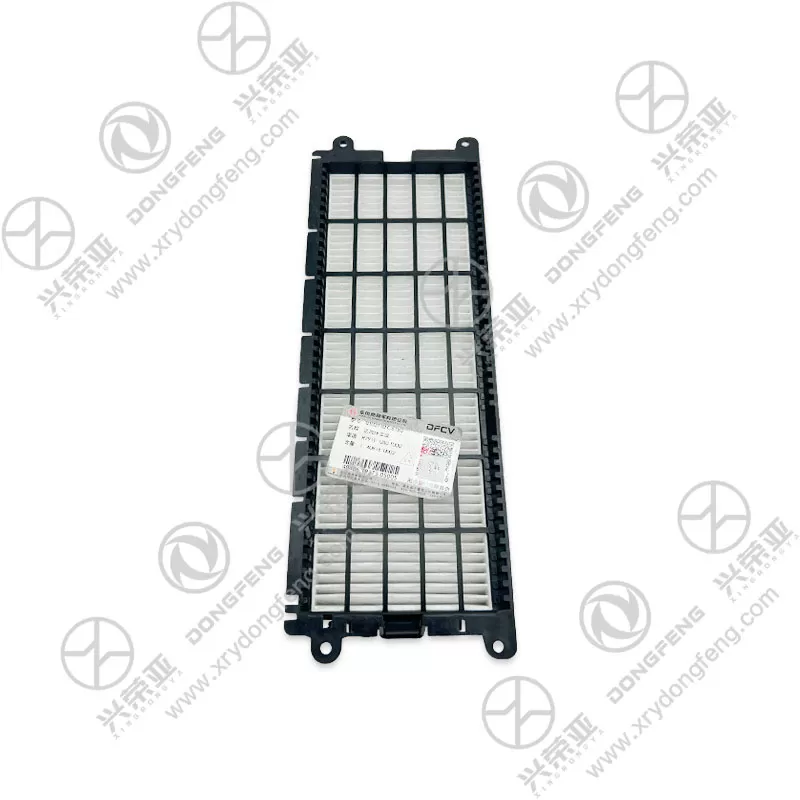

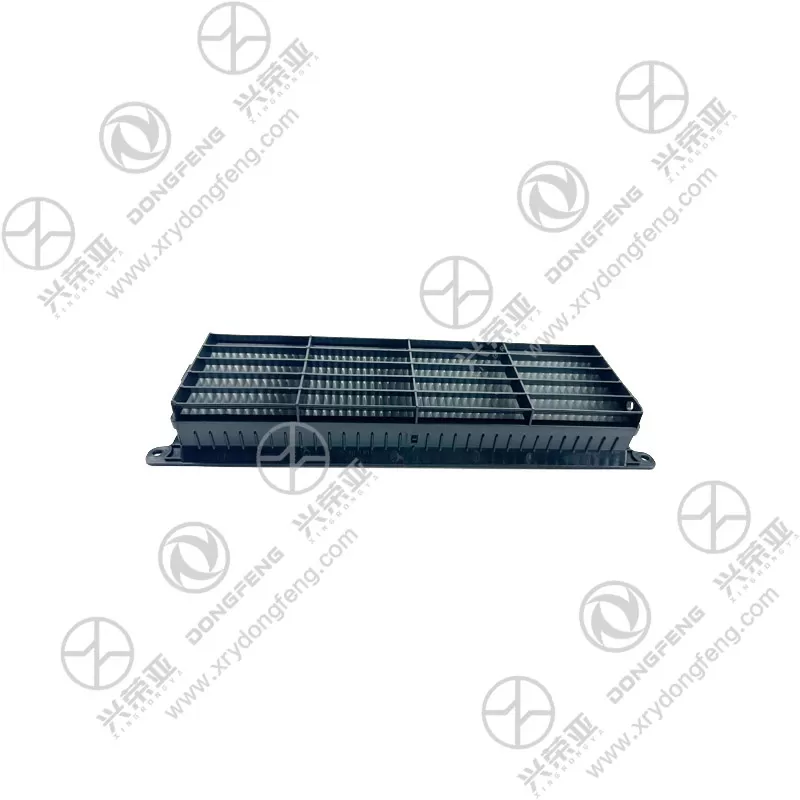

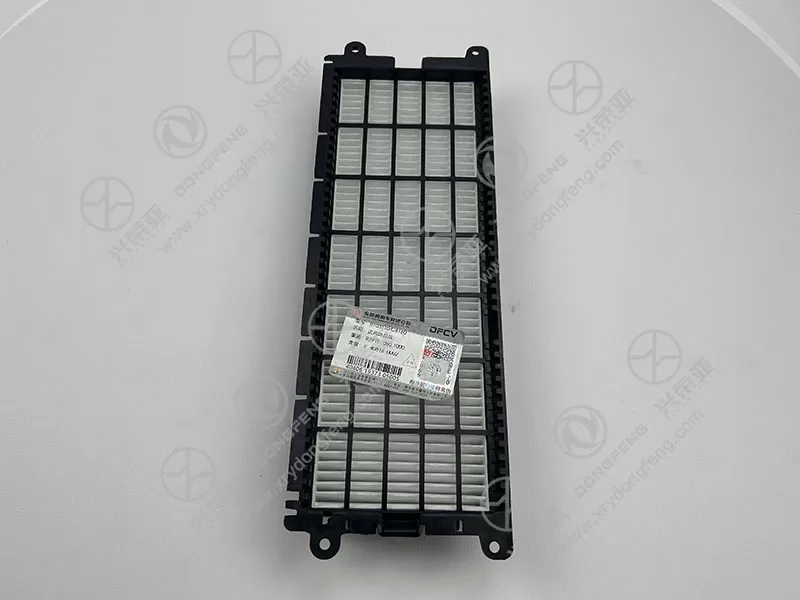

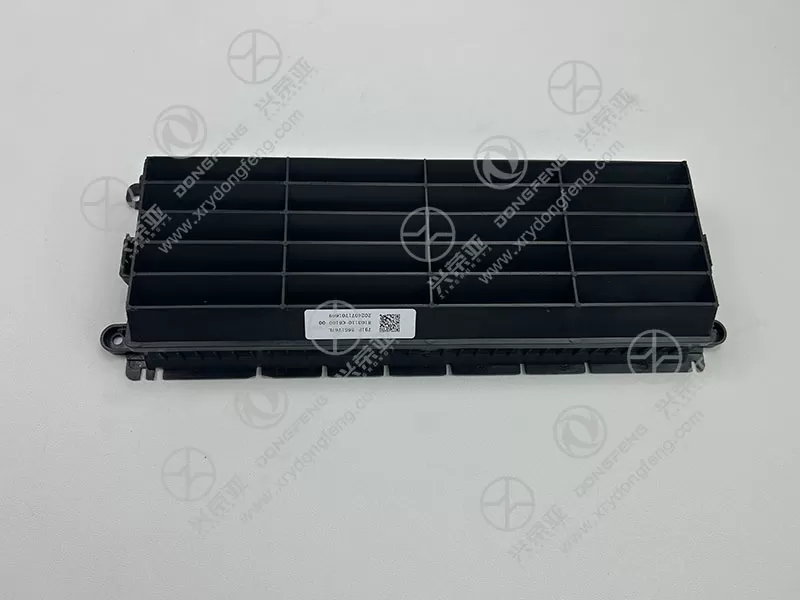

Dongfeng GX Inlet body assembly C8103110-C6160 in stocked

Constructed from high-grade glass fiber-reinforced polypropylene (PP+30%GF), the C8103110-C6160 inlet body assembly offers exceptional mechanical strength and resistance to harsh operating environments. The material exhibits a flexural modulus of 3500 MPa and impact strength of 8 kJ/m², enabling it to withstand vibration (10-2000 Hz, 5g acceleration) and minor impacts from road debris without cracking. The outer surface is treated with a UV-resistant coating (thickness: 5-8μm) that prevents material degradation and color fading under prolonged sunlight exposure (passing 1000-hour xenon lamp aging tests). For corrosion resistance, the assembly is compatible with engine oils, coolants, and road salts—showing no signs of chemical erosion after 500-hour immersion in a 5% NaCl solution. This durability ensures a service life of over 6 years or 400,000 kilometers, reducing replacement frequency and maintenance costs

Exclusively tailored for Dongfeng GX commercial vehicles (including heavy-duty diesel trucks and cargo models), this inlet body assembly strictly adheres to the original equipment (OE) specifications of part number C8103110-C6160. It is manufactured using 3D injection molding with CNC precision tooling, achieving dimensional accuracy within ±0.1mm—seamlessly aligning with the Dongfeng GX’s engine intake manifold, air filter housing, and mounting brackets. The assembly features 8 pre-threaded mounting holes (M6 × 10mm) and 4 locating pins that match the vehicle’s engine bay interface, allowing direct installation without on-site modification, drilling, or trimming. It is fully compatible with all Dongfeng GX models equipped with 6.7L and 7.3L diesel engines (produced since 2022), making it a reliable replacement part for factory assembly or after-sales repairs

The C8103110-C6160 inlet body assembly incorporates a multi-layer sealing structure to eliminate air leakage and protect the engine from contaminants. The flange interface (connecting to the intake manifold) is equipped with a nitrile rubber gasket (shore hardness: 70±5A) with a beveled edge design, ensuring a tight seal even under engine vibration. Additionally, the assembly’s joint with the air filter housing uses a double-lip silicone seal (high-temperature resistant up to 150°C) that blocks unfiltered air, dust, and debris from entering the engine—preventing premature wear of pistons, valves, and cylinder liners. Pressure testing shows the assembly maintains airtightness at 0.3 MPa (typical intake pressure) with no detectable leakage (≤ 1 kPa/min), ensuring the engine receives only clean, filtered air for optimal combustion

Designed with user-friendliness in mind, the C8103110-C6160 inlet body assembly simplifies installation and maintenance for technicians. It comes with a complete hardware kit, including 8 stainless steel bolts, lock washers, and the pre-installed rubber/silicone seals—eliminating the need for separate part sourcing. The assembly’s lightweight design (only 1.8kg) reduces handling effort, and the clearly marked mounting points allow for quick alignment (installation can be completed in 20-25 minutes, 30% faster than non-OE alternatives). For maintenance, the smooth internal surface is easy to clean (with compressed air or a mild detergent) during regular engine servicing, and the durable material requires no periodic inspections beyond standard vehicle maintenance. It also includes a 24-month warranty against material defects (e.g., cracking, seal degradation) and manufacturing errors, providing confidence for Dongfeng GX owners and repair facilities
