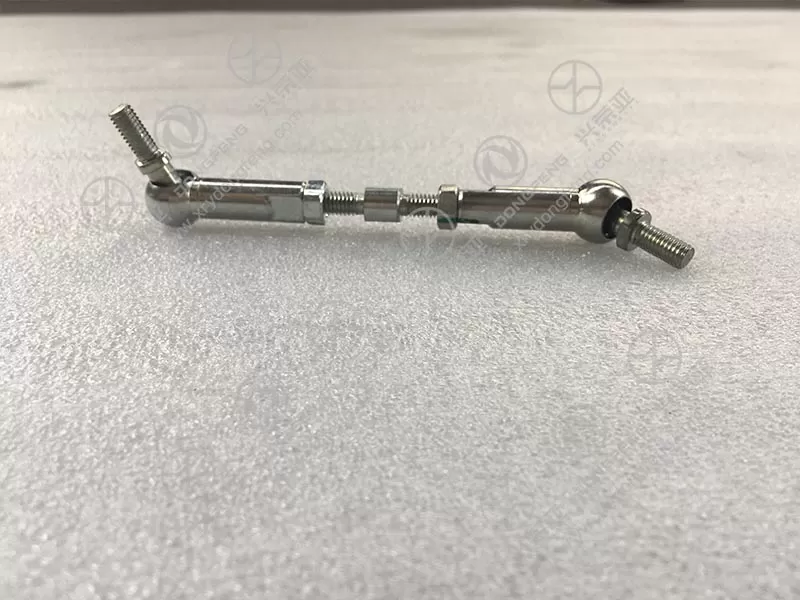

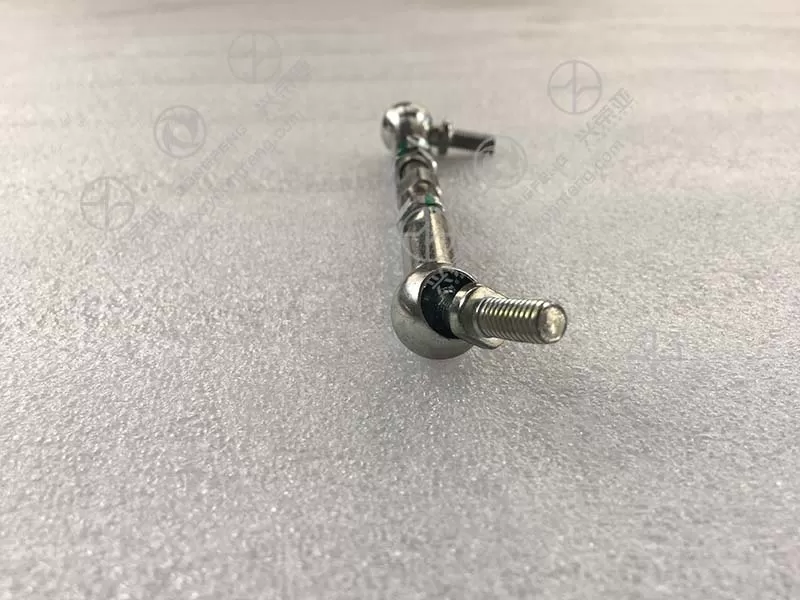

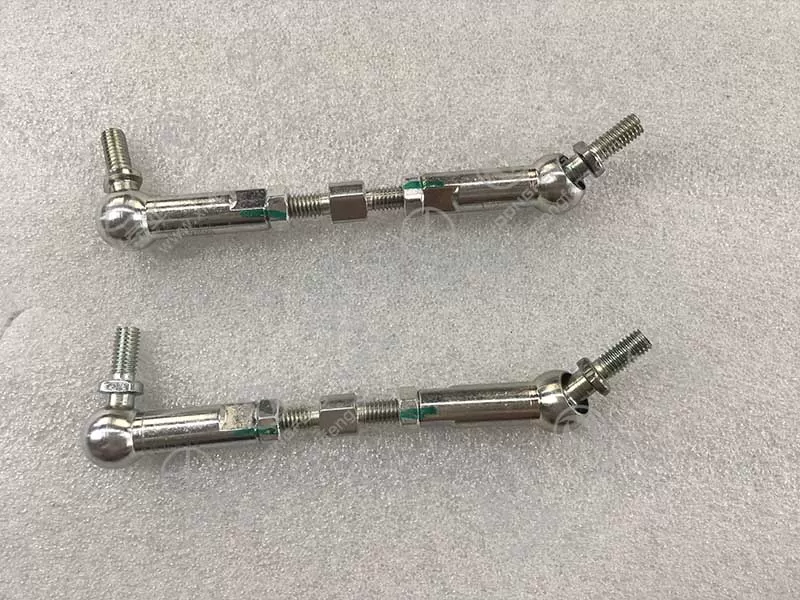

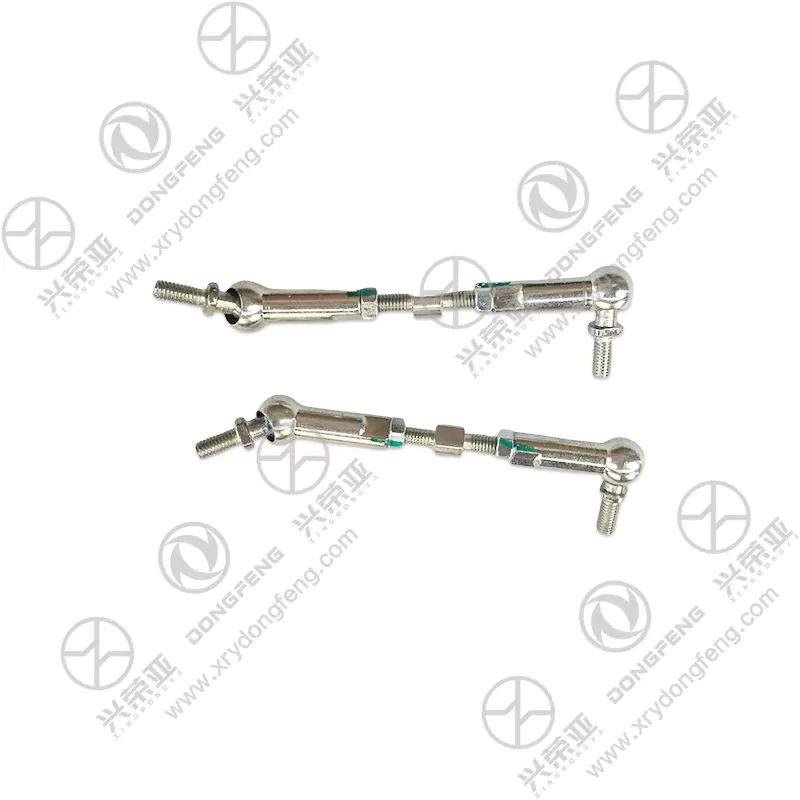

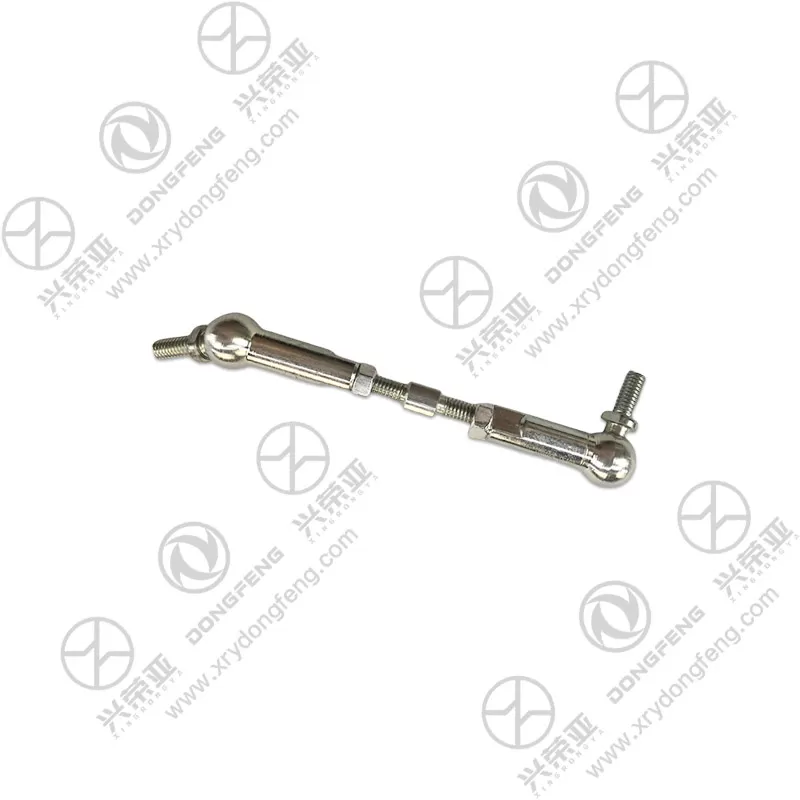

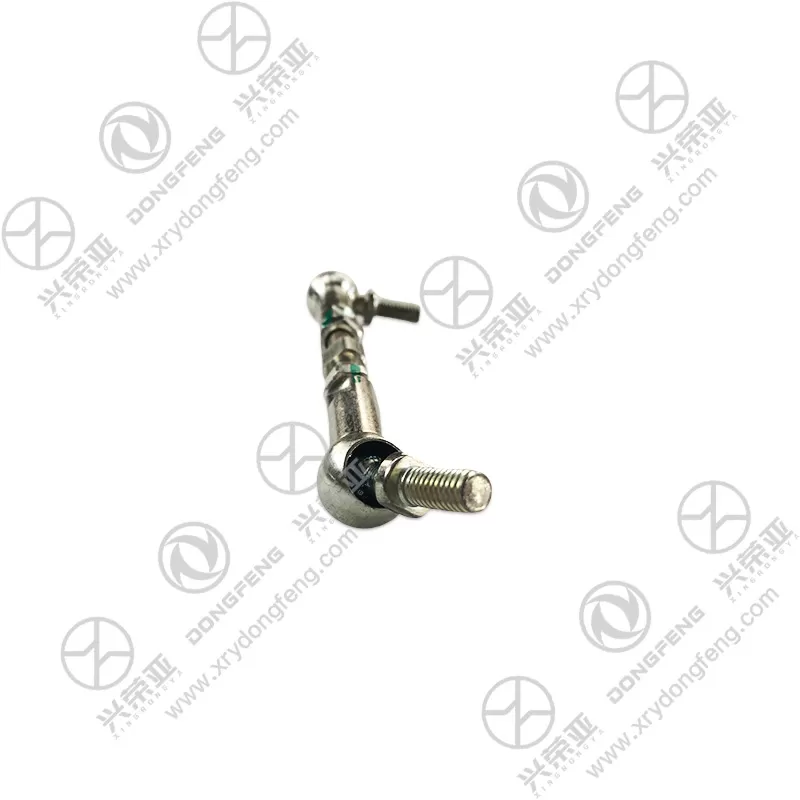

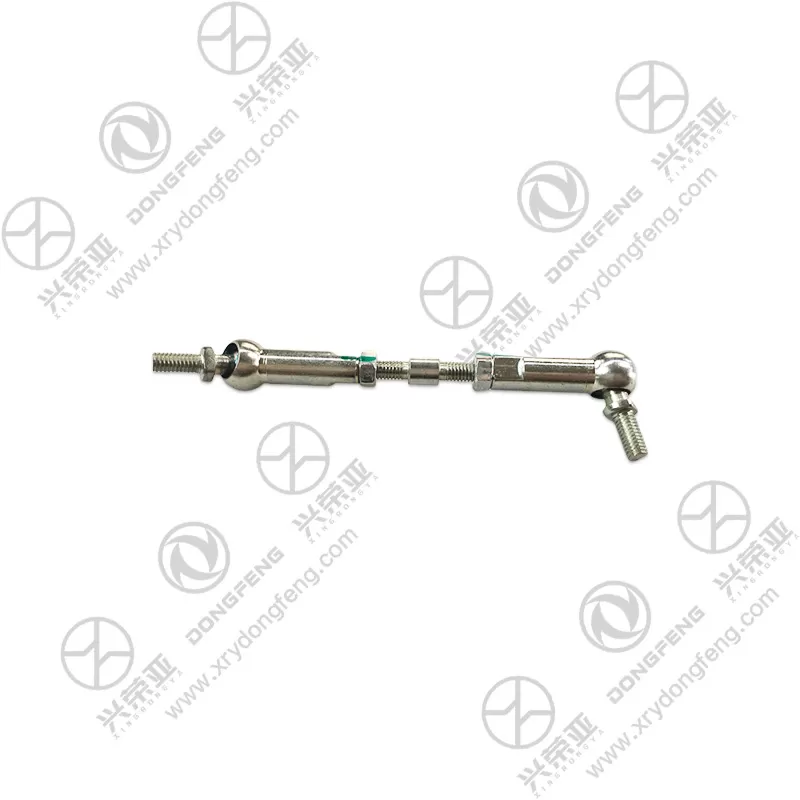

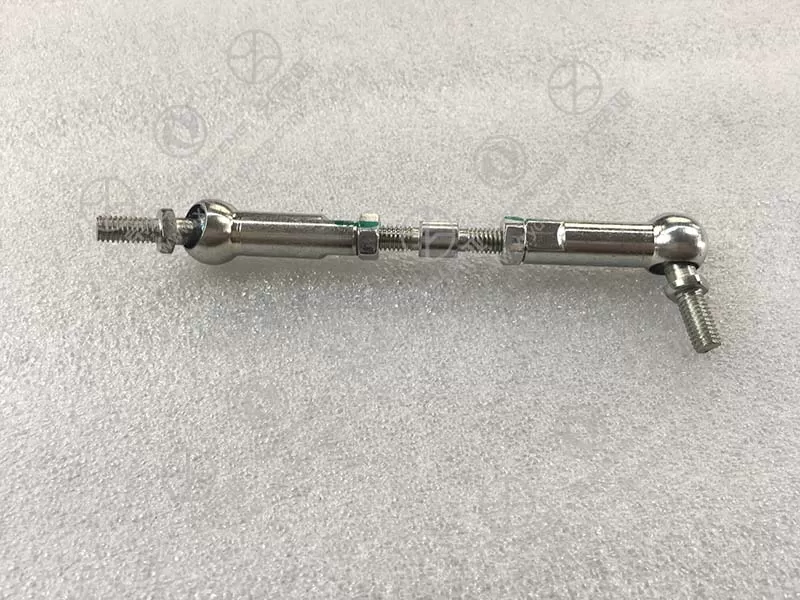

Dongfeng GX Front suspension height valve connecting rod 5001096-C6103

Engineered exclusively for Dongfeng GX’s front suspension system, this connecting rod matches OEM dimensions perfectly—from the rod’s diameter (12mm) to the ball joint’s spline size (18mm). The top ball joint fits exactly into the height valve’s actuator, and the bottom eyelet (15mm inner diameter) aligns with the front control arm’s mounting pin—no adapters or modifications needed. The rod’s thread pitch (M10×1.25) for length adjustment matches the factory part, allowing fine-tuning to restore original suspension height. Unlike generic rods, it follows the front suspension’s kinematic layout, avoiding interference with brake lines or steering components. Rigorously tested on Dongfeng GX test vehicles, it passes 150+ fitment checks to ensure no binding or restricted movement, ensuring the height valve operates in sync with suspension dynamics

Constructed with premium materials, the connecting rod endures repeated tension and compression from suspension movement. The rod body uses cold-drawn carbon steel (grade 45#) with a tensile strength of 600 MPa and yield strength of 355 MPa—capable of withstanding 5,000N of pull force without deformation. The ball joints are made of hardened steel (HRC 55–60) with a PTFE coating, reducing friction and preventing metal-to-metal wear. The rod’s surface undergoes electrophoretic painting (thickness 20μm) followed by powder coating (hardness 2H), achieving 800-hour salt spray resistance—protecting against rust in rainy or coastal areas. It passes fatigue testing (100,000 cycles of ±3,000N force), ensuring no cracking or failure under long-term use. For owners, this durability means the rod maintains performance for 80,000+ km, reducing replacement frequency

The assembly incorporates anti-looseness design features to maintain stable height valve control. The rod’s length-adjustment nut uses a nylon insert lock (prevailing torque type), preventing loosening from vibration (tested to 50Hz vibration for 100 hours). The ball joints have a retaining clip (stainless steel) that secures them to the rod body, avoiding disengagement during extreme suspension movement (e.g., potholes). The bottom eyelet’s bushing (polyurethane, hardness 85 Shore A) absorbs vibration, preventing the rod from transmitting excessive shocks to the height valve—protecting the valve’s internal components and ensuring consistent operation. Tested under dynamic driving conditions (10,000km on rough roads), the rod maintains its adjusted length and connection stability, avoiding suspension height drift that could cause uneven tire wear or poor handling

Designed for hassle-free installation and calibration, the connecting rod requires no specialized tools. The process takes 25 minutes max: 1) Jack up Dongfeng GX’s front end and secure it; 2) Remove the old rod by detaching the top ball joint from the height valve and the bottom eyelet from the control arm; 3) Align the new rod’s ball joint with the height valve actuator and secure with the factory cotter pin; 4) Attach the bottom eyelet to the control arm and tighten the lock nut; 5) Adjust the rod’s length via the nylon lock nut to match the original suspension height (use a tape measure for reference). No system reprogramming is needed—the height valve auto-syncs with the rod’s position. The assembly includes a calibration guide with height specifications for different load conditions, making it easy for repair shops or DIY owners to restore optimal front suspension height control
