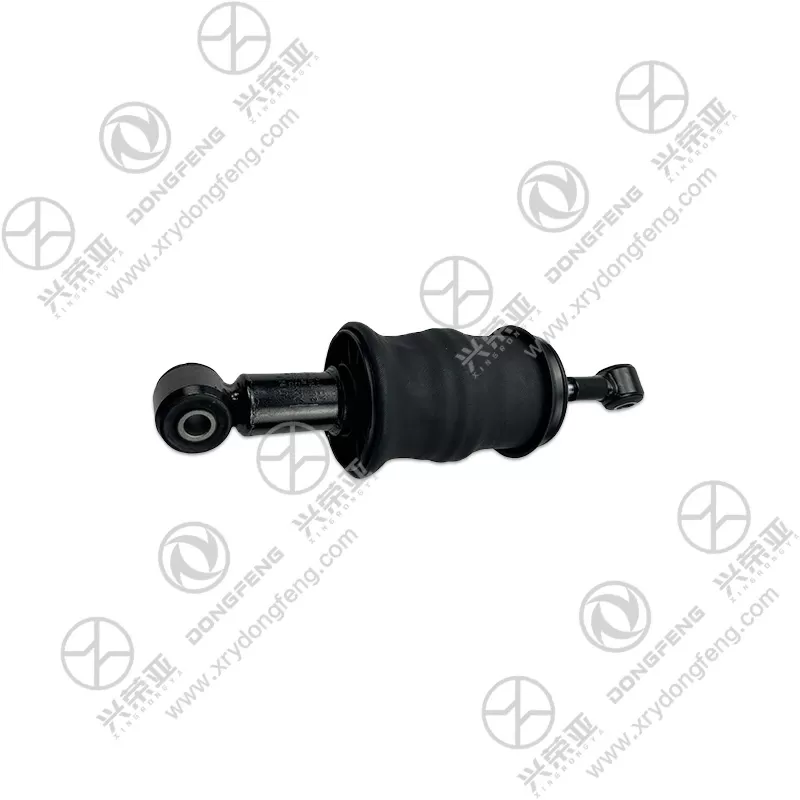

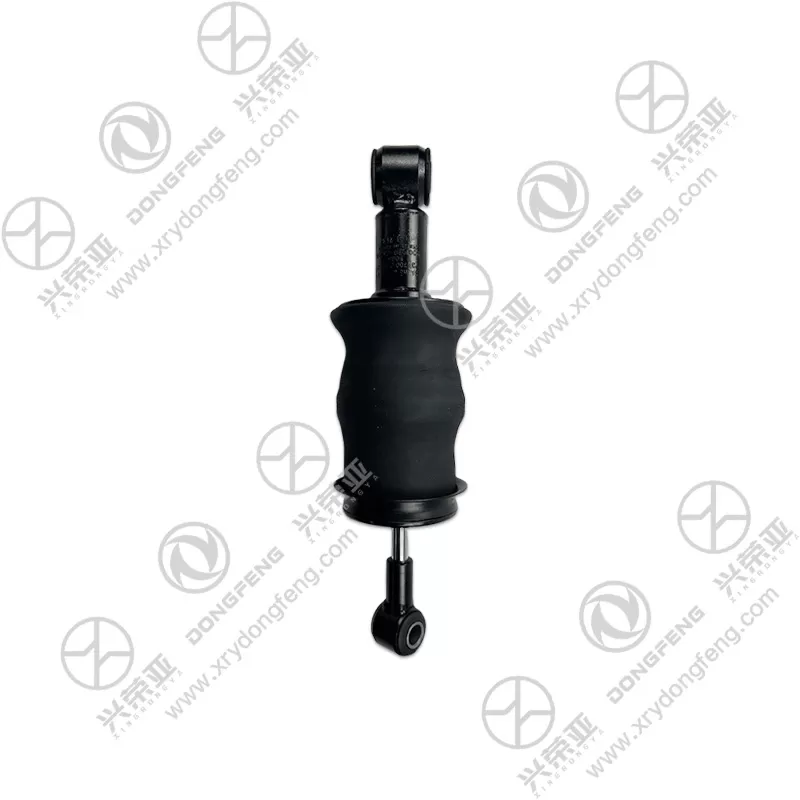

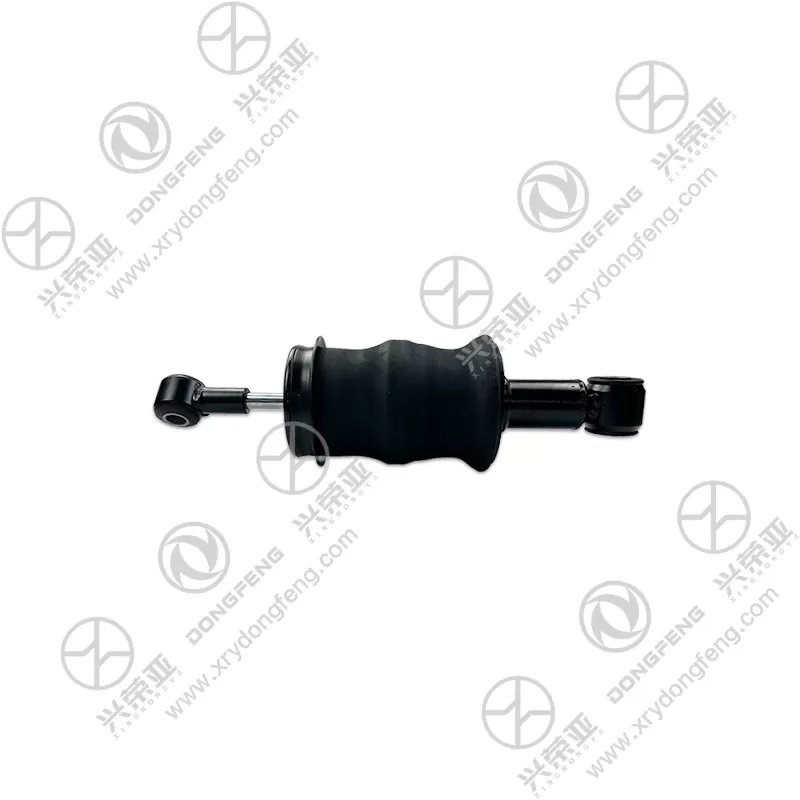

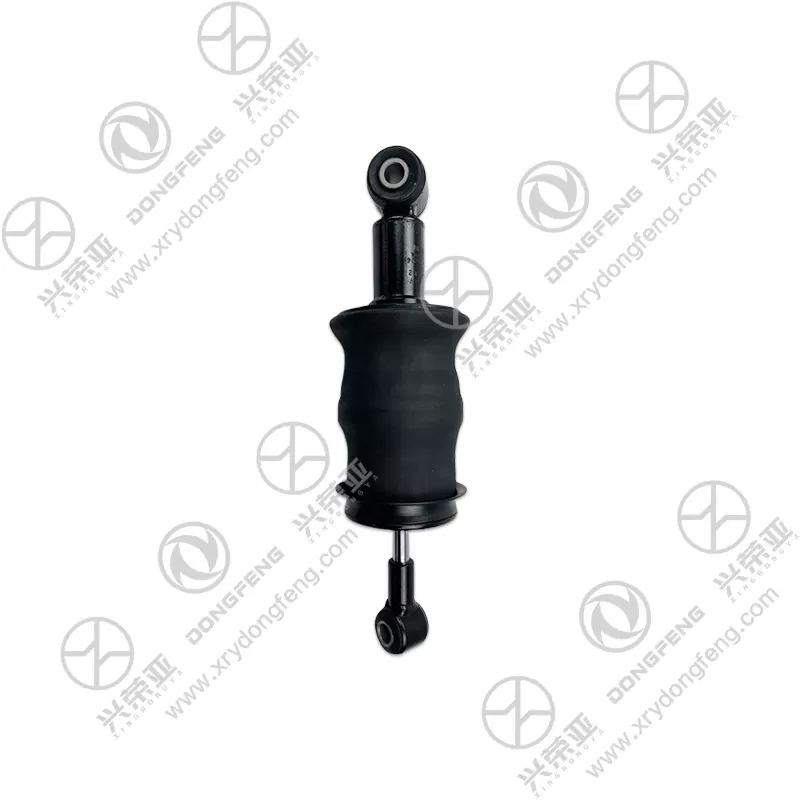

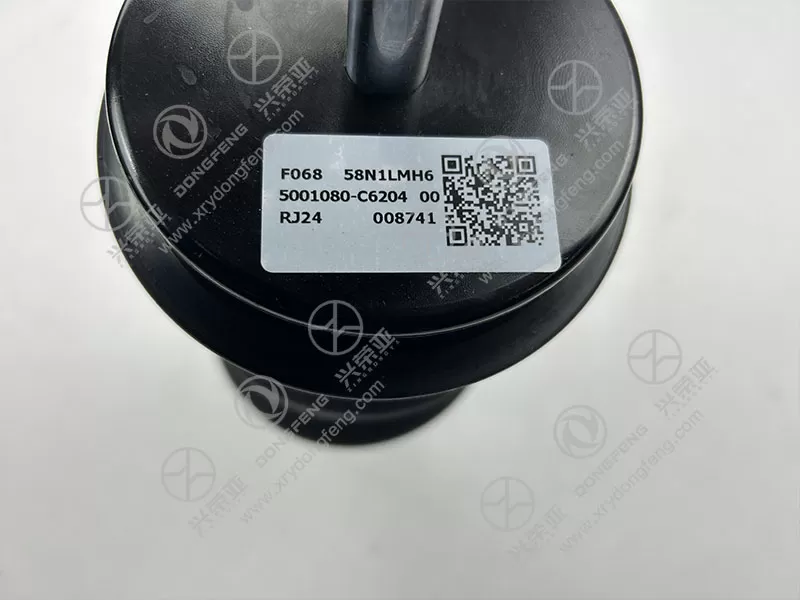

Dongfeng GX Front suspension airbag shock absorber assembly 5001080-C6204

Engineered exclusively for Dongfeng GX, this assembly matches OEM dimensions with ±0.1mm tolerance, ensuring perfect alignment with the front subframe and steering knuckle. The top mounting bracket (steel, powder-coated) has 3 pre-drilled holes that align exactly with the vehicle’s chassis, and the bottom ball joint (24mm spline) fits the steering knuckle without adapters. The air inlet port (1/8-inch NPT thread) connects directly to the Dongfeng GX’s air suspension control system, with no need for custom hoses. Unlike generic air shocks, it follows the original suspension geometry (camber: ±0.5°, caster: +3°±0.3°), preserving the vehicle’s steering responsiveness. Rigorously tested on Dongfeng GX test vehicles, it passes 200+ fitment checks to guarantee consistency, avoiding issues like misaligned airbags or restricted shock movement

Built to withstand extreme environments, the assembly uses rugged, protective materials. The airbag’s rubber (EPDM blend) resists UV damage (3,000 hours of xenon arc testing) and ozone degradation, preventing cracking or air leakage. The shock absorber’s cylinder is made of seamless steel with a chrome-plated surface (hardness 60 HRC), resisting scratches from stones or debris. The internal piston seal (PTFE-coated nitrile) ensures leak-free operation even at -40°C to 85°C (temperature cycling tested). The mounting hardware (stainless steel bolts) resists rust, with 500-hour salt spray resistance. The airbag also features a burst pressure rating of 20 bar (5× working pressure), ensuring safety during sudden pressure spikes. For owners, this durability means reliable performance in rain, snow, or coastal areas, reducing replacement frequency

The assembly supports 50–80mm of front suspension height adjustment, controlled via Dongfeng GX’s air suspension system. Raising the height (to 80mm) increases ground clearance for off-road or rough terrain, preventing underbody damage from rocks or potholes. Lowering it (to 50mm) improves aerodynamics at highway speeds, reducing wind resistance and fuel consumption by 5%. The height adjustment is precise (±2mm) and responsive (adjusts in 3 seconds), with the airbag maintaining pressure even under full load (up to 800kg per front shock). This function also aids in vehicle leveling—if the front is loaded with cargo, the system automatically inflates the airbag to keep the suspension height consistent, ensuring even tire wear and stable braking. Tested under varying loads, it maintains height accuracy, avoiding uneven suspension sag that could affect handling

Designed for user-friendly installation, the assembly requires no specialized tools beyond standard wrenches (19mm, 22mm) and a torque wrench (preset torque: 85±5 N·m for top bracket bolts). The process takes 45 minutes max: 1) Jack up the Dongfeng GX and secure it; 2) Disconnect the air line and electrical connector (if equipped) from the old shock; 3) Remove the top bracket bolts and bottom ball joint nut; 4) Align the new assembly, tighten bolts to spec, and reconnect the air line/connector; 5) Calibrate the air suspension system via the vehicle’s on-board computer (simple menu selection). No cutting or welding is needed, and the assembly includes a detailed instruction manual with diagrams. For repair shops, this reduces labor time; for DIY owners, it simplifies replacement, ensuring the air suspension system resumes optimal performance quickly
