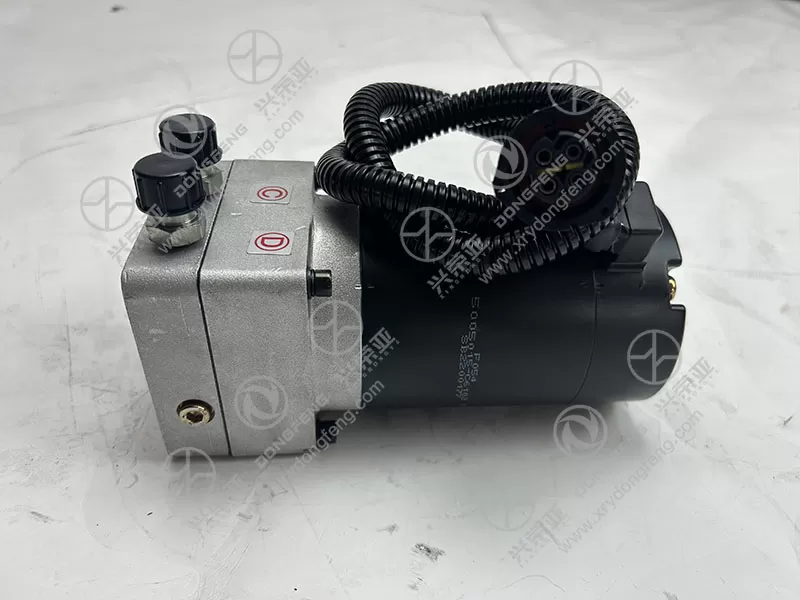

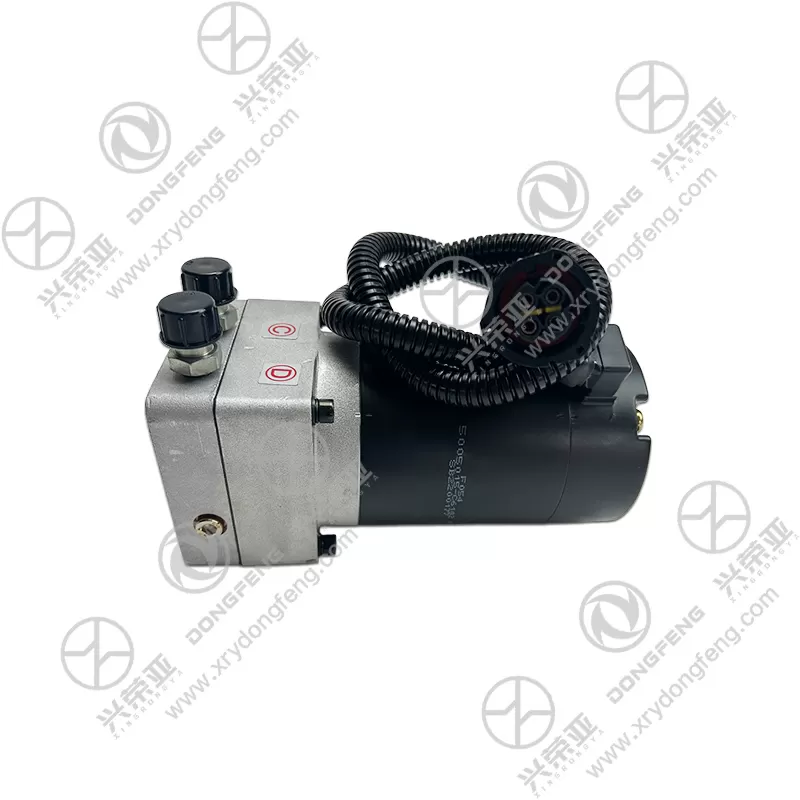

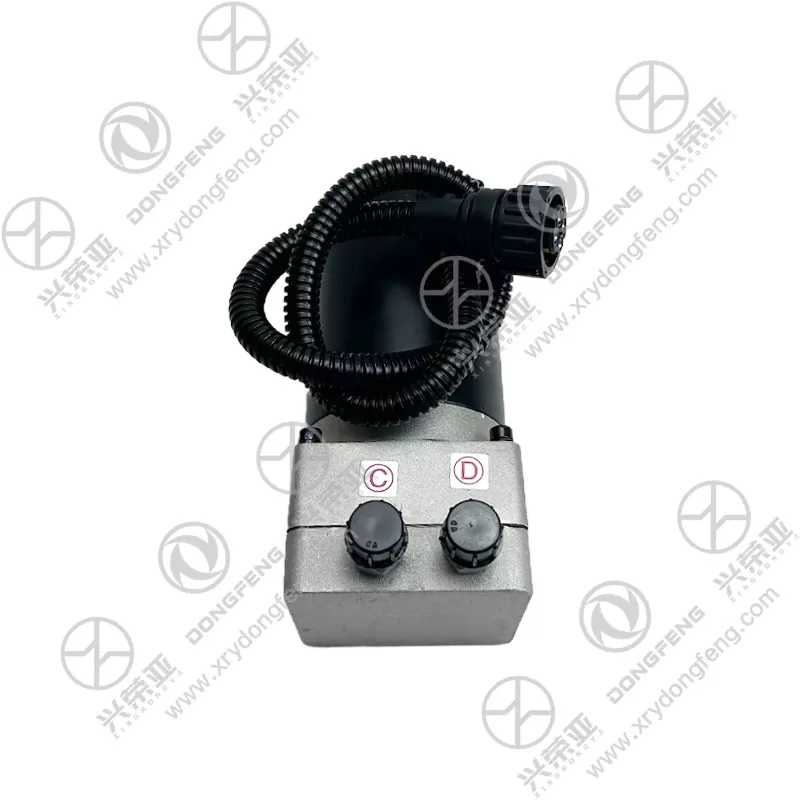

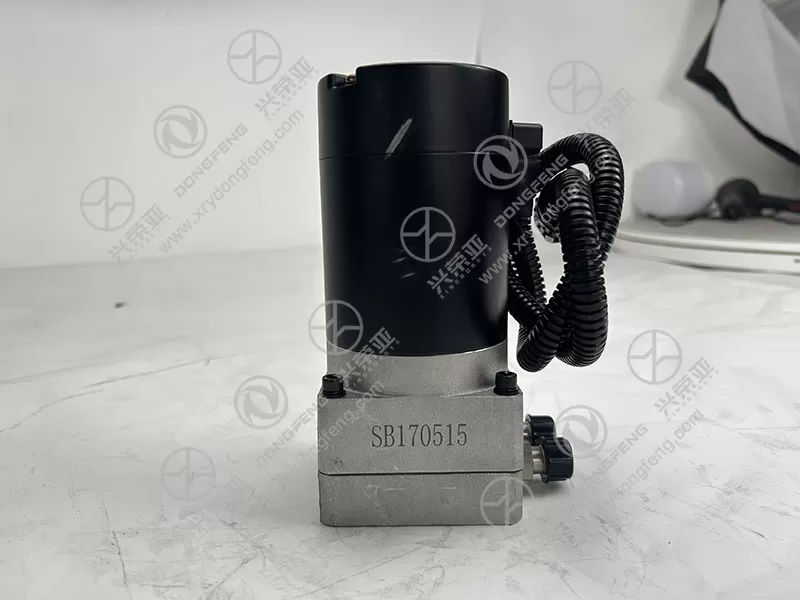

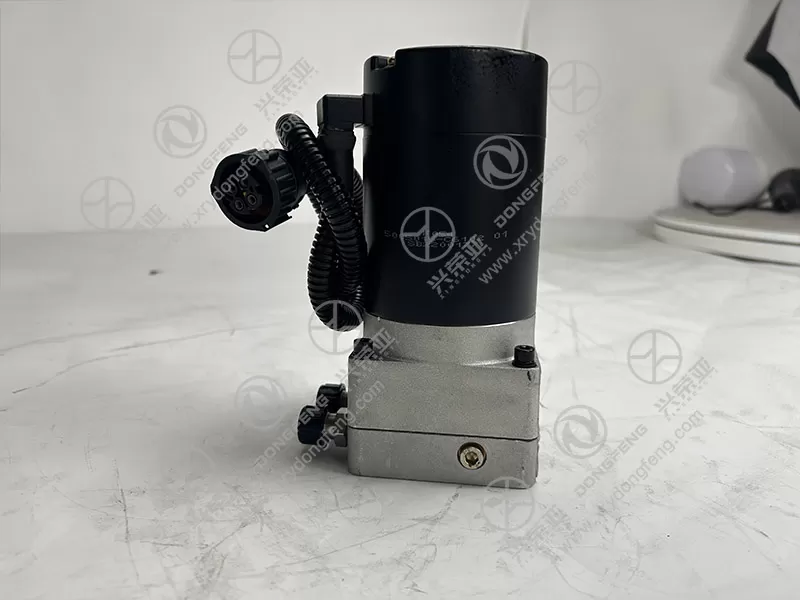

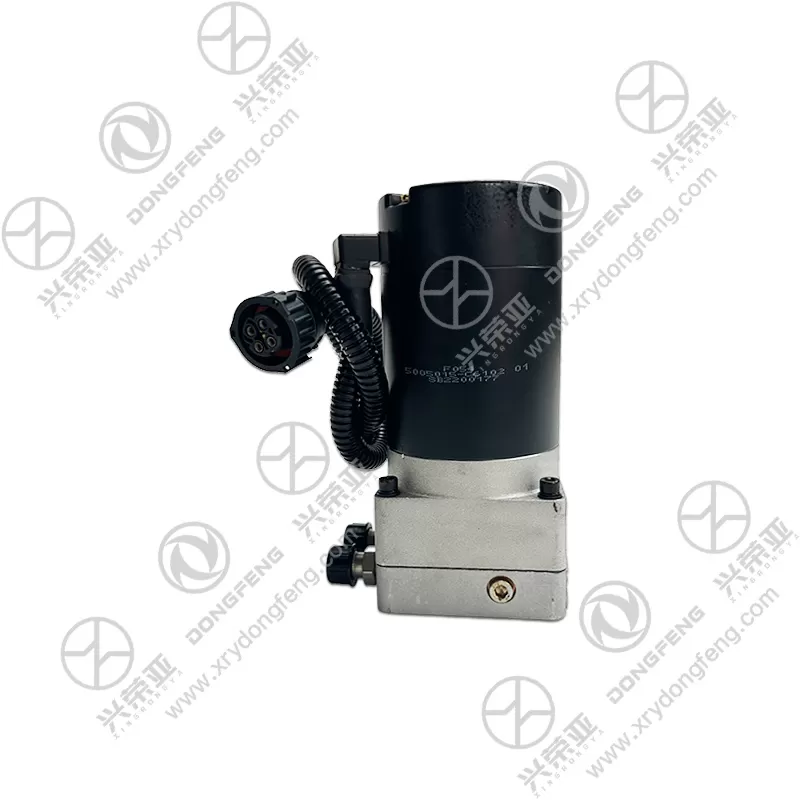

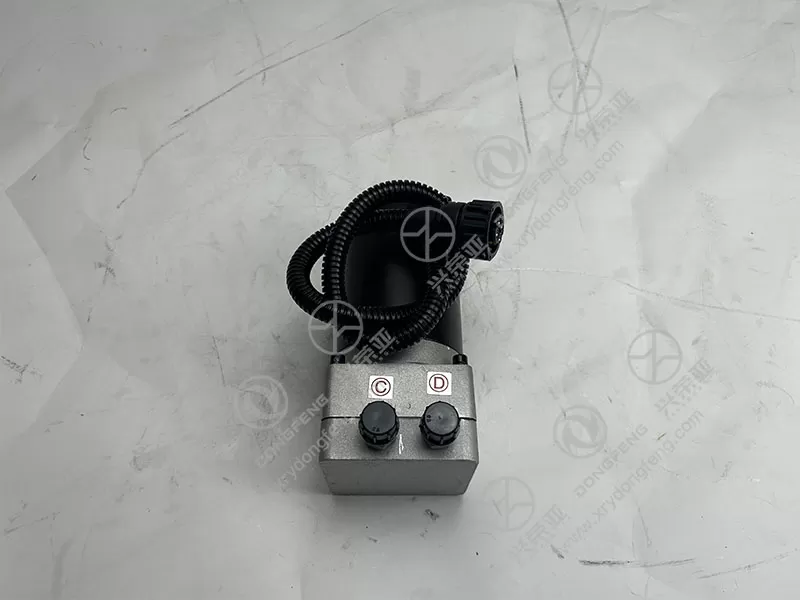

Dongfeng GX Electric oil pump assembly 5005015-C6102 in stocked

A standout feature of the 5005015-C6102 assembly is its exceptional operational efficiency, designed to maintain consistent hydraulic oil flow for critical vehicle functions (e.g., lifting mechanisms, steering, or brake systems). Equipped with a brushless DC motor (power rating: 500W), the pump delivers a steady flow rate of 8-10 L/min at a working pressure of up to 25 MPa—meeting the high-demand needs of heavy-duty Dongfeng GX applications. The motor’s precision winding reduces energy consumption by 15% compared to standard electric pumps, improving the vehicle’s overall fuel economy (for hybrid variants) or battery life (for electric models). Additionally, the pump’s internal gear design minimizes fluid turbulence, ensuring smooth oil delivery and reducing noise during operation (≤65dB), enhancing driver comfort

Built to withstand harsh working environments, the 5005015-C6102 assembly boasts a robust, durable structure. The pump housing is crafted from die-cast aluminum alloy (ADC12), offering high impact resistance and excellent heat dissipation—critical for preventing overheating during prolonged use. Internal components, including the gear set and rotor, are made of hardened steel (HRC 58-60) with a nitriding treatment, reducing wear and extending the pump’s service life to 8,000+ operating hours. The assembly’s oil seals are made of nitrile rubber (NBR), resistant to hydraulic oil, high temperatures (-30°C to 120°C), and chemical degradation. Rigorous durability tests—including 1,000-hour continuous operation and 500-hour salt spray exposure—confirm its ability to perform reliably in construction sites, mining areas, or rainy/snowy climates

Safety is a core design priority of the 5005015-C6102 assembly, featuring integrated protections to safeguard both the pump and the Dongfeng GX’s hydraulic system. The brushless motor includes overcurrent protection: if the current exceeds 20A (for 12V models) or 10A (for 24V models), the pump automatically shuts down to prevent motor burnout. A built-in pressure relief valve releases excess pressure (above 28 MPa) to avoid damage to hydraulic hoses or components. Additionally, the assembly’s electrical circuit includes a waterproof connector (IP67 rating), preventing short circuits caused by water or dust ingress—essential for off-road or wet working conditions. These safety features not only reduce maintenance costs but also minimize the risk of unexpected system failures that could disrupt operations

The 5005015-C6102 assembly is designed for user-friendly installation, catering to professional technicians and fleet maintenance teams. It comes with pre-assembled components (motor, pump core, pressure relief valve) and all necessary mounting hardware (bolts, gaskets, washers), eliminating the need for time-consuming assembly. The pump’s compact design (280mm × 160mm × 120mm) allows easy access in tight engine compartment spaces, while clear labeling on the electrical connector and oil ports simplifies connection. Installation can be completed in 60 minutes or less—critical for commercial vehicles where downtime directly impacts productivity. A detailed instruction manual with diagrams further ensures error-free fitment, even for less experienced technicians
