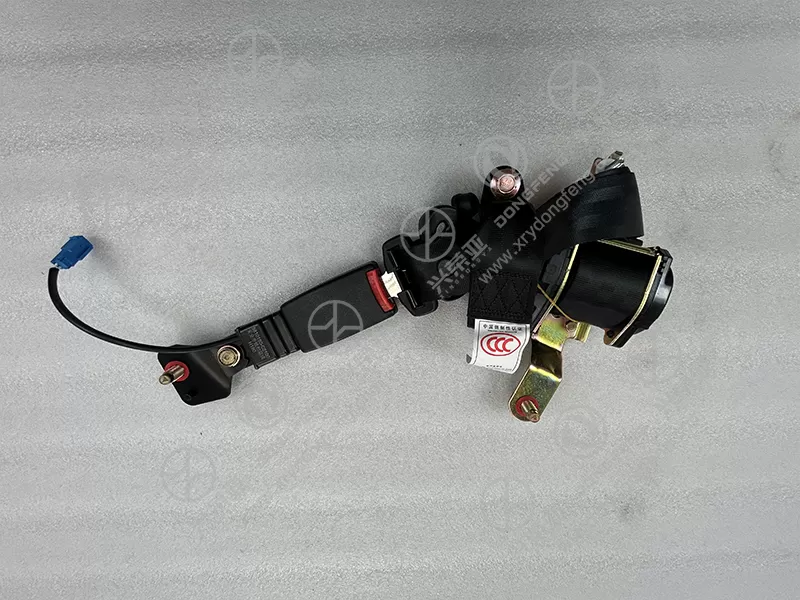

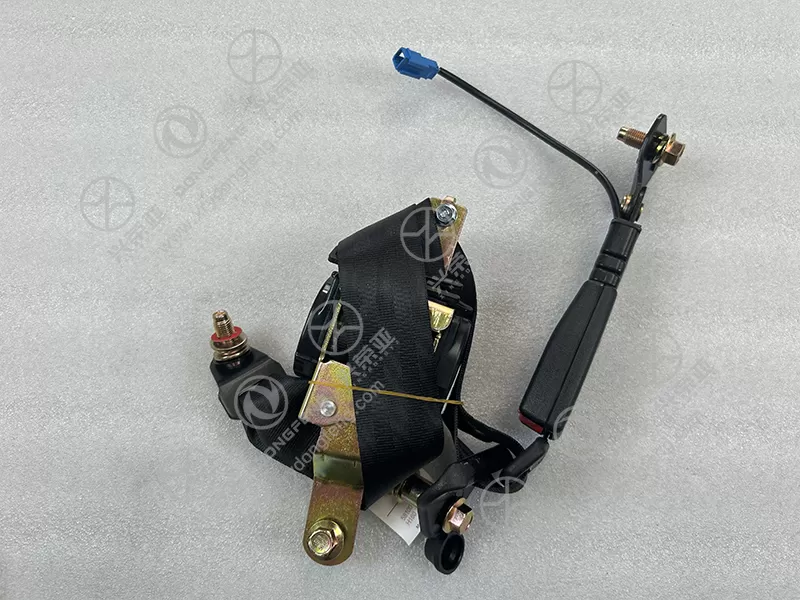

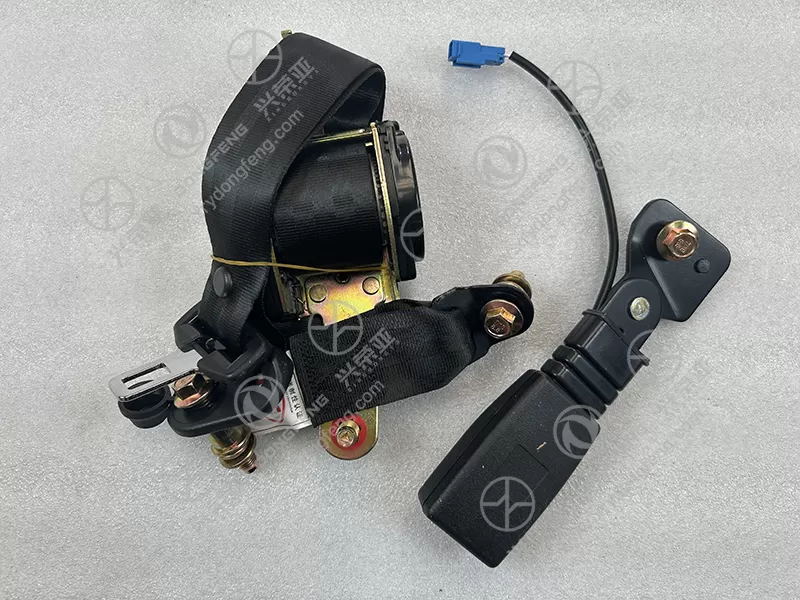

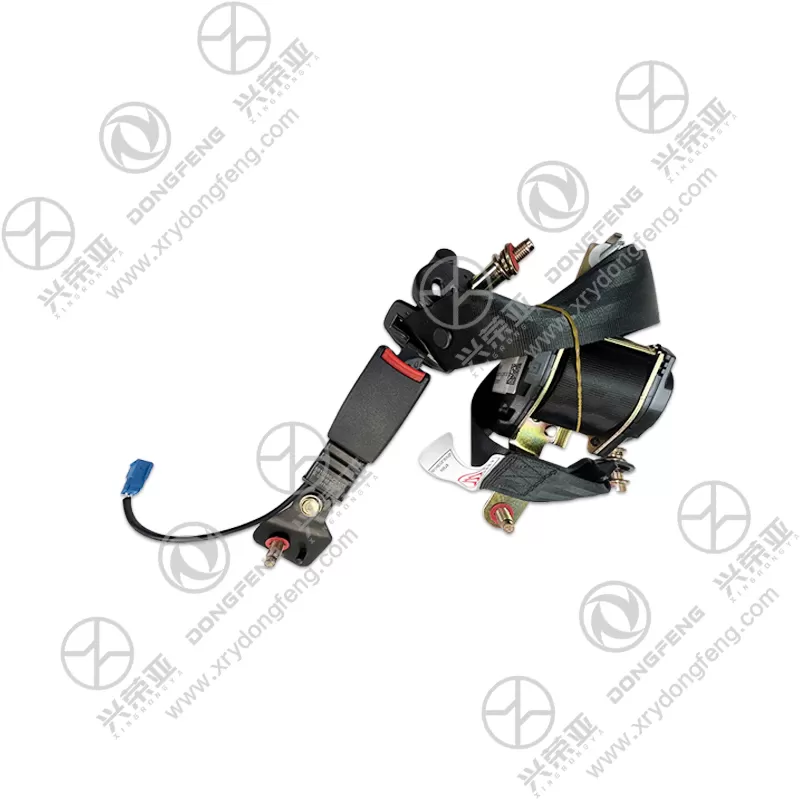

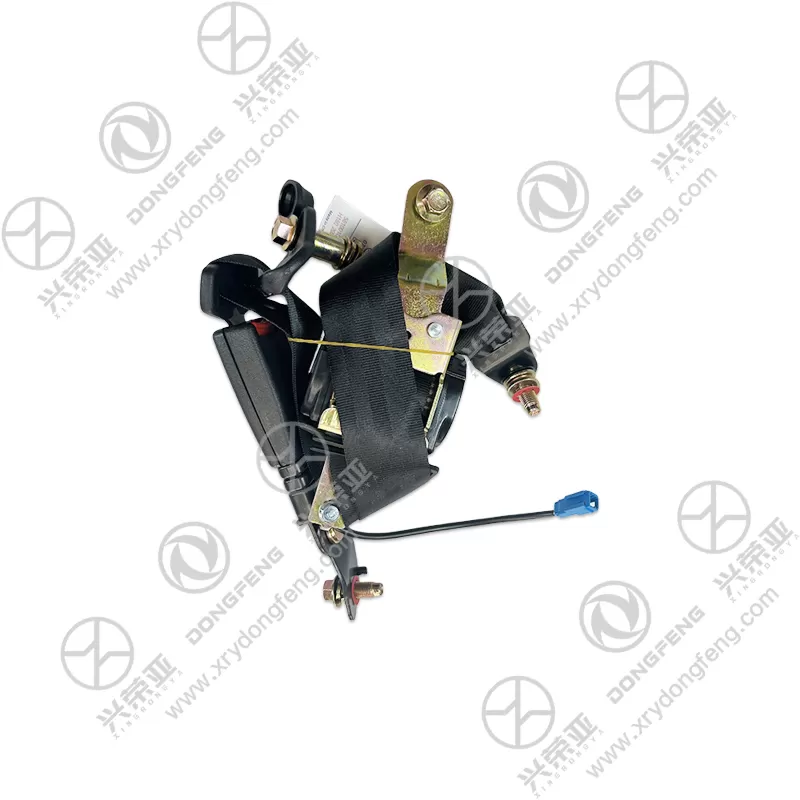

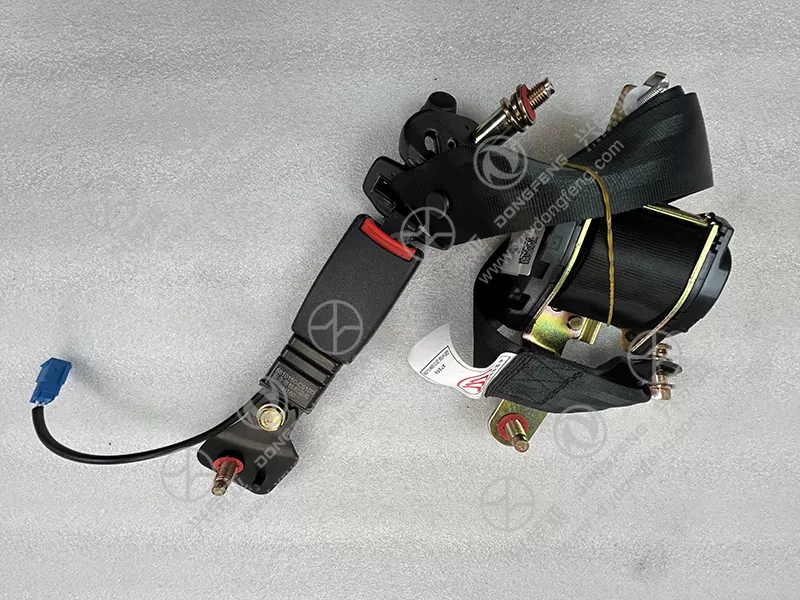

Dongfeng KR Driver's seat belt assembly 5810010-C5100

Equipped with a sensitive inertia lock and load-limiting device, the assembly provides multi-layered crash protection. When the vehicle decelerates rapidly (≥0.8g, e.g., in a collision) or the belt is pulled suddenly (speed ≥2.5m/s), the inertia lock instantly locks the webbing to prevent the driver from forward displacement. The load-limiting component then releases the webbing at a controlled rate (300-350N), reducing chest and shoulder impact forces—lowering the risk of injury compared to rigid-locking belts. Additionally, the retractor features a vehicle tilt lock (activating at angles ≥15°) to secure the driver during off-road driving or steep slope parking

The seat belt uses high-strength polyester webbing (width: 50mm, thickness: 1.2mm) with a smooth texture that resists fraying and ensures comfortable contact with the driver’s body. It has an adjustable upper shoulder guide (height range: 150mm) that can be slid up/down the B-pillar to fit drivers of different statures (150-190cm height). The webbing’s retraction force (15-20N) is optimized to allow easy adjustment during normal driving, while still ensuring tight(fit) in emergency situations. A built-in webbing length indicator helps the driver quickly set the correct fit, enhancing both safety and comfort during long-haul trips

The webbing is treated with a UV-resistant coating and water-repellent finish, maintaining tensile strength (≥28kN) even after 3,000 hours of UV exposure and repeated washing. The retractor’s internal spring (made of high-carbon steel) has a fatigue life of over 10,000 retraction cycles, ensuring consistent performance. The buckle and mounting hardware are made of zinc-plated steel (corrosion resistance: 480-hour salt spray testing) to withstand harsh cab environments (e.g., humidity, dust, or accidental spills). The entire assembly has a service life of over 5 years or 500,000 km, meeting the long-term use demands of commercial vehicle operators

The assembly is fully certified to meet ECE R16 (United Nations Economic Commission for Europe) and GB 14166-2013 (China National Standard) safety requirements, undergoing rigorous testing including crash simulation, webbing abrasion resistance, and lock activation sensitivity. It passes the 30km/h frontal crash test with impact force transmission ≤6kN (chest) and ≤8kN (pelvis), ensuring compliance with global safety benchmarks. Additionally, the assembly is labeled with a permanent serial number and manufacturing date, facilitating traceability for quality control and maintenance records—critical for fleet safety management and regulatory compliance
