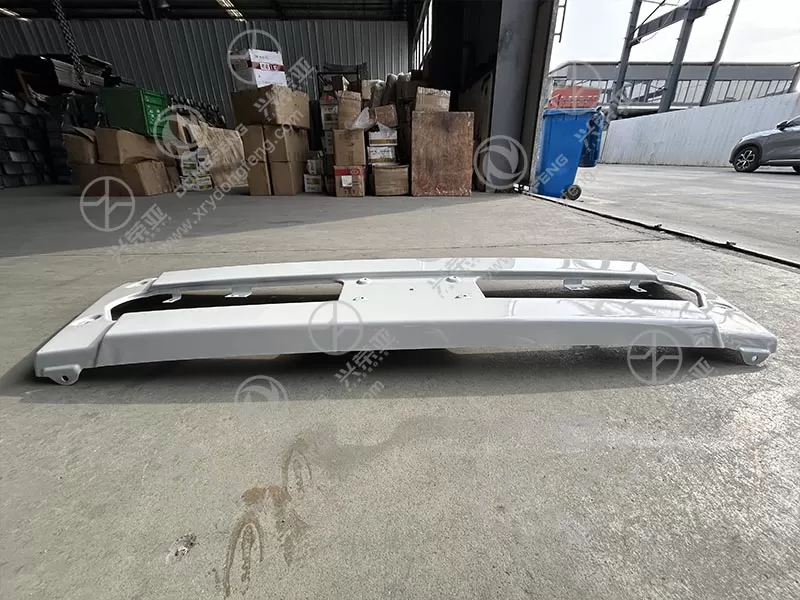

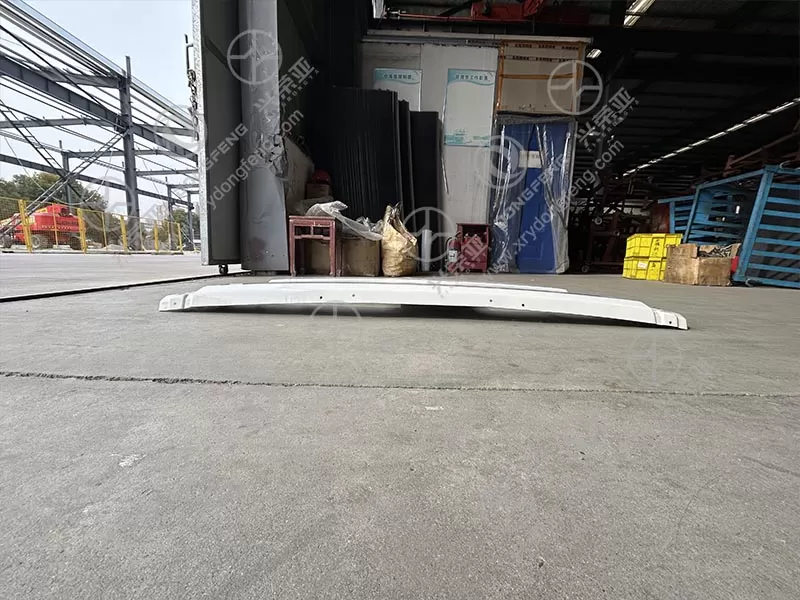

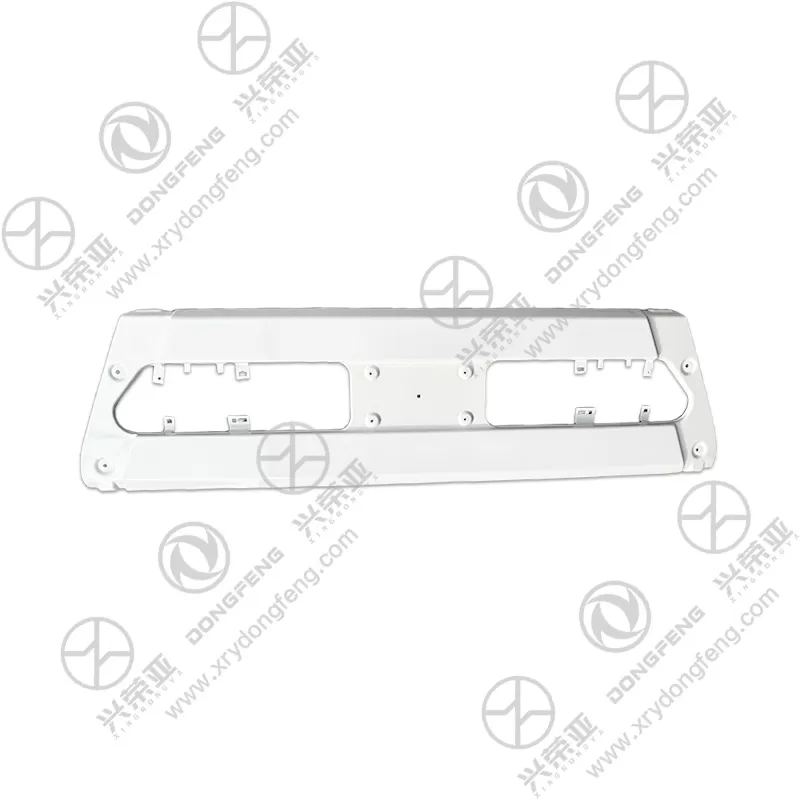

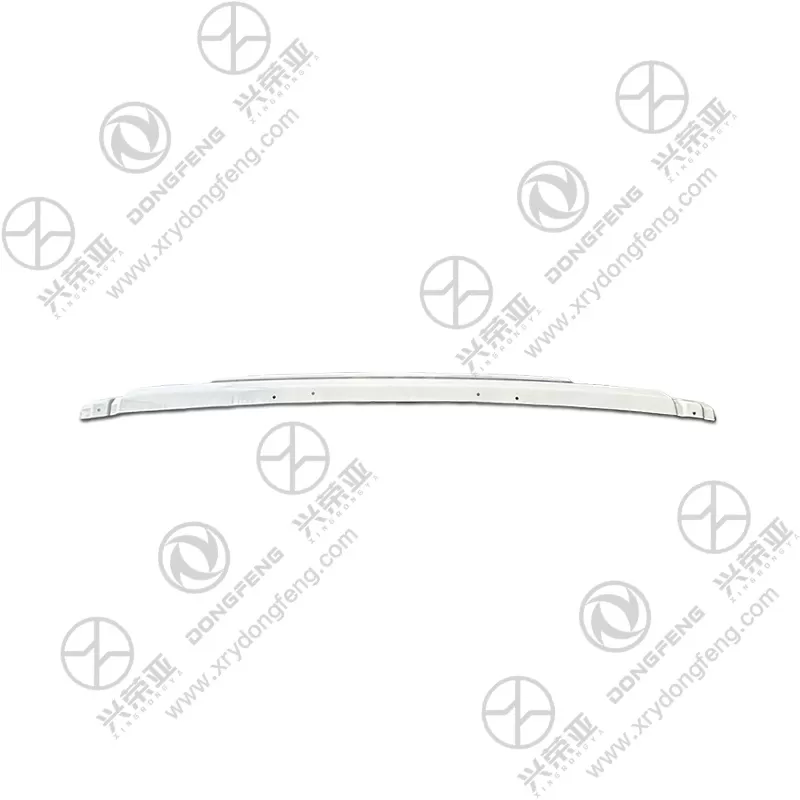

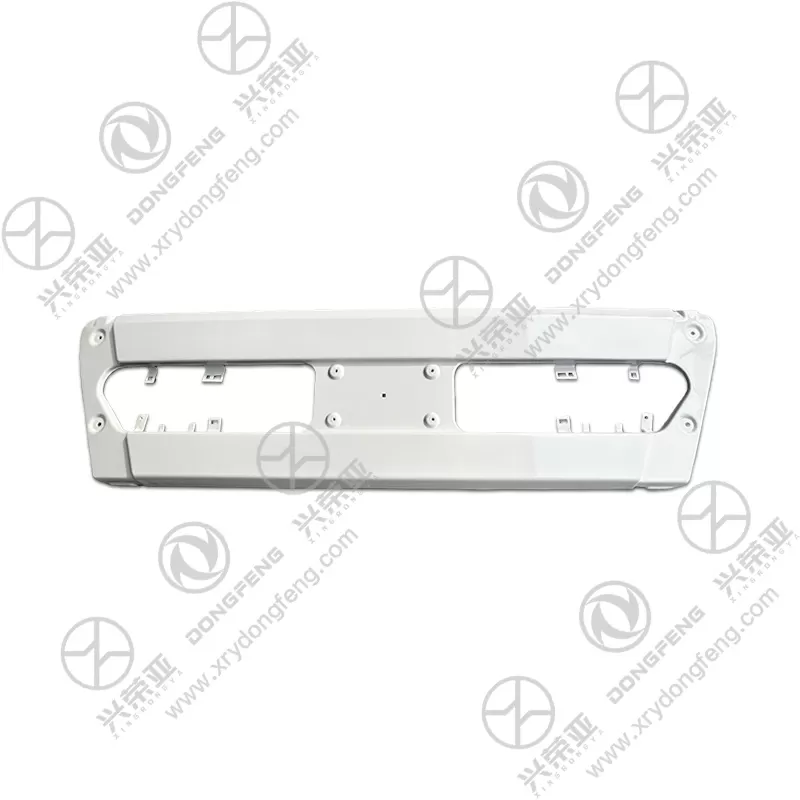

Dongfeng Kinland truck spare parts Middle bumper 8406010-C0100

Built to absorb and disperse impact forces, this middle bumper provides robust protection for Dongfeng Kinland’s front-center critical components (e.g., radiator, engine oil cooler, front axle sensors). The core structure uses a 3.5mm-thick high-strength steel beam (tensile strength ≥550MPa) that can withstand low-speed collisions (≤20km/h) with obstacles like curbs or debris without permanent deformation. The outer plastic cover features a honeycomb buffer layer that reduces impact energy by up to 40% before it reaches the steel beam, minimizing damage to internal parts. Additionally, the bumper’s lower edge is reinforced with a 5mm-thick wear-resistant rubber strip, preventing scratches from uneven terrain or road debris. This dual-layer protection design lowers repair costs and ensures the truck remains operational after minor accidents

Engineered to withstand harsh truck operating environments, the bumper features a multi-layer anti-corrosion and weather-proof system. The steel beam undergoes electrophoretic coating + powder coating (total thickness 80-100μm), which passes 600-hour salt spray testing (ASTM B117) without rusting—ideal for winter roads with salt or coastal areas with high humidity. The outer plastic cover is made of UV-stabilized PP+EPDM composite material, resisting fading, cracking, or warping across a temperature range of -40℃ to 85℃. All mounting hardware (bolts, washers) are galvanized steel with anti-rust treatment, ensuring long-term stability. These features extend the bumper’s service life to over 6 years, reducing replacement frequency for Dongfeng Kinland truck owners

Beyond protection, the middle bumper integrates practical features to enhance the truck’s utility. It includes pre-cut slots for the factory front fog lights (if equipped), allowing direct installation without additional modifications. The center section has a reinforced tow hook port (matching Dongfeng Kinland’s tow hook specifications), enabling safe towing or recovery operations. Some versions also feature a recessed air intake grille that improves airflow to the radiator, optimizing engine cooling efficiency during heavy loads or high-temperature driving. The bumper’s upper edge is designed to align with the front grille’s lower lip, creating a seamless airflow path that reduces wind resistance—slightly improving fuel efficiency for long-haul trips. This integrated design eliminates the need for aftermarket adapters, keeping the front-end setup functional and neat

Designed for efficient installation, the bumper weighs only 32kg (lighter than all-steel alternatives), making it easy for 2-3 people to handle without heavy lifting equipment. It uses a bolt-on mounting system: the package includes 6 high-strength M10×35 bolts, lock washers, and nuts that match the truck’s factory frame threads. Installation steps are straightforward: align the bumper with the front frame’s mounting points, secure the bolts to the recommended torque (40N·m), and connect fog light wiring (if applicable)—all completed in 50 minutes or less. The lightweight design reduces stress on the truck’s front frame, extending the frame’s service life. For repair shops or truck operators, this easy-to-install bumper minimizes downtime, ensuring the Dongfeng Kinland truck returns to service quickly
