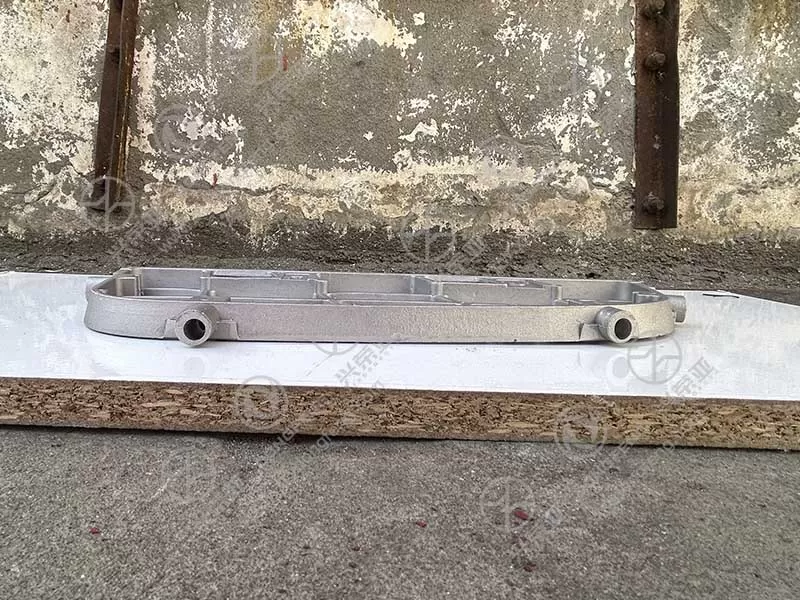

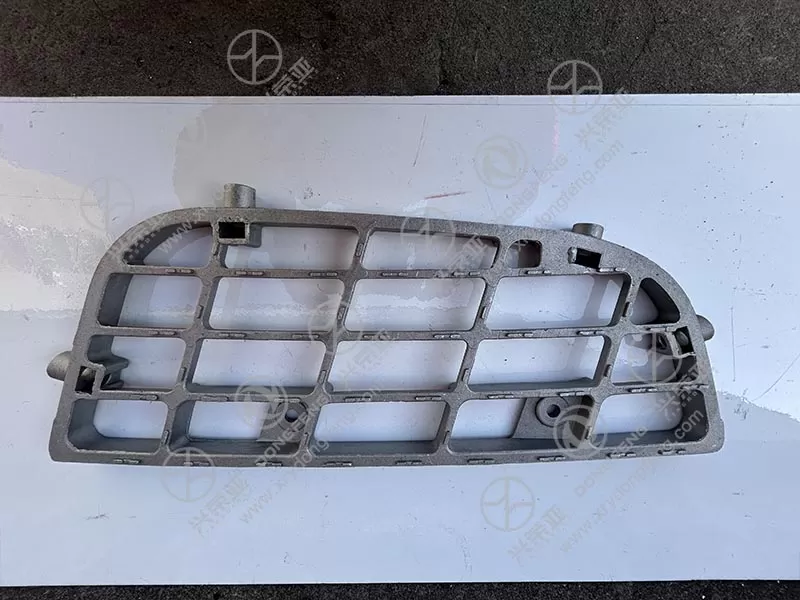

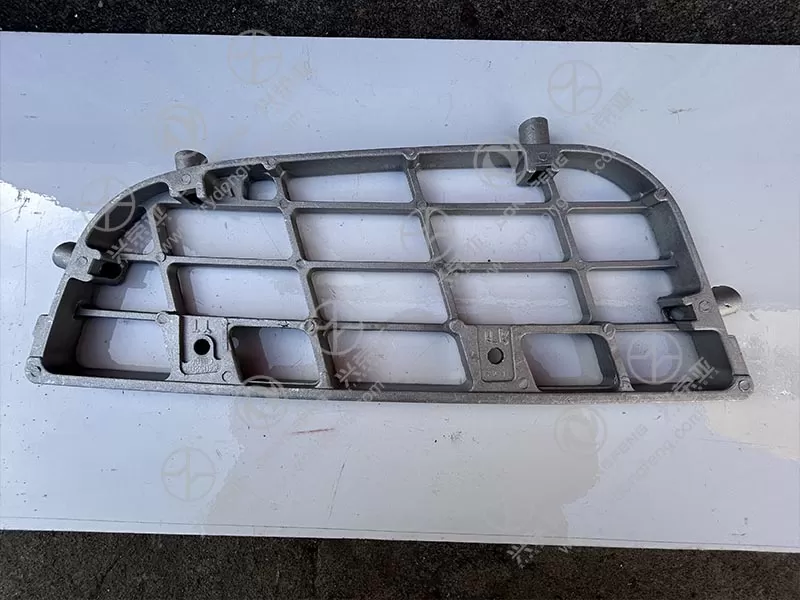

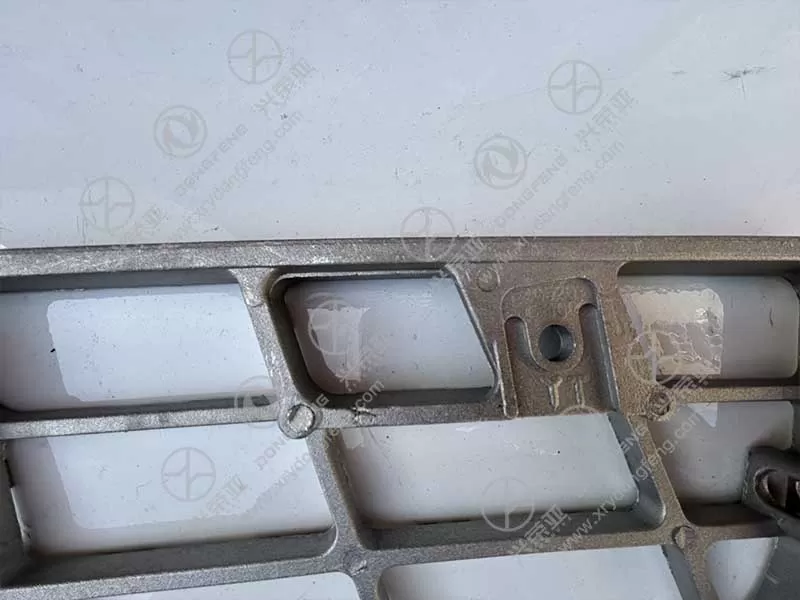

Dongfeng Kinland truck spare parts Left upper foot pedal 8405209-C0100

A core advantage of the 8405209-C0100 pedal is its exceptional load-bearing performance, tailored to withstand the demands of heavy-duty truck operations. The pedal platform is constructed from 6mm-thick Q355B low-alloy high-strength steel, featuring a reinforced crossbeam underframe that distributes weight evenly across the mounting bracket. This design enables the pedal to support up to 550kg of static load—enough to carry operators (plus tools or personal gear) during cab entry, even for Kinland trucks with elevated cabs (common in construction or mining variants). The mounting bracket, welded to the pedal platform and equipped with triangular gussets at stress points, ensures a rigid connection to the cab—preventing bending or shifting even under repeated heavy use (e.g., operators carrying toolboxes or safety equipment). For Kinland drivers and co-drivers, this high-load capacity eliminates the risk of pedal failure and workplace falls, complying with occupational safety standards

The 8405209-C0100 pedal features a specialized anti-slip surface that prioritizes safety in harsh weather conditions. The platform’s top layer uses a hot-rolled diamond plate texture (depth 2.5mm) combined with a thermoset rubber overlay (3mm thickness, shore A hardness 75). This dual-layer design creates deep, non-clogging grooves that channel away water, snow, mud, and road salt—maintaining a friction coefficient of ≥0.9 even in icy or wet environments (far exceeding the 0.5 safety threshold for stepping surfaces). Unlike smooth metal pedals that become slippery in rain, the rubber overlay also absorbs impact, reducing foot fatigue for operators who enter/exit the cab frequently (e.g., delivery drivers or construction workers). Additionally, the rubber is oil-resistant (compatible with diesel and hydraulic fluid spills) and UV-stabilized—preventing cracking or fading in prolonged sunlight. For Kinland trucks operating in rainy, snowy, or dusty regions, this anti-slip design is critical for accident prevention

Built to withstand corrosive environments—including road salt, coastal humidity, and industrial dust—the 8405209-C0100 pedal uses a comprehensive anti-corrosion system. The steel platform and bracket undergo three protective layers: first, a zinc phosphate pretreatment (8μm) to enhance coating adhesion; second, hot-dip galvanization (90μm zinc layer) for primary rust resistance; and third, a black polyester powder coat (70μm) that matches Kinland’s factory cab finish and adds scratch protection. This triple-layer protection passes 1,500-hour salt spray tests (ASTM B117 standard), ensuring the pedal remains rust-free for 10+ years—double the lifespan of generic pedals with single-layer coatings. The rubber overlay is made of EPDM (ethylene propylene diene monomer) rubber, which resists degradation from ozone, chemicals, and temperature extremes (-40°C to 120°C)—ensuring consistent performance in all climates, from freezing winters to hot summers

The 8405209-C0100 pedal is designed for efficient installation and flexible adjustment, minimizing Kinland truck downtime. It comes fully pre-assembled (platform + bracket) with all necessary hardware: 4x 10.9-grade high-strength bolts (M10×35mm), lock washers, and EPDM rubber gaskets (to seal gaps between the pedal and cab, preventing water intrusion into cab internals). The bracket features 25mm-long slotted holes, allowing ±15mm of horizontal and vertical adjustment to accommodate minor cab frame variations or operator preferences (e.g., shorter operators can lower the step slightly for easier access). Installation takes just 25-30 minutes for a single technician using standard tools (socket wrench, torque wrench set to 85-95 N·m)—no on-site drilling, cutting, or welding required. For fleet operators, this easy installation reduces labor costs, while the tool-free adjustment ensures the pedal can be fine-tuned to meet the needs of different drivers—maximizing both efficiency and safety
