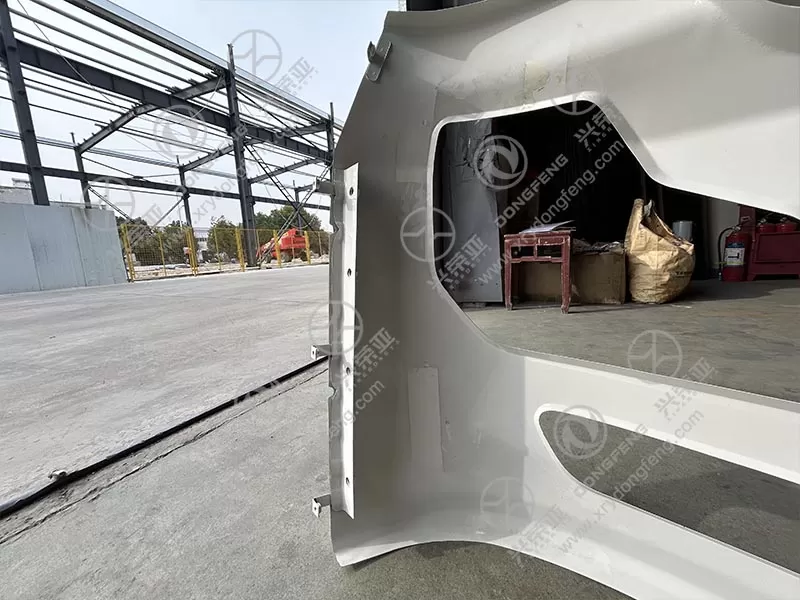

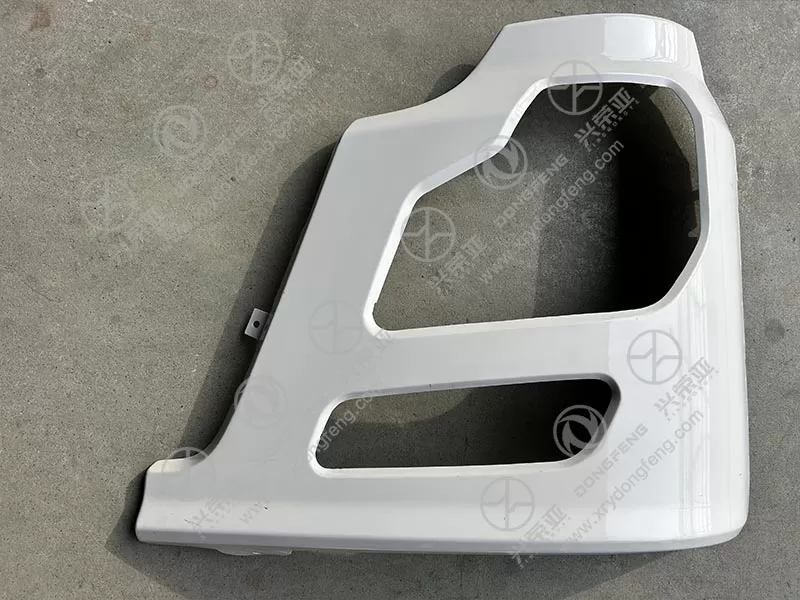

Dongfeng Kinland truck spare parts Left bumper assembly 8406019-C0100

Built to absorb and disperse impact forces, this left bumper provides robust protection for Dongfeng Kinland’s front-left critical components (e.g., radiator, left oil cooler, front axle sensors). The core structure uses a 3.2mm-thick high-strength steel beam (tensile strength ≥520MPa) that can withstand low-speed collisions (≤18km/h) with obstacles like curbs, rocks, or debris without permanent deformation. The outer plastic cover features a grid-like buffer layer that reduces impact energy by up to 35% before it reaches the steel beam, minimizing damage to internal parts. Additionally, the bumper’s lower edge is reinforced with a 4.5mm-thick wear-resistant rubber strip, preventing scratches from uneven terrain or road debris. This dual-layer protection design lowers repair costs and ensures the truck remains operational after minor accidents

Engineered to withstand harsh truck operating environments, the bumper features a multi-layer anti-corrosion and weather-proof system. The steel beam undergoes electrophoretic coating + electrostatic powder coating (total thickness 90-110μm), which passes 550-hour salt spray testing (ASTM B117) without rusting—ideal for winter roads with salt or coastal areas with high humidity. The outer plastic cover is made of UV-stabilized PP+EPDM composite material, resisting fading, cracking, or warping across a temperature range of -40℃ to 85℃. All mounting hardware (bolts, washers) are galvanized steel with anti-rust treatment, ensuring long-term stability even in heavy rain or dusty conditions. These features extend the bumper’s service life to over 6 years, reducing replacement frequency for Dongfeng Kinland truck owners

Beyond protection, the left bumper integrates practical features to enhance the truck’s utility. It includes a pre-cut slot for the factory left fog light, allowing direct installation without additional trimming or adapter parts—ensuring the fog light aligns with the truck’s original optical angle for optimal low-visibility illumination. The upper section has a reinforced tow hook port (matching Dongfeng Kinland’s tow hook specifications), enabling safe towing or recovery operations without damaging the bumper structure. Some versions also feature a small access panel for the left front radar sensor (if equipped), simplifying sensor maintenance without removing the entire bumper. This integrated design eliminates the need for aftermarket modifications, keeping the front-end setup functional and neat

Designed for efficient installation, the bumper weighs only 30kg (lighter than all-steel alternatives), making it easy for 2-3 people to handle without heavy lifting equipment. It uses a bolt-on mounting system: the package includes 6 high-strength M10×35 bolts, lock washers, and nuts that match the truck’s factory frame threads. Installation steps are straightforward: align the bumper with the front frame’s mounting points, secure the bolts to the recommended torque (38N·m), and connect the fog light wiring (if applicable)—all completed in 45 minutes or less. The lightweight design reduces stress on the truck’s front frame, extending the frame’s service life. For repair shops or truck operators, this easy-to-install bumper minimizes downtime, ensuring the Dongfeng Kinland truck returns to service quickly
