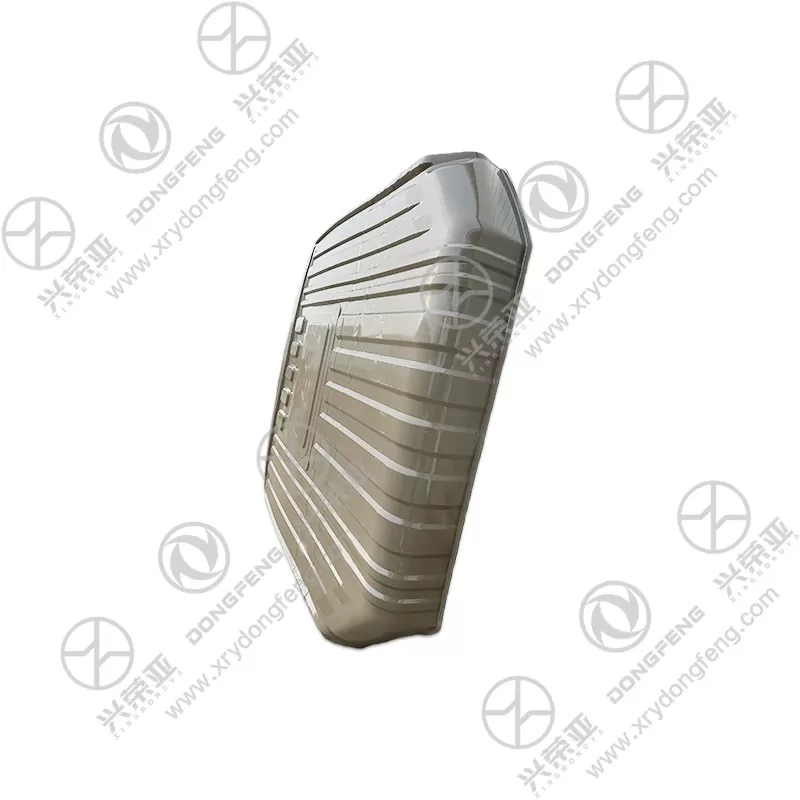

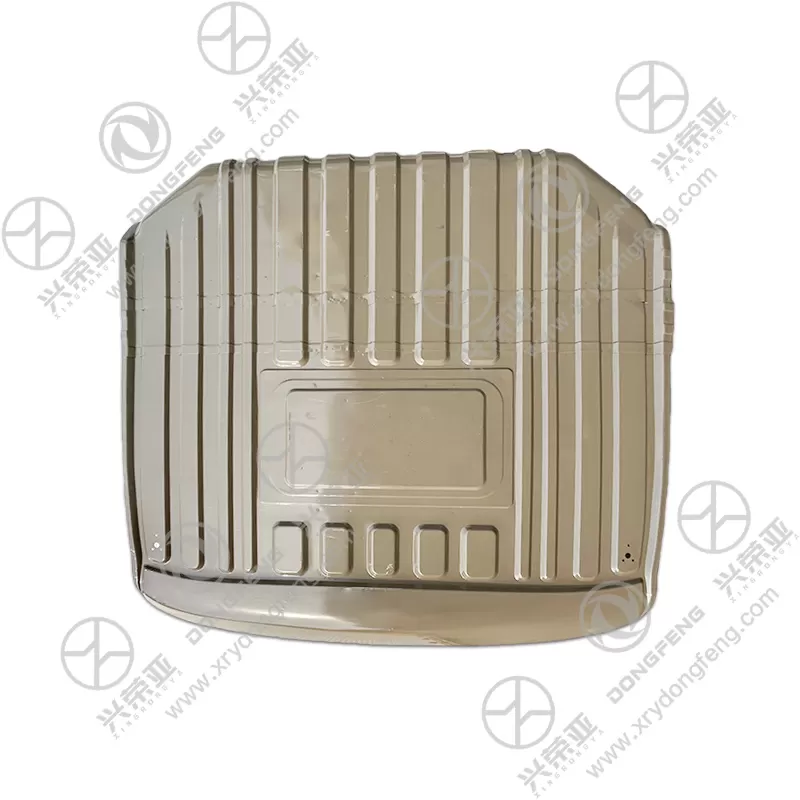

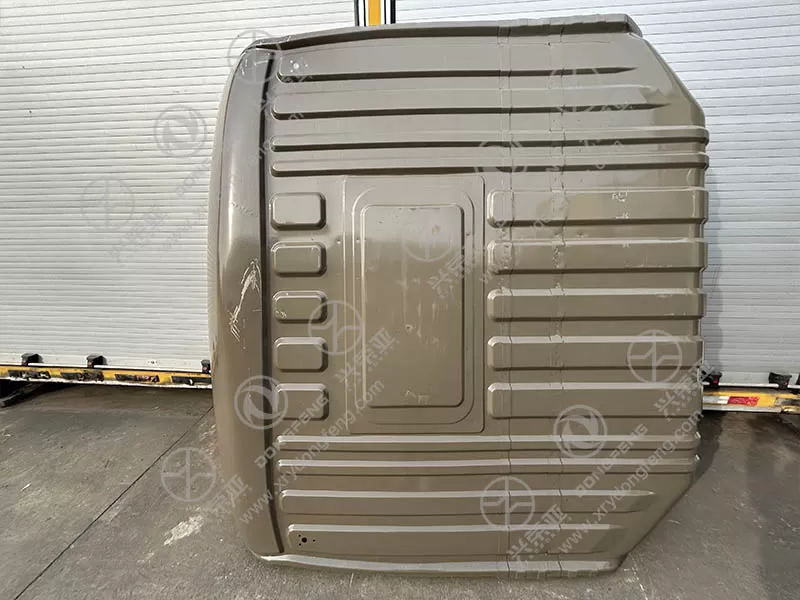

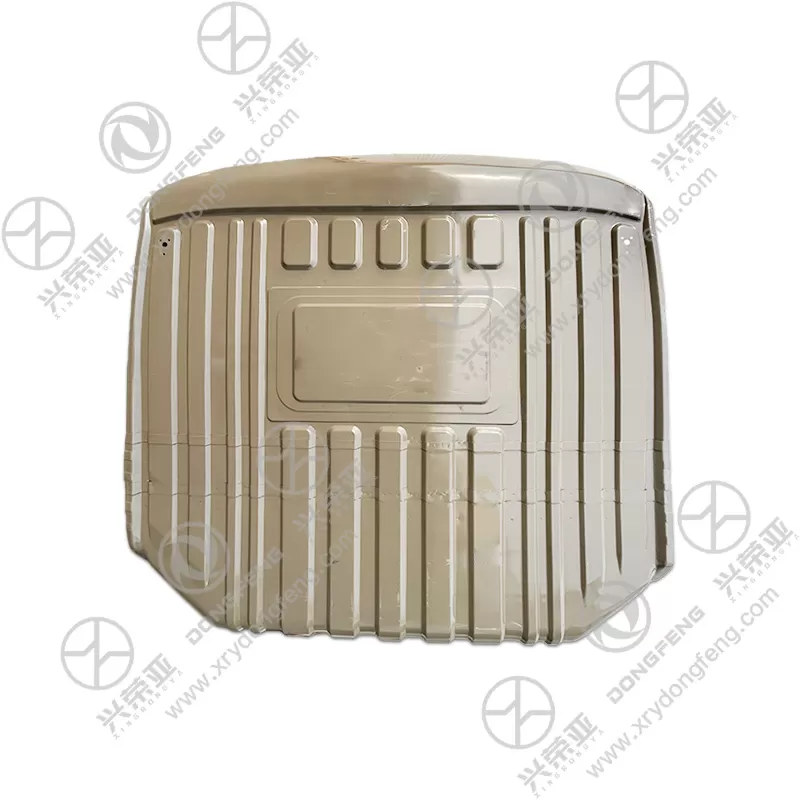

Dongfeng Kinland truck parts Top cover welding assembly 5700010-C0112

A core advantage of the 5700010-C0112 assembly is its exceptional load-bearing and impact-resistant performance, tailored to Kinland’s heavy-duty needs. It is fabricated from Q355B low-alloy high-strength steel (5mm thick for main panels, 8mm for reinforced edges), which offers a tensile strength of 510MPa—capable of withstanding 6,000kg static load (e.g., snow accumulation on cab roofs) or absorbing 400J impact force (e.g., falling debris on cargo box tops). The steel undergoes thermomechanical processing to enhance toughness, preventing brittle fracture in low temperatures (-40°C) or high-stress scenarios (e.g., rough off-road driving). For Kinland trucks operating in snowy regions or construction sites, this strength ensures the top cover avoids deformation, protecting both the truck’s interior (cab) and cargo

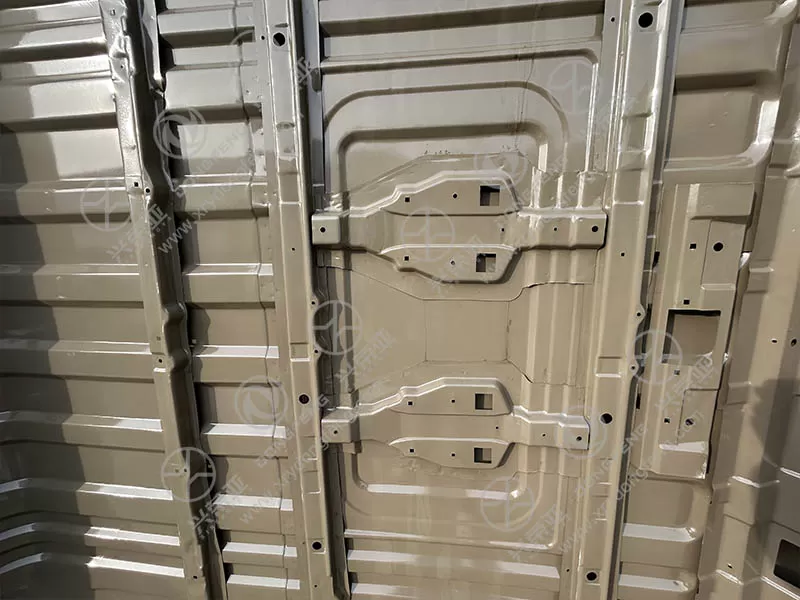

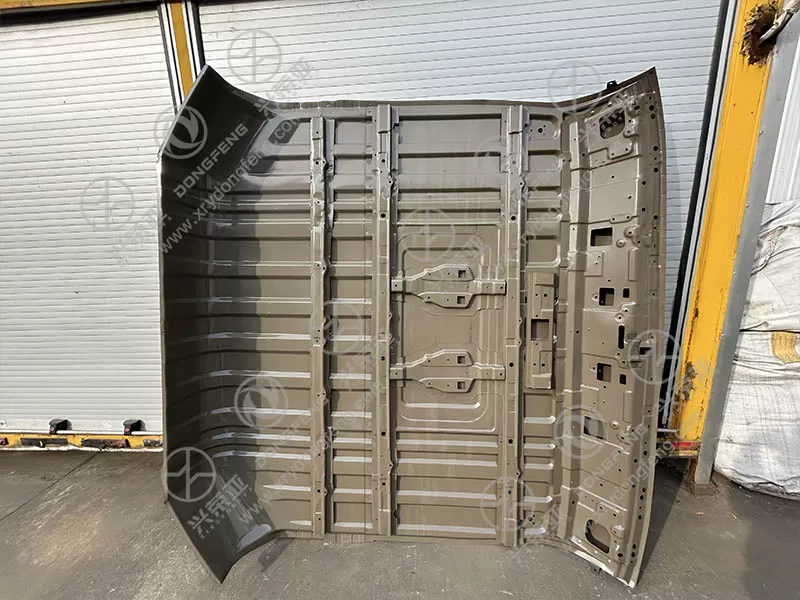

The 5700010-C0112 assembly features industrial-grade welding to guarantee long-lasting structural reliability. It adopts gas metal arc welding (GMAW, MIG) with ER50-6 low-carbon steel wire, creating weld seams with a shear strength of 340MPa—matching the base steel’s performance to eliminate weak points. Each weld joint (total length 8,000mm) is inspected via ultrasonic testing, ensuring zero defects (e.g., porosity, cracks) that could lead to joint failure under load. Weld edges are ground smooth to reduce stress concentration and prevent corrosion buildup, while 3D laser positioning (accuracy ±0.3mm) during welding ensures all components (reinforcing ribs, mounting brackets) align perfectly. This precision ensures the assembly maintains structural integrity even under repeated vibration (from road travel) or dynamic loads (e.g., shifting cargo)

Built to withstand harsh operating conditions, the 5700010-C0112 assembly boasts a robust anti-corrosion system. First, it undergoes phosphatization treatment to form a 5-8μm zinc phosphate layer that improves coating adhesion. Next, it receives an electrophoretic coating (E-coat, 25μm) that covers hidden areas (e.g., weld gaps, bracket inner surfaces) to prevent under-film corrosion. A final layer of polyurethane topcoat (30μm) adds scratch resistance and UV protection, avoiding paint fading in prolonged sunlight. This multi-layer system passes 1,200-hour salt spray tests, ensuring the assembly remains rust-free even in coastal regions (high humidity) or winter environments (road salt). For Kinland trucks exposed to rain, snow, or industrial dust, this protection minimizes maintenance costs and extends the top cover’s service life to 8+ years

The 5700010-C0112 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary brackets (e.g., cab roof support brackets, cargo box latch mounts) and pre-drilled mounting holes, eliminating on-site welding or drilling. The package includes 10.9-grade high-strength bolts (with lock washers) that match Kinland’s factory torque specifications (180-200 N·m), ensuring secure attachment to the top framework. Installation takes 4-6 hours for a two-person team using standard tools (torque wrenches, impact drivers), and a detailed manual (with 3D assembly diagrams) guides alignment to avoid misfit. Unlike custom-welded alternatives, this OEM assembly requires no post-installation adjustments, getting Kinland trucks back on the road faster for time-sensitive tasks like freight transport or construction material delivery
