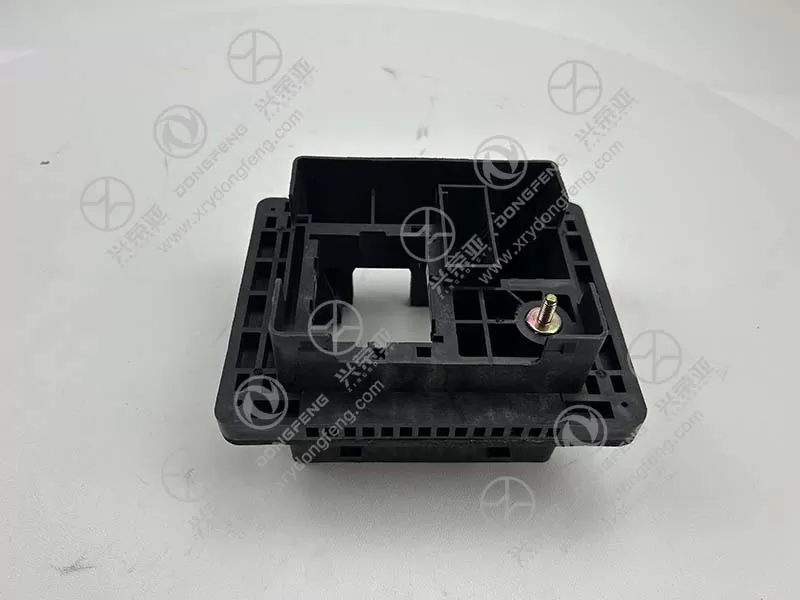

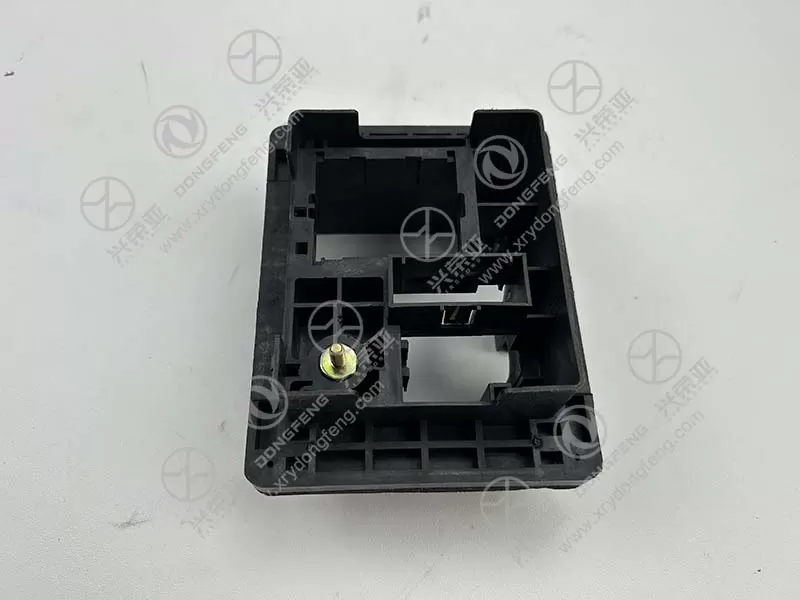

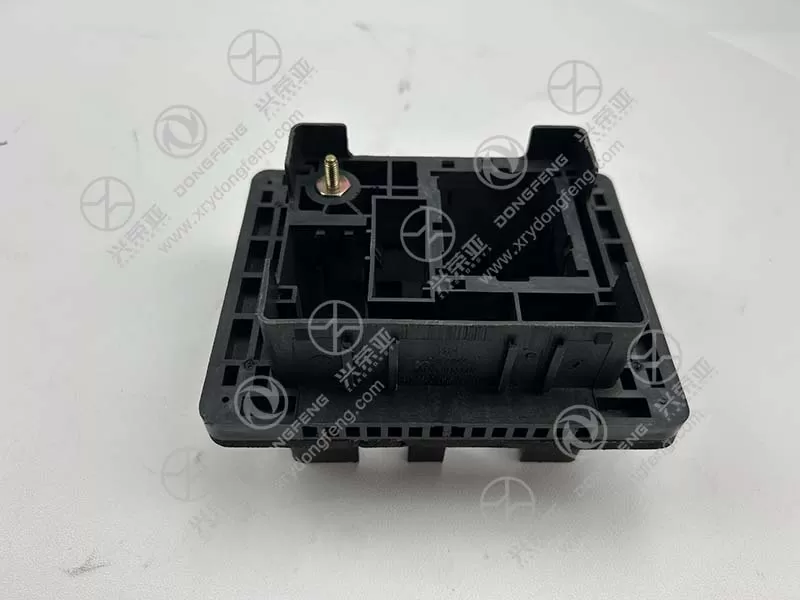

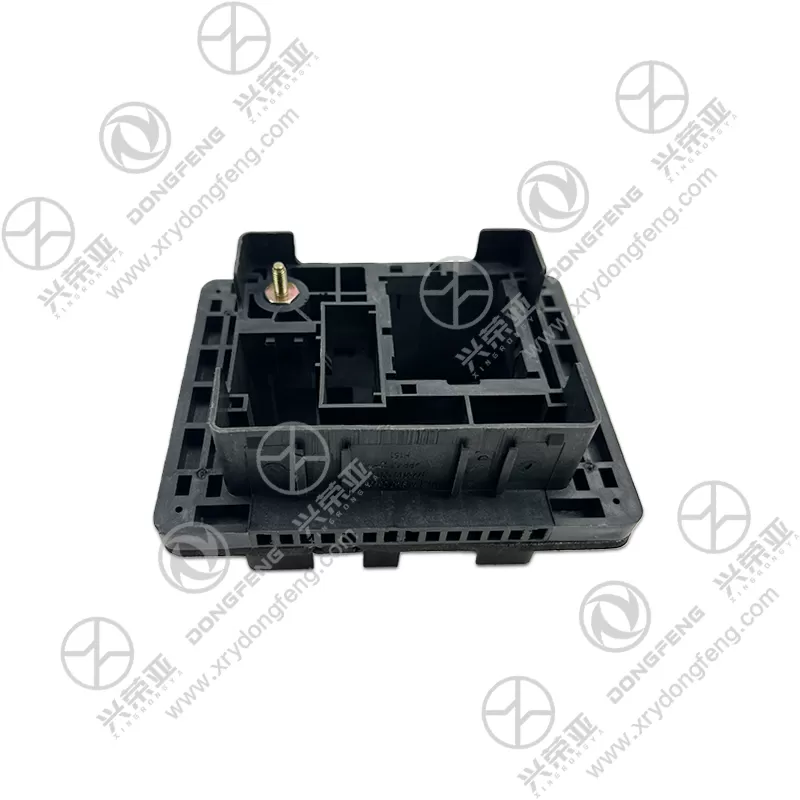

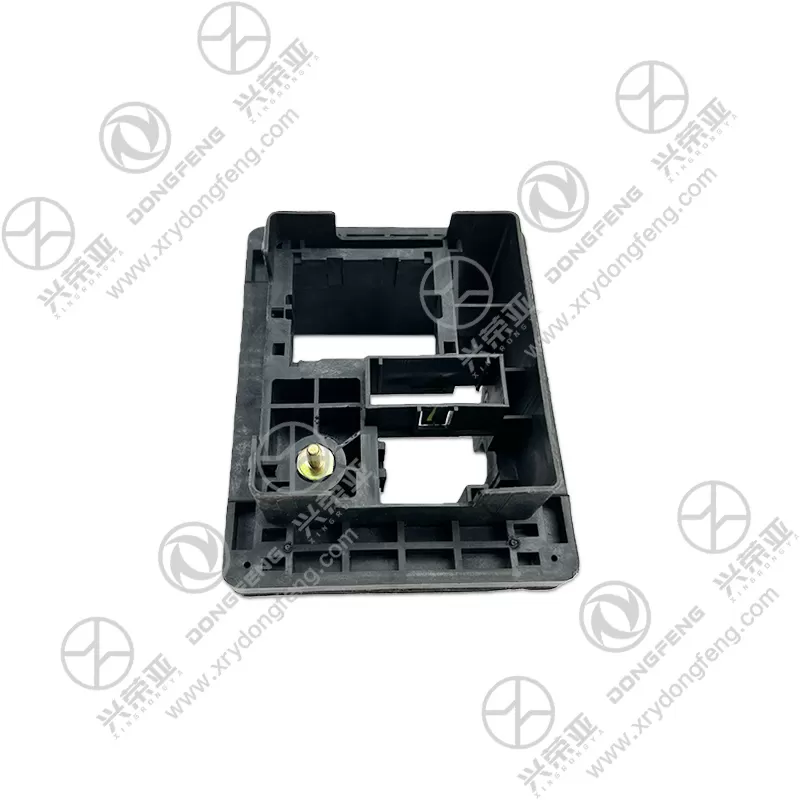

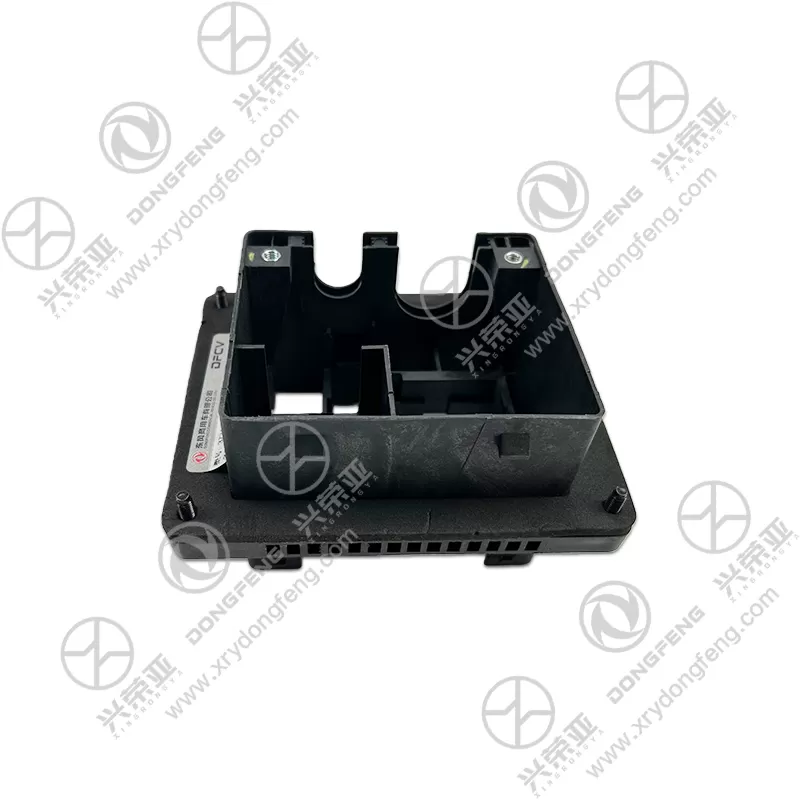

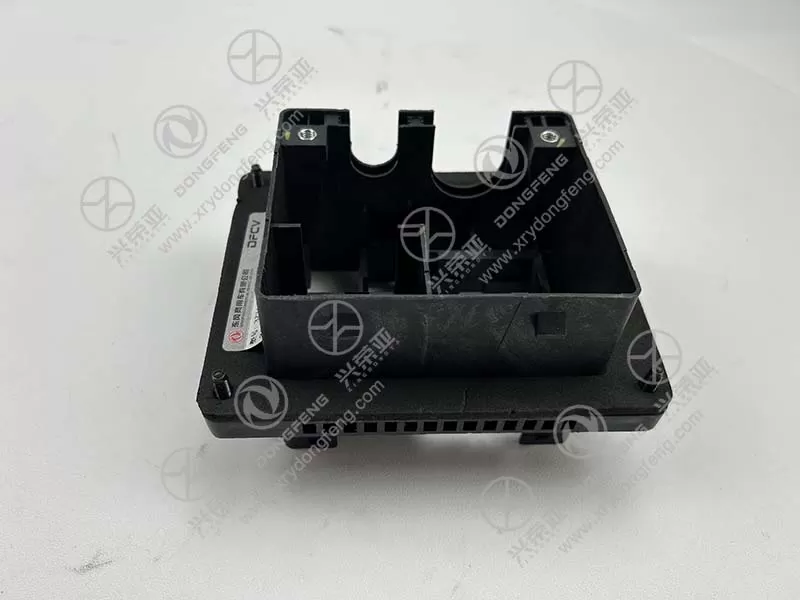

Dongfeng Kinland truck parts Right SMJ Box Assembly 3724420-C4300

A core advantage of the 3724420-C4300 assembly is its integrated shift control functionality, which acts as the “brain” for the truck’s SMJ system. The box houses precision-machined shift cable guides, position sensors (with ±0.1mm accuracy), and electromagnetic actuators that work in sync to translate driver input (via the gear lever) into precise transmission shifts. It supports 8-16 speed transmission configurations (common in Kinland heavy-duty models), delivering shift response times of ≤300ms—fast enough to prevent power loss during gear changes, especially when hauling heavy loads (up to 49 tons). The assembly also includes a built-in overload protection feature: if shift resistance exceeds 500N (e.g., due to transmission jamming), it automatically pauses the shift and triggers a dashboard warning, preventing damage to cables or the transmission. For Kinland drivers, this smooth, protected shift control reduces fatigue and ensures consistent performance in stop-and-go traffic or highway cruising

Built to withstand harsh truck operating environments—including vibration, extreme temperatures, and moisture—the 3724420-C4300 assembly uses robust, wear-resistant materials. The outer housing is made of die-cast aluminum alloy (ADC12) with a powder-coated finish, delivering high impact resistance (withstands 100N force without cracking) and corrosion protection (passes 800-hour salt spray tests). Internal components—including sensor circuit boards and actuator coils—are coated with a conformal sealant (silicone-based) that resists moisture, dust, and chemical exposure (e.g., diesel spills, road salt). The entire assembly is rated IP67 waterproof and dustproof, ensuring reliable operation even in heavy rain, snow, or dusty construction sites. Additionally, the housing features heat dissipation fins that reduce internal temperatures by 15-20°C during prolonged use (e.g., continuous shifting in urban traffic), preventing overheating of electronic components. This durability ensures the assembly operates reliably for 600,000+ kilometers (equivalent to 4+ years of heavy use), outperforming generic SMJ boxes that fail within 300,000 kilometers

The 3724420-C4300 assembly prioritizes stable signal transmission between the SMJ system and the truck’s ECU (Engine Control Unit), critical for accurate shift control. It uses shielded copper wiring (tinned for corrosion resistance) and gold-plated electrical contacts, which reduce signal interference by 90% compared to unshielded alternatives—even in high-vibration environments (up to 15g at 50-2000Hz). The assembly also includes a built-in diagnostic module that monitors key parameters (shift position accuracy, actuator current, sensor voltage) in real time. If a fault is detected (e.g., sensor failure, cable misalignment), it sends a fault code to the ECU, which triggers a warning light on the dashboard and stores the code for later retrieval via a diagnostic scanner. This feature simplifies troubleshooting for technicians, reducing repair time by 40% and minimizing truck downtime. For fleet operators, this diagnostic capability ensures proactive maintenance, preventing unexpected breakdowns during critical deliveries

The 3724420-C4300 assembly is designed for hassle-free, drop-in installation, making it easy to replace worn units without specialized expertise. It comes fully pre-assembled with all necessary hardware: 4 stainless steel mounting bolts (M6×15mm), a pre-wired 12-pin electrical connector (with color-coded wires matching Kinland’s harness), and rubber gaskets (to seal the housing against moisture). The shift cable ports feature quick-release clips that allow technicians to attach existing cables without adjusting length or tension. Installation takes 30-45 minutes for a single technician using standard tools (socket wrench, screwdriver)—no system recalibration is needed, as the assembly’s internal settings (shift timing, sensor thresholds) match Kinland’s OEM specifications. After installation, a simple test drive (to verify smooth shifting) is all that’s required to confirm functionality. For fleet managers, this easy installation reduces labor costs and ensures trucks return to service quickly—critical for maintaining delivery schedules or construction project timelines
