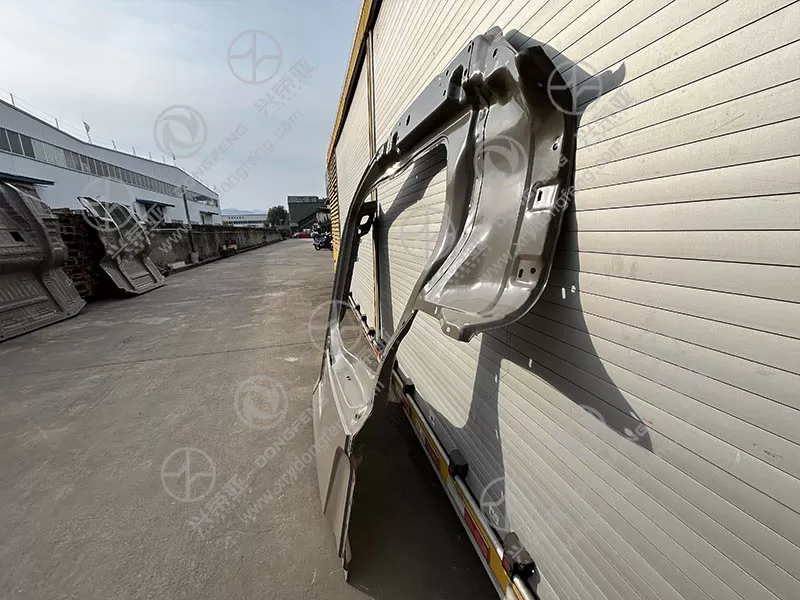

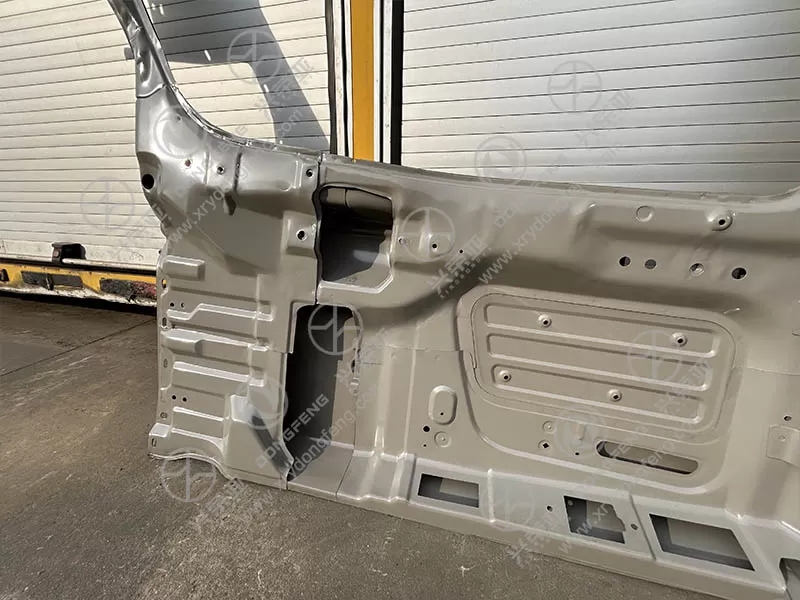

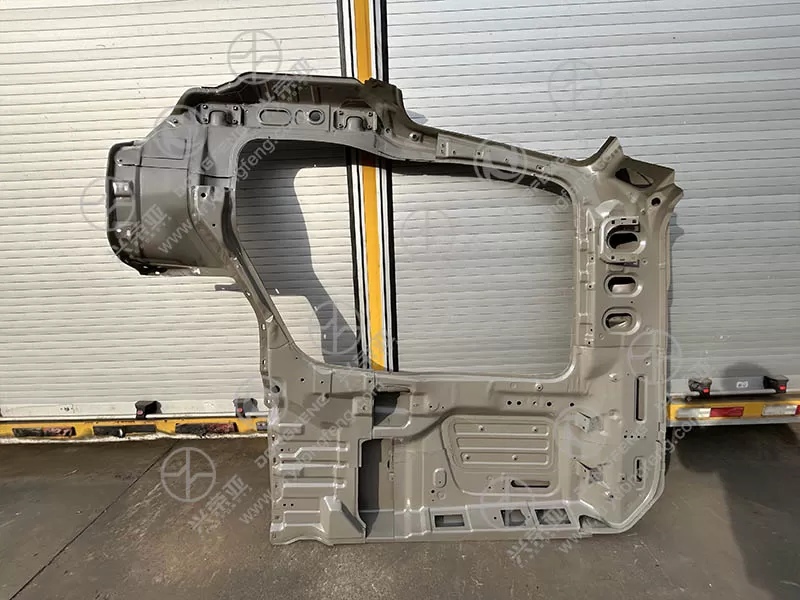

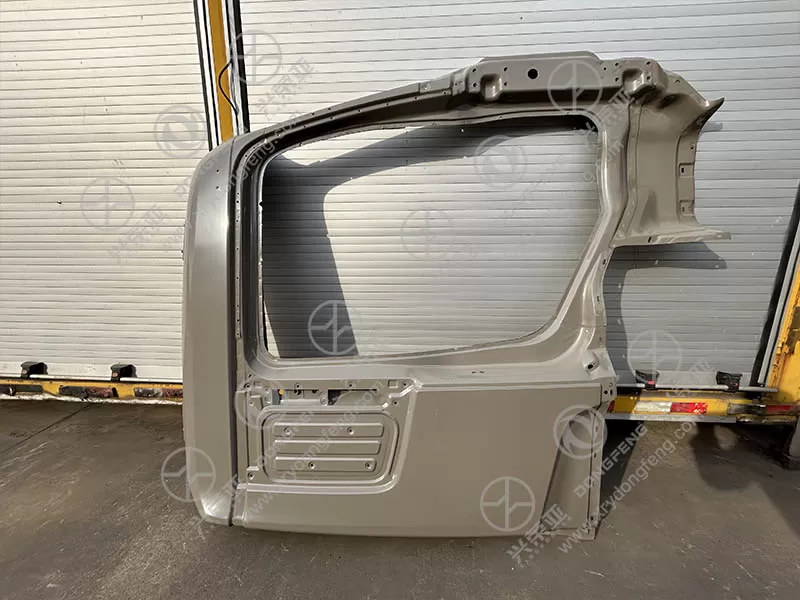

Dongfeng KInland truck parts Right side welding assembly 5400012-C0106

A core advantage of the 5400012-C0106 assembly is its exceptional structural strength, tailored to Kinland’s heavy-duty operating demands. It is fabricated from Q355B high-strength carbon steel—each component (frame brackets, support beams) has a thickness of 8-12mm, providing a static load-bearing capacity of 8,000kg. The steel undergoes a normalization heat treatment (920°C annealing + slow cooling) to enhance toughness, preventing brittle fracture under sudden impacts (e.g., collisions with road debris or uneven terrain). This strength ensures the assembly supports the truck’s right-side weight (including cargo, cab, and auxiliary components) without deformation, even when Kinland trucks haul 25+ ton payloads. For fleet operators, this durability reduces the risk of chassis bending or body separation—critical for safe long-term operation

The 5400012-C0106 assembly features advanced welding that guarantees long-lasting structural stability. It uses gas metal arc welding (GMAW, MIG welding) with low-carbon steel wire (ER50-6), creating welds with a tensile strength of 500MPa—matching the base steel’s strength to avoid weak points. Each weld joint is inspected via ultrasonic testing (UT) to detect internal defects (e.g., porosity, cracks), ensuring a 99.9% weld pass rate. Weld seams are ground smooth to reduce stress concentration and prevent corrosion buildup. Additionally, the assembly’s component alignment is calibrated using 3D laser measurement (accuracy ±0.5mm) before welding, ensuring all parts fit together perfectly. This precision welding eliminates the risk of joint failure under heavy loads or vibration, extending the assembly’s service life to 8+ years

Built to withstand harsh operating conditions, the 5400012-C0106 assembly features a robust anti-corrosion system. First, it undergoes a phosphatization treatment to create a 5-8μm zinc phosphate layer that improves coating adhesion. Next, it receives an electrophoretic coating (E-coat, thickness 20-25μm) that covers all surfaces—including weld seams and hidden cavities—to resist rust from road salt, rain, or mud. A final layer of polyurethane topcoat (30-35μm) adds scratch resistance and UV protection, preventing paint fading in prolonged sunlight. This multi-layer system passes 1,500-hour salt spray tests, ensuring the assembly remains rust-free even in coastal or winter environments (where deicing salts are common). For Kinland trucks operating in construction sites or rural areas, this protection minimizes maintenance costs and avoids structural weakening from corrosion

The 5400012-C0106 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-drilled with mounting holes that align with Kinland’s right-side chassis/body brackets, requiring no on-site drilling or cutting. The assembly includes all necessary hardware (high-strength bolts, lock nuts, washers) made of 10.9-grade alloy steel—rated for high torque (180-200 N·m) to prevent loosening under vibration. Installation takes 2-3 hours for a two-person team using standard tools (socket wrenches, torque wrenches), and a detailed instruction manual (with 3D assembly diagrams) is included to guide alignment. Unlike generic welding assemblies that require custom fitting, this OEM-designed unit ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks
