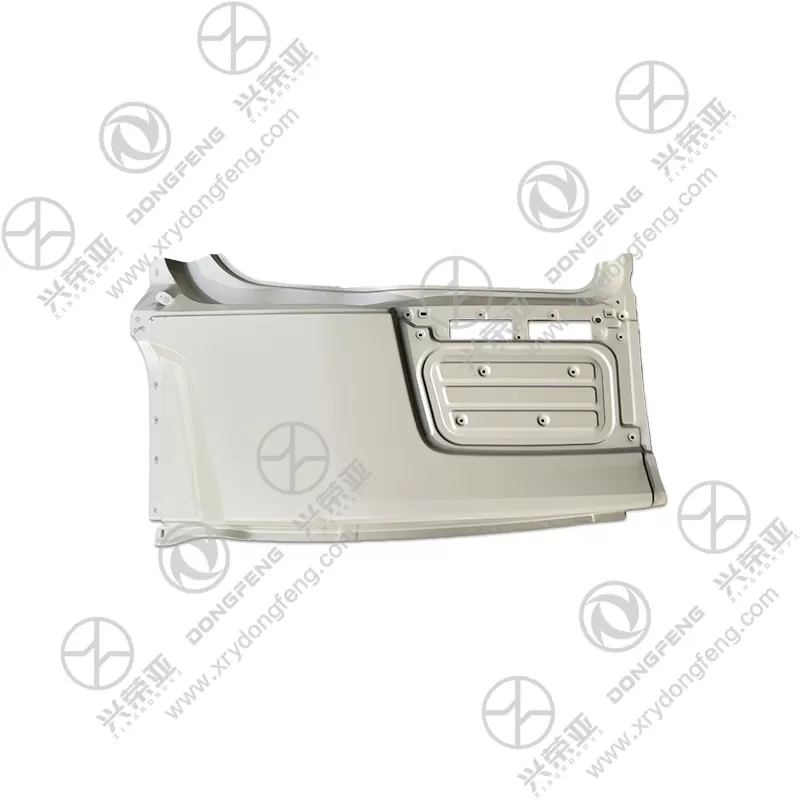

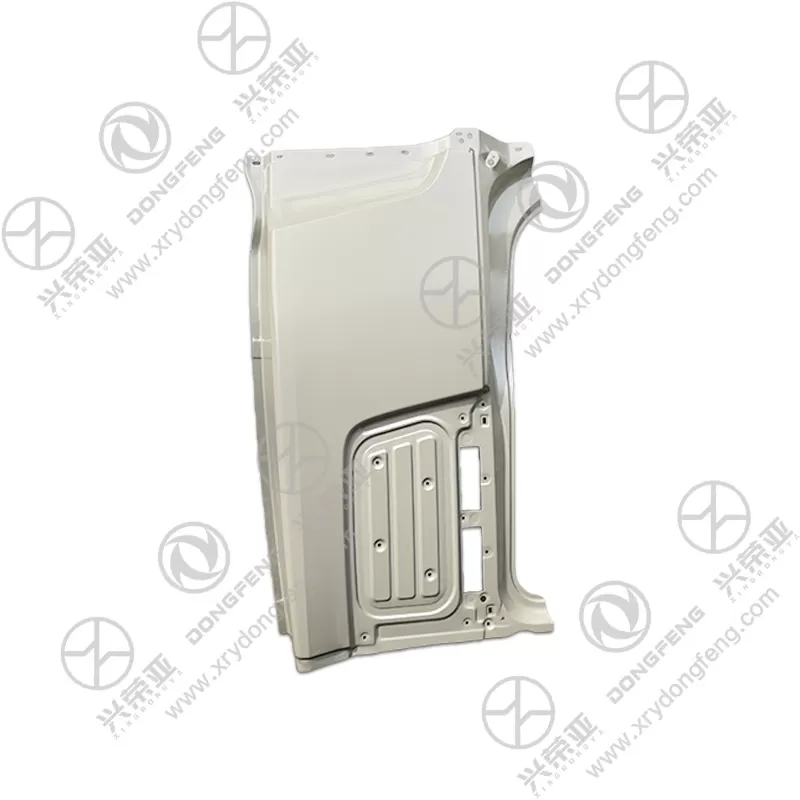

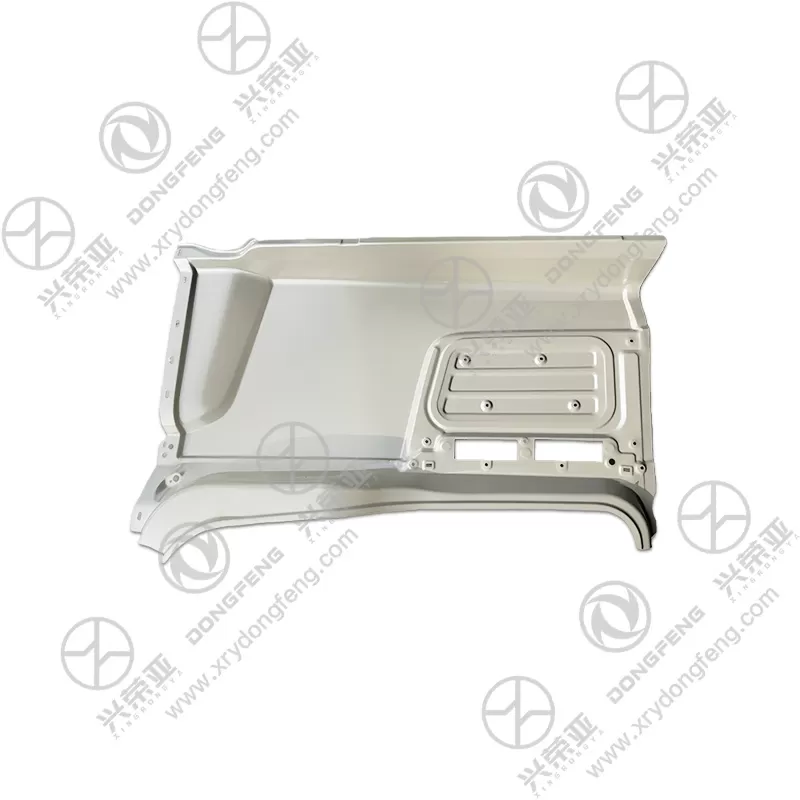

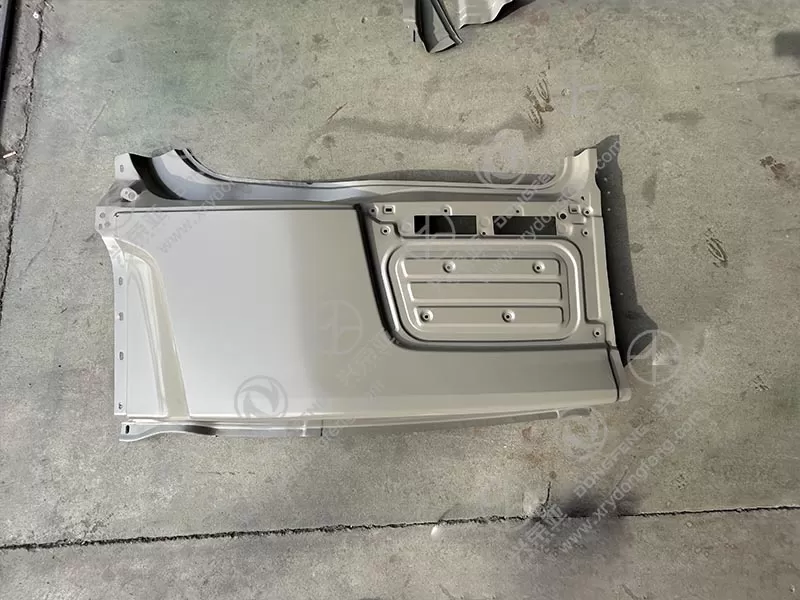

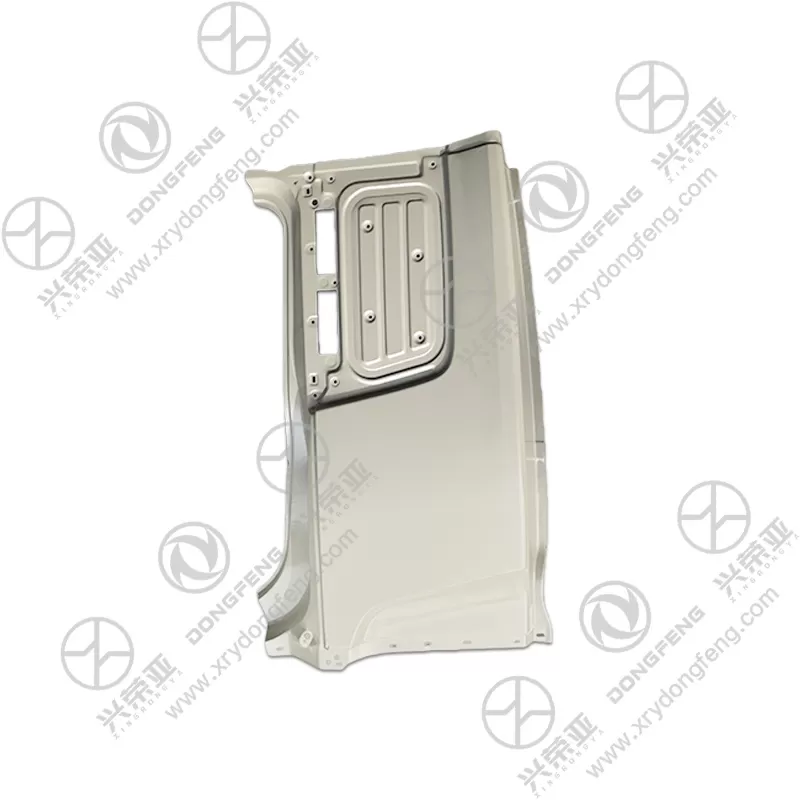

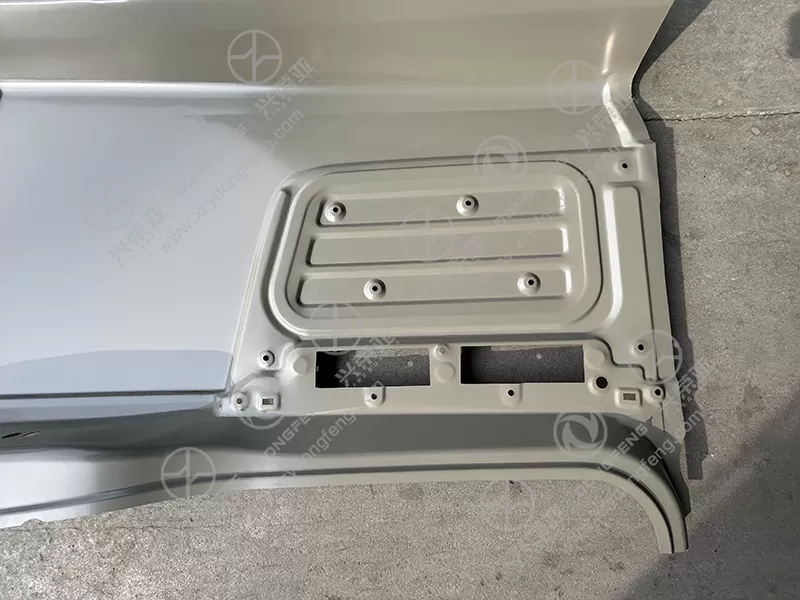

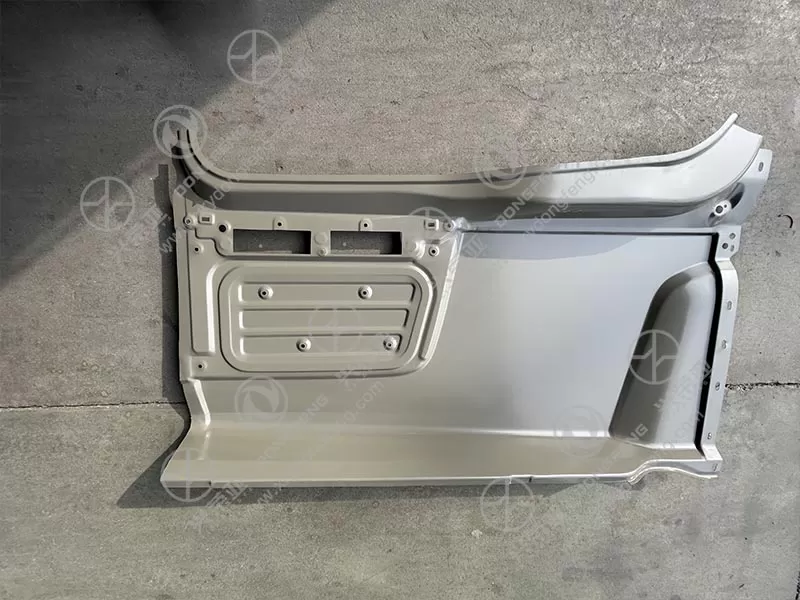

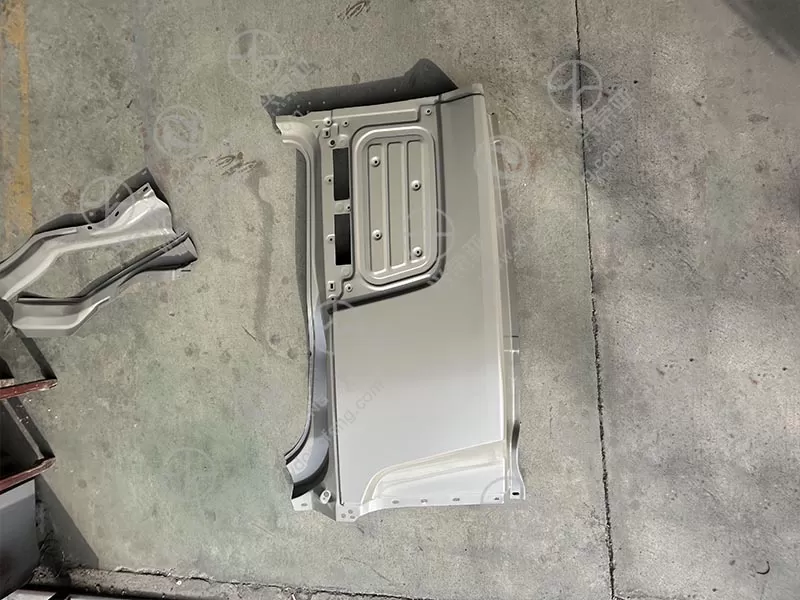

Dongfeng Kinland truck parts Right side outer panel welding assembly 5401012-C0304

A core advantage of the 5401012-C0304 assembly is its robust construction, tailored to withstand the daily wear of heavy-duty truck operations. It is fabricated from 2mm-thick cold-rolled steel (DC04 grade) with a bake-hardened coating, which offers a tensile strength of 380MPa—capable of resisting dents from minor impacts (e.g., gravel, small debris) and scratches from loading/unloading activities. The steel’s excellent formability ensures the panel retains its original shape even under thermal expansion (e.g., extreme sunlight) or vibration (rough road travel), avoiding warping that disrupts door alignment or seal performance. For Kinland trucks operating in construction zones or rural areas with unpaved roads, this durability reduces the need for frequent repairs, extending the body’s service life and maintaining resale value

The 5401012-C0304 assembly features industrial-grade welding that balances structural strength and visual quality. It adopts laser welding for critical joints (e.g., panel-to-bracket connections) to create narrow, smooth weld seams with a shear strength of 320MPa—matching the base steel’s performance while minimizing surface irregularities. Non-visible joints use gas metal arc welding (GMAW) with ER50-6 wire, inspected via ultrasonic testing to eliminate defects (porosity, cracks) that could lead to rust or structural failure. All weld edges are ground and polished to blend with the panel surface, ensuring a uniform appearance that requires minimal post-installation finishing. 3D laser positioning (accuracy ±0.2mm) during welding guarantees that all mounting points, cutouts (for side mirrors, fuel caps), and contour lines align with the truck’s original design—avoiding mismatches that affect functionality or aesthetics

Built to withstand harsh operating conditions, the 5401012-C0304 assembly boasts a comprehensive anti-corrosion system. First, it undergoes zinc phosphatization (8μm layer) to enhance coating adhesion and block initial rust formation. Next, it receives an electrophoretic coating (E-coat, 20μm) that penetrates all surfaces—including weld gaps, bracket inner cavities, and edge folds—to prevent under-film corrosion (a major cause of premature panel failure). A final layer of polyester topcoat (30μm) with a matte or gloss finish (matching Kinland’s factory options) adds UV protection and resistance to road salt, diesel spills, and industrial chemicals. This multi-layer system passes 1,000-hour salt spray tests, ensuring the panel remains rust-free even in coastal regions (high humidity) or winter environments (deicing salts). For fleet operators, this protection reduces maintenance costs and ensures the truck maintains a professional appearance

The 5401012-C0304 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary brackets (door hinge mounts, seal retainers, wiring clips) and pre-drilled mounting holes that align with the truck’s factory body framework—eliminating on-site welding or drilling. The package includes 10.9-grade stainless steel bolts (M10×16mm) and foam seals that match Kinland’s original specifications, ensuring a secure, weathertight fit. Installation takes 6-8 hours for a two-person team using standard tools (torque wrenches, panel pullers), and a detailed manual (with 3D assembly diagrams and torque charts) guides alignment to ensure door closure and seal performance. Unlike aftermarket panels that require custom trimming or adjustment, this OEM assembly ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks like freight delivery or construction work
