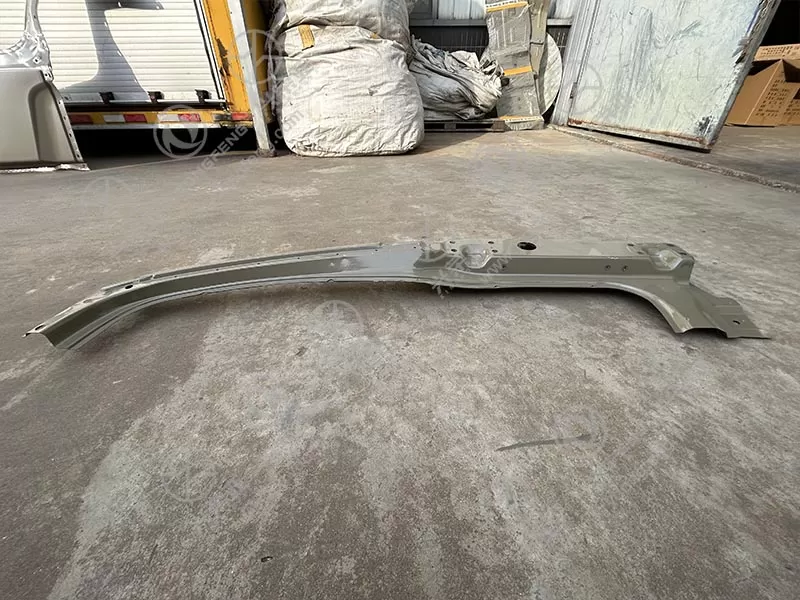

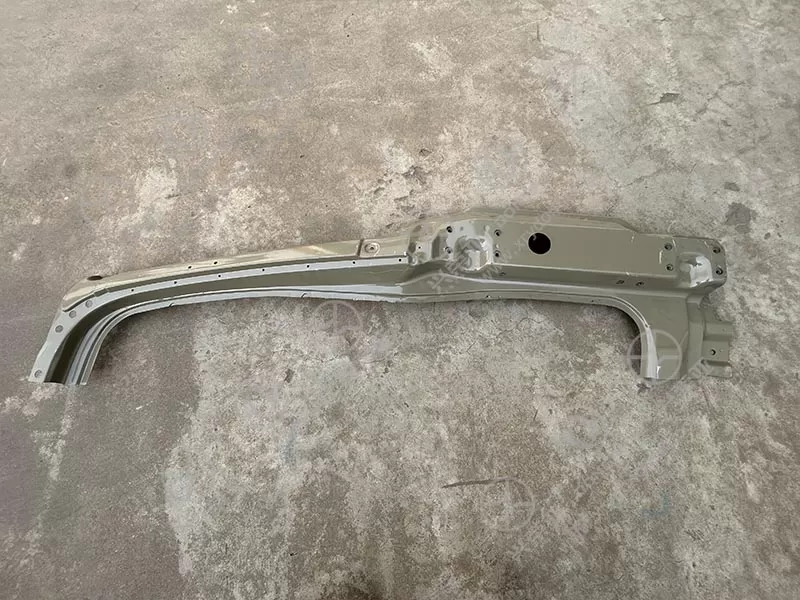

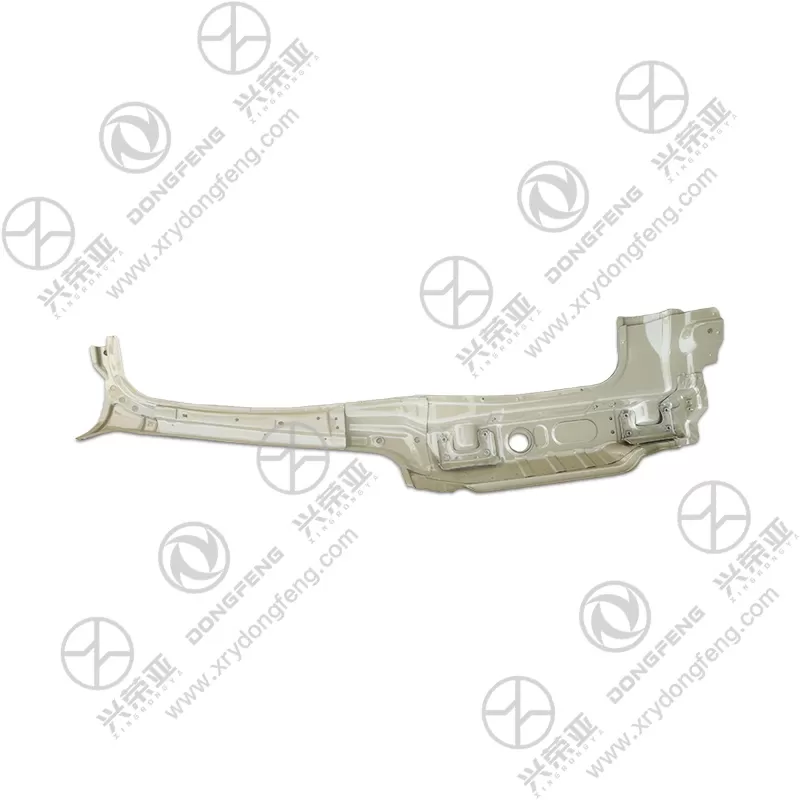

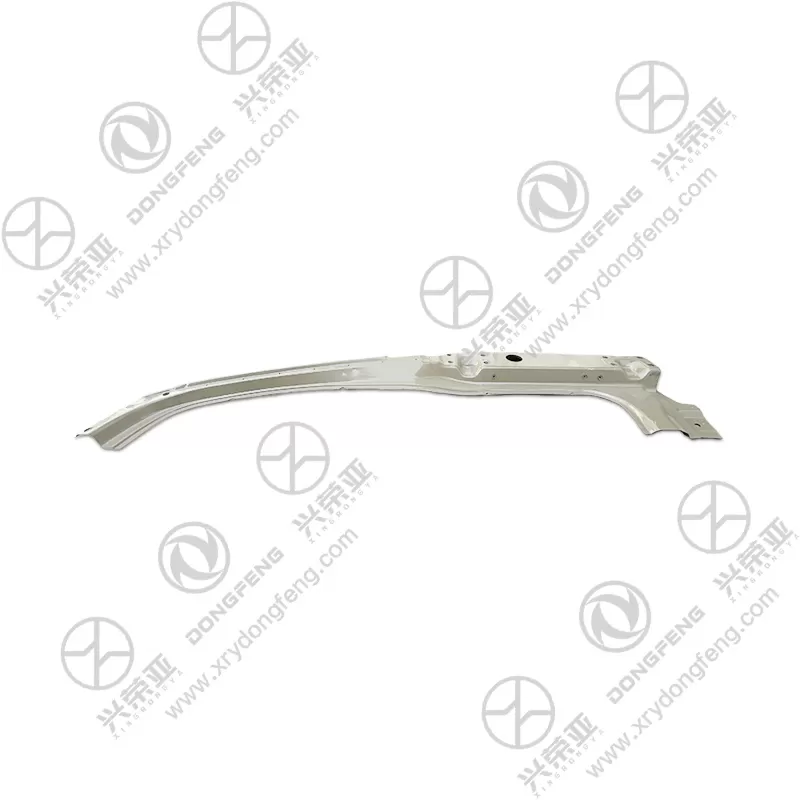

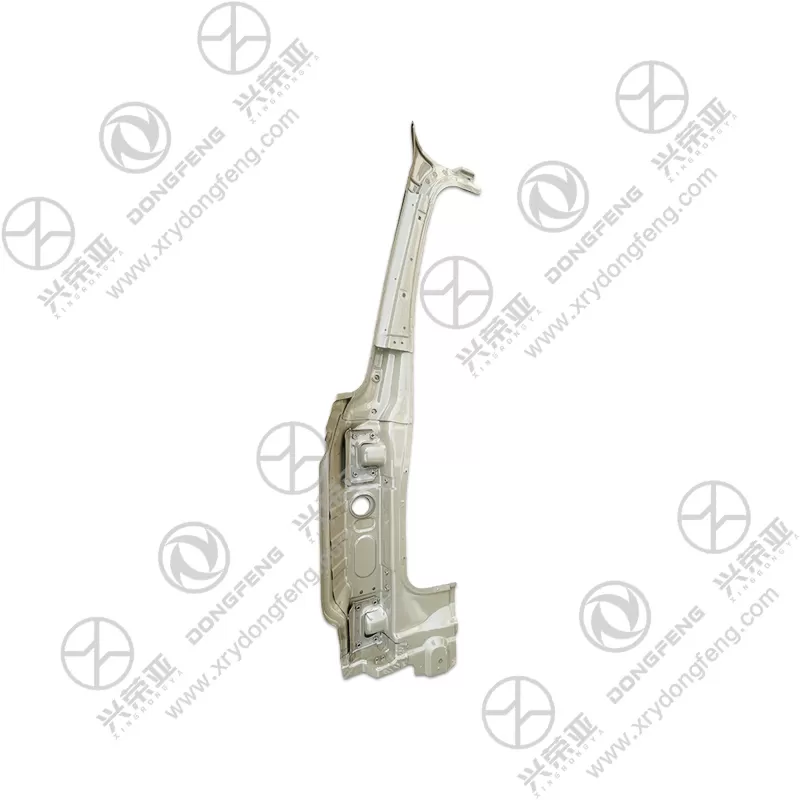

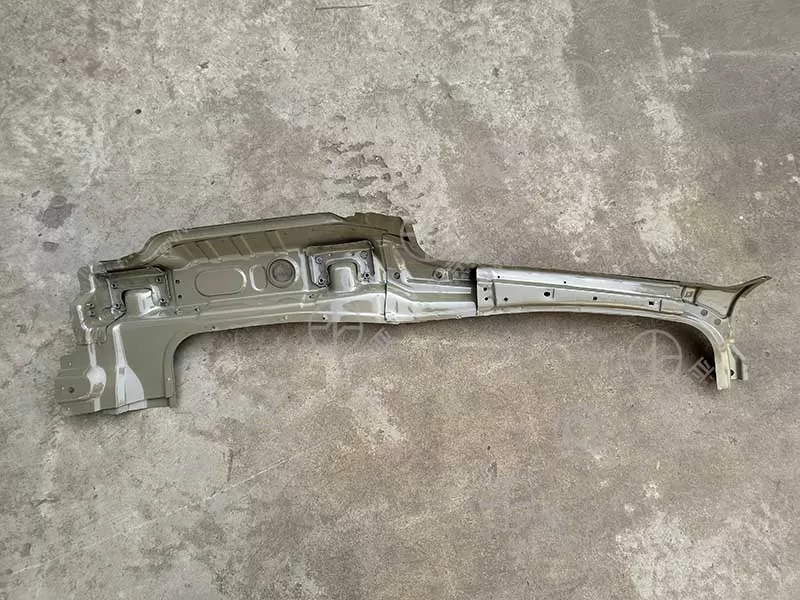

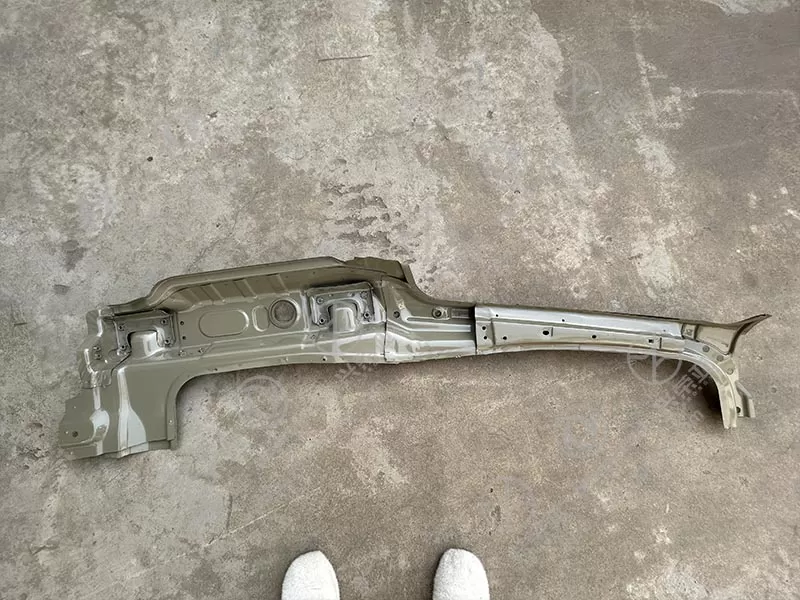

Dongfeng KInland truck parts Right front pillar welding assembly 5401052-C0100

A core advantage of the 5401052-C0100 assembly is its exceptional structural strength, critical for cab safety and load-bearing. It is fabricated from Q355B low-alloy high-strength steel (main pillar thickness 2.5mm, reinforced sections 3.0mm), which offers a tensile strength of 510MPa and yield strength of 355MPa. This material enables the pillar to withstand 15,000N of lateral force (e.g., from side impacts) and support the cab’s front roof weight (up to 800kg) without deformation—complying with automotive safety standards (GB 26511) for cab rollover and impact protection. The pillar’s internal reinforcing ribs (spaced 200mm apart) further enhance rigidity, preventing flexing during rough road travel or heavy braking. For Kinland drivers, this strength ensures the cab remains intact in accident scenarios, reducing injury risks

The 5401052-C0100 assembly features industrial-grade welding to guarantee long-lasting structural stability. It adopts gas metal arc welding (GMAW, MIG) with ER50-6 low-carbon steel wire, creating weld seams with a shear strength of 340MPa—matching the base steel’s performance to eliminate weak points. Each weld joint (total length 4,800mm) undergoes 100% ultrasonic testing to detect internal defects (e.g., porosity, cracks), ensuring a 99.9% weld pass rate. Weld edges are ground smooth to reduce stress concentration and prevent corrosion buildup, while 3D laser positioning (accuracy ±0.3mm) during welding ensures all components (mounting brackets, reinforcing plates) align perfectly with the cab’s original layout. This precision ensures the pillar maintains structural integrity even after years of vibration, extending its service life to 10+ years

Built to withstand harsh operating conditions, the 5401052-C0100 assembly boasts a robust anti-corrosion system. First, it undergoes phosphatization treatment (5-8μm zinc phosphate layer) to improve coating adhesion and block initial rust formation. Next, it receives an electrophoretic coating (E-coat, 25μm) that covers all surfaces—including hidden weld gaps and internal ribbing—to prevent under-film corrosion. A final layer of polyurethane topcoat (30μm, gloss 60±5%) adds scratch resistance and UV protection, avoiding paint fading in prolonged sunlight. This multi-layer system passes 1,200-hour salt spray tests, ensuring the pillar remains rust-free even in coastal regions (high humidity) or winter environments (road salt). For Kinland trucks operating in construction sites or rural areas, this protection minimizes maintenance costs and avoids structural weakening from corrosion

The 5401052-C0100 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary brackets (e.g., door hinge mounts, windshield seal grooves) and pre-drilled mounting holes, eliminating on-site welding or cutting. The package includes 10.9-grade high-strength bolts (with lock washers) that match Kinland’s factory torque specifications (200-220 N·m), ensuring secure attachment to the cab floor and roof. Installation takes 4-6 hours for a two-person team using standard tools (torque wrenches, impact drivers), and a detailed manual (with 3D assembly diagrams) guides alignment to ensure proper door closure and windshield fit. Unlike custom-fabricated pillars that require time-consuming adjustments, this OEM assembly ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks like freight transport or construction work
