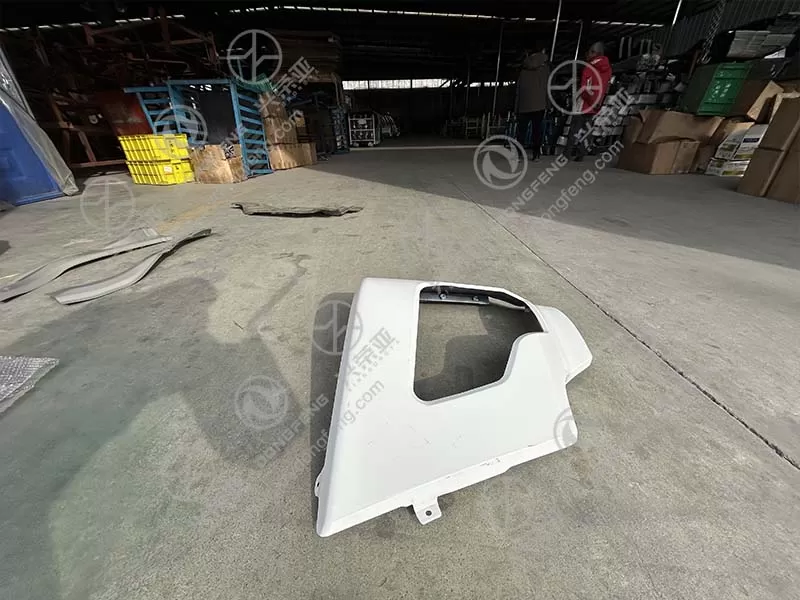

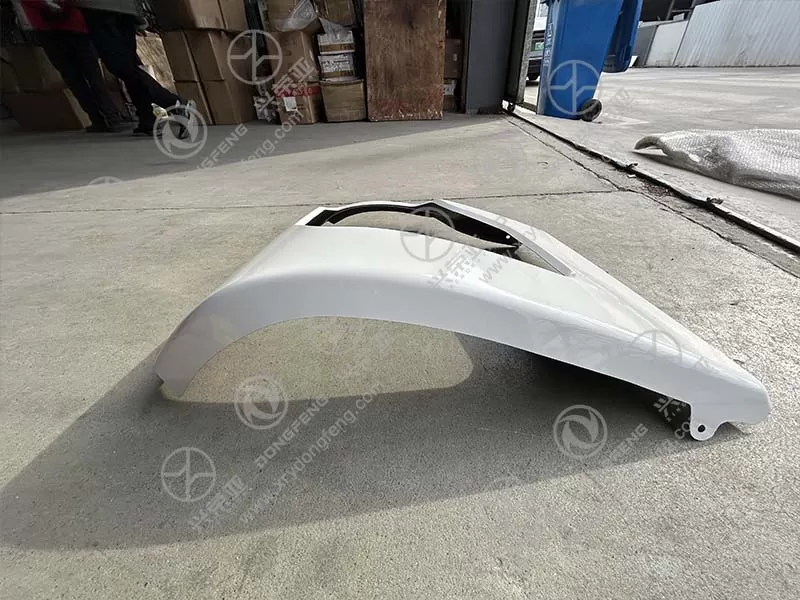

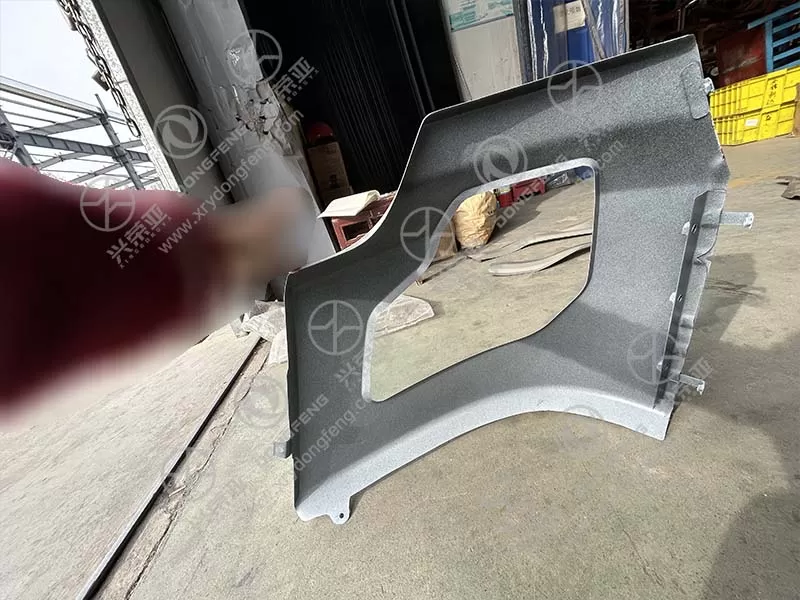

Dongfeng Kinland truck parts Right bumper assembly 8406020-C0101

Built to absorb and disperse impact forces, this bumper assembly provides robust protection for Dongfeng Kinland’s front-right cab and critical components (e.g., radiator, oil cooler, fog lights). The core structure uses a 3mm-thick high-strength steel beam, which can withstand frontal collisions with small obstacles (e.g., curbs, rocks) at low speeds (≤15km/h) without permanent deformation. The outer plastic cover features a honeycomb internal structure that acts as a buffer, reducing impact energy before it reaches the steel beam. This dual-layer protection design minimizes damage to the cab and under-hood components, lowering repair costs after minor accidents. Additionally, the bumper’s lower edge is reinforced with a wear-resistant rubber strip, preventing scratches from road debris or uneven terrain during off-road or construction-site operations

The bumper assembly uses premium materials to withstand the tough operating environments of trucks. The outer cover is made of impact-resistant PP+EPDM composite plastic, which resists cracking, fading, and warping across extreme temperatures (-40℃ to 85℃)—suitable for freezing winters and hot summers. It undergoes UV stabilization treatment, ensuring the color (matching Kinland’s factory bumper shade) remains unchanged even after 3000 hours of sunlight exposure. The steel beam is coated with electrophoretic paint + powder coating, providing double corrosion resistance against road salt, rain, and humidity—preventing rust for over 5 years. All hardware (mounting bolts, washers) are galvanized steel, further enhancing durability. These materials ensure the bumper maintains performance and appearance in long-haul, construction, or mining applications

Beyond protection, the bumper assembly integrates practical features to support Dongfeng Kinland’s auxiliary functions. It includes a pre-cut mounting slot for the truck’s original right fog light, allowing direct installation of the factory fog light without additional modifications. The front surface has built-in tow hook holes (matching Kinland’s tow hook specifications), enabling easy access to tow points when the truck needs to be pulled or recovered. Additionally, the bumper’s upper edge features a recessed area for the right front turn signal light, ensuring the signal is visible and compliant with road safety standards. Some versions also include a small storage pocket (for tools or gloves) on the inner side, maximizing the truck’s utility. This integrated design eliminates the need for aftermarket adapters, keeping the front-end setup neat and functional

Designed for efficient installation, the bumper assembly weighs only 28kg (lighter than all-steel alternatives), making it easy for 2-3 people to handle without heavy lifting equipment. It uses a bolt-on mounting system: the package includes 8 high-strength M10×30 bolts and lock nuts that match the truck’s factory brackets. Installation steps are simple: align the bumper with the cab’s mounting points, secure the bolts to the recommended torque (35N·m), and connect the fog light/turn signal wiring (if applicable)—all completed in 45 minutes or less. The lightweight design also reduces stress on the cab’s mounting brackets, extending their service life. For repair shops or truck operators, this easy-to-install assembly minimizes downtime, ensuring the Dongfeng Kinland truck returns to service quickly
