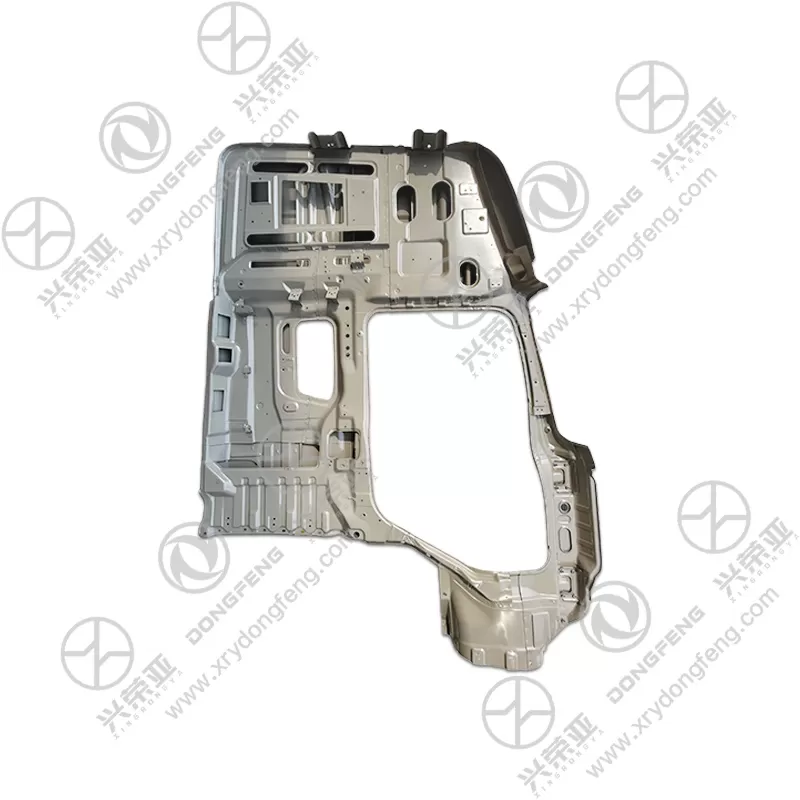

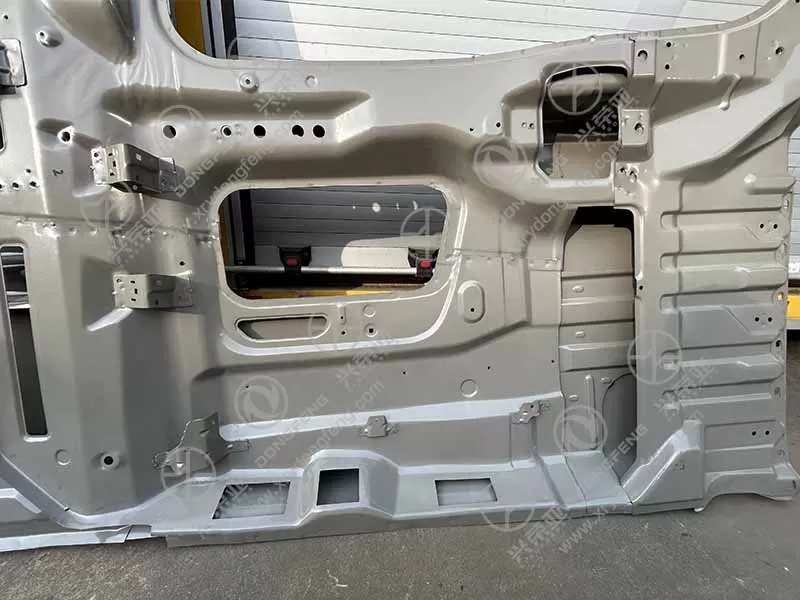

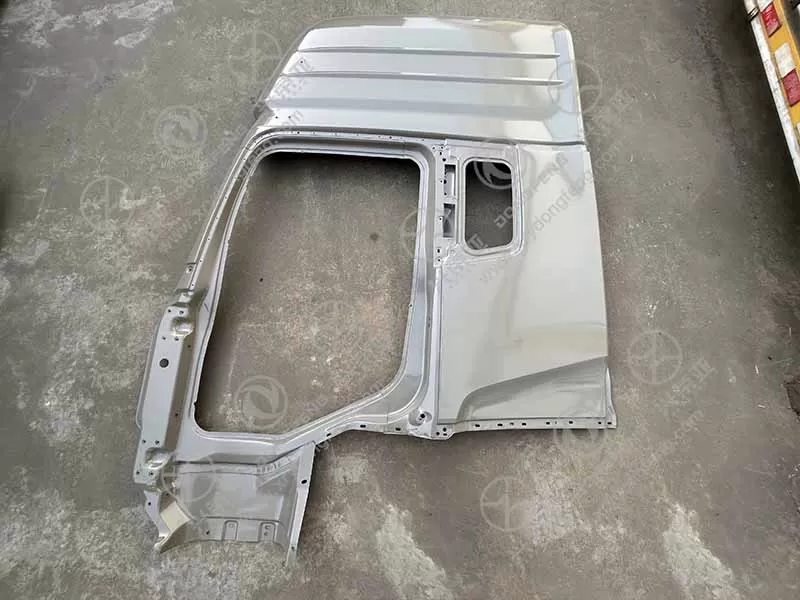

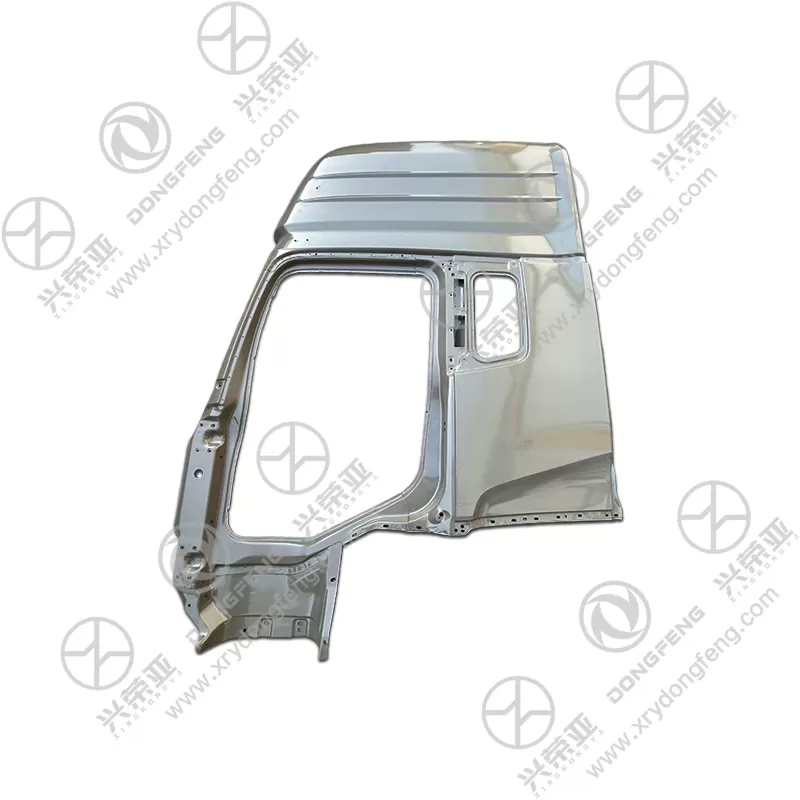

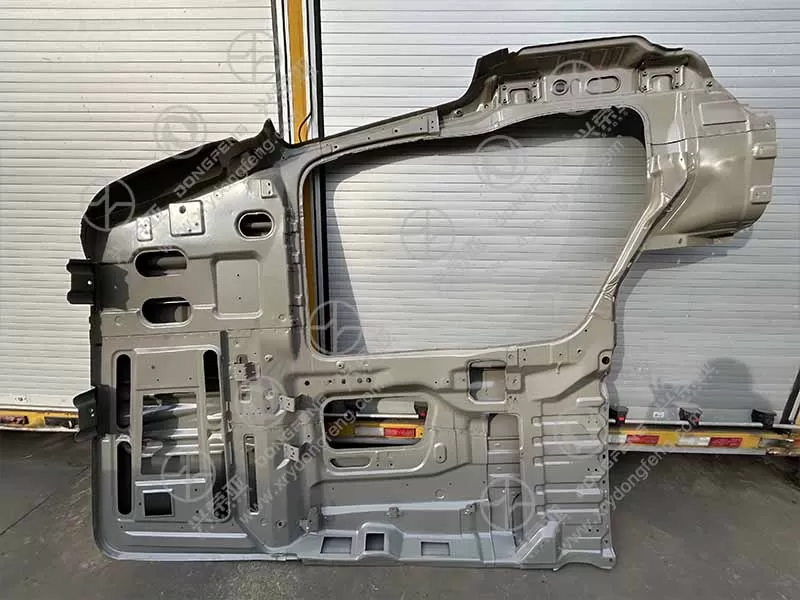

Dongfeng KInland truck parts left side welding assembly 5400011-C0300

A core advantage of the 5400011-C0300 assembly is its exceptional structural strength, tailored to Kinland’s heavy-duty operating demands. It is fabricated from Q355B low-alloy high-strength steel (8mm thick for main beams, 10mm for reinforced joints), which delivers a tensile strength of 510MPa and yield strength of 355MPa. This material enables the assembly to withstand 12,000kg static load (e.g., cargo pressure on box walls, cab roof support) and absorb 600J impact force (e.g., collisions with road debris, minor side impacts) without deformation. The steel undergoes thermomechanical rolling to enhance toughness, preventing brittle fracture in extreme temperatures (-40°C to 80°C)—critical for Kinland trucks operating in diverse climates. For vehicles hauling 25+ ton payloads or navigating rough terrain, this strength ensures the left-side structure protects the cab interior and cargo, reducing the risk of structural failure

The 5400011-C0300 assembly features industrial-grade welding to guarantee durable performance. It adopts gas metal arc welding (GMAW, MIG) with ER50-6 low-carbon steel wire for main joints, creating weld seams with a shear strength of 340MPa—matching the base steel’s strength to eliminate weak points. Critical load-bearing joints (e.g., beam-to-crossmember connections) use submerged arc welding (SAW) for deeper penetration and higher fatigue resistance. Each weld joint (total length 12,000mm) undergoes 100% ultrasonic testing to detect internal defects (porosity, cracks) that could lead to joint failure under vibration or load. Weld edges are ground smooth to reduce stress concentration and prevent corrosion buildup, while 3D laser positioning (accuracy ±0.3mm) during welding ensures all reinforcing ribs and mounting brackets align perfectly with the truck’s original layout. This precision extends the assembly’s service life to 10+ years

Built to withstand harsh operating conditions, the 5400011-C0300 assembly boasts a robust anti-corrosion system. First, it undergoes phosphatization treatment (5-8μm zinc phosphate layer) to improve coating adhesion and block initial rust formation. Next, it receives an electrophoretic coating (E-coat, 25μm) that covers all surfaces—including hidden weld gaps, bracket inner cavities, and reinforcing rib channels—to prevent under-film corrosion (a common failure point for generic structures). A final layer of polyurethane topcoat (30μm, gloss 60±5%) adds scratch resistance and UV protection, avoiding paint fading in prolonged sunlight. This multi-layer system passes 1,500-hour salt spray tests, ensuring the assembly remains rust-free even in coastal regions (high humidity), winter environments (road salt), or construction zones (industrial dust). For fleet operators, this protection minimizes maintenance costs and avoids premature replacement due to corrosion

The 5400011-C0300 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary components—including support beams, reinforcing ribs, and mounting brackets—and pre-drilled mounting holes that align perfectly with the truck’s factory left-side framework. The package includes 10.9-grade high-strength bolts (with lock washers) that match Kinland’s factory torque specifications (220-240 N·m), ensuring secure attachment without custom hardware. Installation takes 6-8 hours for a two-person team using standard tools (torque wrenches, impact drivers), and a detailed manual (with 3D assembly diagrams and alignment marks) guides precise fitting to ensure compatibility with adjacent parts (e.g., left door, cargo box panels). Unlike custom-fabricated alternatives that require on-site welding or cutting, this OEM assembly ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks like freight delivery, construction work, or logistics operations
