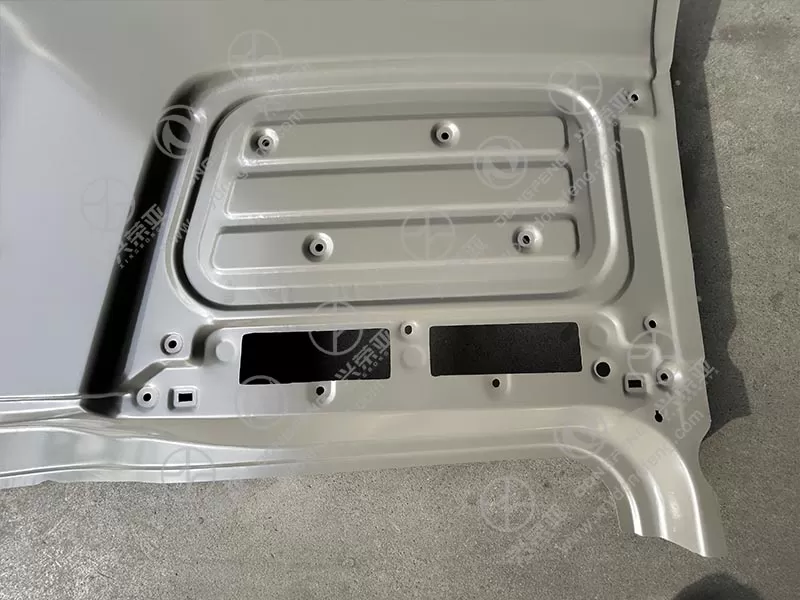

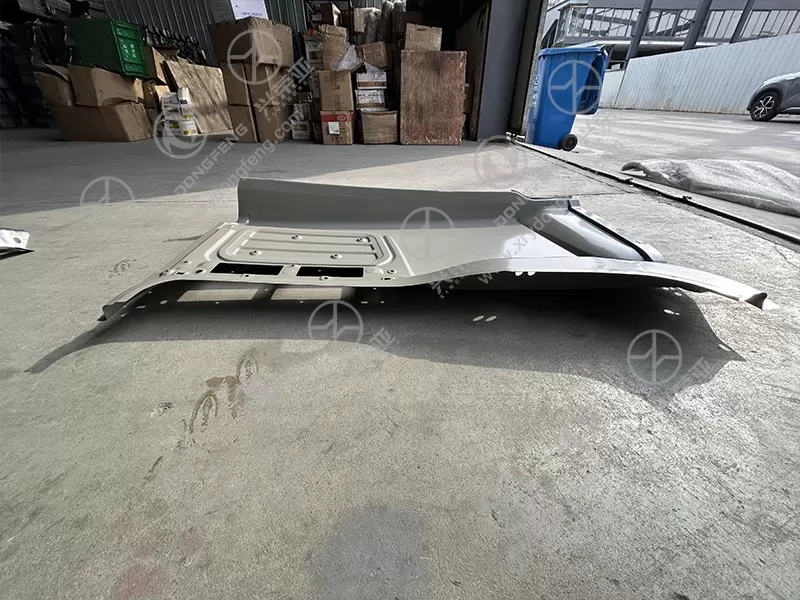

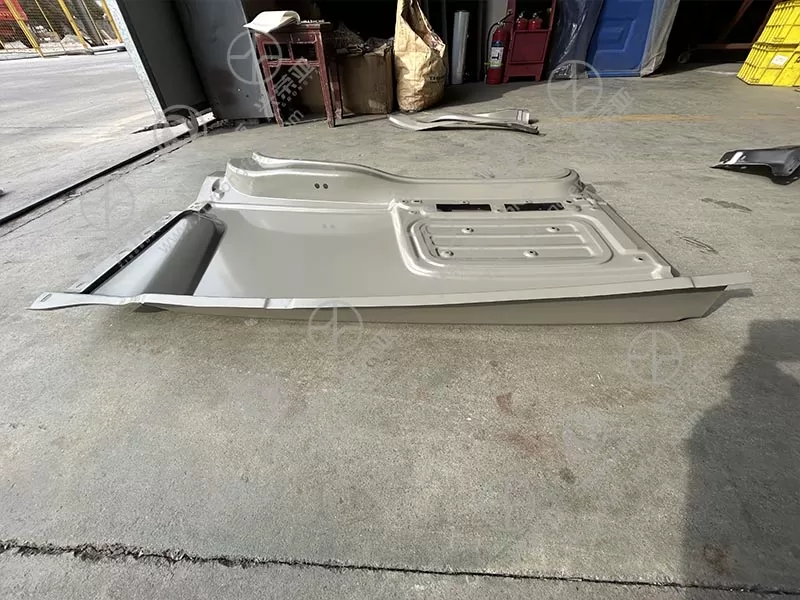

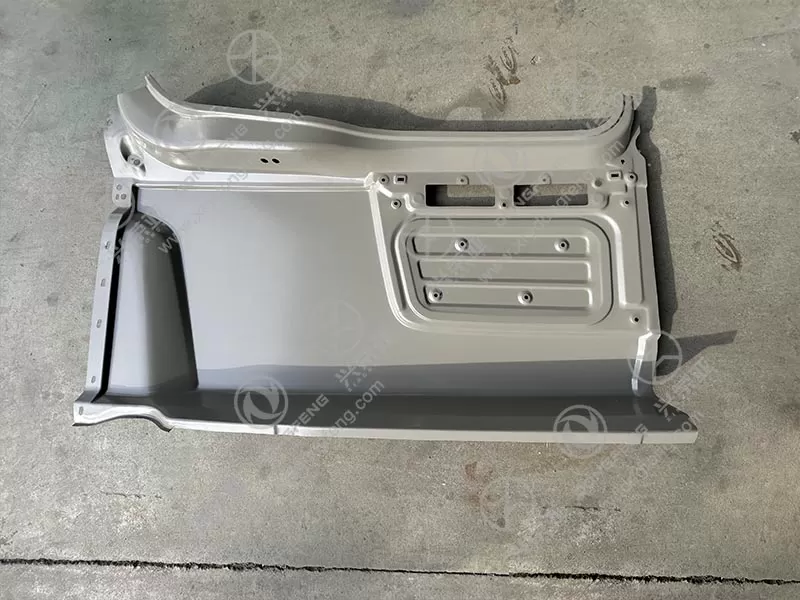

Dongfeng Kinland truck parts left side wall welding assembly 5401011-C0300

A core advantage of the 5401011-C0300 assembly is its robust construction, tailored to withstand heavy-duty truck operations. It is fabricated from 2mm-thick cold-rolled steel (DC04 grade) with a bake-hardened layer, delivering a tensile strength of 380MPa—capable of resisting dents from minor impacts (e.g., gravel, loading equipment bumps) and supporting lateral loads (e.g., cargo pressure on box walls) without deformation. Reinforced steel strips (3mm thick) are welded along high-stress areas (e.g., door frame edges, wheel arch surrounds) to enhance rigidity, preventing warping that disrupts door alignment or seal performance. For Kinland trucks operating in construction zones or rural areas with rough terrain, this durability reduces repair frequency, extends the body’s service life, and maintains resale value

The 5401011-C0300 assembly features industrial-grade welding that balances strength and visual appeal. Critical joints (e.g., panel-to-bracket connections, reinforced strip attachments) use laser welding to create narrow, smooth seams with a shear strength of 320MPa—matching the base steel’s performance while minimizing surface irregularities. Non-visible joints adopt gas metal arc welding (GMAW) with ER50-6 wire, inspected via ultrasonic testing to eliminate defects (porosity, cracks) that could lead to rust or structural failure. All weld edges are ground and polished to blend with the panel surface, requiring minimal post-installation finishing. 3D laser positioning (accuracy ±0.2mm) during welding ensures mounting points, cutouts (for side mirrors, fuel caps), and contour lines align with the truck’s original design—avoiding mismatches that affect functionality or aesthetics

Built to withstand harsh operating conditions, the 5401011-C0300 assembly boasts a comprehensive anti-corrosion system. First, it undergoes zinc phosphatization (8μm layer) to enhance coating adhesion and block initial rust formation. Next, an electrophoretic coating (E-coat, 20μm) penetrates all surfaces—including weld gaps, bracket inner cavities, and edge folds—to prevent under-film corrosion (a leading cause of premature panel failure). A final layer of polyester topcoat (30μm) with a finish matching Kinland’s factory options (matte or gloss) adds UV protection and resistance to road salt, diesel spills, and industrial chemicals. This multi-layer system passes 1,000-hour salt spray tests, ensuring the panel remains rust-free even in coastal regions (high humidity) or winter environments (deicing salts). For fleet operators, this protection reduces maintenance costs and keeps the truck looking professional

The 5401011-C0300 assembly is designed for efficient installation, reducing Kinland truck downtime. It comes pre-welded with all necessary components: door hinge mounts, seal retainers, wiring clips, and reinforcement brackets—eliminating on-site welding. Pre-drilled mounting holes align with the truck’s factory body framework, and the package includes 10.9-grade stainless steel bolts (M10×16mm) and foam seals that match Kinland’s original specifications for a weathertight fit. Installation takes 6-8 hours for a two-person team using standard tools (torque wrenches, panel pullers), and a detailed manual (with 3D assembly diagrams and torque charts) guides alignment to ensure proper door closure and seal performance. Unlike aftermarket panels that require custom trimming, this OEM assembly ensures a perfect first-time install—getting Kinland trucks back on the road faster for time-sensitive tasks like freight delivery or construction work
